Product Description

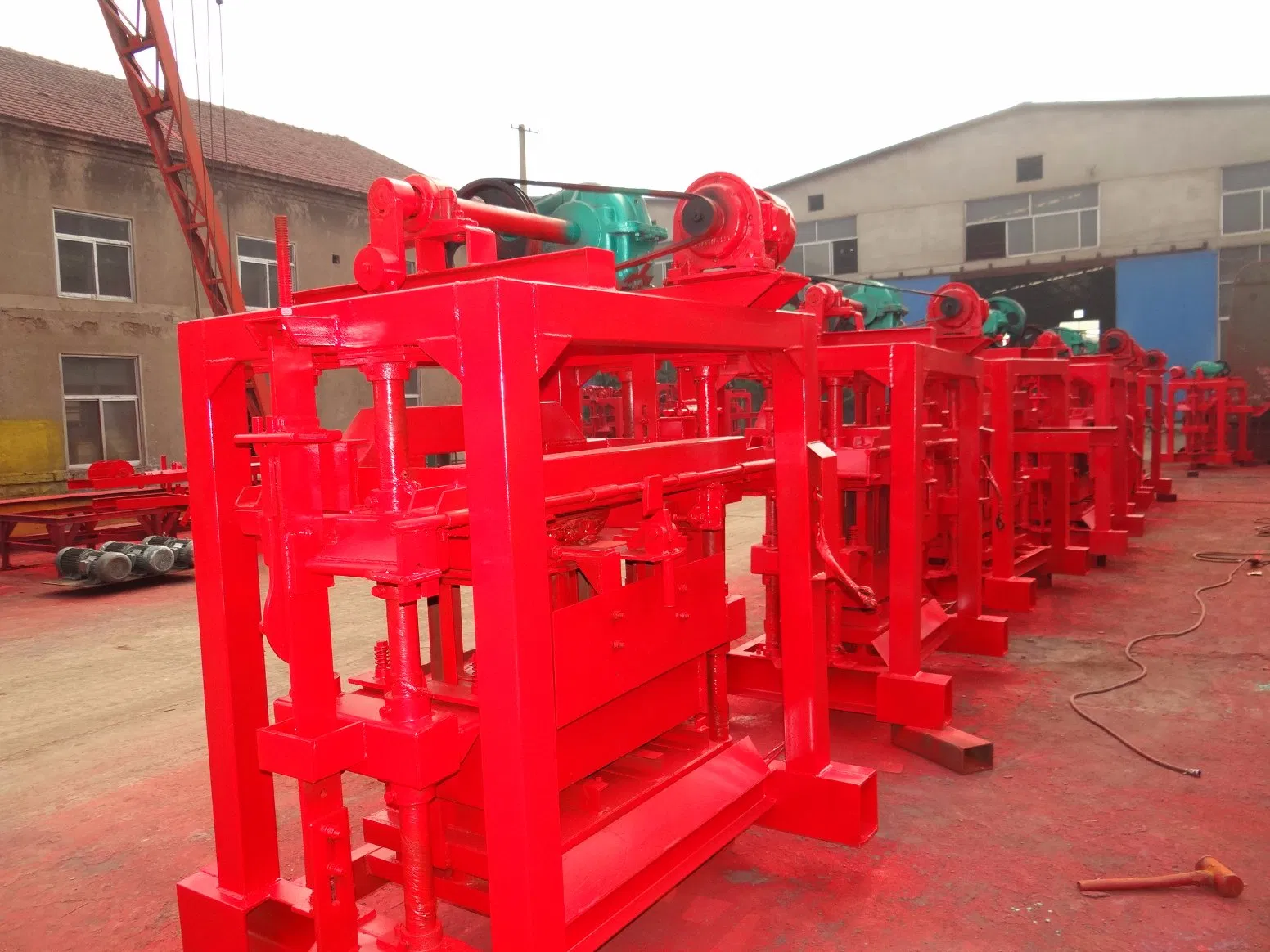

Introduction:

Adopting four-leads guiding system ,with high strong vibration motor and using both compression of the upper and the bottom mould enhance the productivity and quality, at the same time can adapt to the different kinds of material for various blocks.

Main technical specification:

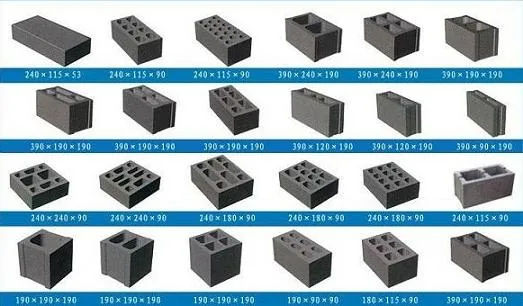

Molding pieces	390mm×190mm×190mm 4pcs/mold 390mm×240mm×190mm 3pcs/mold 390mm×120mm×190mm 6pcs/mold 240mm×115mm×53mm 21pcs/mold (Note:The mold according to your requirement)
Molding cycle	40s/time
Vibration frequency	2800rpm
Productivity	2000-2500 pcs/day(count by quantity of per mold)
Exciting power	28KN
Power	9.7KW(Total power in the next page)
Vibration form	Platform vibration
Pallet size	850mm×460mm×40mm(30)mm

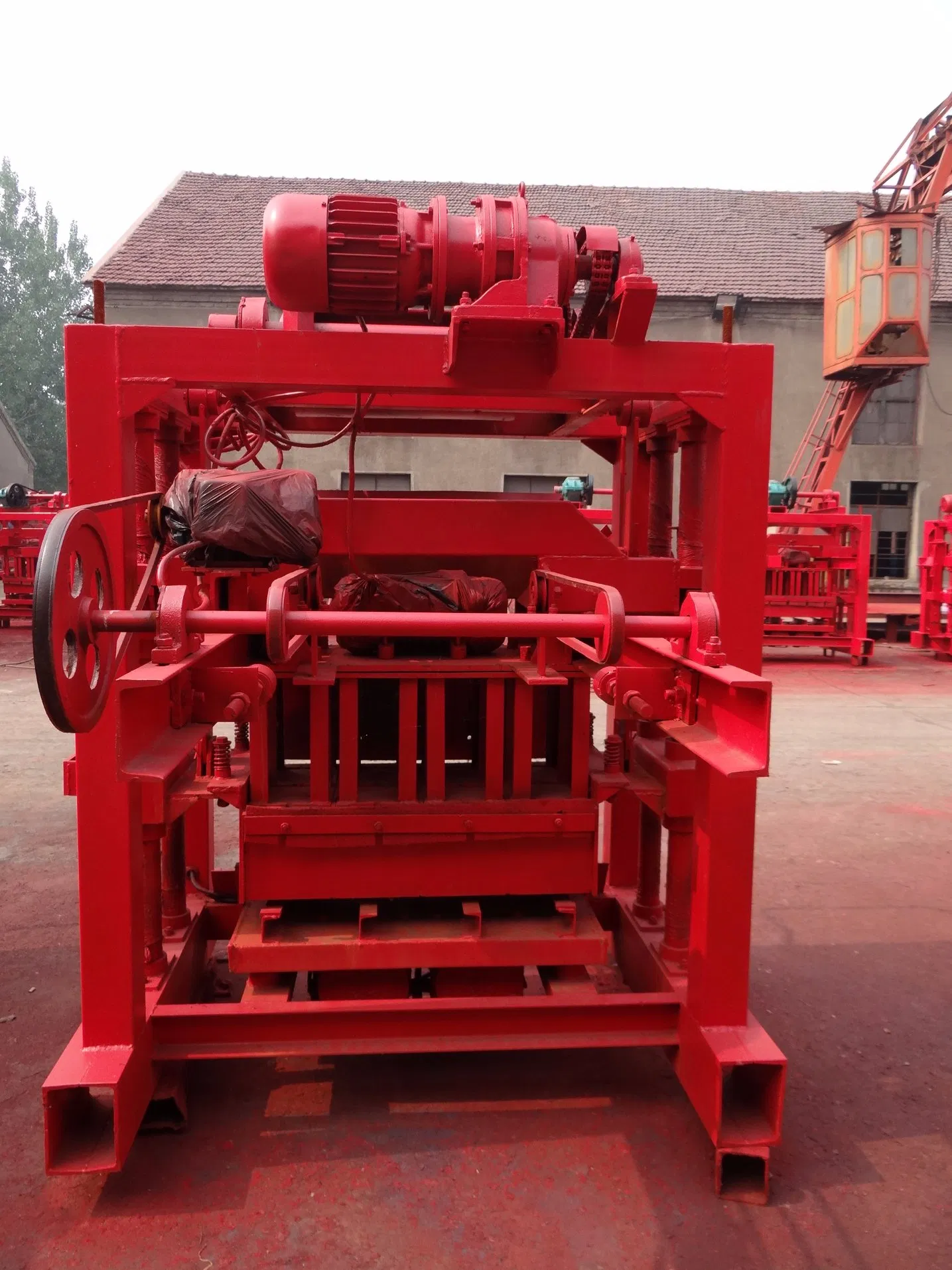

Structure:

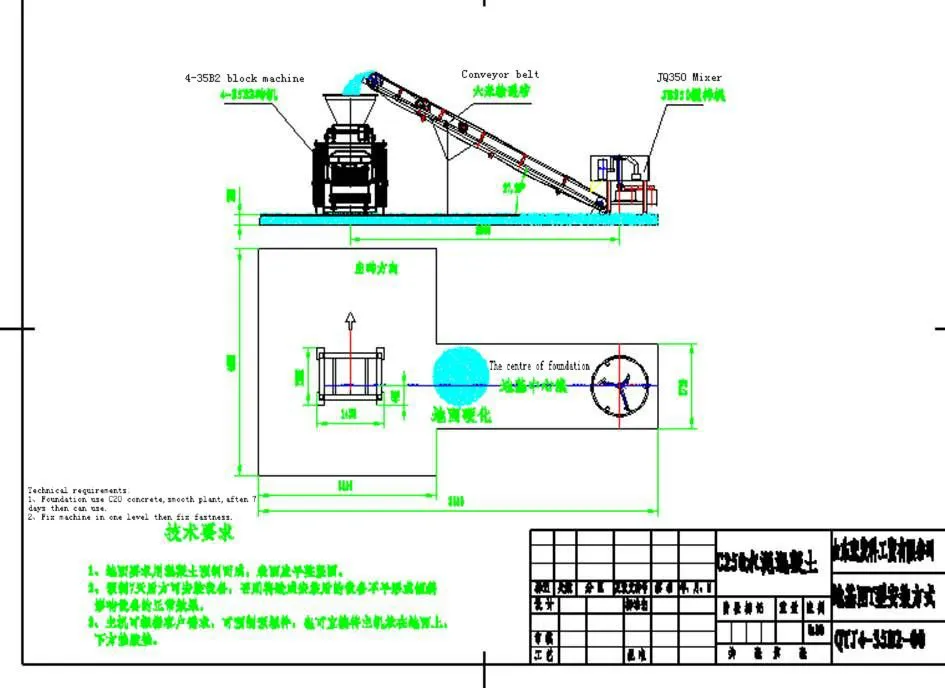

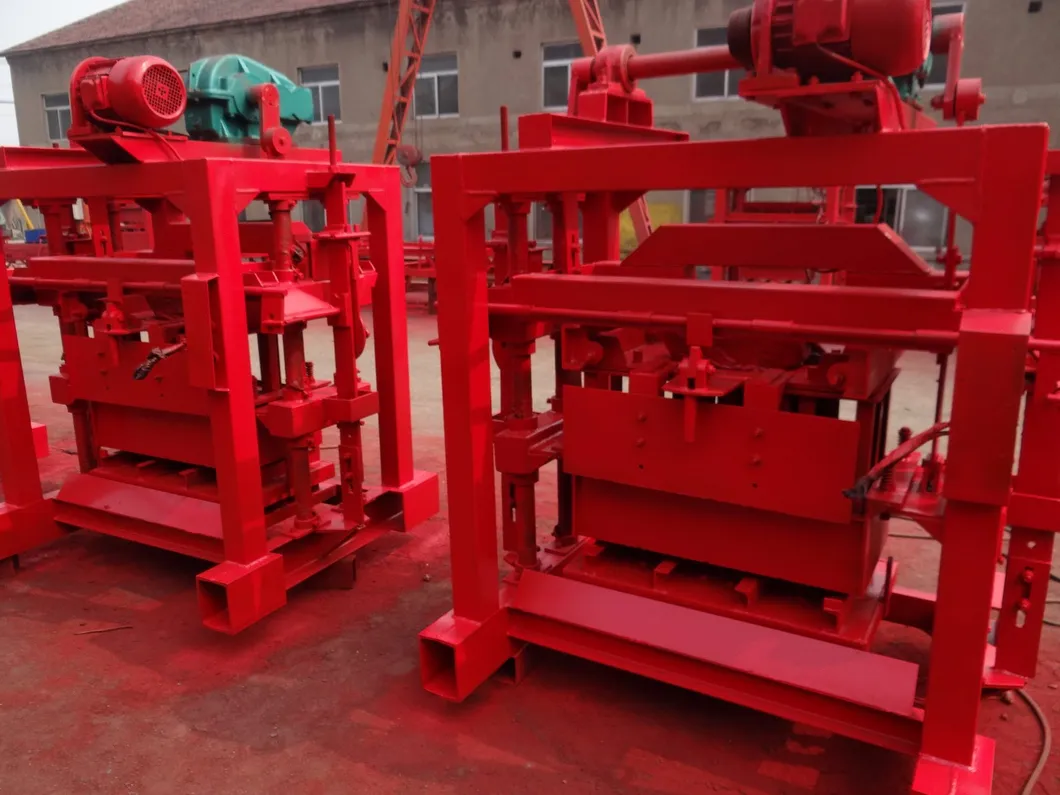

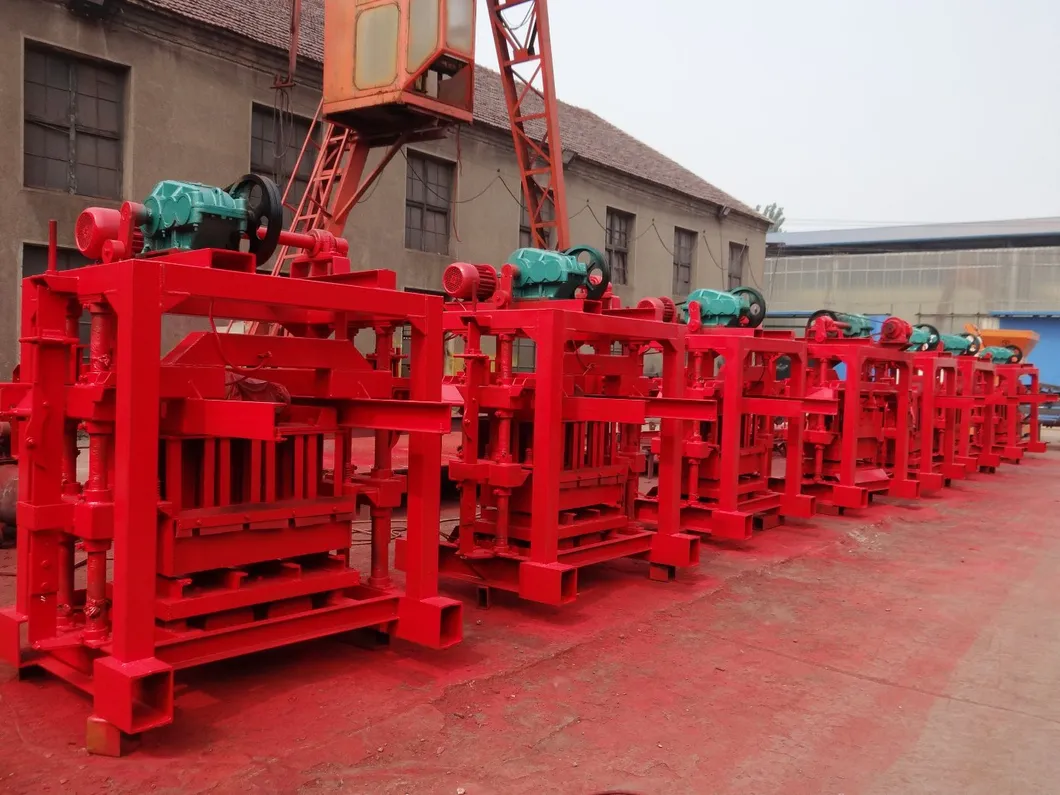

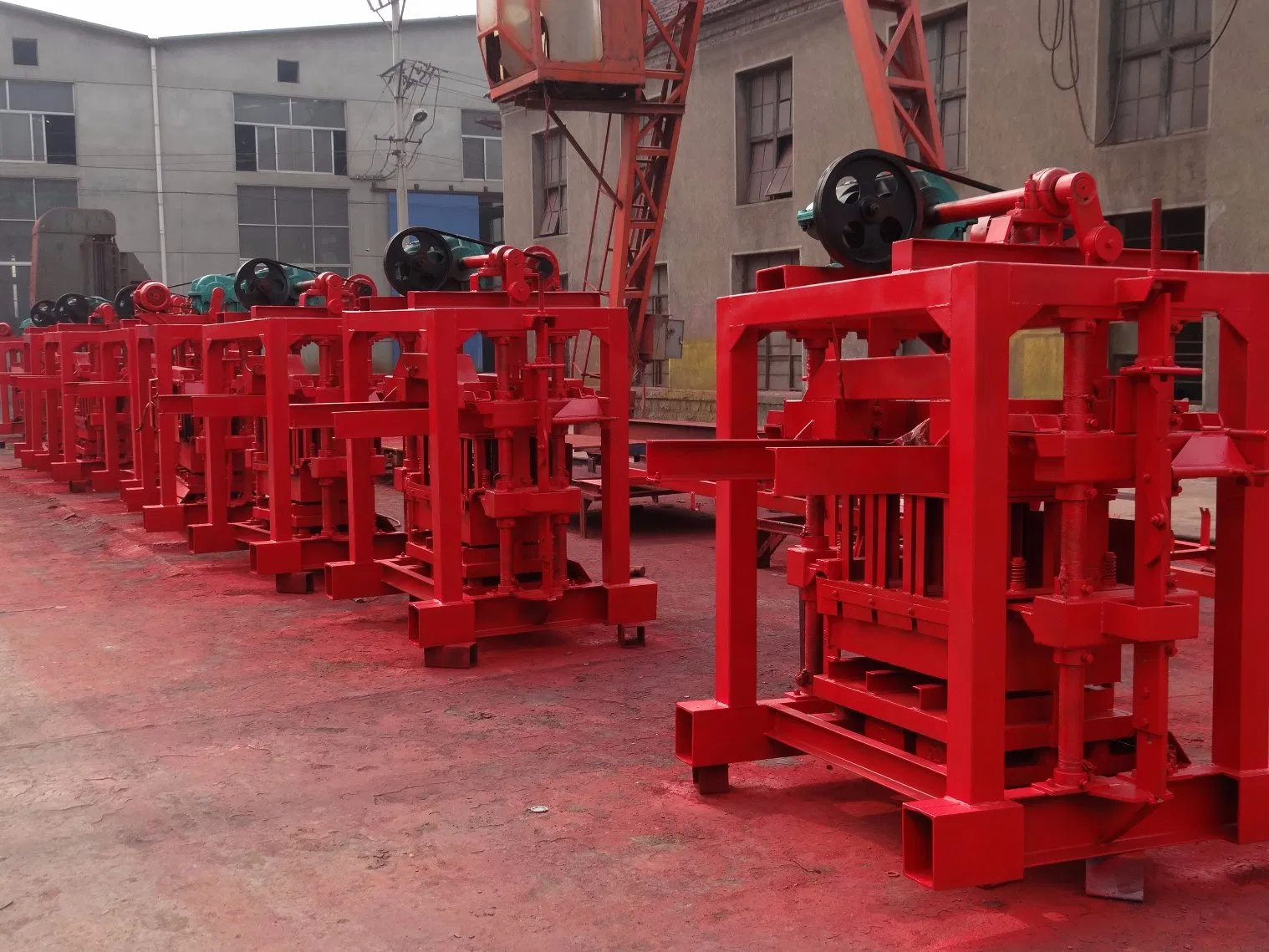

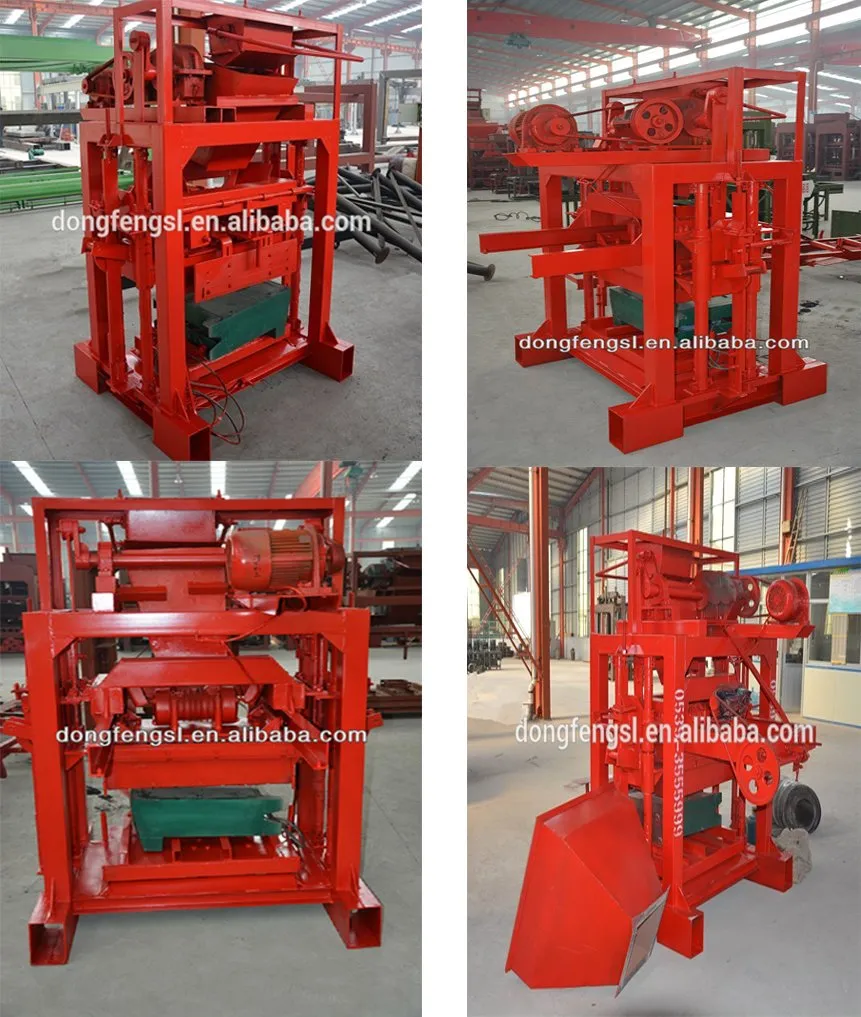

4-40 Semi Automatic Concrete Brick/Block Machine Production Line

QTJ4 - 35 type electric block forming machine, the host can be operated independently, also can be equipped with a belt conveyor, a pipeline
mixer. The host comprises a vibration source, transmission, lifting, pushing, hopper, die electric control box system.

Lifting system: compose of cycloid pin motor, sprockets, lift arm, axle sleeve and hanging pin, positioning pin.
the cycloid pin motor with 1.5 kilowatt driven spindle at both ends of crank arm. Lift and lower the mold in parallel driven by the lift arm, The upper mold and beam hanging by both sides, balanced in the positioning plate. Hanging from the upper mold.make upper mold leave the molding box smoothly.
Vibration system: under vibration compose of two set vibrator combination with 3KW. vibration above formed by a 1.5KW vibrator up and down.

Raw material :

QTJ4 - 35 type block machine include normal concrete and lightweight concrete raw materials, can use river sand, mechanism sand, gravel, crushed stone, slag, stone and other materials. Meanwhile,it can also use cinder, fly ash, pumice stone, ceramic, perlite, shale and other materials, wide suitability, as long as the raw materials with the power electricity, it can be produced.
