Cheap Automatic Concrete Hollow Block Solid Brick Making Machine in Kenya (QT4-25)
Cheap automatic concrete hollow block solid brick making machine in Kenya(QT4-25)Advantages:1. Reasonable in design and compact in structure.2. achieve directional librating, converter braking and quick eliminating energy consumption.3. Automatic PLC Operation, Reduce Labor Cost4.pressing from the t......
Send Inquiry
Product Description
Cheap automatic concrete hollow block solid brick making machine in Kenya(QT4-25)
Advantages:
1. Reasonable in design and compact in structure.
2. achieve directional librating, converter braking and quick eliminating energy consumption.
3. Automatic PLC Operation, Reduce Labor Cost
4.pressing from the top and bottom, suitable to produce the high-intensity blocks

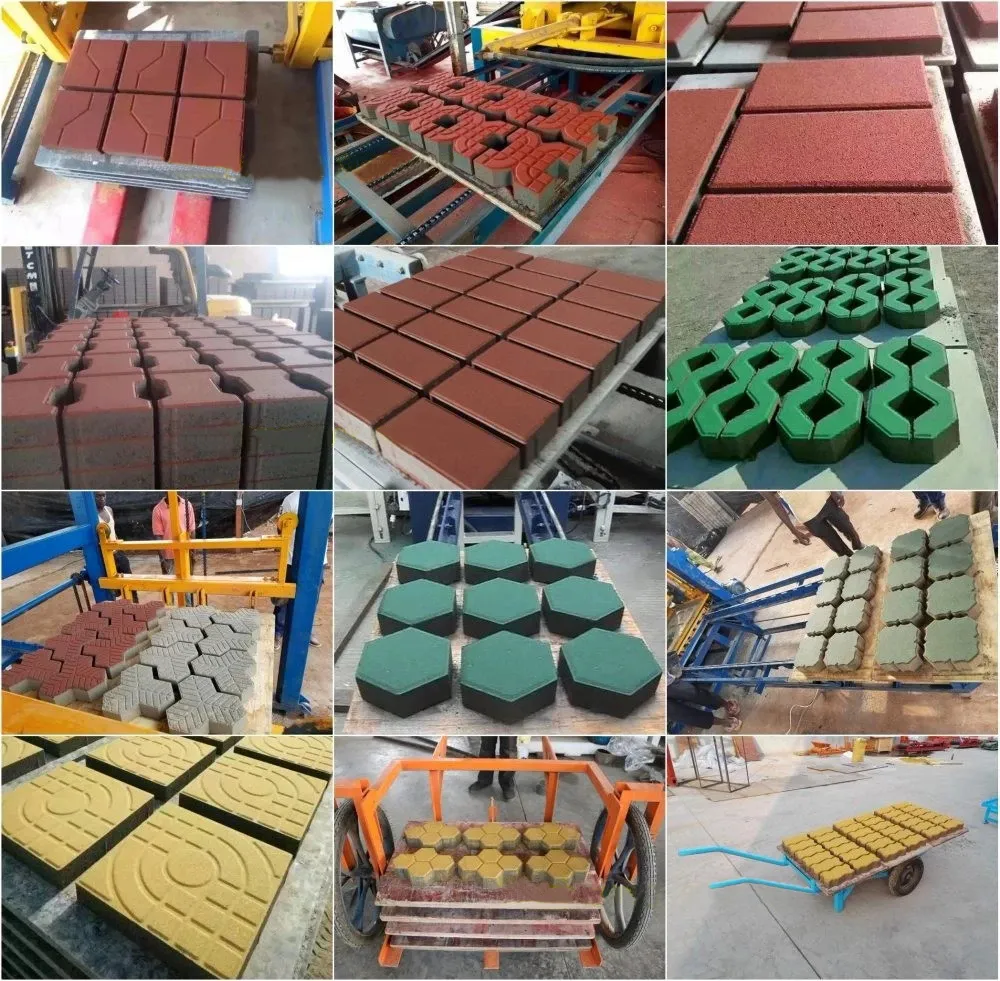

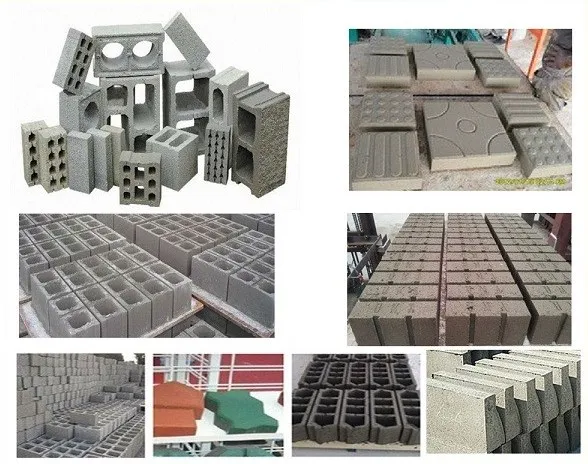

5. Produce sizes of hollow block, solid brick, hourdis, interlocking paver and curbstone by changing molds
6. Small Investment, Big Capacity
7. Suitable For Medium and Small-Scale Block Factory
2. Production Capacity of QT4-25 automatic vibrated cement concrete block brick making machine
QT4-25 automatic vibrated cement concrete block brick making machine can produce sizes of hollow blocks, solid bricks, hourdis, interlocking pavers and curbstone by changing molds.
The following are produciton capacity for some popular sizes of block and pavers.
Contact us for some designs of block and pavers for your reference
3. Producion Description of QT4-25 automatic vibrated cement concrete block brick making machine
A: Electric Power List of QT4-25 automatic block making Line
B: Worker Numbers : 5-6 Workers
Two Workers to load material into mixer
One Worker to operate block machine
One Worker to load pallet into pallet box of block machine
One or Two Workers to carry fresh blocks to curing sites.
C: Factory Area for QT4-25 brick making line: 1000-1500M2
Shelter for Machines: 60M2 (6*10mm)
D: Pallet Number: 1000pcs pallet for QT4-25 concrete block making line.
We supply bamboo pallet, fiber (GMT) pallet and PVC pallet. According to Experiences and Feedback of our customers, we recommend you the Fiber Pallet:
Advantages:
1. Reasonable in design and compact in structure.
2. achieve directional librating, converter braking and quick eliminating energy consumption.
3. Automatic PLC Operation, Reduce Labor Cost
4.pressing from the top and bottom, suitable to produce the high-intensity blocks
5. Produce sizes of hollow block, solid brick, hourdis, interlocking paver and curbstone by changing molds
6. Small Investment, Big Capacity
7. Suitable For Medium and Small-Scale Block Factory
2. Production Capacity of QT4-25 automatic vibrated cement concrete block brick making machine
QT4-25 automatic vibrated cement concrete block brick making machine can produce sizes of hollow blocks, solid bricks, hourdis, interlocking pavers and curbstone by changing molds.
The following are produciton capacity for some popular sizes of block and pavers.
| No. | Block Sizes | Production Capacity |
| 1 | 400*200*200mm Hollow /Solid Block | 4 Blocks in one time 4608 Blocks in 8 hours |
| 2 | 400*150*200mm Hollow /Solid Block | 5 Blocks in one time 5760 Blocks in 8 hours |
| 3 | 400*100*200mm Hollow /Solid Block | 7 Blocks in one time 8064 Blocks in 8 hours |
| 4 | 500*120*200mm Hourdis Block | 6 Hourdis in one time 6912 Hourdis in 8 hours |
| 5 | 200*100*60/80mm Holland Paver | 14 Pavers in one time 16128 Pavers in 8 hours |
| 6 | 200*160*60/80mm I Shaped Paver | 8 Pavers in one time 9216 Pavers in 8 hours |
| 7 | 225*112.5*60/80mm S shaped Paver | 12 Pavers in one time 13824 Pavers in 8 hours |
Contact us for some designs of block and pavers for your reference
3. Producion Description of QT4-25 automatic vibrated cement concrete block brick making machine

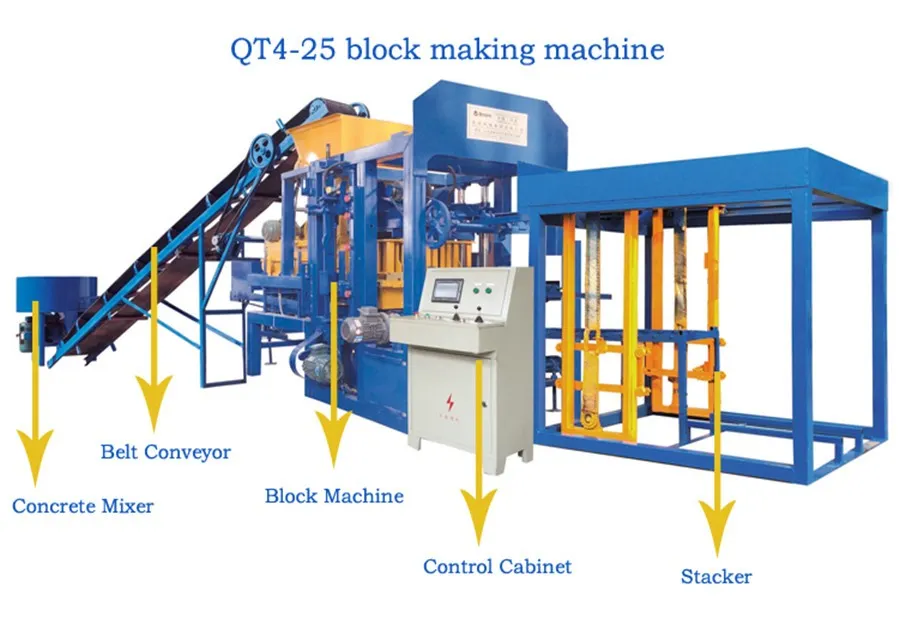

A: Electric Power List of QT4-25 automatic block making Line
| No. | Description | Power | Function |

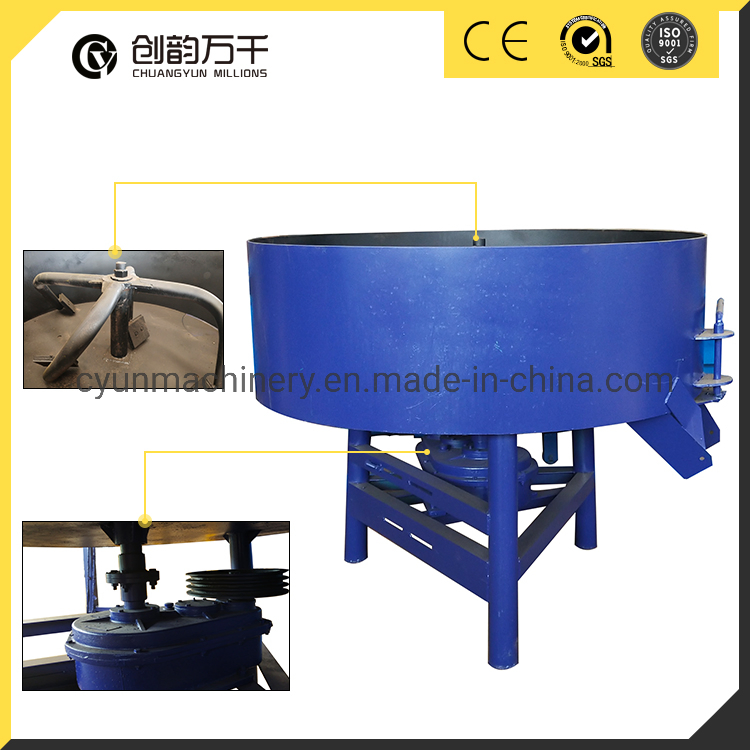

| A | JQ500 Mixer | 7.5KW | 500L Capacity, Mixing Raw material ( cement, sand, stone, water) |
| B | Belt Conveyor | 0.75KW | 6M Length, Carry Mixed material from Mixer to Block Machine |
| C | Block Machine | 18.6KW | Produce sizes of blocks and pavers |
| D | Control Cabinet | Without | Control Block Block |
| E | Automatic Stacker | 1.5KWt | Automaticlly Stacking fresh block with 3-4 pallets |
| Barrows | Without | Carry fresh block to curing sites | |
| Note: total power is 28.35KW, Electricity must be 3 phase, 50/60HZ, 220/380/440V | |||
B: Worker Numbers : 5-6 Workers
Two Workers to load material into mixer
One Worker to operate block machine
One Worker to load pallet into pallet box of block machine
One or Two Workers to carry fresh blocks to curing sites.
C: Factory Area for QT4-25 brick making line: 1000-1500M2
Shelter for Machines: 60M2 (6*10mm)
D: Pallet Number: 1000pcs pallet for QT4-25 concrete block making line.
We supply bamboo pallet, fiber (GMT) pallet and PVC pallet. According to Experiences and Feedback of our customers, we recommend you the Fiber Pallet:
