China Famous Soil Cement Block Making Machine
  • China Famous Soil Cement Block Making MachineChina Famous Soil Cement Block Making Machine
  • China Famous Soil Cement Block Making MachineChina Famous Soil Cement Block Making Machine
  • China Famous Soil Cement Block Making MachineChina Famous Soil Cement Block Making Machine
  • China Famous Soil Cement Block Making MachineChina Famous Soil Cement Block Making Machine

China Famous Soil Cement Block Making Machine

China famous soil cement block making machine1. QT4-24B Block making machine introduction and video:Video Link: https://youtu.be/u7swdQCfZBg2. QT4-24B semi automatic block production line list:ItemNumber in PhotoNameFunction1A,BQT4-24 Host block machineProduce brick a. hopper b. automa......

Send Inquiry

Product Description

               China famous soil cement block making machine
China Famous Soil Cement Block Making Machine

1. QT4-24B Block making machine introduction and video:

Video Link: https://youtu.be/u7swdQCfZBg

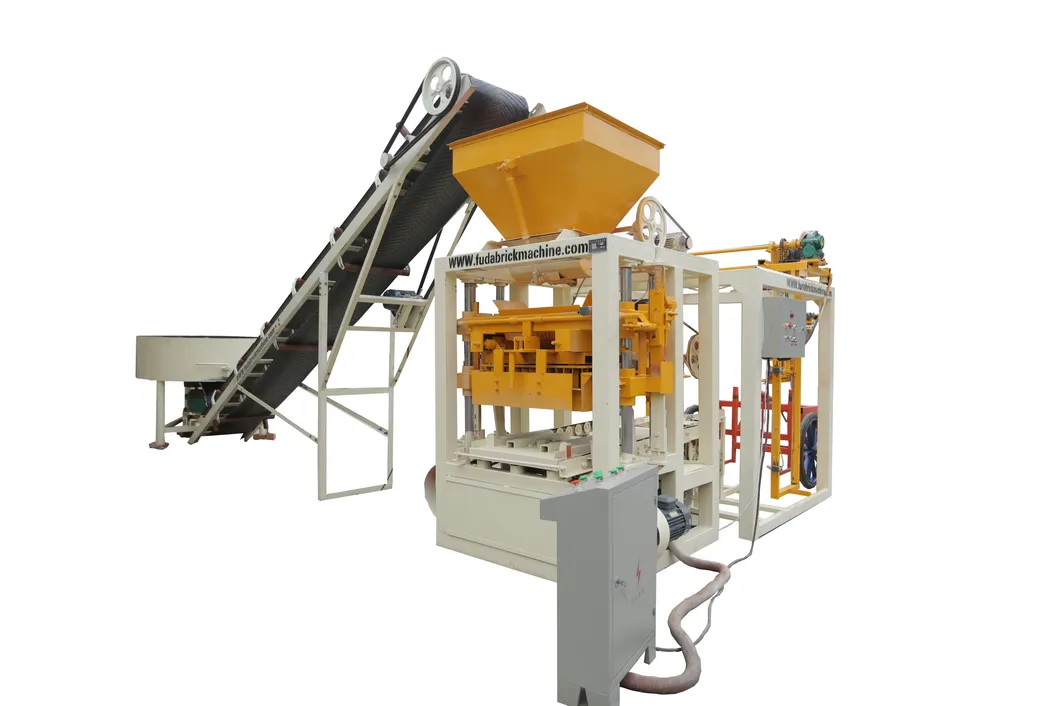

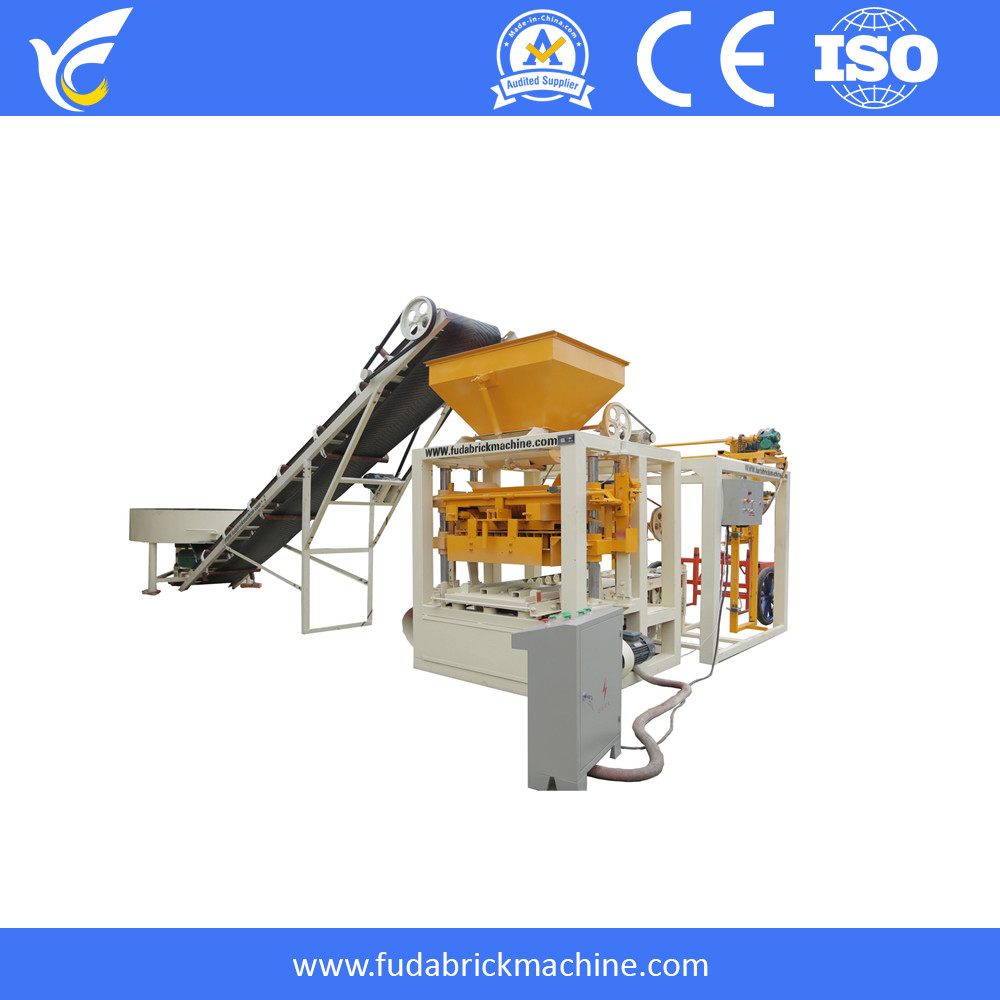

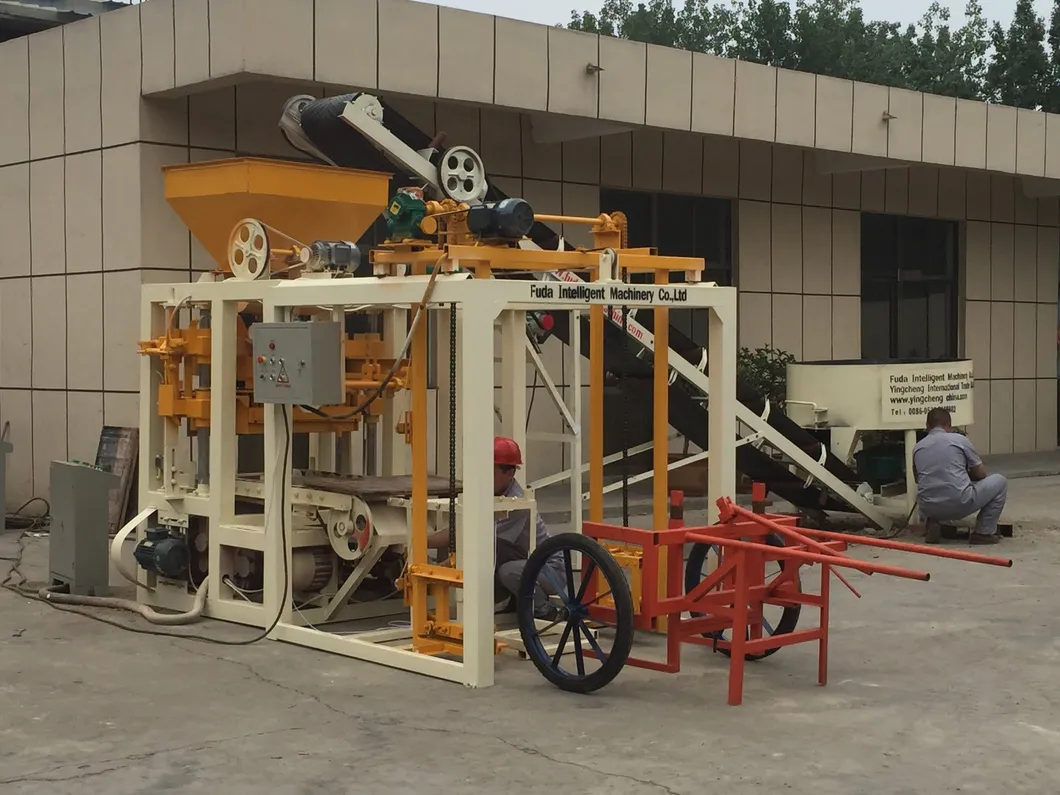

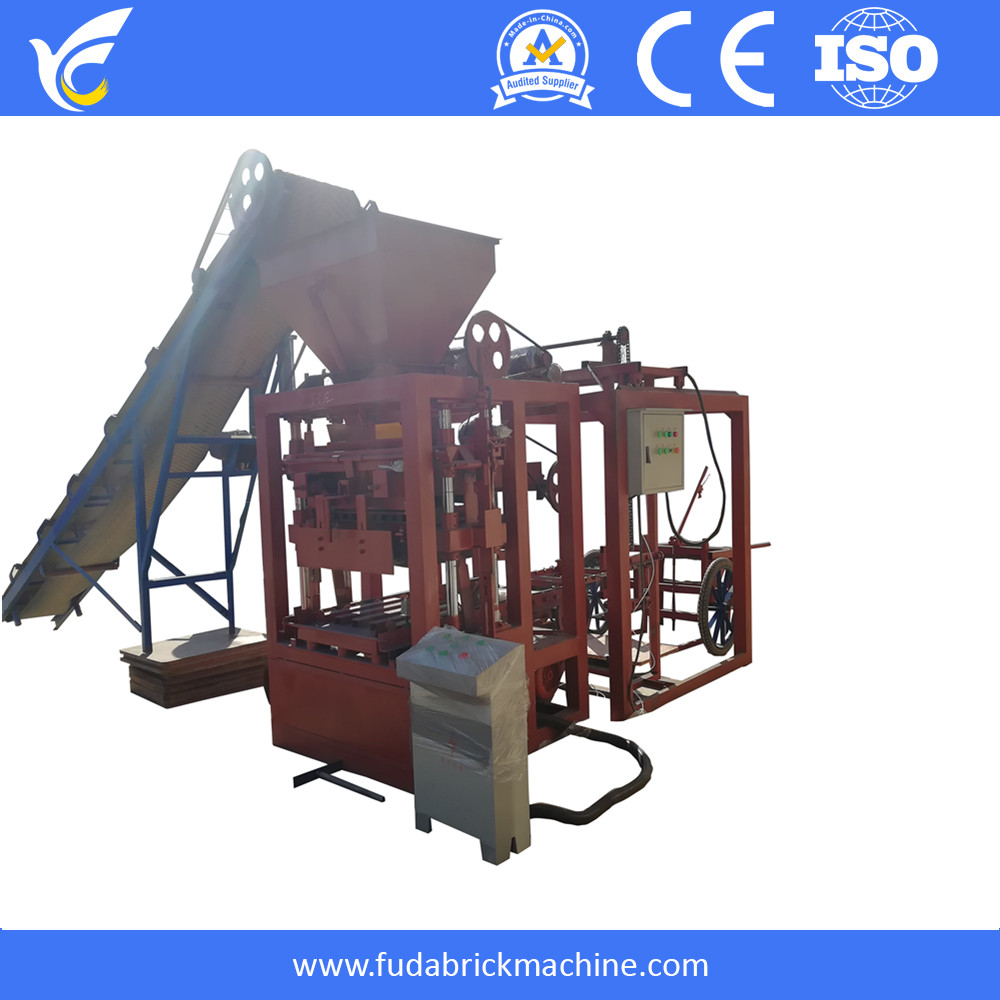

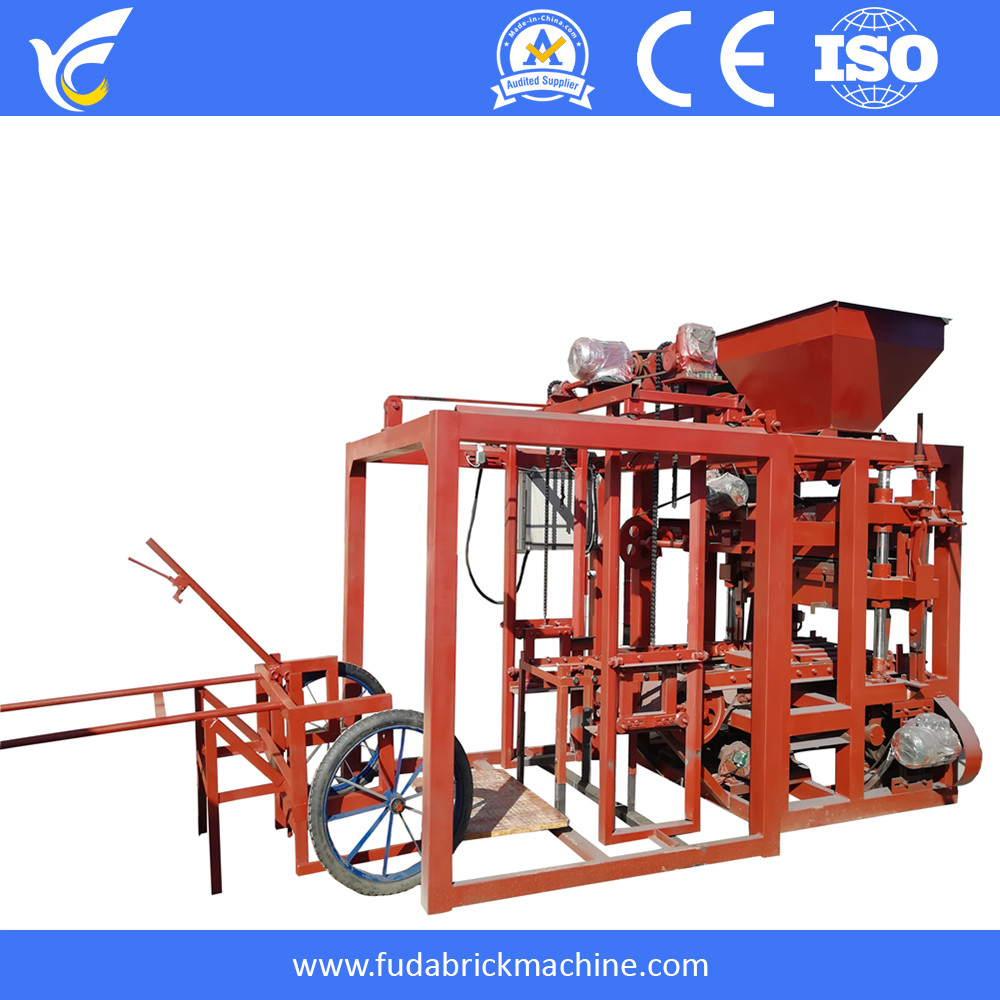

2. QT4-24B semi automatic block production line list:
ItemNumber in PhotoNameFunction
1A,BQT4-24 Host block machineProduce brick
            a. hopper    b. automatic block receiver
2CConveyorTransfer material
3DMixerMixing raw material
China Famous Soil Cement Block Making Machine
China Famous Soil Cement Block Making Machine


3. QT4-24B Technical information:
Power13.5KW
Electric Sorce380V, 50HZ,3Phase
Cycle per mold25S
Pallet Size: 850*550*25mm
Machine Size2060*1730*2580mm
Weight2000Kg
Worker5-6 Workers
Raw MaterialConcrete; Cement, sand, stone; Flyash, Stone powder, Cinder....
ProductsHollow, solid, houdis block, interlocking paver
FunctionSemi Automatic
Land AreaShaded Area: 100-200m2
Stocking and Curing Area: 500-1000m
China Famous Soil Cement Block Making Machine

4. QT4-24B concrete hollow block making machine capacity of different brick types:
ItemMold InfoPcs per moldCapacity

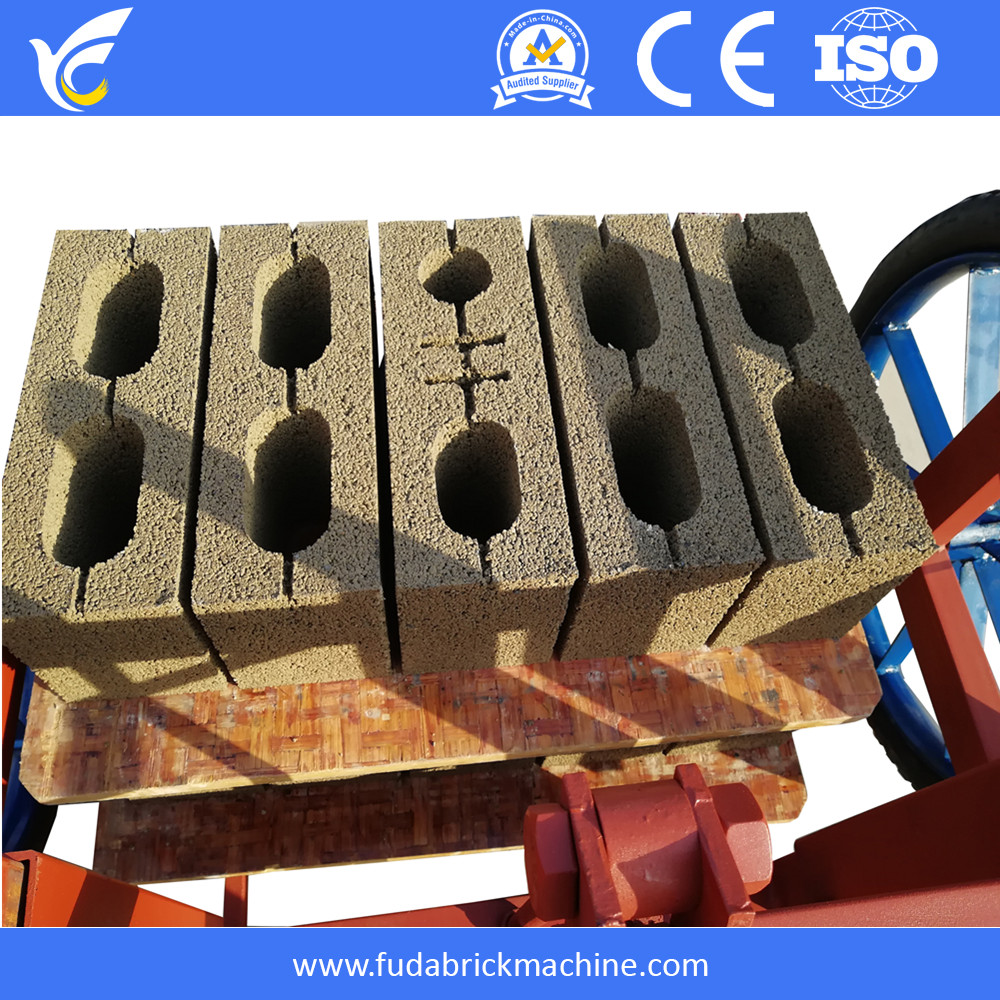

140*20*20cm (hollow/solid)4 pcs/mold3840 pcs/8 hours
240*10*20cm (hollow/solid)6 pcs/mold5760 pcs/8 hours
320*10*6cm (Holland Brick)16 pcs/mold15360 pcs/8 hours
420*16*6cm (I shape)12 pcs/mold11520 pcs/8 hours
522.5*11.25*6cm (S shape)12 pcs/mold11520 pcs/8 hours
A. Mold Changeable

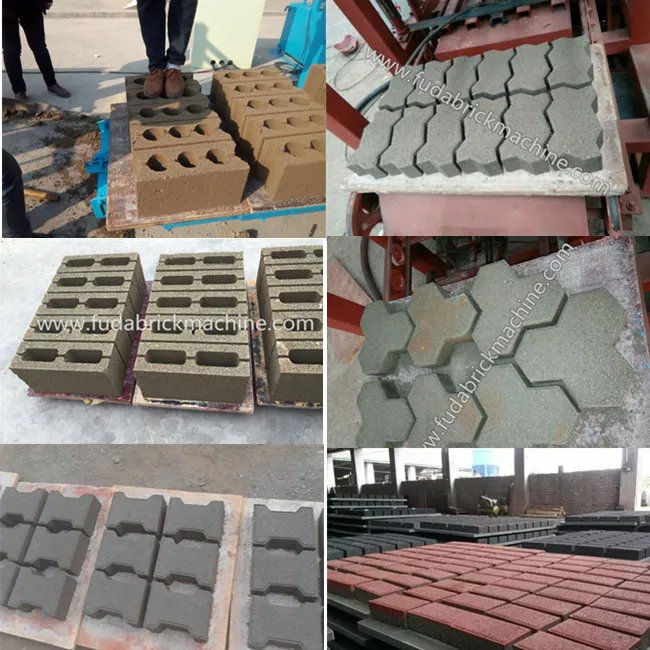

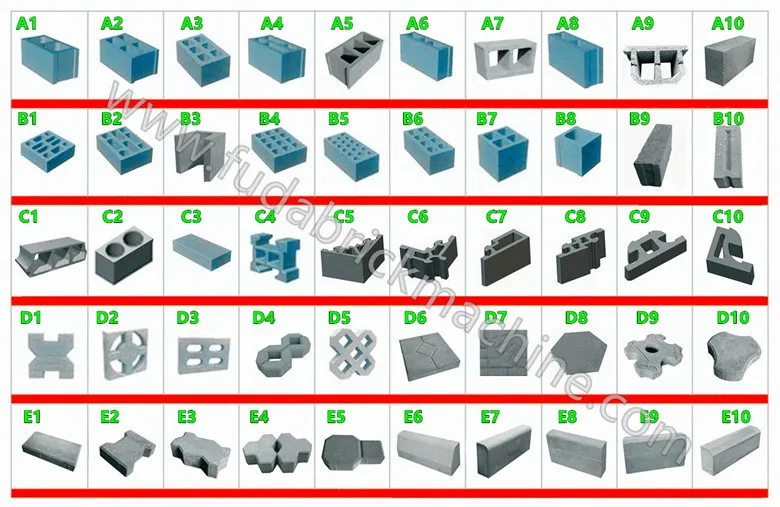

B. QT4-24B could produce different wall blocks, pavers and curb stones
China Famous Soil Cement Block Making Machine
China Famous Soil Cement Block Making Machine


5. Raw Material of QT4-24B concrete block making machine
ItemRam MaterialProporation
1ConcreteCement:sand:stone=1:3:6
2Concrete with fly ashCement: 8-15%, Fly ash: 10-15%, Sand: 15-20%, Stone: 55-60%
3Concrete with stone powderCement: 5-10%, Stone powder: 5-10%, Sand: 20-30%, Stone: 50-60%
If you want to produce stronger block, you should add more cement, but cement no more than 20%
