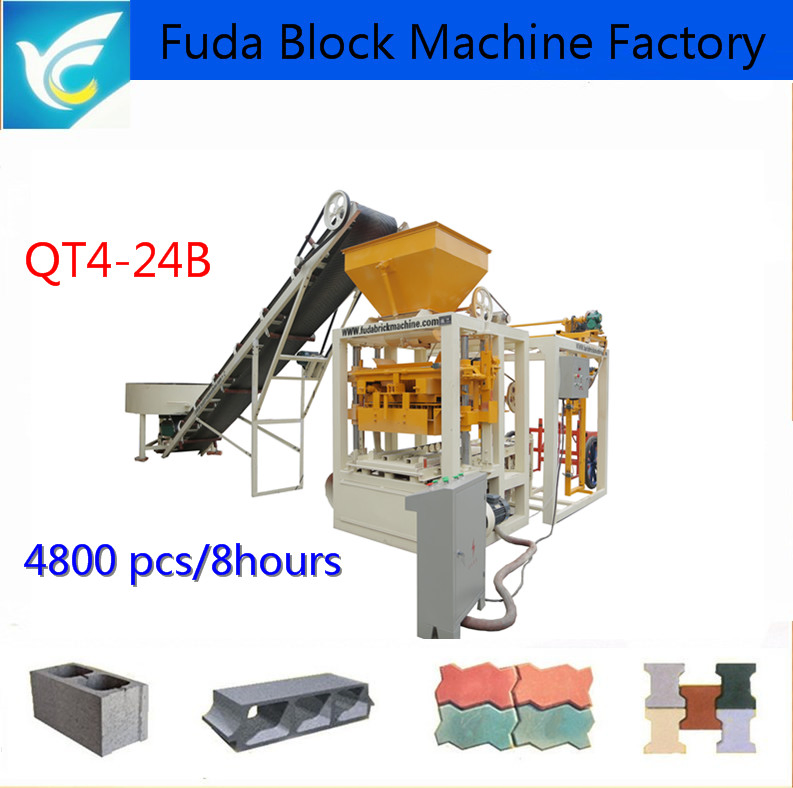

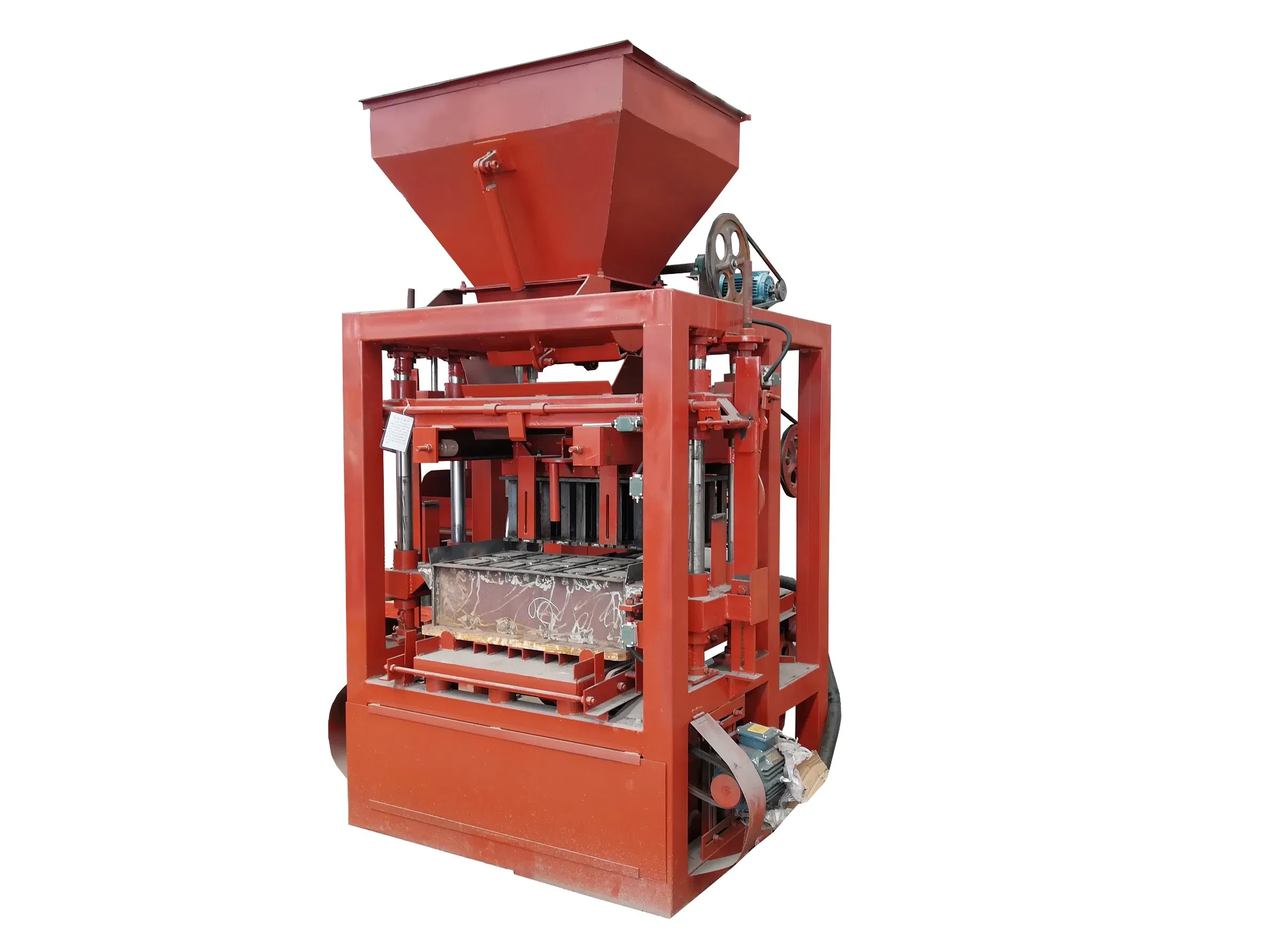

China Hot Sale Semi Automatic Cement Hollow Brick Machine
Small Semi Automatic Concrete Cabro Brick Making MachineMotorReducerPLC control systemTransformerProduction line list:Host Block Making MachineProduce brick MixerDiameter: 1.2m; power: 7.5kwConveyorL=6mStacker machineOne pallet a time stackerBlock receiveQT4-24B Technical information:Host Machine P......
Send Inquiry
Product Description

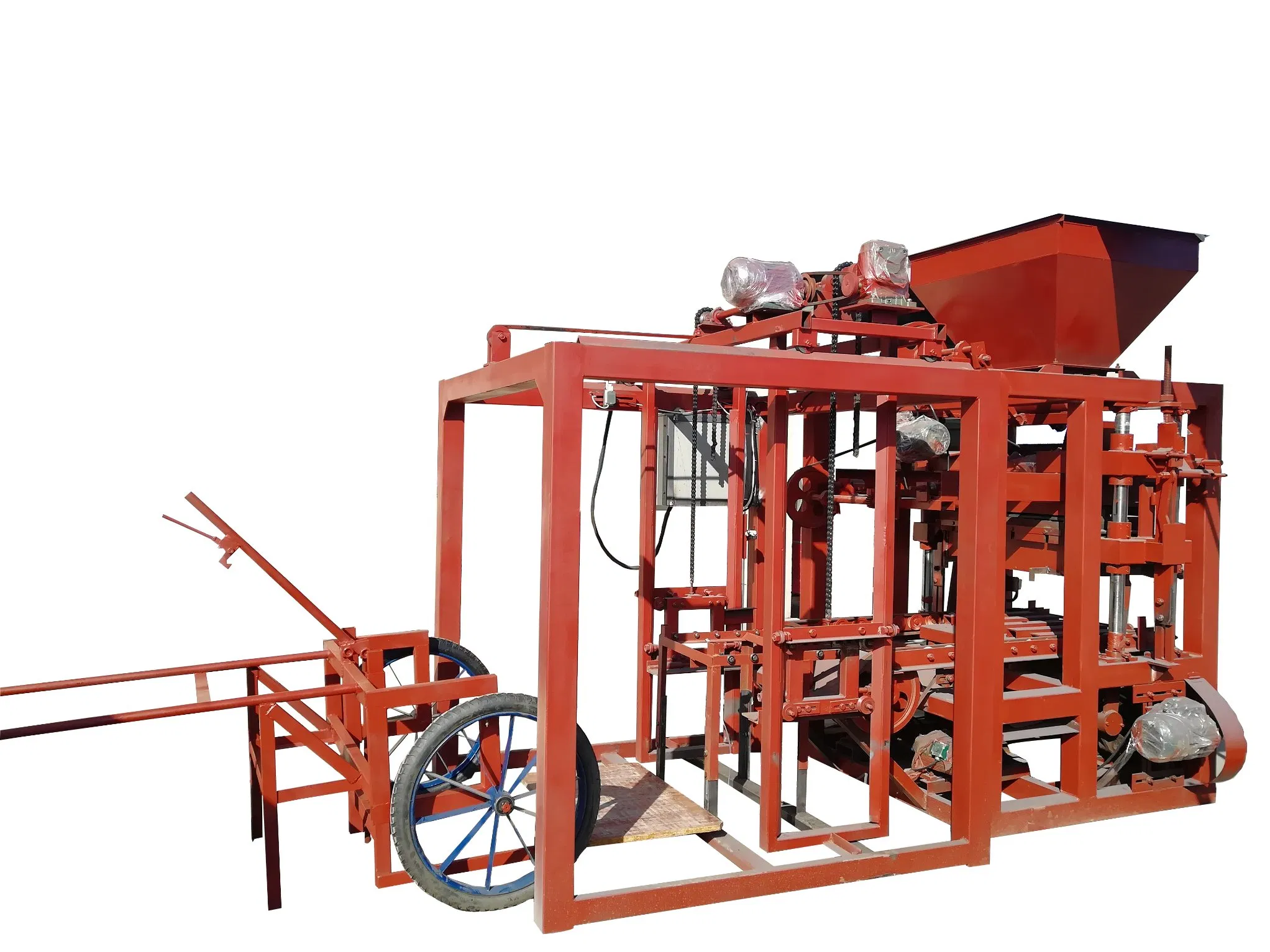

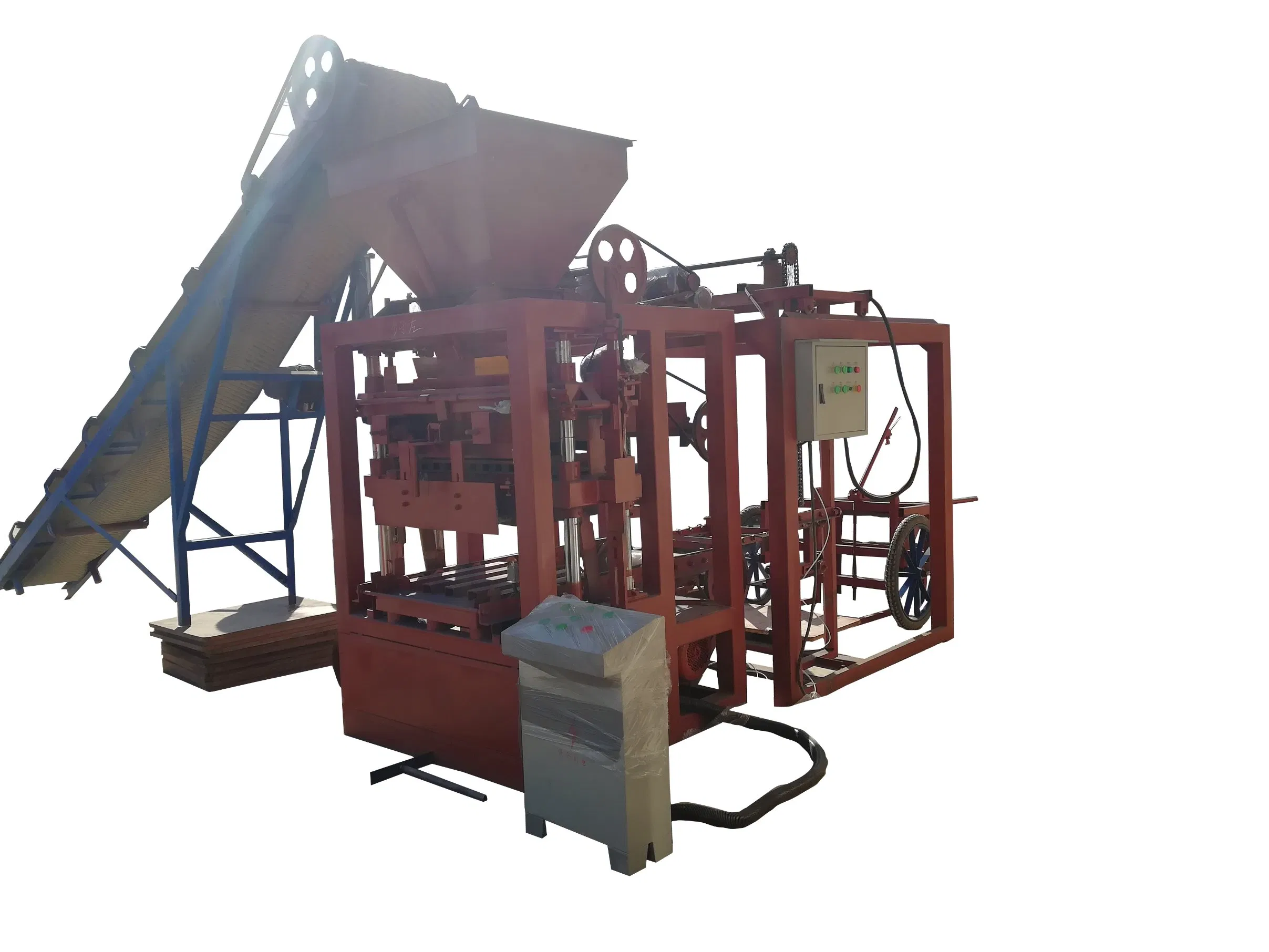

Small Semi Automatic Concrete Cabro Brick Making Machine
Motor
Reducer
PLC control system
Transformer
Production line list:
QT4-24B Technical information:
QT4-24B block Making Machine Production capacity:
Produce different size and shape brick by changing molds.
Raw material proportion:
Above information just for your reference, you could also mixer other different materials to produce bricks.
Introduction of fuda concrete block machine:
China fuda brick machinery factory has 21 years history in manufacturing brick machine with different capacities for sizes of blocks, pavers, cabro, hourids, interlocking bricks and curbstone.
The popular machines are as followed: Automatic block machine, semi automatic block machine, manual block machine, paver making machine, automatic interlocking brick making and interlocking brick machine, block press machine, clay brick machine, lego block machine,
Fuda machinery factory has been exporte more than 70 countries and have good fame in African, South Asian and South America.
Now Fuda machinery launched a new medium sized full automatic hydraulic brick production line, this machine is not big, adopt different block machines advantage, which could produce different hollow blocks, solid block, hourids, cabro, interlocking brick, paving brick...With good quality, but its price is suitable for not very big investment. It is the best choice for many customers.
Choose Yingcheng. Choose Fuda machinery is the wisdom choose, we are your reliable business partner, and our machine is also with reliable quality to make money.
If you have any questions, or need our 2018 new brick machine catalogue or newly quotation list (price list), just feel free to ask us, we are glad to send you.
Serve better, Serve faster and Serve professional is our aim. We hope all the customers will have a good business with our help.
Caroline Zhao
Mobile: +86 18669527997
Website: http://fudabrickmachine.en.made-in-china.com

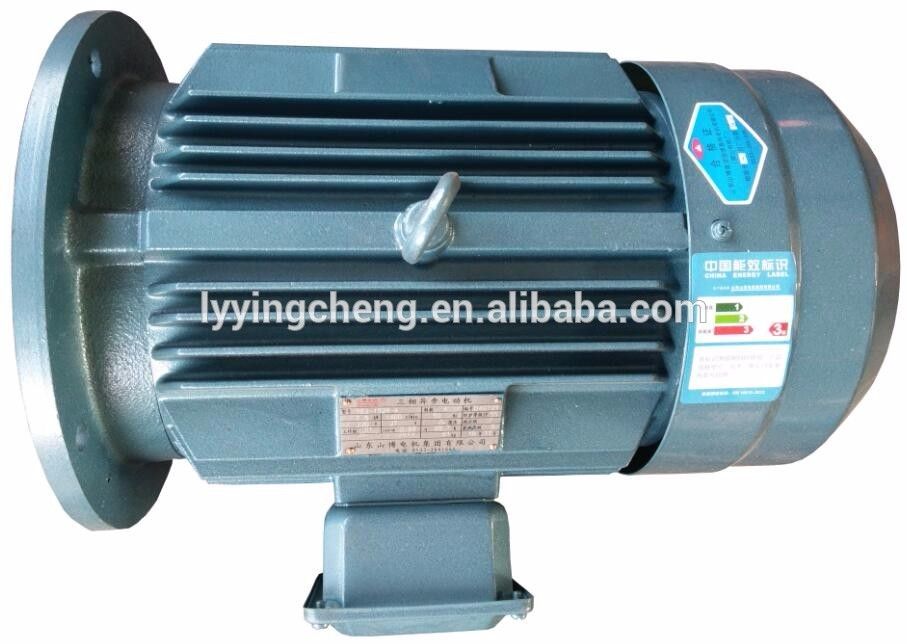

Motor

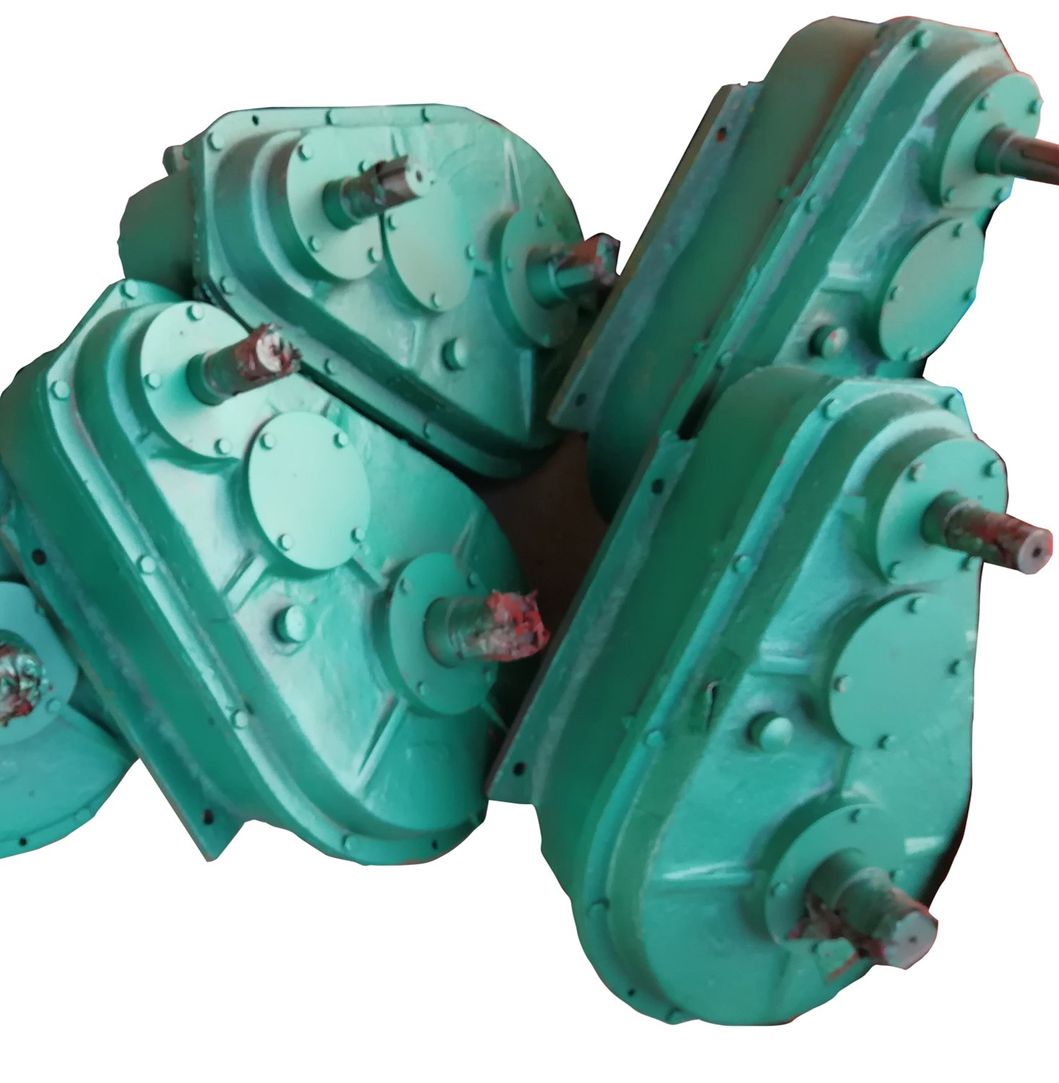

Reducer

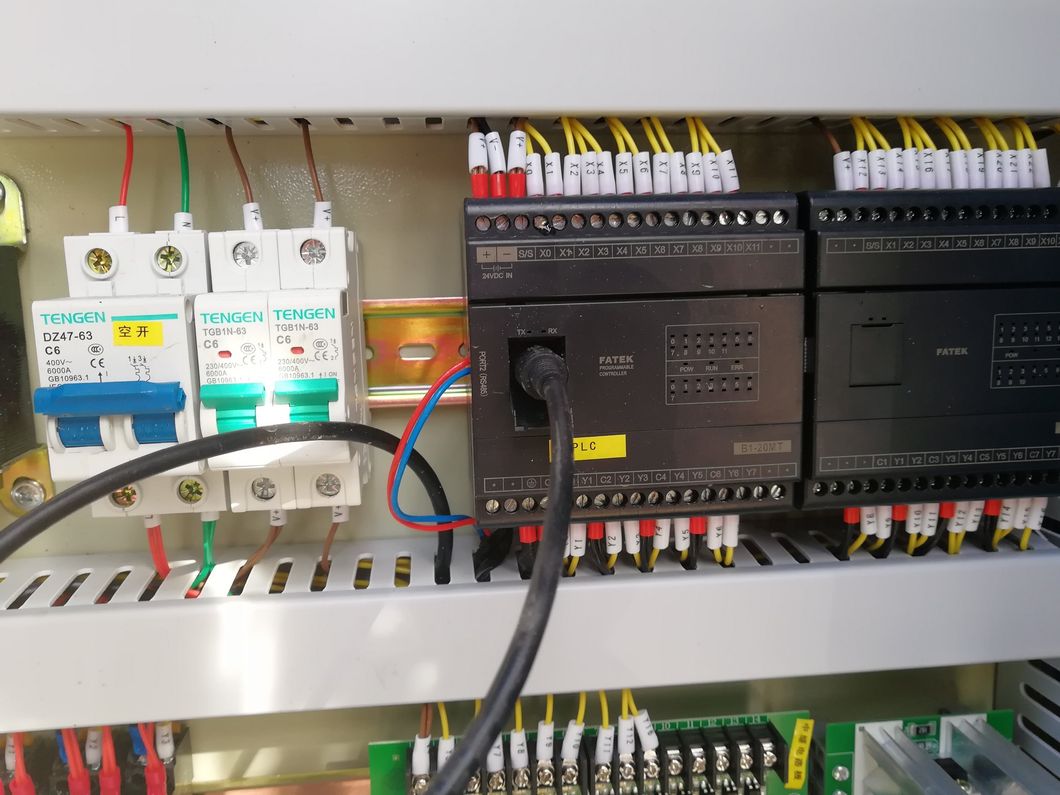

PLC control system

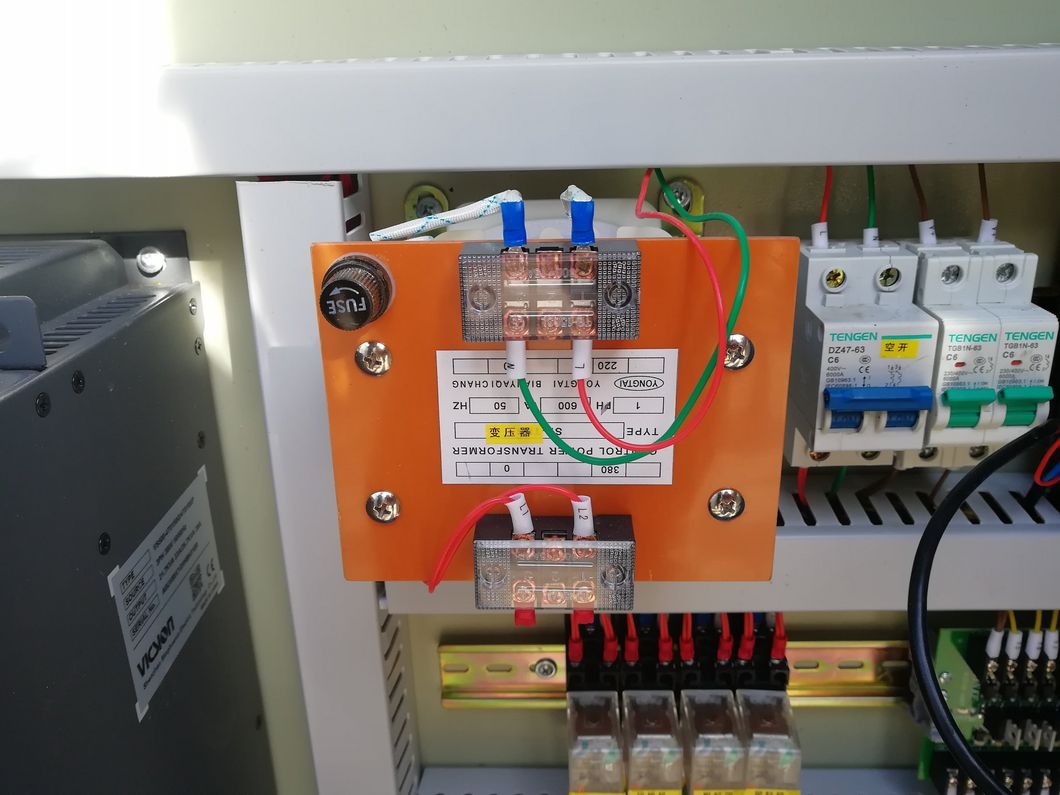

Transformer

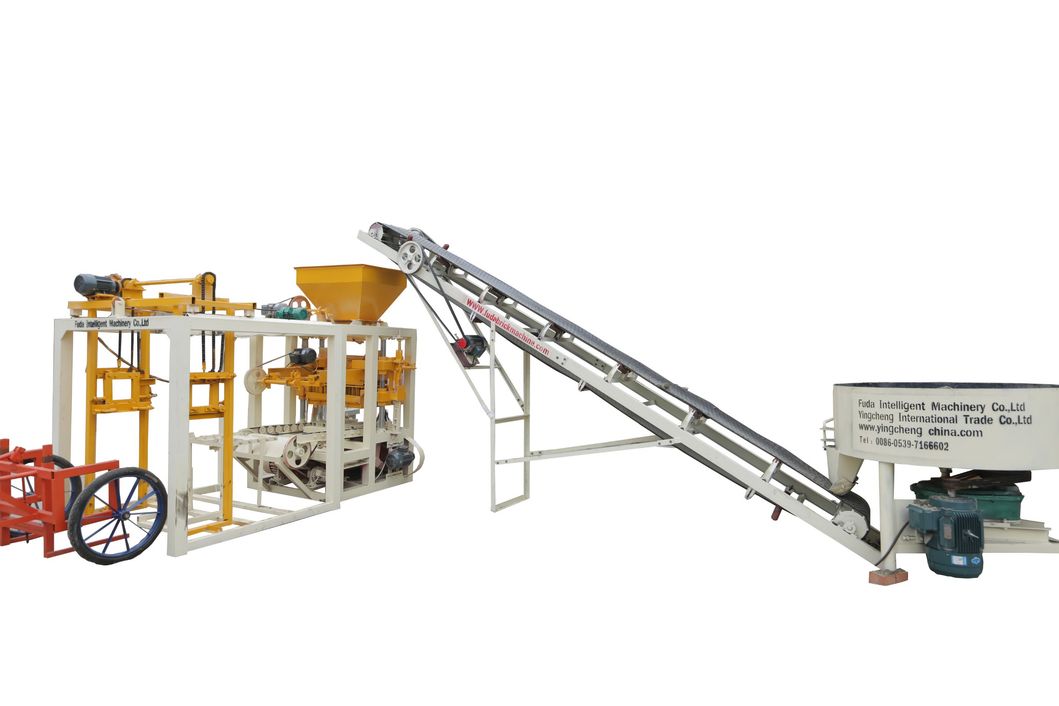

Production line list:
| Host Block Making Machine | Produce brick |
| Mixer | Diameter: 1.2m; power: 7.5kw |
| Conveyor | L=6m |
| Stacker machine | One pallet a time stacker |
| Block receive | |
QT4-24B Technical information:
| Host Machine Power | 13.45kw |
| Forming cycle | 24s |
| Vibration force | 35.5KN |
| Vibration frequency | 4200HZ |
| Weight | 1850kg |
| Pallet size | 850*550mm |
| Host machine size | 1850(L)*1900(W)*2550(H)mm |
| Raw material | Cement, Sand, Small stone, Stone powder; Concrete |
| Products | Hollow brick, Solid brick, Interlock brick, Paver block, Habiterra brick and curb stone so on. |
| Worker | 3-4 worker |
| Factory size | At least 800m² |
QT4-24B block Making Machine Production capacity:
| Block size(L*W*H)mm | Pcs/Mold | Pcs/8Hours |
| 400*200*200mm (Hollow brick) | 4 Pcs/Mold | 4320 Pcs/8Hours |
| 400*150*200mm (Hollow brick) | 6 Pcs/Mold | 6480 Pcs/8Hours |
| 400*100*200mm (Hollow brick) | 10 Pcs/Mold | 10800 Pcs/8Hours |
| 240*115*53mm (Standard brick) | 26 Pcs/Mold | 28080 Pcs/8Hours |
| 200*100*60mm (Holland brick) | 20 Pcs/Mold | 21600 Pcs/8Hours |
| 200*163*60mm ("I" shape) | 12 Pcs/Mold | 12960 Pcs/8Hours |
Raw material proportion:
| 1 | concrete: 10% cement, 30% sand, 60% small stones |
| 2 | 10% cement, 90% stone powder |
| 3 | 10% cement, 30% fly ash, 60%stone powder |
Introduction of fuda concrete block machine:
China fuda brick machinery factory has 21 years history in manufacturing brick machine with different capacities for sizes of blocks, pavers, cabro, hourids, interlocking bricks and curbstone.
The popular machines are as followed: Automatic block machine, semi automatic block machine, manual block machine, paver making machine, automatic interlocking brick making and interlocking brick machine, block press machine, clay brick machine, lego block machine,
Fuda machinery factory has been exporte more than 70 countries and have good fame in African, South Asian and South America.
Now Fuda machinery launched a new medium sized full automatic hydraulic brick production line, this machine is not big, adopt different block machines advantage, which could produce different hollow blocks, solid block, hourids, cabro, interlocking brick, paving brick...With good quality, but its price is suitable for not very big investment. It is the best choice for many customers.
Choose Yingcheng. Choose Fuda machinery is the wisdom choose, we are your reliable business partner, and our machine is also with reliable quality to make money.
If you have any questions, or need our 2018 new brick machine catalogue or newly quotation list (price list), just feel free to ask us, we are glad to send you.
Serve better, Serve faster and Serve professional is our aim. We hope all the customers will have a good business with our help.
Caroline Zhao
Mobile: +86 18669527997
Website: http://fudabrickmachine.en.made-in-china.com
