Product Description

one-stop shopping conctete block, paving brick machine for new starter

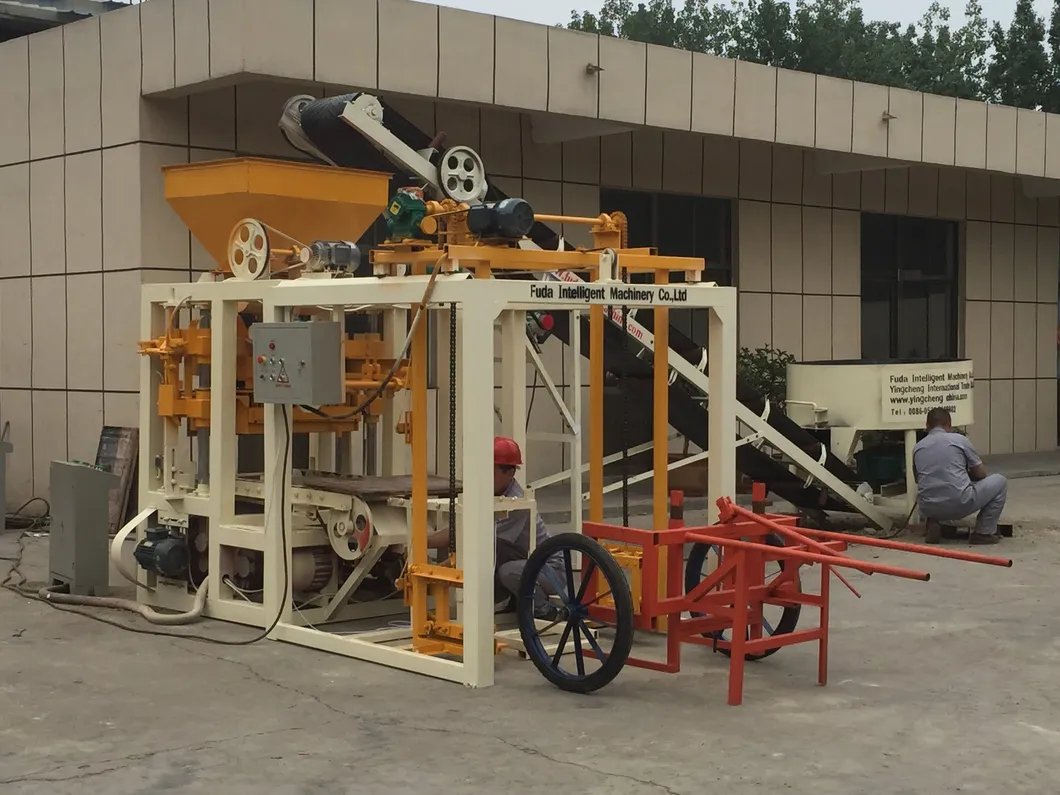

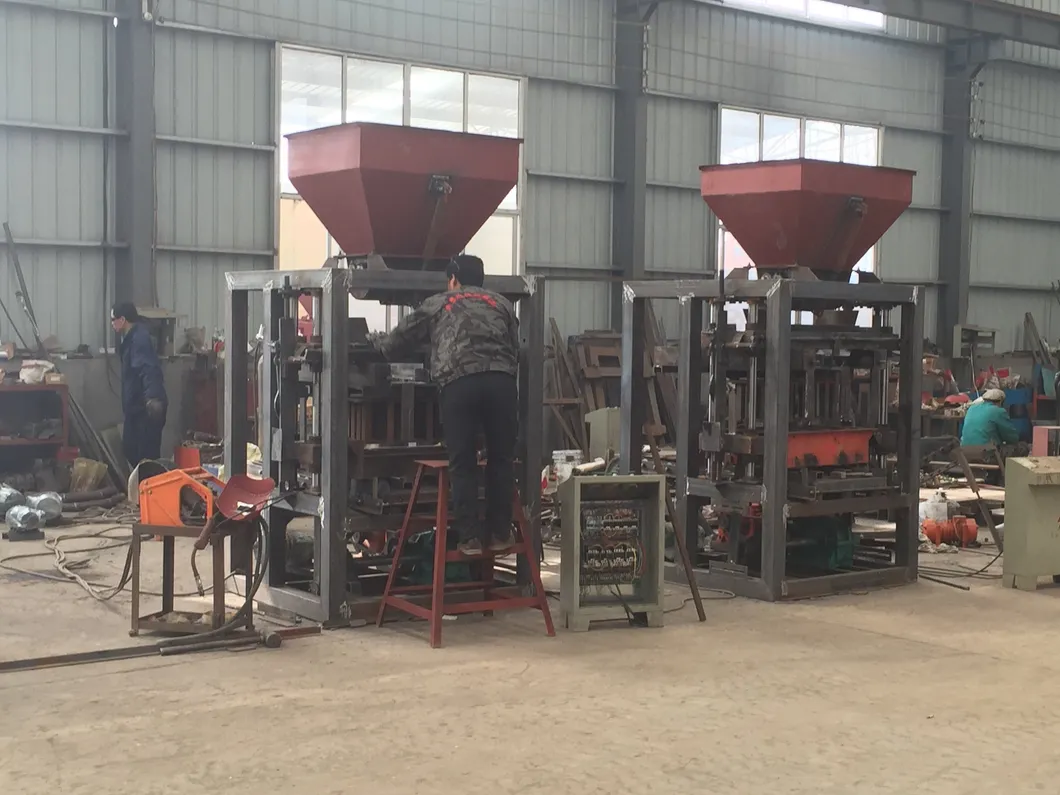

Construction System Qt4-24b Hollow Block Making Molding Machine in Ghana

Construction System Qt4-24b Hollow Block Making Molding Machine in Ghana

1. QT4-24B Block making machine introduction and video:

Video Link: https://youtu.be/agBp5SK0JSY?list=UU0TMOLthhz0BTI6YNrQb1jQ

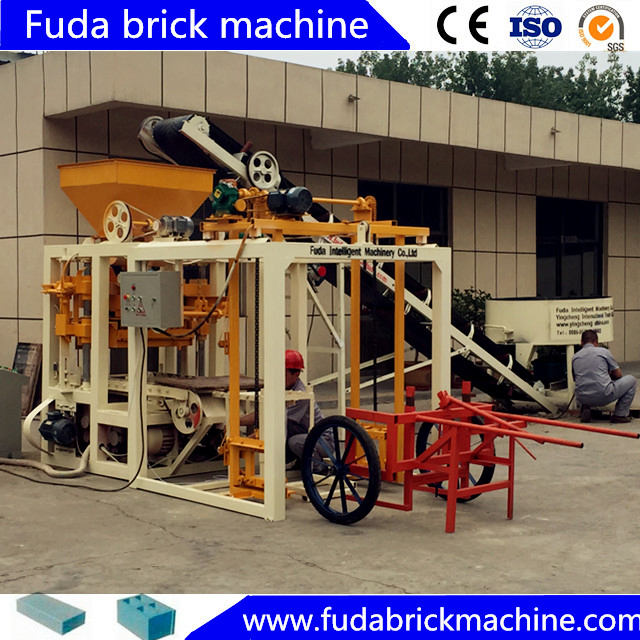

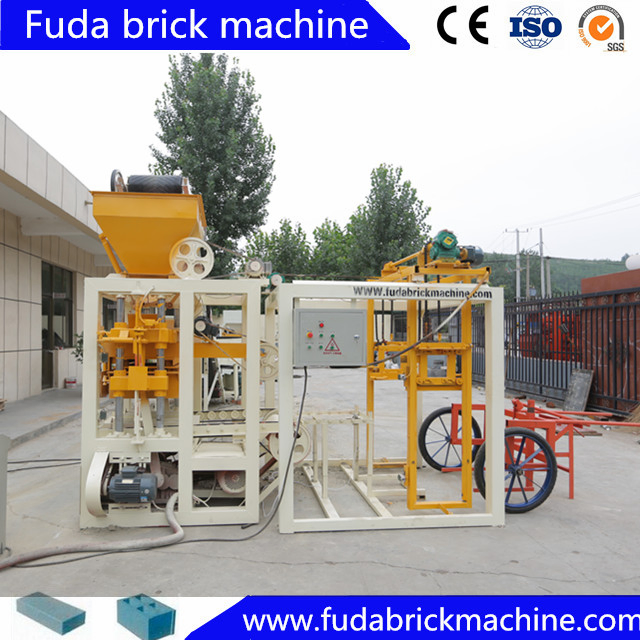

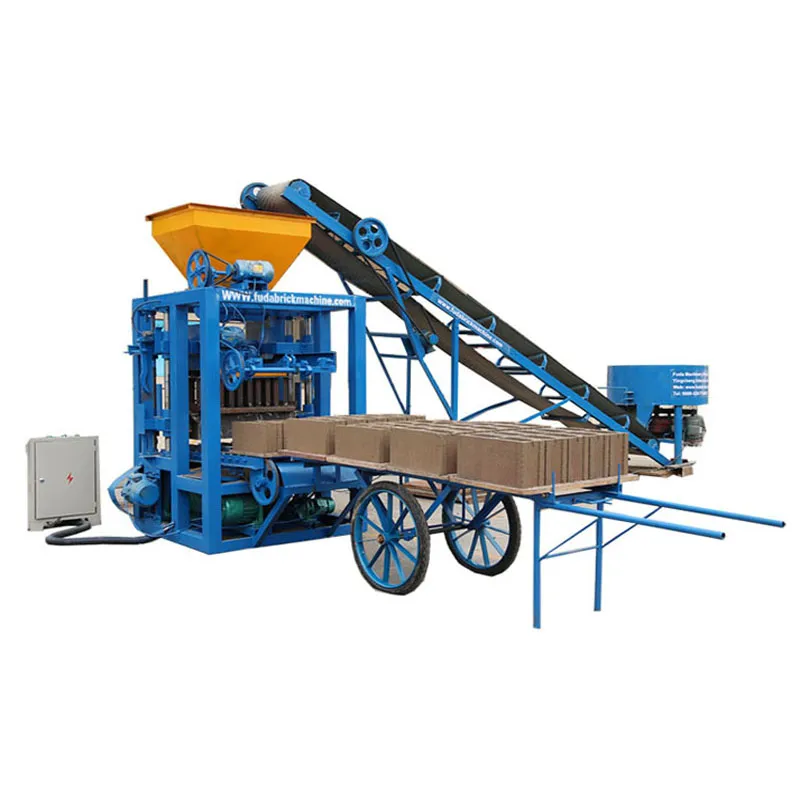

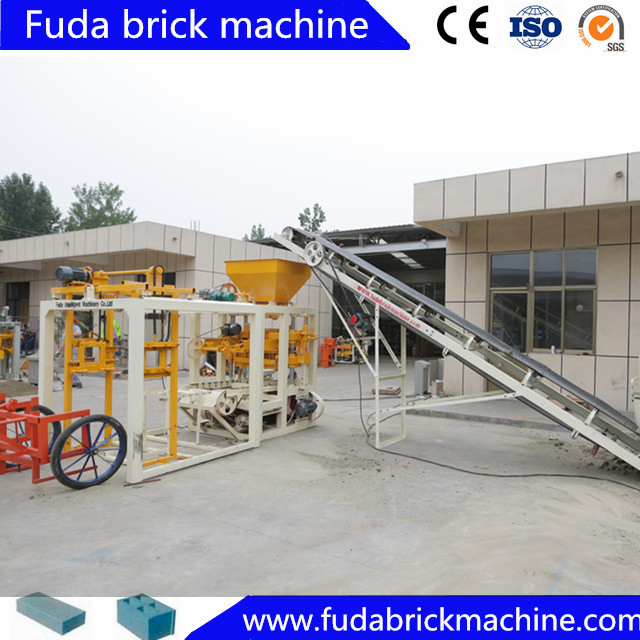

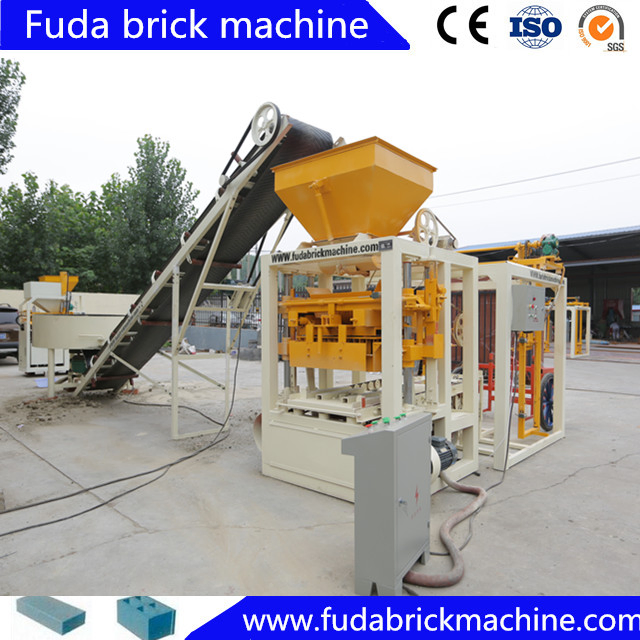

2. QT4-24B semi automatic block production line list:

Item	Number in Photo	Name	Function
1	A,B	QT4-24 Host block machine	Produce brick
	a. hopper b. automatic block receiver
2	C	Conveyor	Transfer material
3	D	Mixer	Mixing raw material

3. QT4-24B Technical information:

Power	13.5KW
Electric Sorce	380V, 50HZ,3Phase
Cycle per mold	25S
Pallet Size:	85055025mm
Machine Size	206017302580mm
Weight	2000Kg
Worker	5-6 Workers
Raw Material	Concrete; Cement, sand, stone; Flyash, Stone powder, Cinder....
Products	Hollow, solid, houdis block, interlocking paver
Function	Semi Automatic
Land Area	Shaded Area: 100-200m² Stocking and Curing Area: 500-1000m²

4. QT4-24B concrete hollow block making machine capacity of different brick types:

Item	Mold Info	Pcs per mold	Capacity
1	402020cm (hollow/solid)	4 pcs/mold	3840 pcs/8 hours
2	401020cm (hollow/solid)	6 pcs/mold	5760 pcs/8 hours
3	20106cm (Holland Brick)	16 pcs/mold	15360 pcs/8 hours
4	20166cm (I shape)	12 pcs/mold	11520 pcs/8 hours
5	22.511.256cm (S shape)	12 pcs/mold	11520 pcs/8 hours

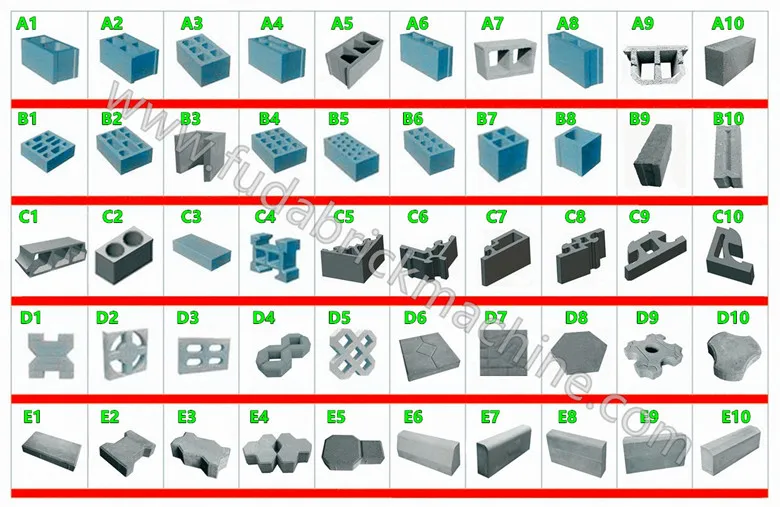

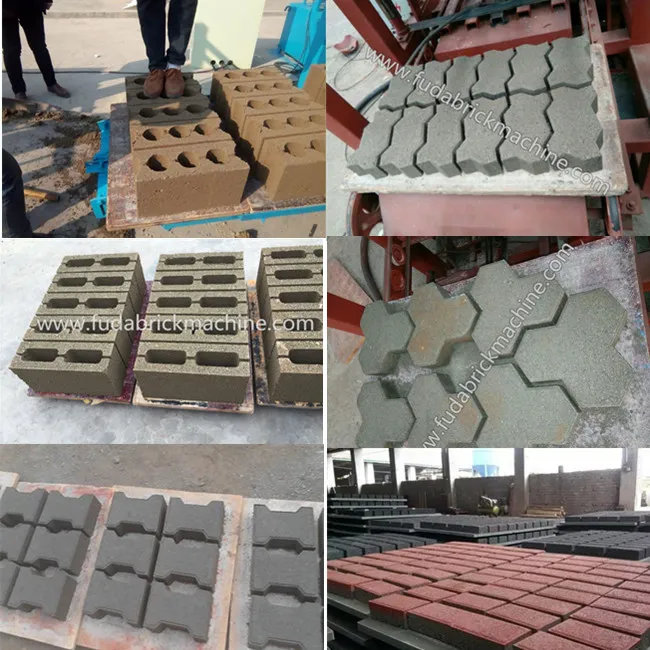

A. Mold Changeable B. QT4-24B could produce different wall blocks, pavers and curb stones

5. Raw Material of QT4-24B concrete block making machine

Item	Ram Material	Proporation
1	Concrete	Cement:sand:stone=1:3:6
2	Concrete with fly ash	Cement: 8-15%, Fly ash: 10-15%, Sand: 15-20%, Stone: 55-60%
3	Concrete with stone powder	Cement: 5-10%, Stone powder: 5-10%, Sand: 20-30%, Stone: 50-60%
If you want to produce stronger block, you should add more cement, but cement no more than 20%
