Full Automatic Hydraulic Concrete Cement Hollow Block Machine, Paver Interlocking Brick Colorful Block Making Machine
Factory Price Full Automatic Hydraulic Concrete Cement Hollow Block/Paver Interlocking Brick/Crubstone/Colorful Block Making MachineQT3-20 block machine is designed according to domestic condition,and the customer's advice,high productivity,high quality,strong durability,it can adopts to several......
Send Inquiry
Product Description
Factory Price Full Automatic Hydraulic Concrete Cement Hollow Block/Paver Interlocking Brick/Crubstone/Colorful Block Making Machine

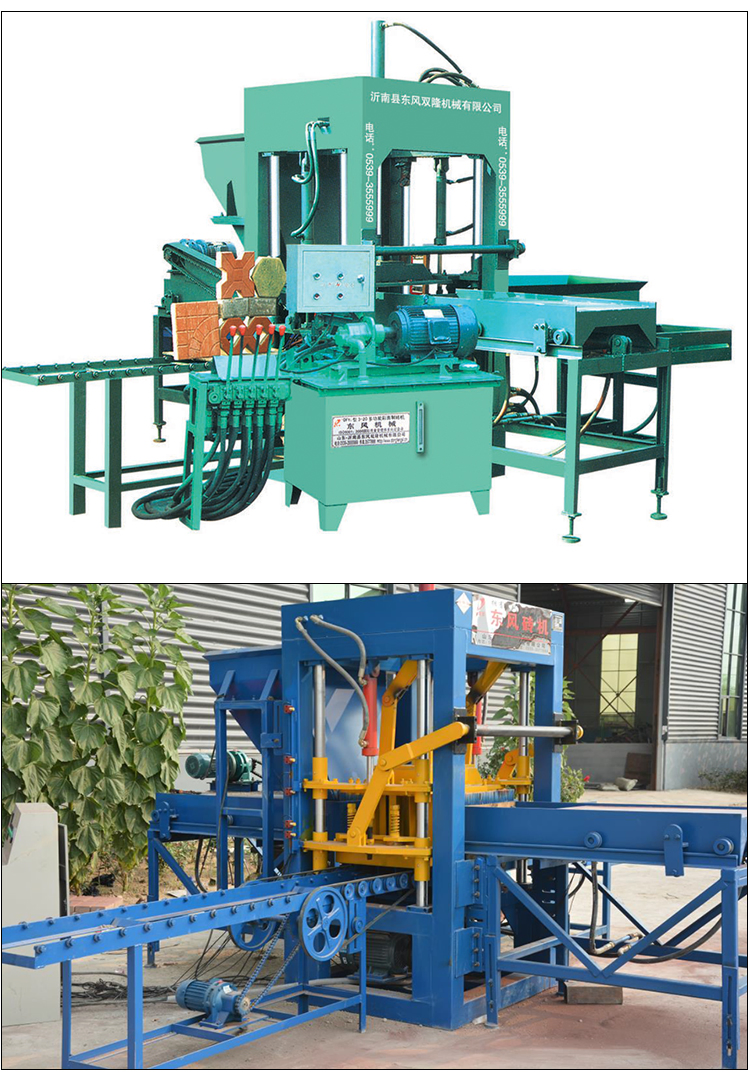

QT3-20 block machine is designed according to domestic condition,and the customer's advice,high productivity,high quality,strong durability,it can adopts to several kinds of environmental brick,interlock brick,color pavers,park grass brick,hollow brick,porous brick,standard brick and so on.The brick made by QTF 3-20 is high compression strength,standard dimension,appearance beautiful.

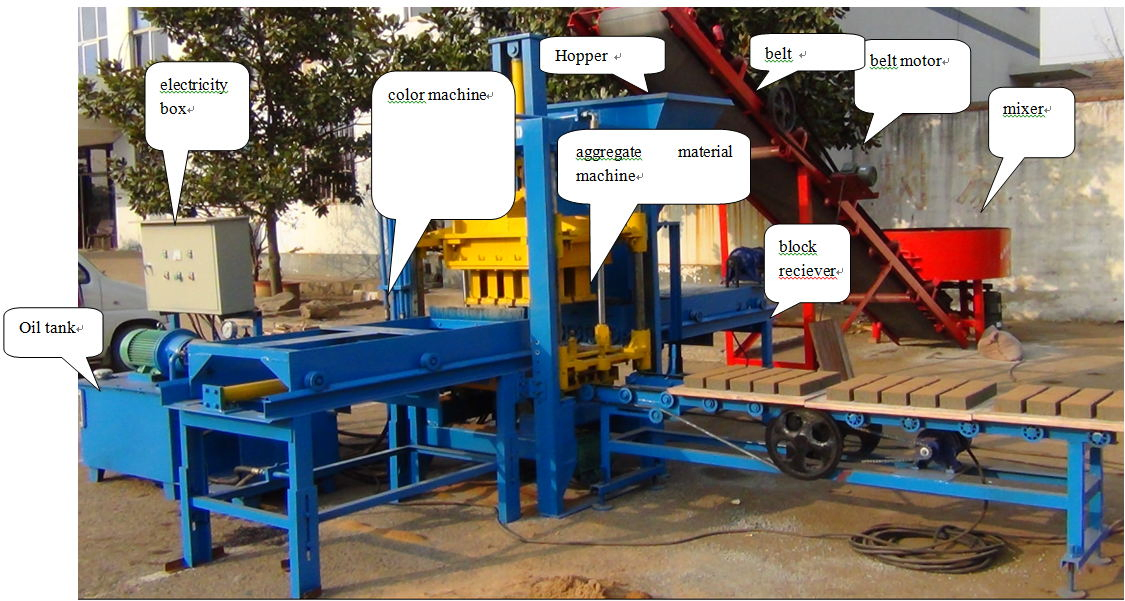

QT3-20 block making machine is made for color paver brick,grass brick,Slope protection brick and so on,it apply to hydraulic system to drive,no Contact proximity switch to monitoring,double layer(raw material and color surface material),operate automatically.Mechanic,electricity,hydraulic and high vibration work together.The main electrical component,and hydraulic component is imported from Germany or Chinese famous brand.Press with vibration,control the height and density.,high exciting power,compact structure,easy operate,convenient maintenance,operate reliable.This machine equipped with one belt,it can make brick with one normal mixer,its a perfect environmental construction equipment.
Main technic parameter:
Control style: semi-automatic
Cycle time:20-30s Vibration frequency:40-80HZ Exciting power:22KN Pallet size: 680mm×550mm×12 mm
Pcs/per mold: Hollow brick: 390mm×190mm×190mm 3pcs/per mold
Porous brick:240mm×115mm×90mm 10pcs/per mold
Bread brick: 200mm×100mm×60mm 12pcs/per mold
Standard brick:240mm×115mm×53mm 20pcs/per mold
Total power:17.5KW
Down vibration motor: 2sets Y100L-2 4KW 2880r/min
Hydraulic motor: Y132S-4 5.5kw 1440r/min
Host machine weight:2870kg
Dimension:4000×3500×2300 mm
