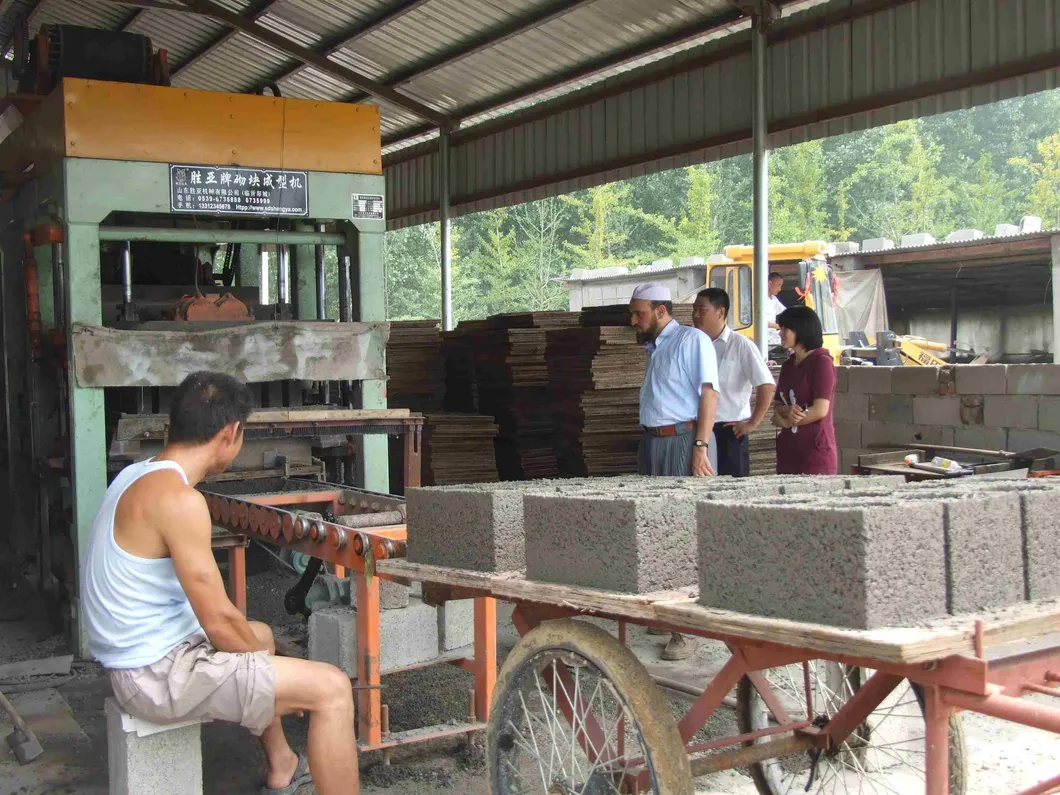

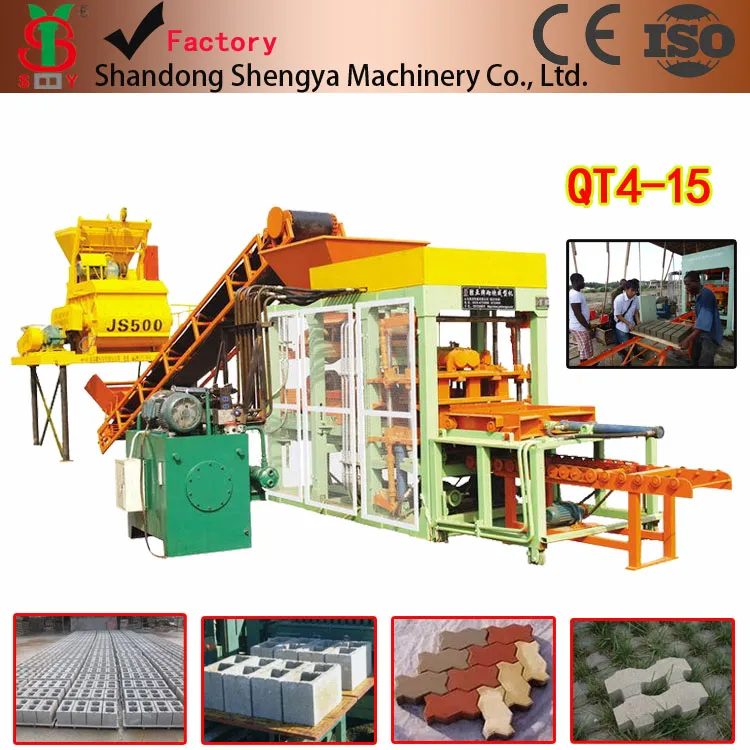

Fully Automatic Block Making Machine Production Line (QT4-15)

Purpose and characteristics
1. Setting storage bin and input hopper seperately and inputting material with rations
As for traditional shaping machine, the storage and input of concrete mixed material are carried out by the same hopper that is near to vibratory source, which makes it easier to be affected by the after vibration, and also makes some concere liquefy ahead of time, thus the time of input will be longer and it is harder to input the material, moreover, the strength error of products wil be very big.
As for QTJ4-15 Fully Automatic Cement Block Shaping Machine, the storage bin and input hopper are set seperately and storage bin (about 500L) is far away from vibratory source, and carrys out the measure of vibration-isolating. The machine uses closed-ended belt to convey the material with rations to input hopper, and controls the upper line of input hopper with switch(the amount of material is adjustable)

2\Compulsive input device
The rib of concrete perforated brick is very thin(usually 13-16mm ), so adopting traditional way would make it hard to input material to the mould box equably. QTJ4-15 Fully Automatic Cement Block Shaping Machine adopts compulsive input system(there are several rows of mixing forks in the cloth box), when the cloth box is conveyed up to the mould box, mixing fork will move to input material compulsively, which guarantees the speed of inputting and also makes the inputting eauablly.

3\Excellent vibration system
The main vibration system of the machine is composed of vibration machine and vibration box, its frequency and amplitude are adjustable. Besides, there is a specific vertical orientation vibrator on the head pressure. When the shaping machine works, the ingot stripping oil cylinder is kept on the vibration table to make the table and shaping machine vibrate together.

4\Intelligent control
Being affected by the moisture and the change of stone of material, the concrete material after mixing are different. On the premise of quality guarantee, we set the parameter for best shaping and most conservative, when the data is higher than the upper limit, the machine can decrease material, when lower than the floor level, it can increase material. The machine also has the functions of real-time dynamic displaying the machine movement, failure-checking, failure-output and failure-input displaying, etc.

5\Effective work top
As the design adopts new technique of vibration, the shaping area can reach 0.5m2(850× 550mm), Which lays the firm foundation for scale production of concrete perforated brick.

6 \multi-function

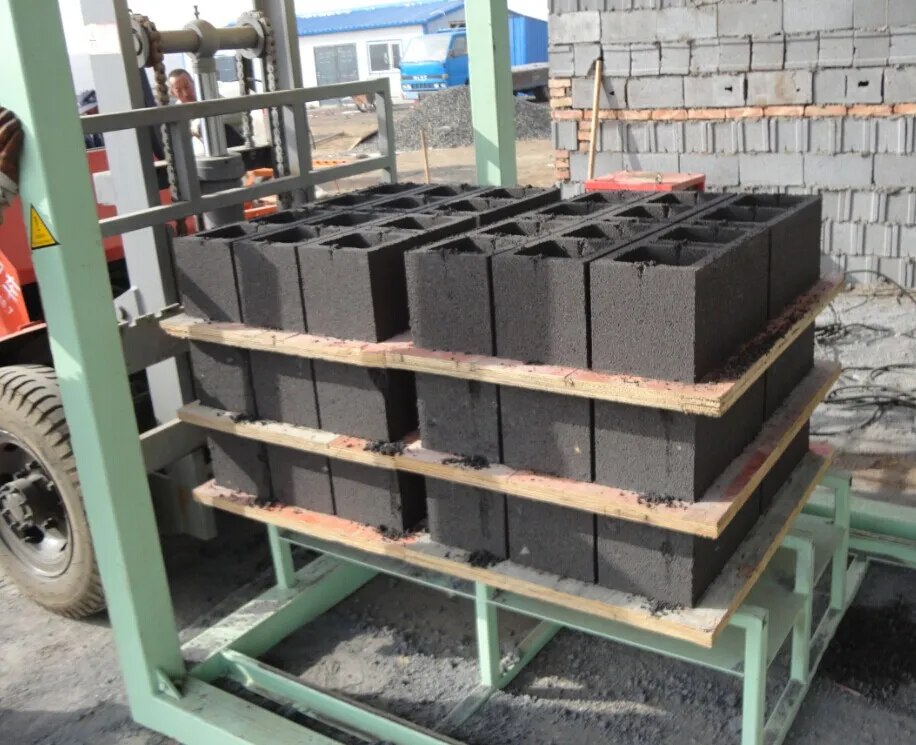

It is of multi-purpose, it can procuce walling unit, pavement block, square block, figure block, etc of different size, if customer change mould. Having one machine can satisfy the needs of all kinds of concrete bricks.
