Hongfa Qm4-45 New Concrete Manual Mobile Brick Making Machine

Product Description

Brief Description

A) It is one kind of small sized egg laying block forming machine excellent in saving energy and labor force. No need of concrete floor and pallet.
B) This egg laying block machine is manufactured on the base of technical modifications to the original block shaping machines, using diesel engine to supply hydraulic pressure, So the block density becomes higher shaping speed quicker and block strength more even.
C) This model of machine can be suitable to the customers who have any kinds of existing cement working sites, where the electricity may be not sufficient,and the consumption pallets can be reduced.

HFB533D Egg Laying Block Machine
Hongfa Qm4-45 New Concrete Manual Mobile Brick Making Machine

Hongfa Qm4-45 New Concrete Manual Mobile Brick Making Machine

Basic Data
⊙Technical Parameters
Overall Dimension: 1100×950×2100mm
Diesel engine: 6HP/4kw
cycle: 45-50seconds
Total mass: 900kg
Stock field: 500m²
Maintaining field: 500m²
Raw material field: 500m²
Workers:: 2-3
Area of the workshop needed:200m²
Raw Materials: crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.
Applied Products: concrete blocks, solid/hollow/brick


⊙Productivity

*Item*	*Block size(mm)*	*Qyt per mold(pcs)*	*Molding cycle(s)*	*Qty per hour(pcs)*
Hollow block	400x200x200	4	45	300
Hollow block	400x150x200	5	43-45	400
Hollow block	400x120x200	6	41-45	200

⊙Warm tips:
Dear friend, to save your valuable time, please kindly add informations as follows in your inquiry.
1.The exact size of blocks and bricks you need;
2.Picture of your blocks;
3.Industrial electricity voltage.(volts & Hz)
4.The specific price please refer to your needs, such as details list.
Note: If you want more such as shipping cost, machine video, catalog, details photos and so on, please tell us, we will do the best to help you.

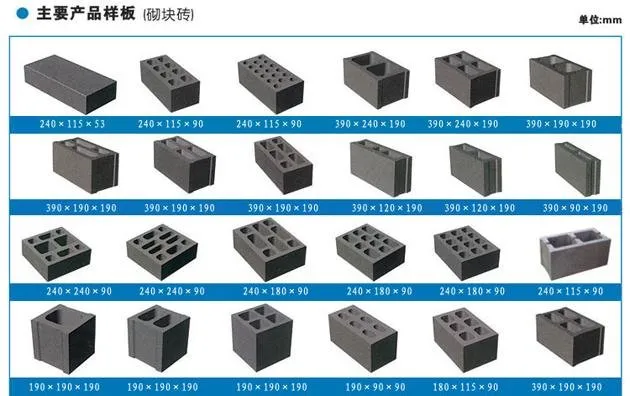

⊙Block Samples
Hongfa Qm4-45 New Concrete Manual Mobile Brick Making Machine

FAQ
1.How can I trust you?
1) Manufacture experience since 1990.
2) The biggest and most famous supplier in China: total 4 factories with 353,000M2 and yearly selling above 100 Million USD.
3) Main products:
    -concrete brick machine
    -EPS wall panel machine
    -AAC production line
    -concrete batching plant
    -concrete tile machine
    -concrete pipe machine.
4) Ever exported to more than 76 countries and area.
5) Contiuous service and logistics system.
6) Hight quality products and competitive price.
Our machines have been checked and got the certification ISO9001 and CE, and always have a good reputation of its quality. What's more, every manchine will be tested carefully before shipment, making sure all the machines operate perfectly when it comes to your hand.

2.How long is the guarantee?
Our warranty is one year after installation.

3.Can you help to make installation?
We could send one or two engineers to buyer's places to direct the installation and give the operation training.
The customers should pay for the cost of VISA, room and board, and the round-trip tickets for our enginees.

Welcome to visit us, establish a long-term colloboration with each other.
