Product Description
M7MI super interlocking brick machine clay brick making machine
Jessie :0086 15305399073
Introduction:
(1)The interlock block making machine M7MI Super hydraform interlocking brick machine is the latest
development from Hydraform now boasting an improvement of over 45% in production. The minimum
daily production of 2200 blocks is equal to 45,000 blocks per month that could produce nine 50m²
houses.
(2)The machine is inclusive of a diesel motor (electric available), hydraulic power pack including
cylinders, compression chamber, precompacting top gate assembly, all fitted on a trailer inclusive of
spring axle, tail lights, tow-hitch and road tyres.
Main technical of M7MI diesel interlocking brick machine :
Voltage | Can be ordered |
Machine power | Diesel engine |
Molding cycle | 20-30S |
Vibration force | 15KN |
Machine weigh | 900KGS |
Maximum mould size | 530*530*250mm |
Overall size | 3200*1100*1700mm |
Moulds | Machines come standard with 220mm interlocking block mouldwhich requires minimal mortar |
The proportion of M7MI diesel interlocking brick machine :
This is the most popular proportion in making block making machine: 1. cement,clay |
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 6-8% |
clay | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is heavy,but strong |
2. Full clay | |
Raw Materials | Quantity per piece |
Water | 3% |
Specify | You can change the proportion depend on your needs. This block is light,but not so strong |

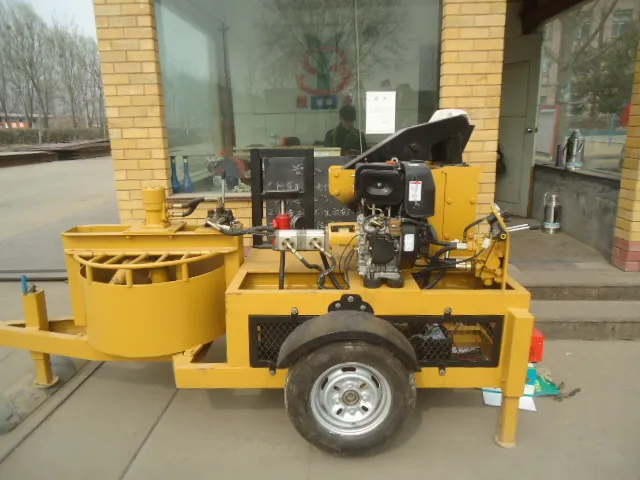

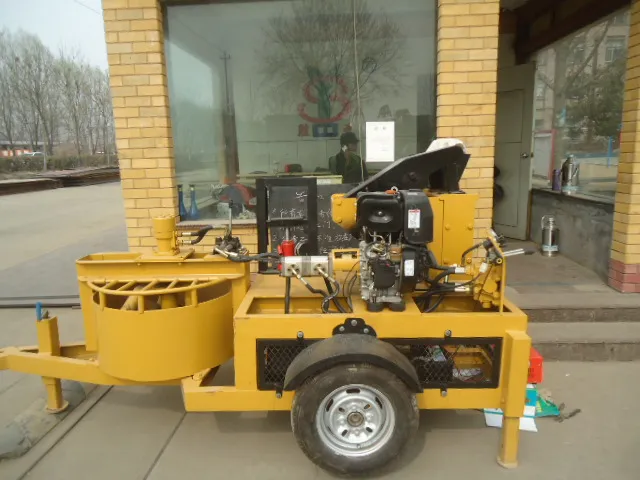

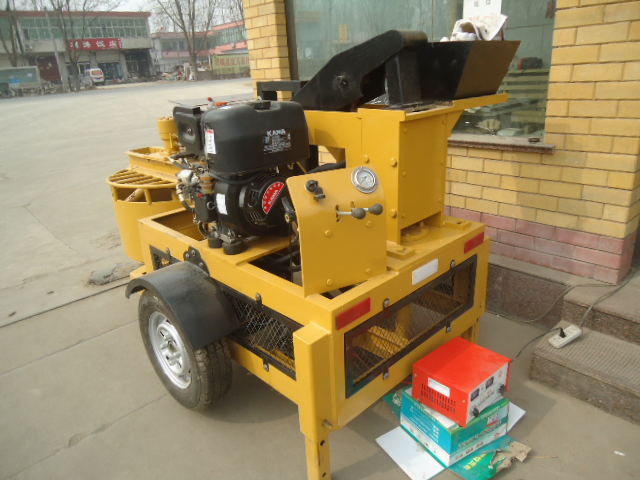

Picture showing :
Thanks for your view,Your any questions will be warmly welcome.
