Qt4-15 Fully Automatic Vibration Hollow Brick /Block Making Machine Price
QT4-15 fully automatic hydraulic pressure block machine Product Description1.The machine adopts hydraulic system and the working procedure is very even and dependable, 2. It is a practical machine that simple in structure, artistic in figure. 3.Especially suitable to the production of the standard b......
Send Inquiry
Product Description
QT4-15 fully automatic hydraulic pressure block machine
Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters
Productivity
Our factory
Our customer visiting and order
Contact us
Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters
| Overall Dimension | 7100*1600*2610mm |
| Rated Pressure | 16-21MPa |
| Main Vibration Form | Platform Vibration |
| Vibration Frequency | 4600 ( r/min) |
| Pallet Size | 1020*570mm |
| Molding cycle | 15-25 (s) |
| Overall Power | 27.5W |
| Vibration Force | 45KN |
| Total Mass | 6T |
| Demolding method | Hydraulic |
| General water consumption | 12T/Day |
| Factory Area | 500m2 |
| Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc. |
| Raw Material | Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc. |
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/8hours |
| 400X200X200 | 4 | 960 | 7680 |
| 400X100X200 | 9 | 2160 | 17280 |
| 240x115x90 | 14 | 3360 | 26880 |
| 200X100X60 | 25 | 6000 | 48000 |
| 240x115x53 | 28 | 6720 | 53760 |

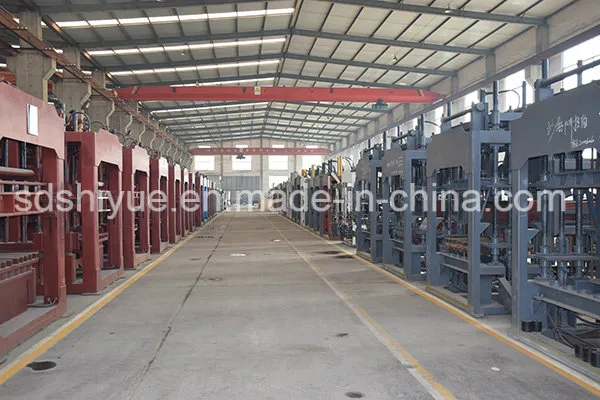

Our factory
