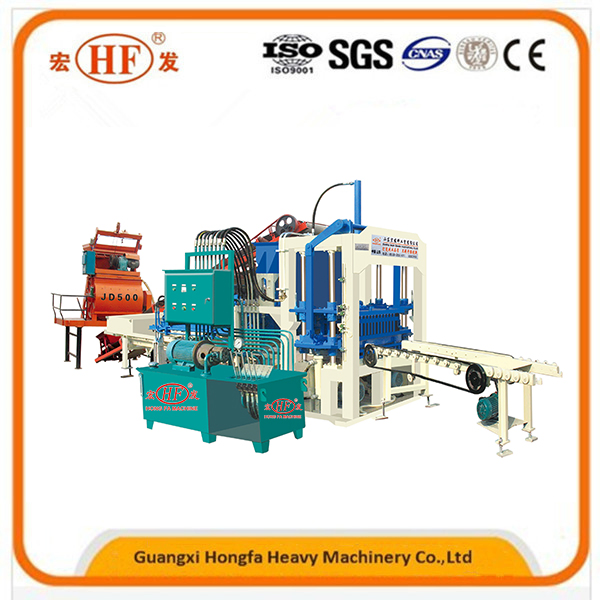

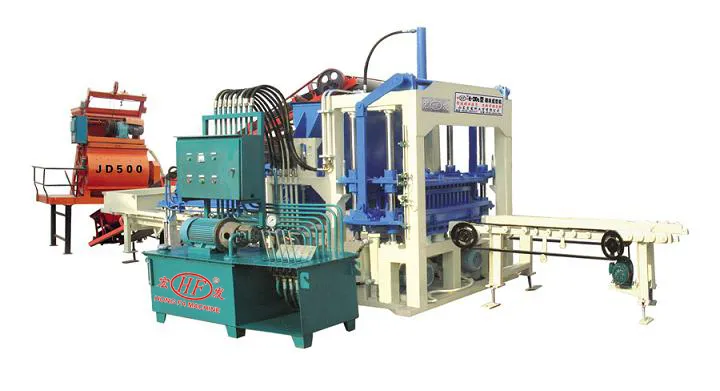

Qt4-20c Full Automatic Brick Making Machinery Block Machine
Thanks for staying here. Please read following,any broblems pls contact at final picture's information,it will be ok whether you choose us or not finally,do hope you can find satisfied equipment.We do automatic block production line for sale,which include:cement silo,screw conveyor,batching mach......
Send Inquiry
Product Description
Thanks for staying here. Please read following,any broblems pls contact at final picture's information,it will be ok whether you choose us or not finally,do hope you can find satisfied equipment.
We do automatic block production line for sale,which include:cement silo,screw conveyor,batching machine,mixer,block making machine,automatic stacker,forklift,automatic pallets elevator...
QT4-20C Block making machine:
Main Technical Specifications:
Production quantity:
We make mould according to block/brick size and shape,so customers can get different type blocks or bricks,and production efficiency is also different.

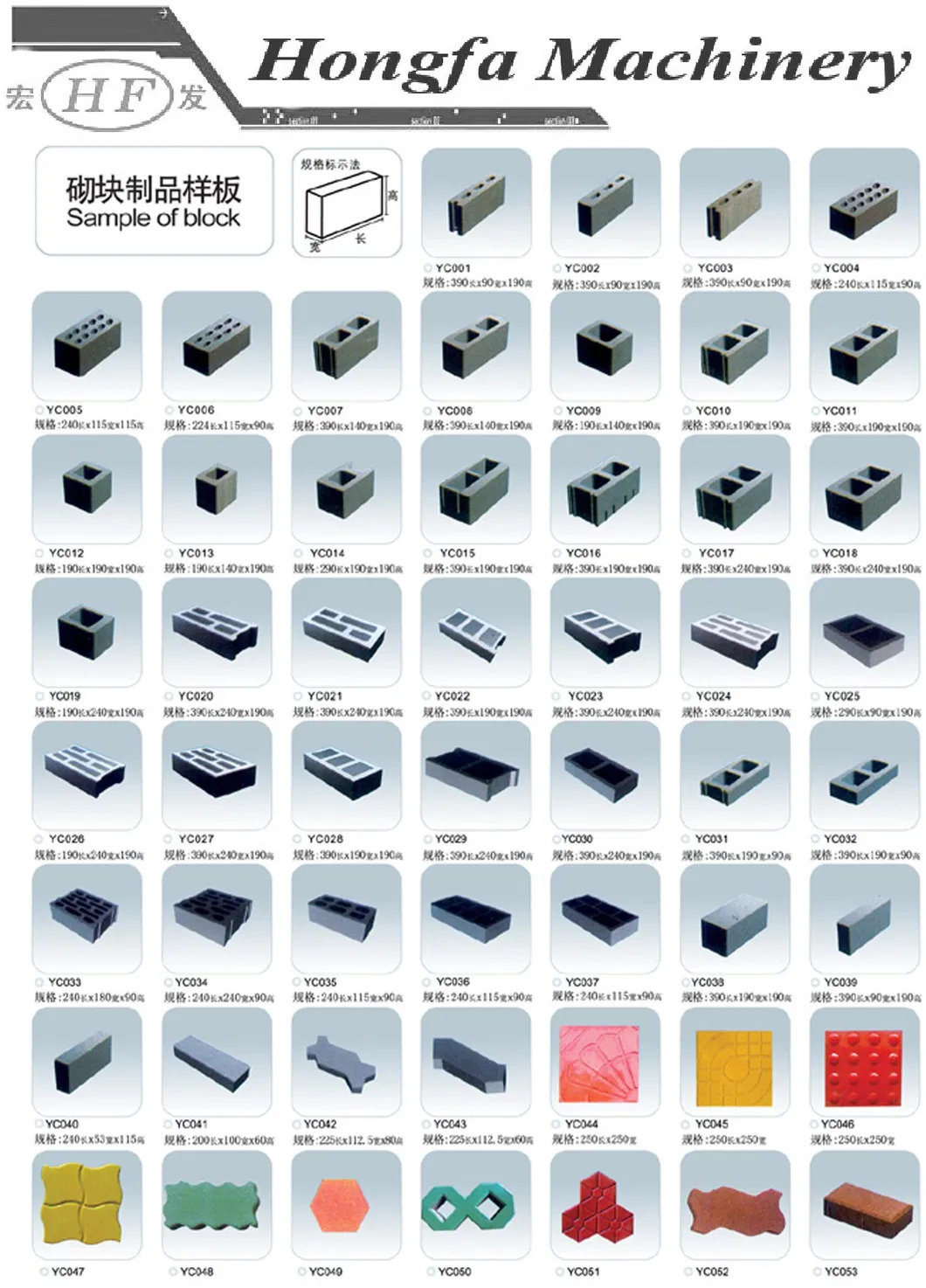

Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Brief introduction:
1. The machine adopts hydraulic system and the working procedure is very even and dependable, hydraulic press together with efficiently vibration make the shape, it which has high density and good quality.
2. It is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the standard bricks, it can produce various kinds of paving bricks, porous bricks, roads bricks etc.
3. The reasonable material proportion have the capacity of making high-density standard bricks, what's more, it can be piled up directly.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
We also according to customers' production quantity to offer them relevant bock making machies ,and like:QT12-15,QT10-15,QT8-15,QT6-15... block making machines options.
Hongfa products are popular at home and abroad,and exported to the United States,Russia,Australia,Brazil,India,Myanmar,Vietnam,Thailand,Sudan,north Korea and Dozens of 96 countries and regions .Price, quality and service deeply welcomed by foreign customers.

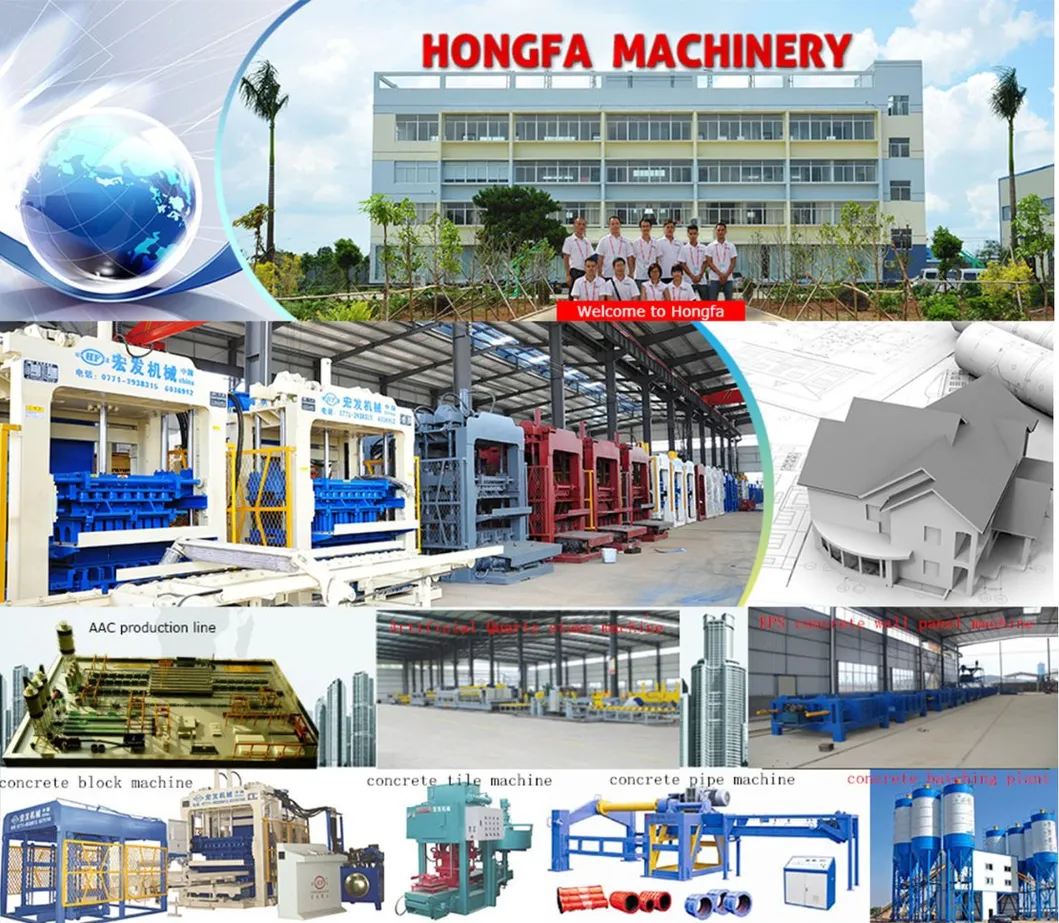

Guangxi Hongfa heavy Machinery Co.,Ltd is located in yiling industrial zone Nanning city,Guangxi,China.Which covers an area of 60,000 m2, building area of 23000 m2 , and has 24 senior engineers and engineers, and 180 technical personnels.
HONGFA was founded in 1990,which is a large-scale private enterprise with R&D, manufacture and sales.And specialize in block machine, block making machine, concrete block machine, concrete block making machine, brick machine, AAC block making machine, AAC plant ;(EPS) light weight Production line,Wall panel machine; mixer, concrete mixer, mixing plant, concrete mixing plant, concrete batching plant; tile machine, concrete tile machine, tile making machine, concrete tile making machine, concrete pipe machine, pipe making machine, concrete pipe making machine.With 27 years experience,it is worth to take consideration from us.
Our service:
1.Guarantee period:12 months after block machine finished installation and after sale service for whole life.
2. Installation: for production line Hongfa will send technicians to install machines and free train customer's workers.
3.Technical service:offer free design ,free technology supprot,free site planning.
FAQ:
1.Can this machine make my brick or other size block?
We would design and do the mould according to customer's Drawing.
2.Are your company is the manufacture or trading company?
We are Direct factory,not agent or trading company,and the quality and after-sale services is quaranteed.
3.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for 27 years,with full experience,updating technical idea and application.Furthermore our machines have been exported to more than 96 countries and always have a good reputaion from our oversea customers.We will do fully test our products before shipment,make sure every equipment work well when they come to your hand.
4.When do you delivery the goods?
Normally 30 days after receipt of deposit and moulds confirmation from Buyer.
5.What about the payment?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
6.Does the price include the mould?
Yes,the above price includes one set mould.
7. Would you mind provide the video?
The video is available to send to you, please contact me.
8.How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
When you plan to purchase a certain machine, suggesting to take care below points:
1. What is the brand? ( Now a lot companies embezzle our brand, pls take note our prevention fake-mark.)
2. Does this brand has good reputation and sell well in the market?(we got good reputation and are the biggest supplier in China)
3. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
4. What is the lifetime of the mold? ( our mold can use 900,000 - 1200,000 times)
5.The price cover to what equipment?( pls refer to our quotation list)
IF you want to know more about our machines,production capacity or relavant Questions feel free contact Please:
We do automatic block production line for sale,which include:cement silo,screw conveyor,batching machine,mixer,block making machine,automatic stacker,forklift,automatic pallets elevator...
QT4-20C Block making machine:
Main Technical Specifications:
| Overall Dimension | 7100*1600*2610(mm) |
| Rated pressure | 16MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-25seconds |
| Vibrating Frequency | 4600 rolls/minute |
| Overall weight | 5300kg |
| Motors Power | 27.5KW |
| Pallet Size | 1020*570(mm) |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Production quantity:
| Item | Size(mm) | Molding cycle | Pcs/Mold | Pcs/hour | Pcs/8hours |
| Hollow block | 400*200*200 | 15-20s | 4 | 720-960 | 5800-7700 |
| Solid brick | 240*115*53 | 15-17s | 28 | 5930-6700 | 47500-53600 |
| Paving brick | 220*110*50 | 20-25s | 16 | 2310-2880 | 18500-23000 |
We make mould according to block/brick size and shape,so customers can get different type blocks or bricks,and production efficiency is also different.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Brief introduction:
1. The machine adopts hydraulic system and the working procedure is very even and dependable, hydraulic press together with efficiently vibration make the shape, it which has high density and good quality.
2. It is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the standard bricks, it can produce various kinds of paving bricks, porous bricks, roads bricks etc.
3. The reasonable material proportion have the capacity of making high-density standard bricks, what's more, it can be piled up directly.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
We also according to customers' production quantity to offer them relevant bock making machies ,and like:QT12-15,QT10-15,QT8-15,QT6-15... block making machines options.
Hongfa products are popular at home and abroad,and exported to the United States,Russia,Australia,Brazil,India,Myanmar,Vietnam,Thailand,Sudan,north Korea and Dozens of 96 countries and regions .Price, quality and service deeply welcomed by foreign customers.
Guangxi Hongfa heavy Machinery Co.,Ltd is located in yiling industrial zone Nanning city,Guangxi,China.Which covers an area of 60,000 m2, building area of 23000 m2 , and has 24 senior engineers and engineers, and 180 technical personnels.
HONGFA was founded in 1990,which is a large-scale private enterprise with R&D, manufacture and sales.And specialize in block machine, block making machine, concrete block machine, concrete block making machine, brick machine, AAC block making machine, AAC plant ;(EPS) light weight Production line,Wall panel machine; mixer, concrete mixer, mixing plant, concrete mixing plant, concrete batching plant; tile machine, concrete tile machine, tile making machine, concrete tile making machine, concrete pipe machine, pipe making machine, concrete pipe making machine.With 27 years experience,it is worth to take consideration from us.
Our service:
1.Guarantee period:12 months after block machine finished installation and after sale service for whole life.
2. Installation: for production line Hongfa will send technicians to install machines and free train customer's workers.
3.Technical service:offer free design ,free technology supprot,free site planning.
FAQ:
1.Can this machine make my brick or other size block?
We would design and do the mould according to customer's Drawing.
2.Are your company is the manufacture or trading company?
We are Direct factory,not agent or trading company,and the quality and after-sale services is quaranteed.
3.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for 27 years,with full experience,updating technical idea and application.Furthermore our machines have been exported to more than 96 countries and always have a good reputaion from our oversea customers.We will do fully test our products before shipment,make sure every equipment work well when they come to your hand.
4.When do you delivery the goods?
Normally 30 days after receipt of deposit and moulds confirmation from Buyer.
5.What about the payment?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
6.Does the price include the mould?
Yes,the above price includes one set mould.
7. Would you mind provide the video?
The video is available to send to you, please contact me.
8.How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
When you plan to purchase a certain machine, suggesting to take care below points:
1. What is the brand? ( Now a lot companies embezzle our brand, pls take note our prevention fake-mark.)
2. Does this brand has good reputation and sell well in the market?(we got good reputation and are the biggest supplier in China)
3. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
4. What is the lifetime of the mold? ( our mold can use 900,000 - 1200,000 times)
5.The price cover to what equipment?( pls refer to our quotation list)
IF you want to know more about our machines,production capacity or relavant Questions feel free contact Please:
