QT40c-1semi Automatic Adobe Block Machine Lowest Price
QT40C-1semi automatic adobe block machine lowest price 1.Factory and manufacture the block machine experience2.QT40C-1 manual brick machine factory production flow (1) Raw material: use hopper trolley delivery into mixer; need 2 workers(2) Mixer: Mixing and produce concrete, then conveyor delivery ......
Send Inquiry
Product Description

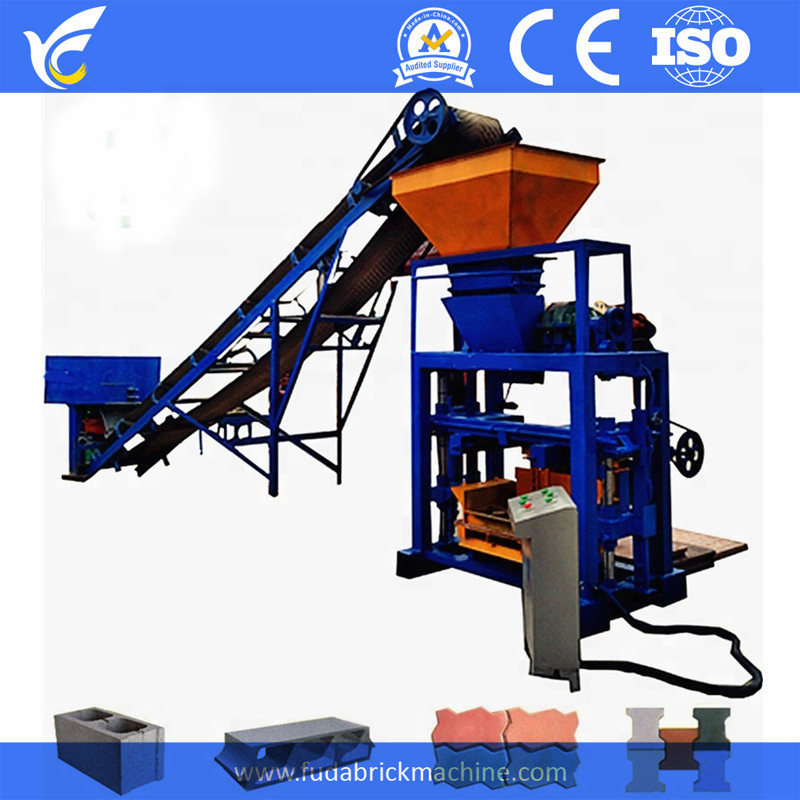

QT40C-1semi automatic adobe block machine lowest price
1.Factory and manufacture the block machine experience
2.QT40C-1 manual brick machine factory production flow
(1) Raw material: use hopper trolley delivery into mixer; need 2 workers
(2) Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker
(3) Block machine: Forming blocks, move to pallet,then move to trolley,need 2 workers
(4) Use trolley delivery new blocks to curing area; need 2 workers
(5) Curing area: Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers
(7) Trolley: delivery pallet to host block machine, need 1 worker
(8) Sell blocks: Sell blocks and management; 1 worker
Total need about 9-10 workers in QT40c-1 hollow block machine factory.
3.QT40C-1 manual brick machine Production line

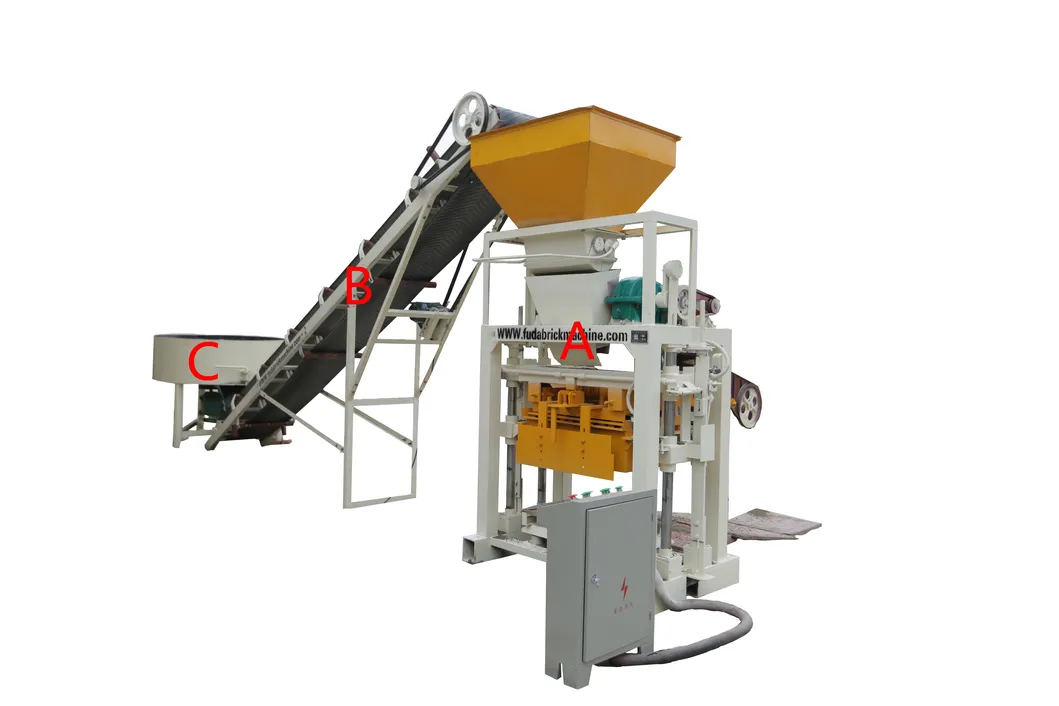

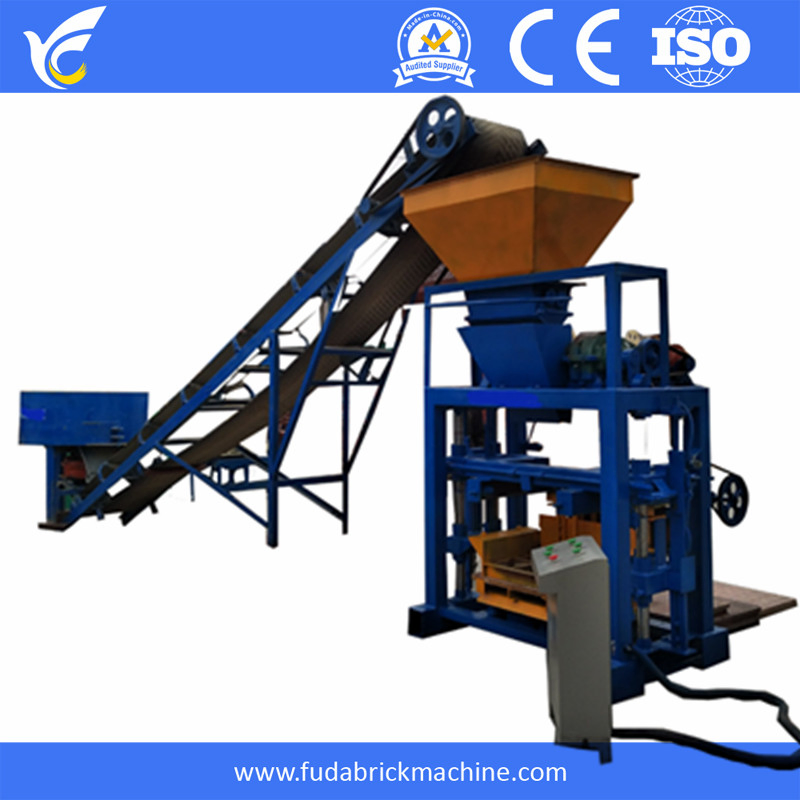

(1)QT40C-1 manual brick machine production line introduce
| A | QT40C-1 Host brick machine |
| B | 6m conveyor |
| C | JQ350 Power 7.5KW |
(2)QT40C-1 manual brick machine technical information:
| QT40C-1 Host machine total power | 11.15KW |
| Molding cycle | 40s |
| Vibration frequency | 2800HZ |
| Vibration force | 50KN |
| Host brick machine size | 1750*1700*2750mm |
| Weight | 1500KGS |
| Pallet size | 850*550mm |
4.Block machine production capacity:
| Item | Block | Production capacity | Photo |
| 1 | Hollow/Solid block 400-200-200mm | 4 pcs/mold 2880 pcs/8h | |
| 2 | Hollow/Solid block 400-150-200mm | 5 pcs/mold 3600 pcs/8h | |
| 3 | Hollow/Solid block 400-100-200mm | 7 pcs/mold 5040 pcs/8h | |
| 4 | Houdi block 450-120-200mm | 6 pcs/mold 4320 pcs/8h | |
| 5 | S shape paver 225-112.5-60mm | 12 pcs/mold 8640 pcs/8h | |
| 6 | I shape paver 200-160-60mm | 8 pcs/mold 5760 pcs/8h | |
| 7 | Holland paver 200-100-60mm | 12 pcs/mold 8460 pcs/8h |

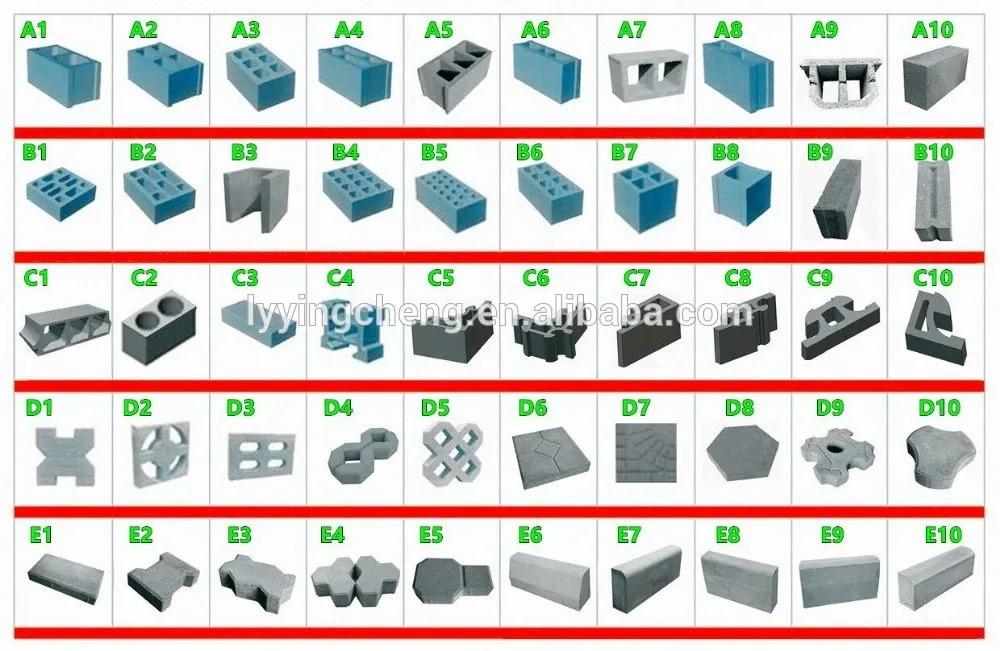

Block and Paving Brick Design for your reference:
5.Block machine video link and size
| QT40c-1 block machine video link | https://fudabrickmachine.en.made-in-china.com |
| QT40-2 block machine video link | https://fudabrickmachine.en.made-in-china.com |
| QM4-45 block machine video link | https://fudabrickmachine.en.made-in-china.com |
6.Block machine Advantage

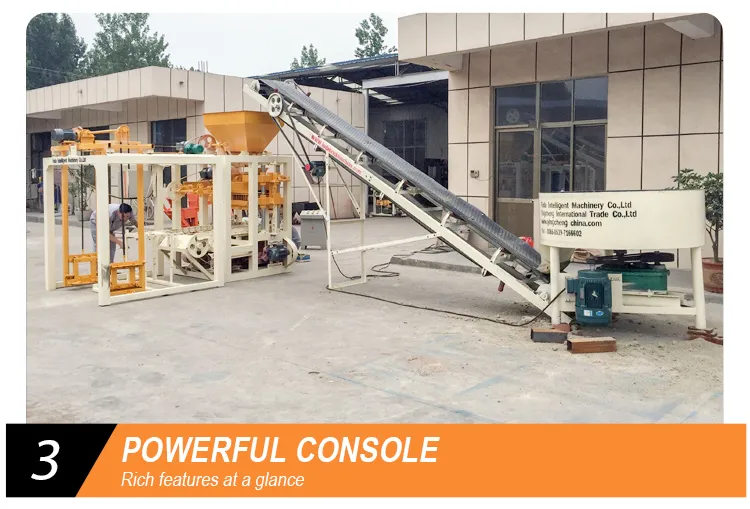

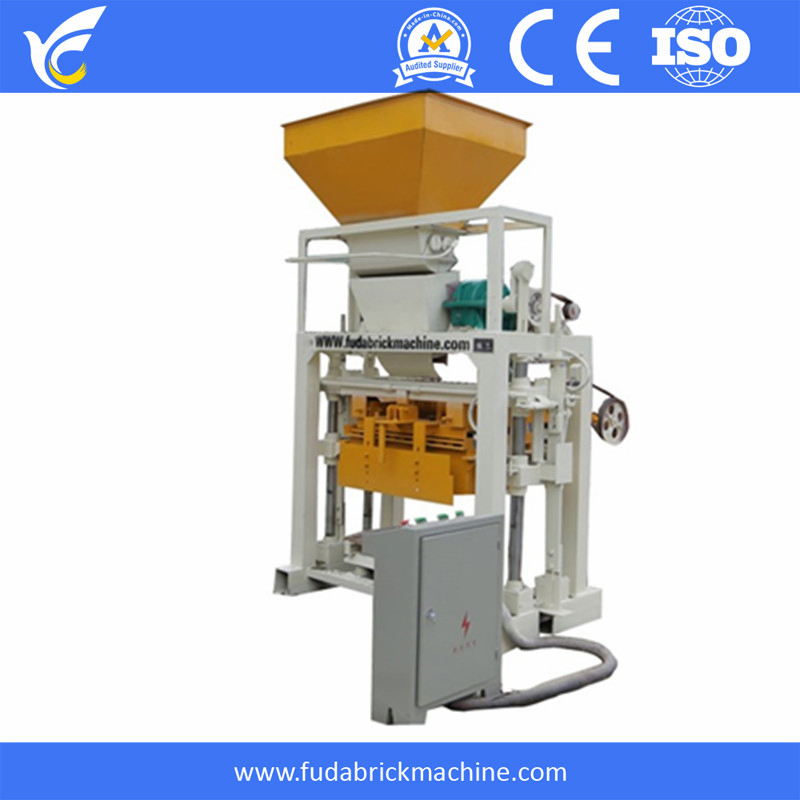

7.Block Machine Pictures
8.Hot Product and Machine Samples

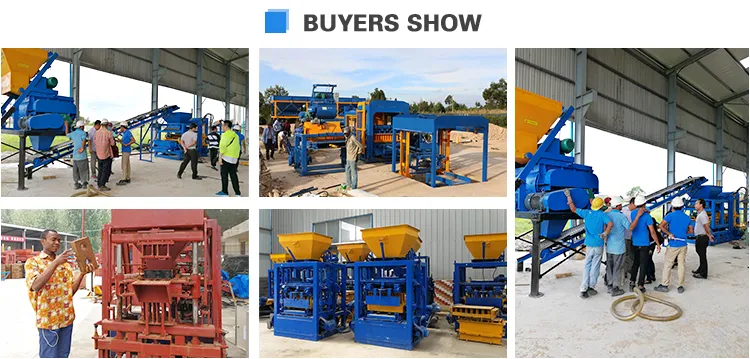

9.Buyer Show
10. Why Choose us
11.Factory detail show and Certificate
12.After Sales Service and FAQ
13.Related block machine recommend:
| QT4-18 Block machine | QT4-24 Brick machine | QT4-10 Interlock block machine | QT40-2 Brick machine |
| 6400pcs/8h | 6400pcs/8h | 14400pcs/8h | 2880pcs/8h |
