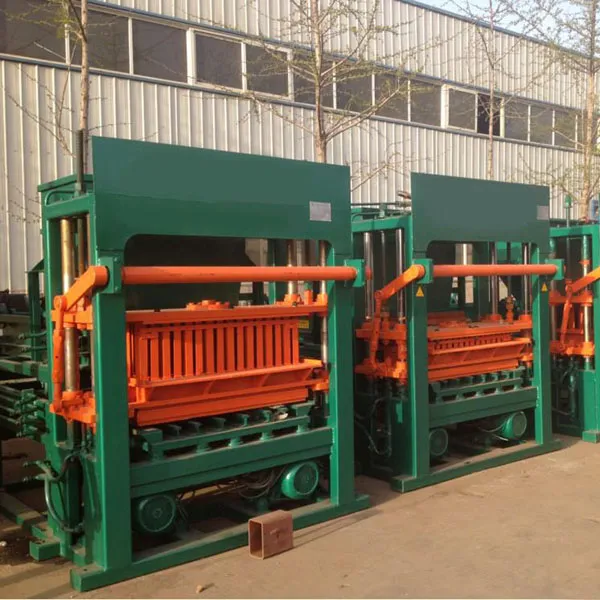

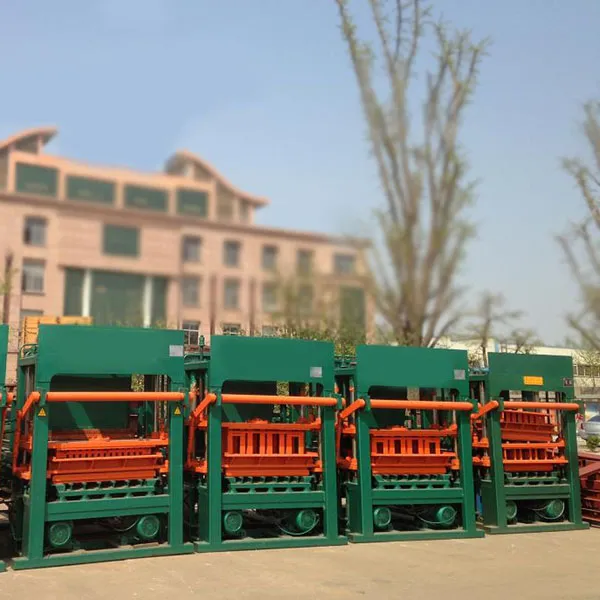

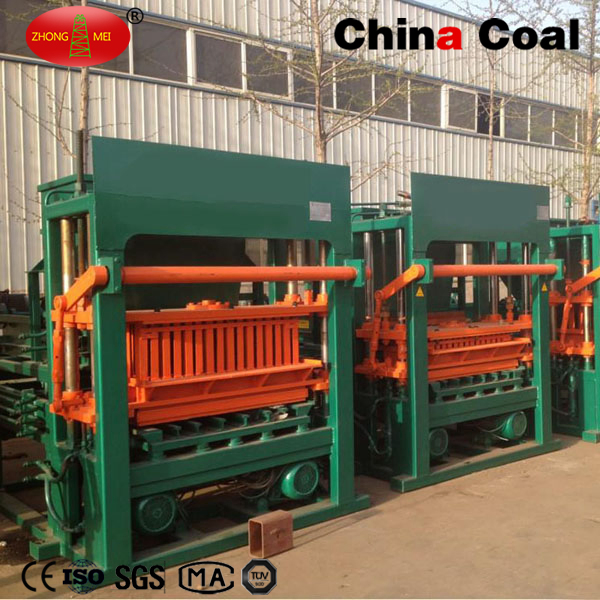

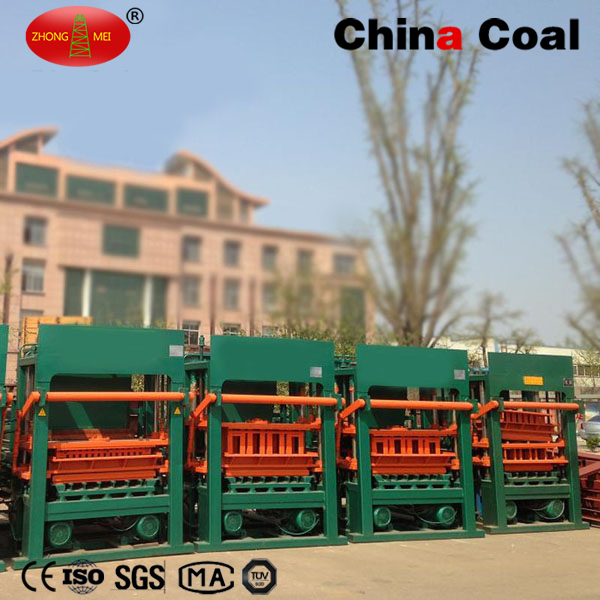

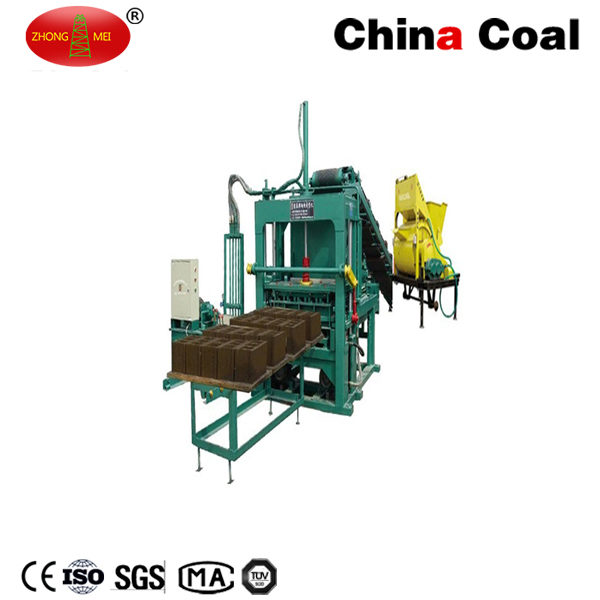

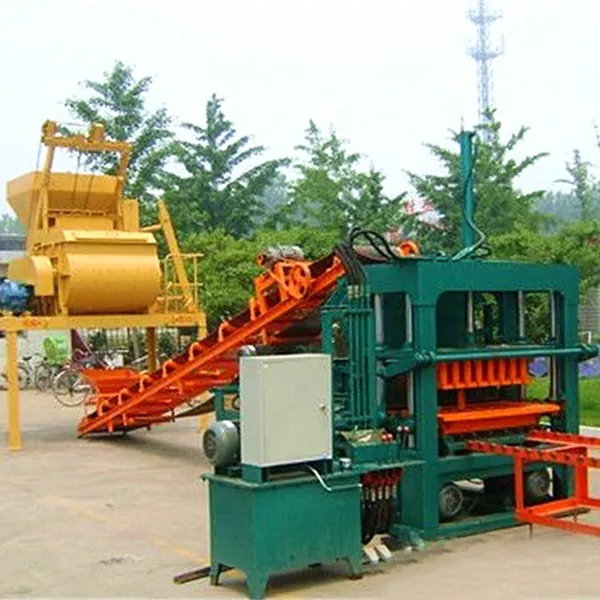

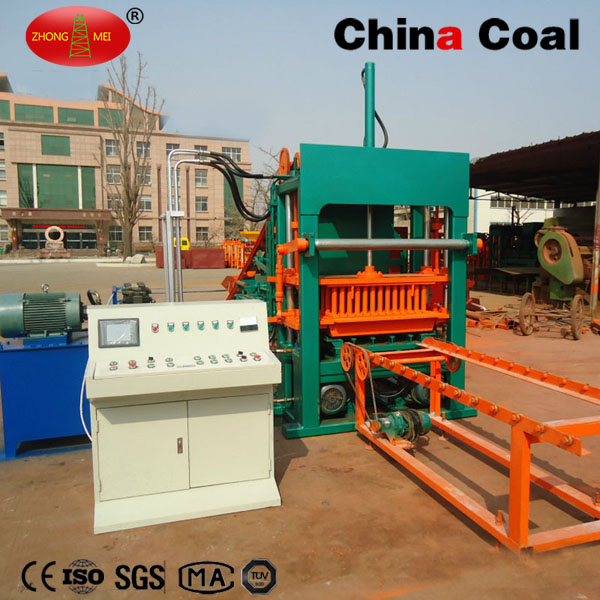

Qt5-20 Automatic Vibrating Forming Concrete Hollow Block Making Machine

Product Description

Advantages of QT5-20 Automatic Vibrating Forming Concrete Hollow Block Making Machine

QT5-20is the newest fully automatic block machine .its pressure system be me two hydro-cylinder .The lifting speed fast and the pressure function is well. The advantages as followed:

1. The machine use the Siemens motor (or ABB) which is with best quality. Its life is 1.3 times than common motor
2. Japan Mitsubishi PLC control system. And Omron travel switch, achieving dialogue and exchange between man
and machine. Dozens of mechanical action of different products .could be adjusted through the menu to select the
addition and subtraction without needing professionals.
3. As a multipurpose machine, exchangeable mold can produce normal block ,hollow block, multiholes brick and
paving bricks
4. Scatter material through revolving 360 degree ,this process likes to mix the material again after the mixer ,the
technology makes the block evenly and high density
5. Mould got heat treatment and carburization ,making the anti-wear ability 1.2times than other mould
6. The computer controlled the direction vibration ,frequency and brake to cancel the vibration energy
7. Feeding in low frequency ,vibration in high frequency ,and increasing in head tanks. Table and mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high density and high strength ,particularly be suitable for the production of high strength blocks ,you can stack immediately after forming.

Parameter of QT5-20 Automatic Vibrating Forming Concrete Hollow Block Making Machine

1)Product Name	QT5-20 blocks machines for construction
2)Standards	ISO9001/CE
3)Overall Size	3650(L)×2100(W)×2720(H)mm
4)Cycle	20 Seconds for one sheet
6)Raw Material	Concrete, sand, cement and others
7)Carriage Size	Plastic pallet Bamboo pallet Wooden pallet	1100(L)550(W)20(H)mm 1100(L)550(W)25(H)mm 1100(L)550(W)30(H)mm
8)Vibration Force	50KN
9)Electrical Source	380V/50Hz/22KW	We can equip motor according to your electricity request
10)Weight	3500kg
11)Packing	40FT Container
12)Price Term	FOB Qingdao, China	CFR,CIF
11)Shipping Method	By Sea
13)Payment Terms	T/T, L/C, West Union
14)Production Time	20-30 days after got 30% deposit
