Qt6 -15 Cement Block Machine for Sale / Automatic Hydraulic Fly Ash Brick Making Machine

Product Description

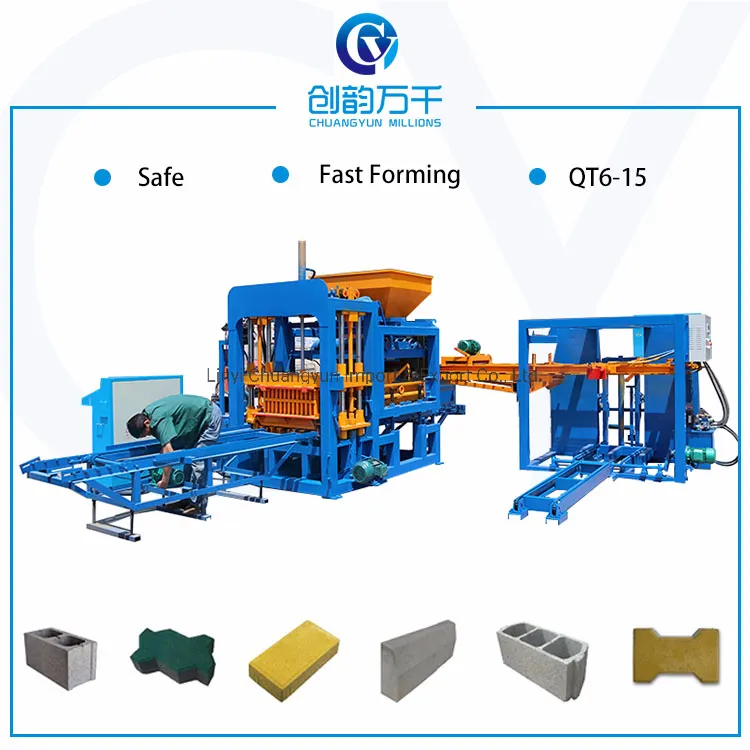

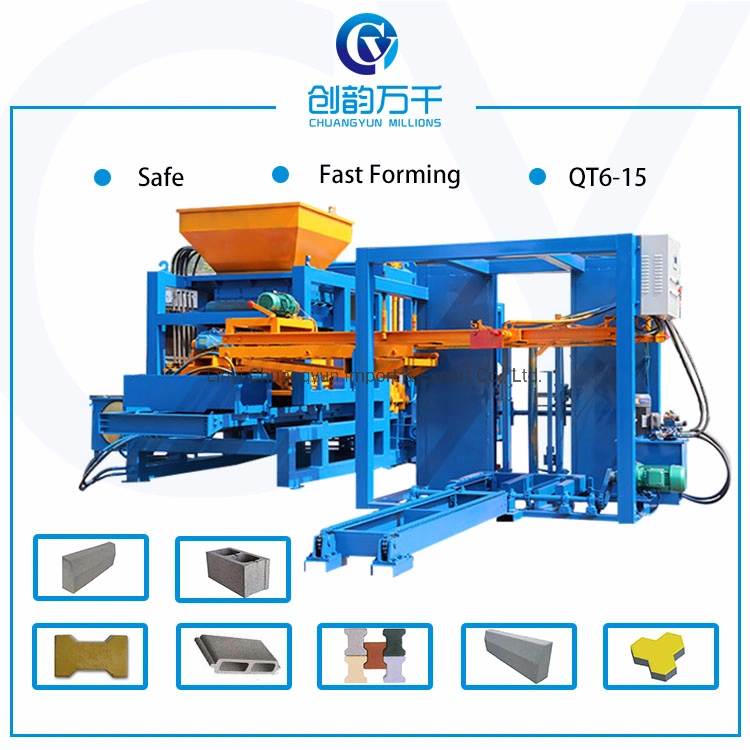

QT6-15 automatic hydraulic cement concrete construction building cinder block making machine

Qt6-15 Cement Block Machine for Sale / Automatic Hydraulic Fly Ash Brick Making Machine

Qt6-15 Cement Block Machine for Sale / Automatic Hydraulic Fly Ash Brick Making Machine

Introduction:

QT6-15 Block making machine is one of our hot sale block making machine which can produce all types of hollow blocks, solid block, paver, curbstone and so on. In order to suit the overseas markets and ensure the machine work high efficiency, we are constantly updating and improving the quality and technology.,the machine advantages are as shown following.
1. 4 vibration motors: Our vibration system adopts 4 vibration motors,vertical vibration onto 4 corners of the platform,vibration evenly strong and quickly,molding fast,reduce the friction with the mold,extend the service life of the mold.
2. Lengthened vibration shaft and vibation box: We adopt lengthened vibration shaft and vibation box to make the vibration platform vibrate stably with more strong and less noise.Our vibration box is cast,won't leak oil.
3.Siemens PLC and vibration motors: Adopts Siemens PLC and vibration motors to make sure our machine work more efficiently and stably.
4. Japan YUKEN hydraulic component: hydraulic system adopts the YUKEN proportional valve and multi direction communication control system,which can adjust any actio in al direction to make our machine working more stable and sensitive.

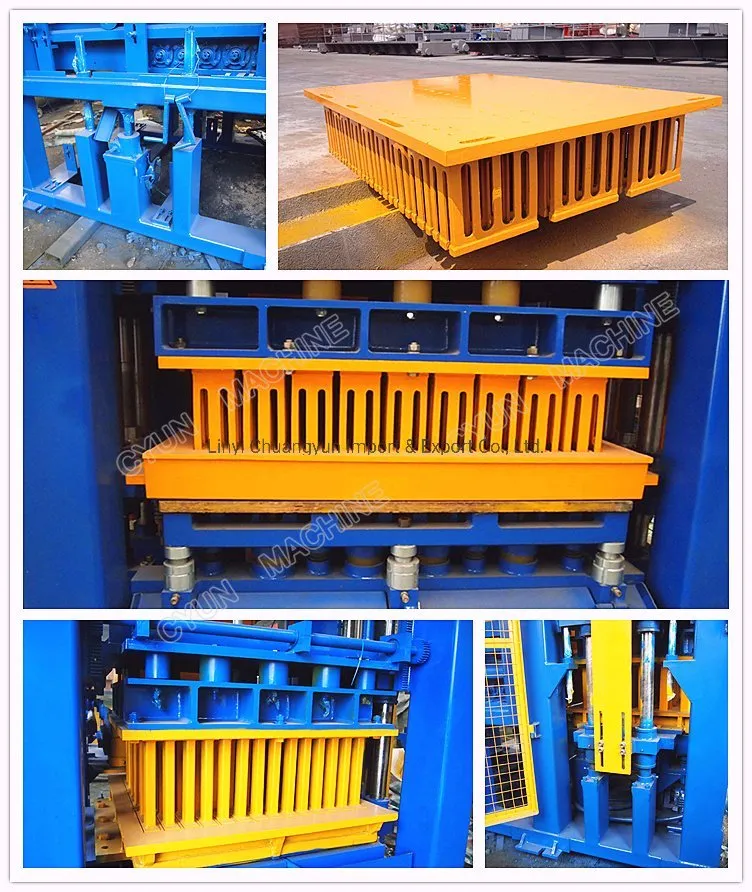

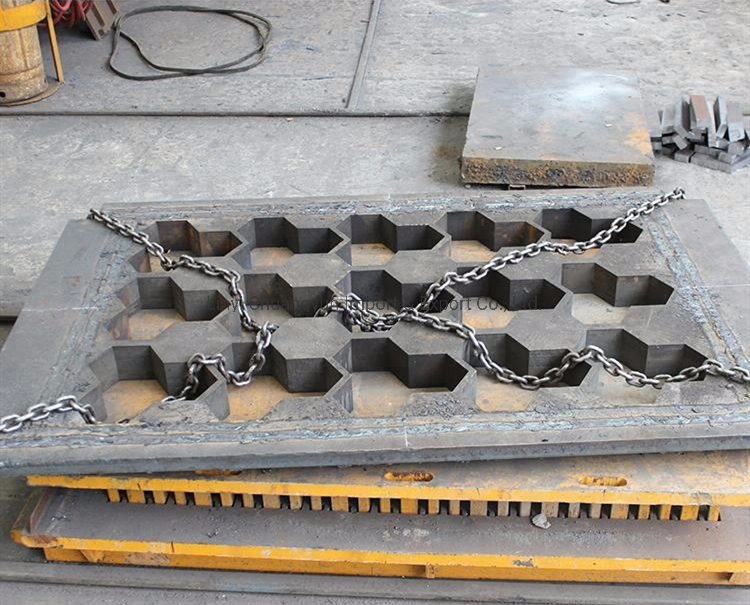

5.Block mould:Use manganse steel material,with the liner cutting and heat treatment technology,extend 50%service life.
6.Material Feeder: Adopt German technology wich uses a swinging spline shaft,makes the raw material evenly into the mold,reducing ther error of the brick,and this system has a low falure rate

Qt6-15 Cement Block Machine for Sale / Automatic Hydraulic Fly Ash Brick Making Machine

Main features
The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand .
• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .
• About the switches ,we will use France Schneider or China CHNT
• Rakes in several rows make sure raw materials fed well-distributed.
• Hydraulic components we use Taiwan JiuGang famous brands.
• The demoulding synchronizer avoids the damage to concrete products.

Qt6-15 Cement Block Machine for Sale / Automatic Hydraulic Fly Ash Brick Making Machine

Technical parameter

Electric power	67.75KW
Total weight	18T
Shaping area	300m2
Factory area	2000m2
Molding ara	960*770
Vibartion force	70-100KN

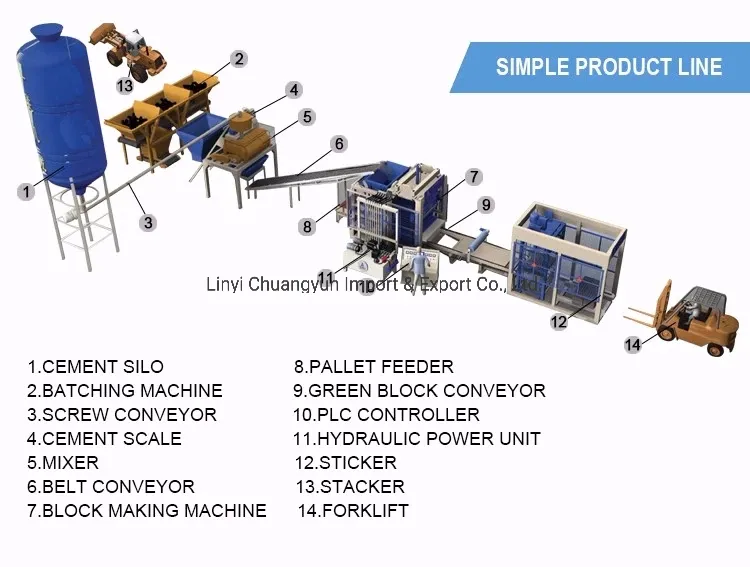

Operator	5-7, Pallet lifting, Batching machine, Mixer, Block forming machine, Stacker, Hydraulic barrow / Forklift, Material loader
Shaping method	Hydraulic press + Platform vibration + Mould vibration

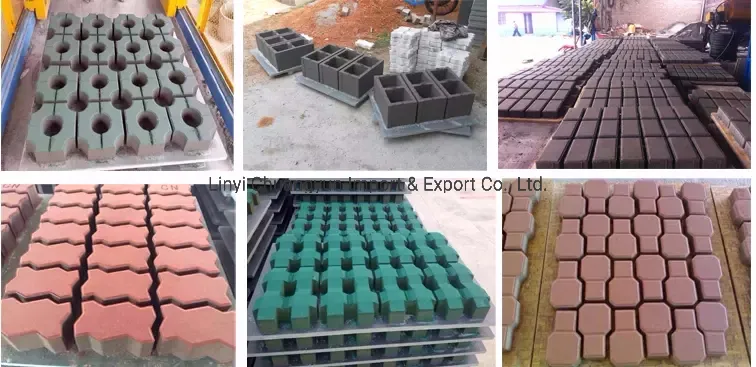

Theoretical production capacity


No	Size(LxWxH)	Reference pic	Pcs/Mould	Pcs/Hour	Pcs/Shift
1	400x200x200mm	Hollow / Solid	8	1440-1680	11520-13440
2	400x100x200mm		16	2880-3360	23040-26880
3	400x150x200mm		10	1800-2100	14400-16800
4	400x250x200mm		8	1080-1260	8640-10080
5	230x110x70mm	Standard brick	45	8100-10800	64800-86400
6	200x100x60	Paving	27	5760	46080
7	200x163x60	Paving	18	3600	28800

Our service

1. In the process of equipment production, we check the quality of equipment production at any time, carry out ex-factory testing before shipment to ensure product quality.
2. Send our engineers to guide customers in installation and commissioning.
3. Free supply of spare parts and tools that enough1 for one year.
4. The warranty period is one year. For any quality problems during the warranty period, our company will repair or replace spare parts free of charge.
5. Our company has been worked for 25 years. We can be found at any time.
