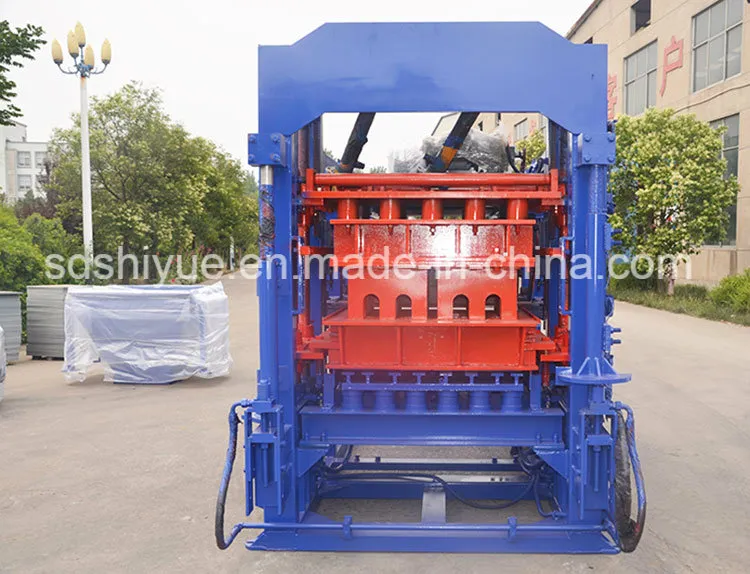

Qt6-15 Concrete Brick /Block Making Machine Price

Product Description

QT6-15 fully automatic hydraulic pressure block machine

Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters

Overall Dimension	*820017002950mm*
Rated Pressure	21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800~4500 ( r/min)
Pallet Size	*880850mm**
Molding cycle	15-25 (s)
Overall Power	37KW
Vibration Force	45KN
Total Mass	9T
Demolding method	Hydraulic
General water consumption	12T/Day
Factory Area	500m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.

Productivity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/8hours
400X200X200	6	1200-1680	9600-13440
400X100X200	15	2160-2880	17280--23040
225X112.5X60	18	2700-3000	21600-24000
250X60	10	1500-1800	12000-14400
200X100X60	36	5400-5700	43200-45600
200X165X60	12	1800-2100	14400-16800
250x250x60	6	1200-1400	9600-11200
