Qt8-15 Automatic Paver Block Machine for Road Pavement
The main technical parameters :Overall Dimension4120×1620×2900(mm)Rated pressure21MPaMain vibration formPlatform vibrationMotor Frequency50/60HZExciting force100KNCycle Time15-25 secondsVibrating Frequency2800-4500 rolls/minuteOverall weight10600kg Motors Power40.75KWPallet Size1......
Send Inquiry
Product Description
| Overall Dimension | 4120×1620×2900(mm) |
| Rated pressure | 21MPa |
| Main vibration form | Platform vibration |
| Motor Frequency | 50/60HZ |
| Exciting force | 100KN |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 2800-4500 rolls/minute |
| Overall weight | 10600kg |
| Motors Power | 40.75KW |
| Pallet Size | 1000*850*30(mm) |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Machinery List :
| No | Name | Qty/Set |

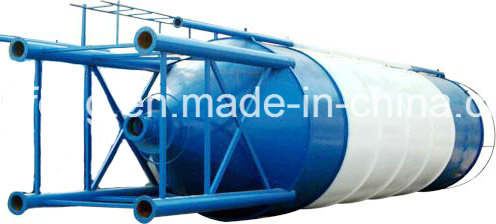

| 1 | 80 Ton Cement Silo | 1 |

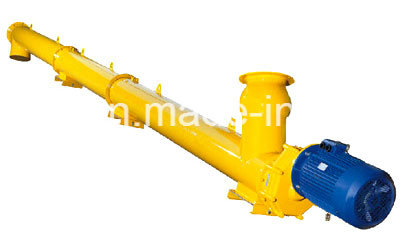

| 2 | LSY Screw Conveyor φ219×8m | 1 |
| 3 | Cement Scale with water scale | 1 |
| 4 | PL1200-III Concrete Batching Machine | 1 |
| 5 | JS750Twin-shaft Concrerte Mixer | 1 |
| 6 | QT'8-15 Block Making Machine | 1 |
| 7 | Automatic Blocks Stacker | 1 |

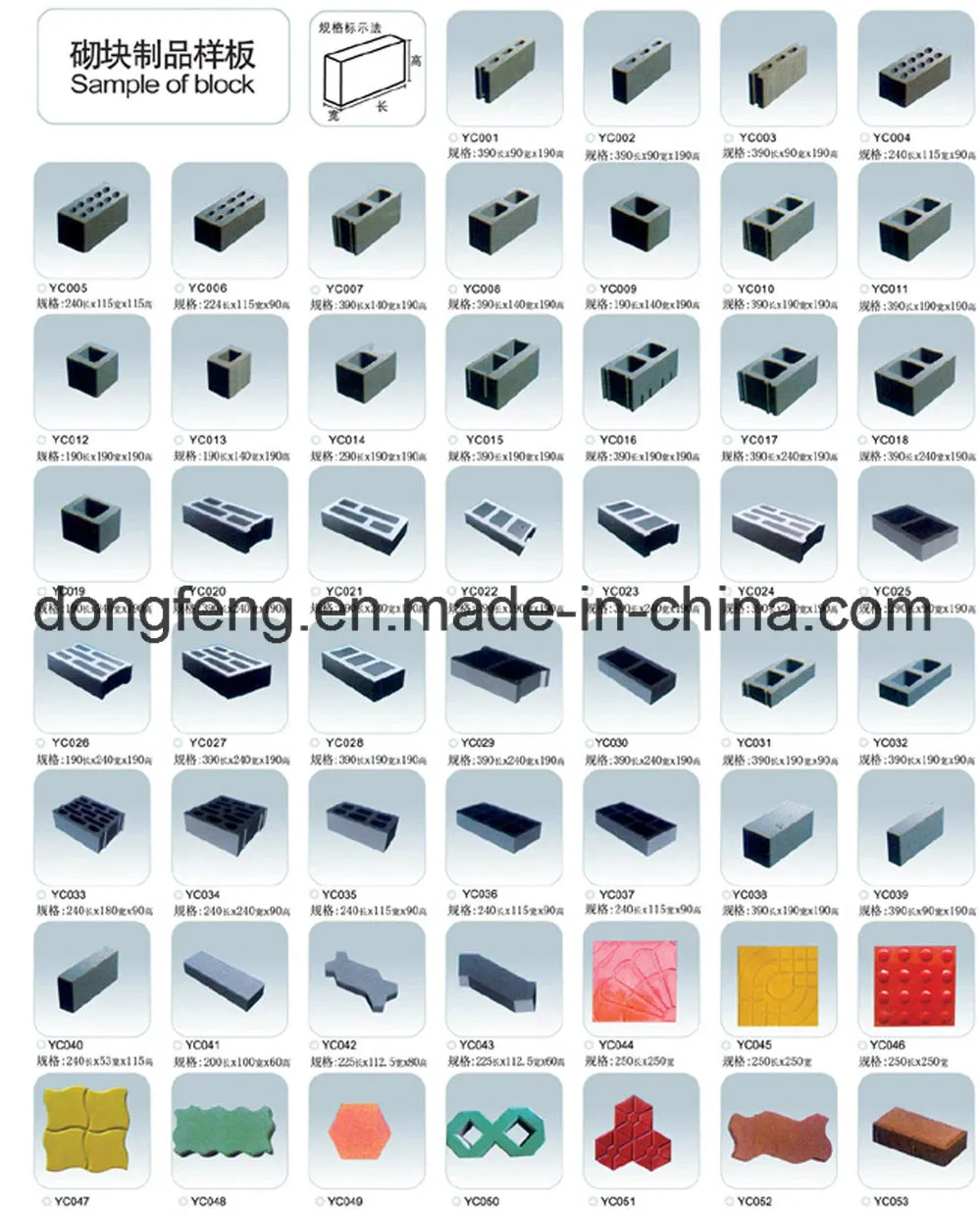

Finished Products Show:

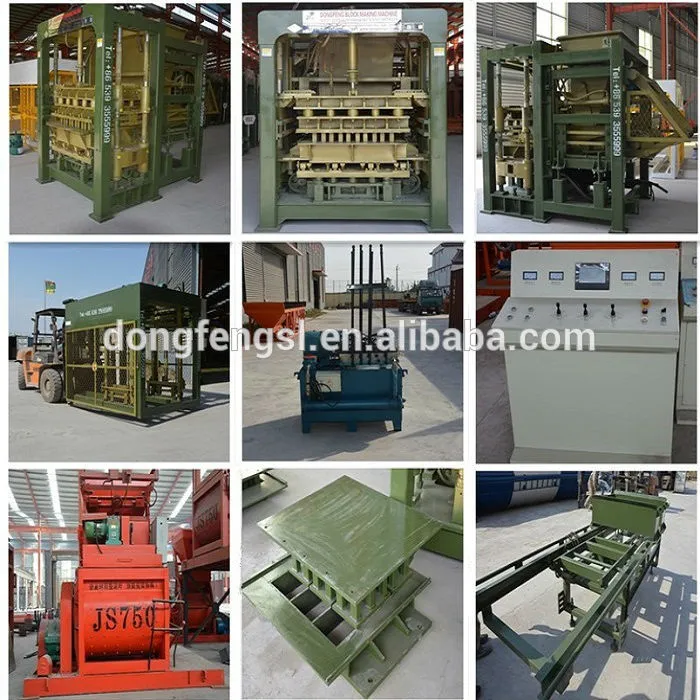

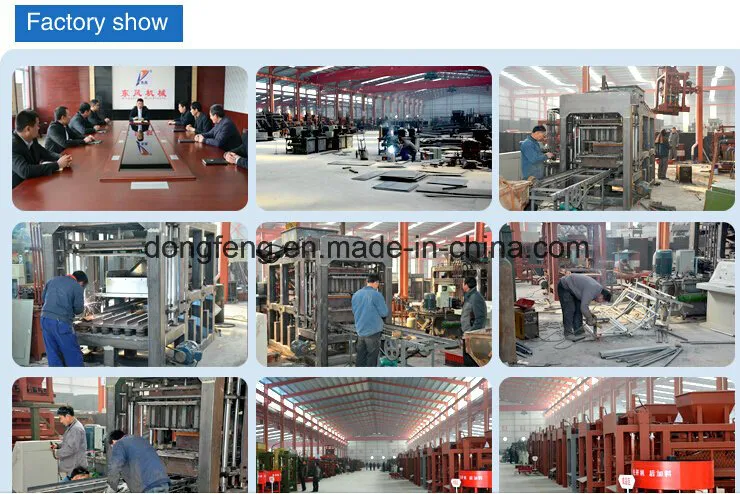

Our Factory:
Shandong Dongfengshuanglong Machinery factory is the top and professional manufacturer of brick machinery for more than 20 years with the muture technology and rich exporting experience in China.
Our factory manufactures all kinds and models of block making machines and auxiliary equipment such as the cement silo,screw conveyor,batching plant,concrete mixer and so on.Our main model of brick machinery is QT series fully automatic block production line and semi-automatic brick machine including QTY4-20, QT 4-25 ,QT4-26,QT4-35,QT4-40.
Our Factory have been supplying to customers all over China and more than 50 countries around Vietnam, D. P. R Korea, Russia, Mongolia, Bangladesh, Guinea and Nepal, and deeply trusted by all the customers.
If you have any interest and requirement of our machine please don't hesitate to contact us, It will be our pleasure to propose the proper and suitable solution to you.
Contact Details:
Alina Dong
MOB:+86 18754957965
