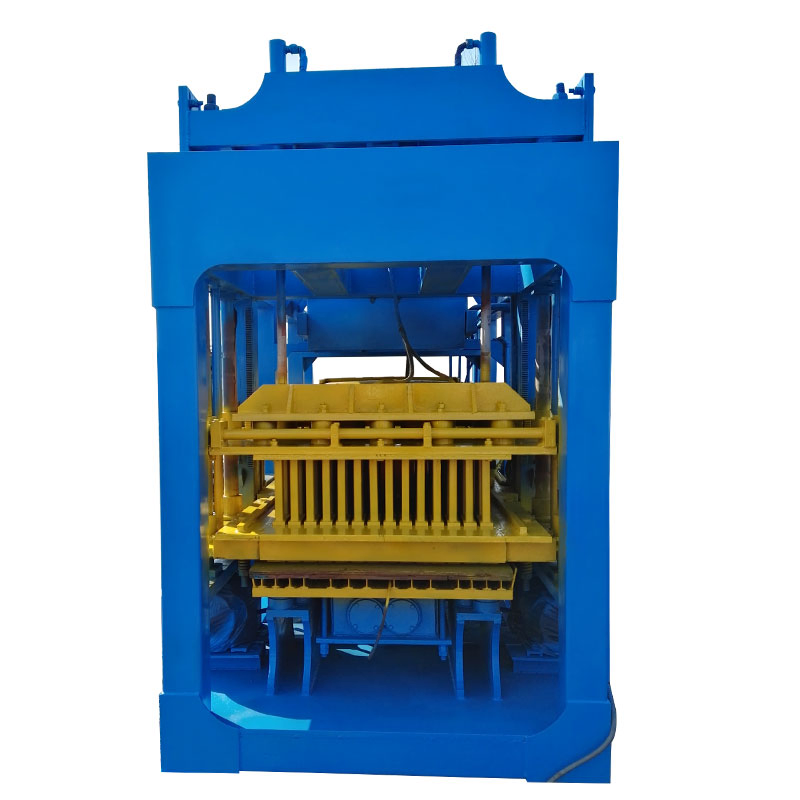

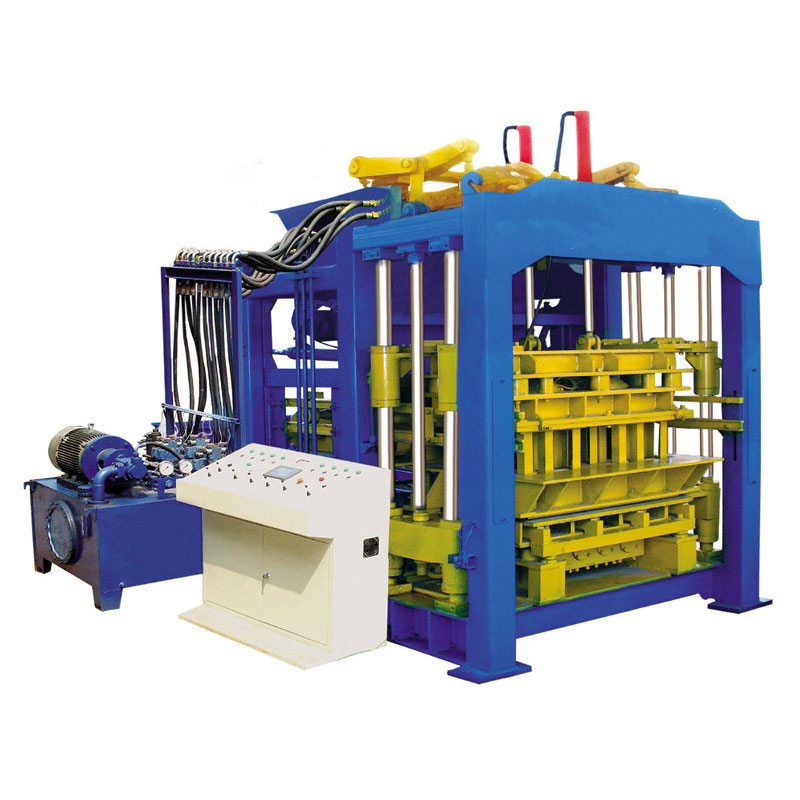

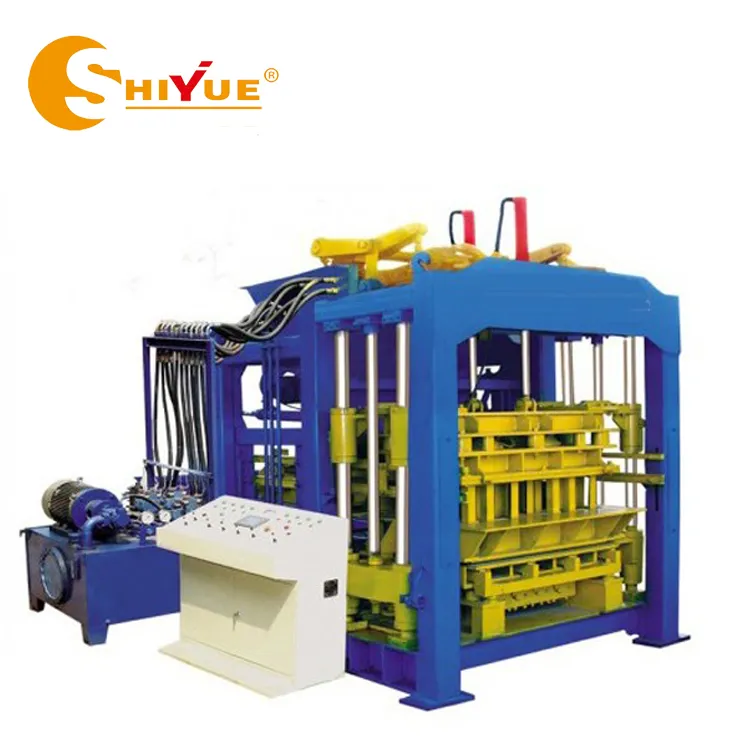

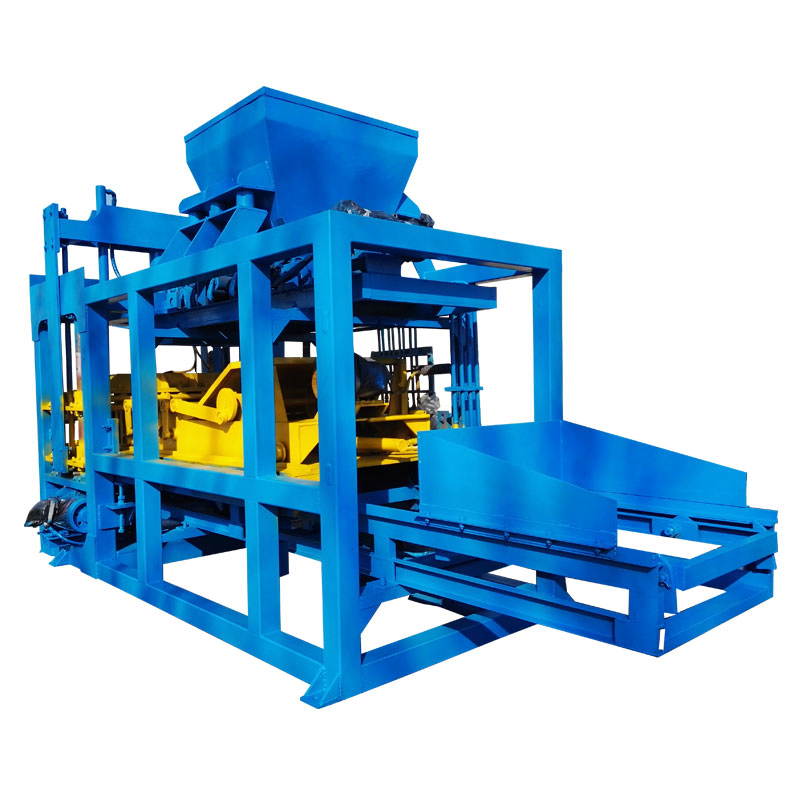

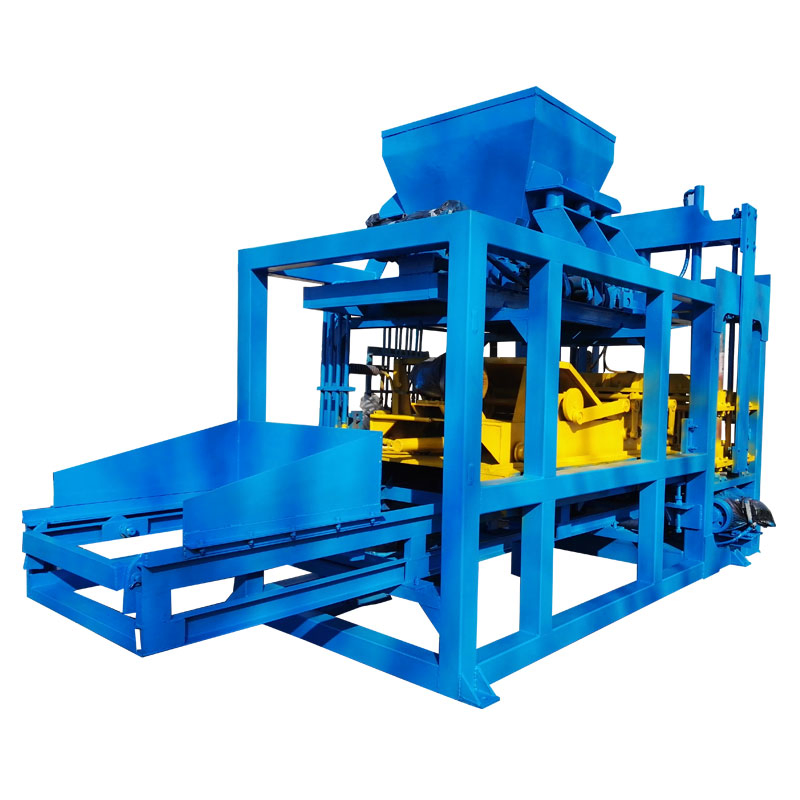

Qt8-15 Fly Ash Brick Machinery Hollow Brick Molding Machine Price
QT8-15 fly ash brick machinery hollow brick molding machine pricePRODUCT DESCRIPTIONPRODUCT FEATURES QT8-15 is a new model which is developed by our company, absorbing advantages of different models in our country and abroad.1. The rack is manufactured using high strength with special welding tech......
Send Inquiry

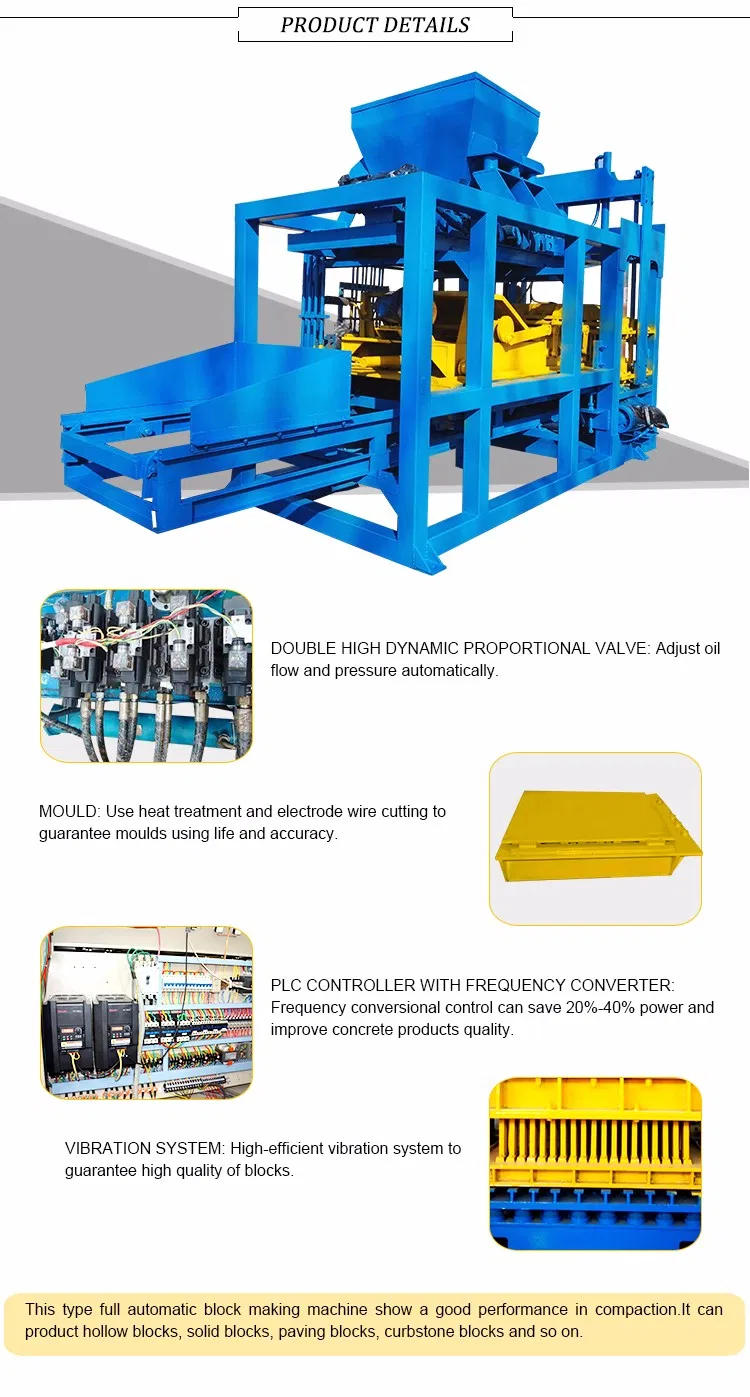

Product Description
PRODUCT DESCRIPTION
PRODUCT FEATURES
QT8-15 is a new model which is developed by our company, absorbing advantages of different models in our country and abroad.
1. The rack is manufactured using high strength with special welding technique, it resists vibrating shock.
2. It adopts multiaxis synchronizer vibration mode to ensure vertically downward to reach best vibration effect.
3. The long-period over length guide bearing guarantees the accurate movement between upper mould and mould box.
4. Multiaxis forced mixer system has better adaptability to raw materials with different nature.
5. Hydraulic system which is well-designed has high thermal efficiency and low heat productivity, so that it ensures its high reliability.
This model is controlled by computer, fully automatic, and production efficiency is high, meanwhile the labor strength of workers is low. And the compactedness as well as quality uniformity of concrete products is good.
TECHNICAL PARAMETERS
QT8-15 Full automatic block making machine | |
Overall Dimension | 8300*1860*3000mm |
Rated Pressure | 21MPa |
Main Vibration Form | Platform vibration |
Vibration Frequency | 2800~4500r/min |
Pallet Size | 950*900MM |
Molding Cycle | 15-25S |
Overall Power | 55.5KW |
Vibration Force | 45KN |
Total Mass | 9T |
Demolding Method | Hydraulic |
Factory Area | 500m² |
Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks, curbstone, colored pavers, etc. |
Raw Material | Crushed stone, sand, cement, dust, and fly ash, gravel, slag, and other raw material , etc. |

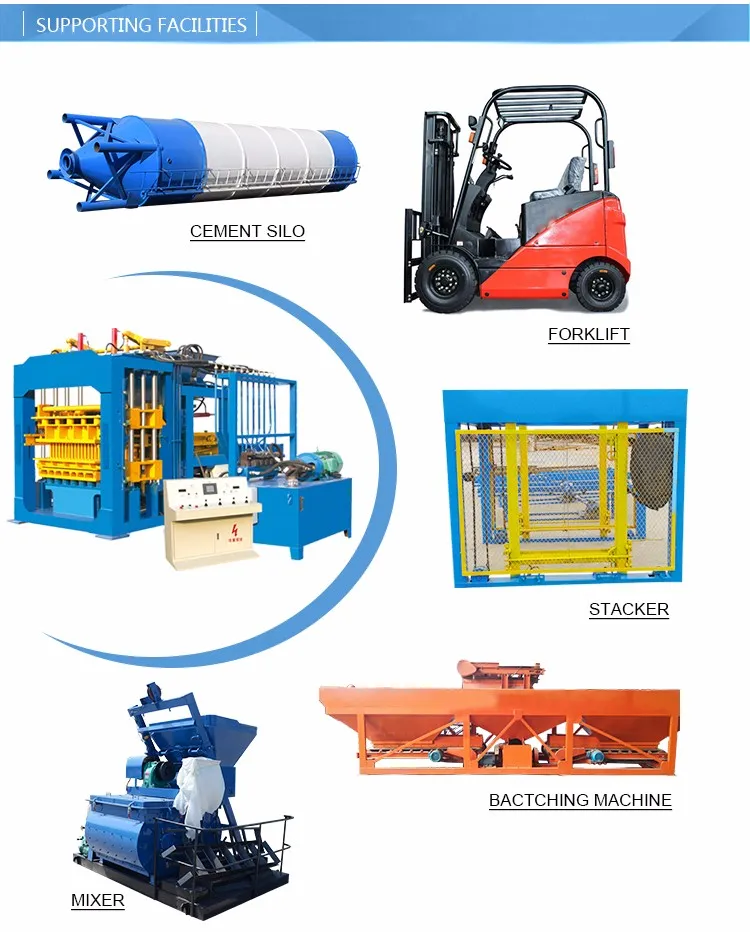

SUPPORTING FACILITIES
Packaging & Shipping

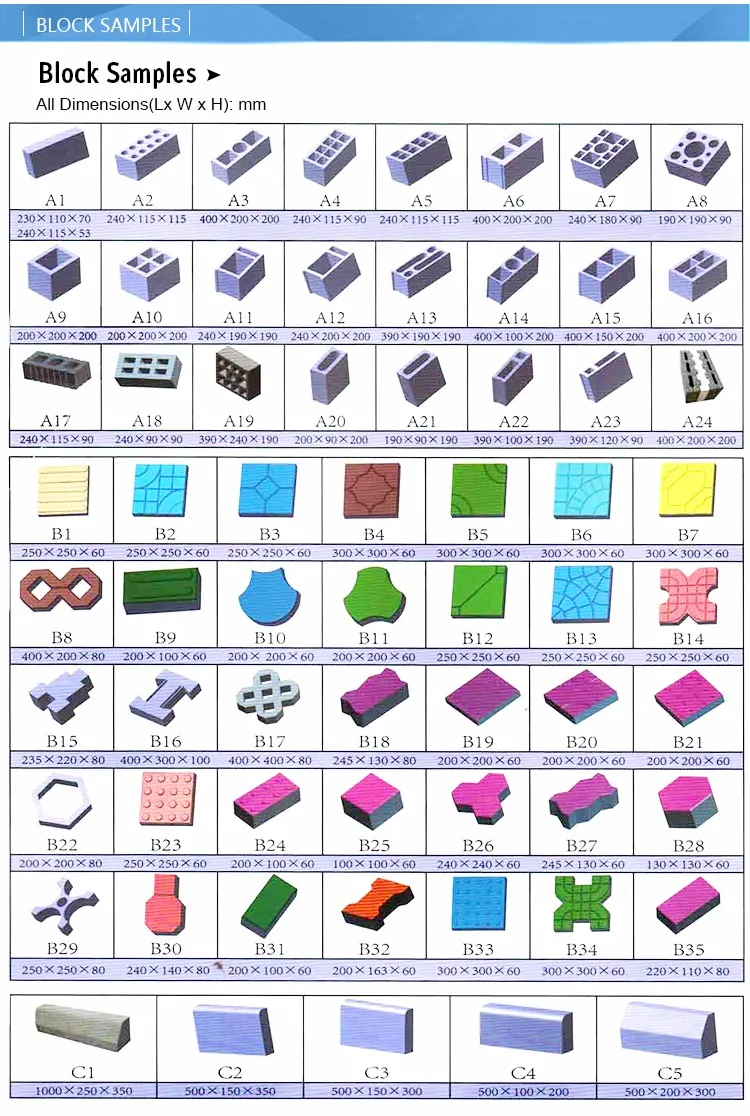

BRICK SAMPLES
Our Factory
