Small Movable Concrete Block Machine

Product Description

1. Main Technology Parumeter of small movable block machine

Main parameter	QT40-3B
Control style	Virbation & Electrical control system
Molding cycle	45 s
Production capeacity	400x200x200(mm) 2400--2600 block/shift (8h), 200x200x200(mm) 4800--5200 blocks/shift(8h)
Mould Vibration	3800--4200r/min
hydraulic fore	hollow bricks 8-10 Mpa Solid bricks 10-12Mpa
Overall power	5.2kw
Voltage	380V or as your request
Host machine size	315018002400mm
Molding form	Vibration
Main vibration form	Mould Vibration
Weight of host machine	1.0 T
Size of pallet	No need pallets.
Theoretical workshop area : 60m*2,need about 2-3 workers.
The office , curing area and stacking area to arrange according your fact status.

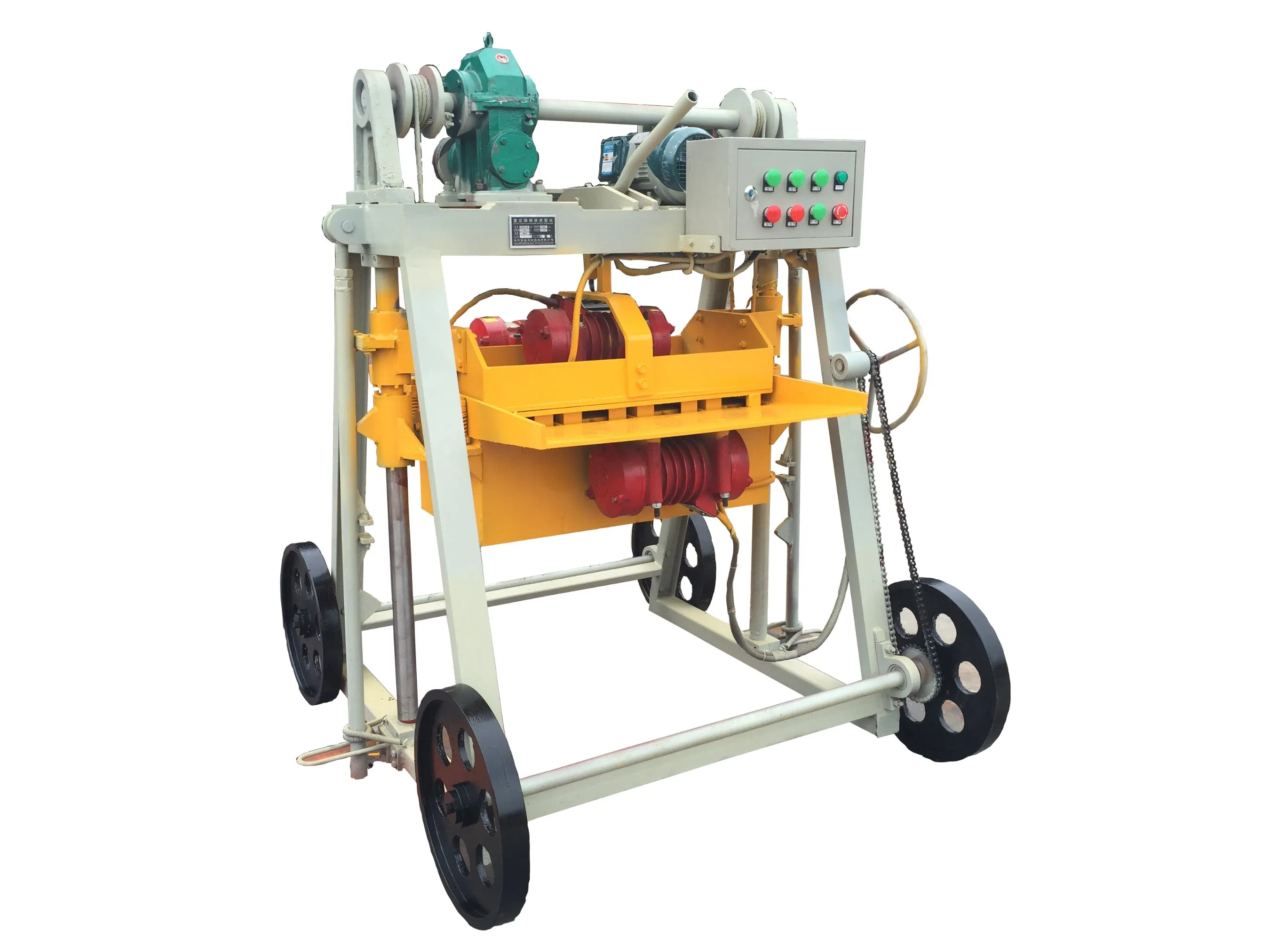

2. small movable block machine :
Small Movable Concrete Block Machine

3. Product list of small movable block machine

Device	Specification	Power (KW)	Unit	Quantity
Block machine	QT40-3A	5.2	Set	1
Mixer	JD350(1.2m)	5.5	Set	1
Mould	Free		Set	1
Block trolley			Set	1
Spare parts and tools			Set	1

4. Theoretical Production Capacity small movable block machine

Size(mm)	Qty/mould	Cycle molding	PCS/Hour	PCS/8 hours(shift)
400200200	4	30s	480	3840
400150200	5	30s	600	4800
400100200	7	30s	840	5760
200200200	8	30s	960	7680
Can make all kind of hollow and solid block.

5. Material of small movable block machine :

Material 1 :	8%-10% cement , 30%-40% sand , 50%-60% , stone (less than 10mm)
Material 2 :	8% cement , 60% sand , Fly ash 30% , 2% gypsum.

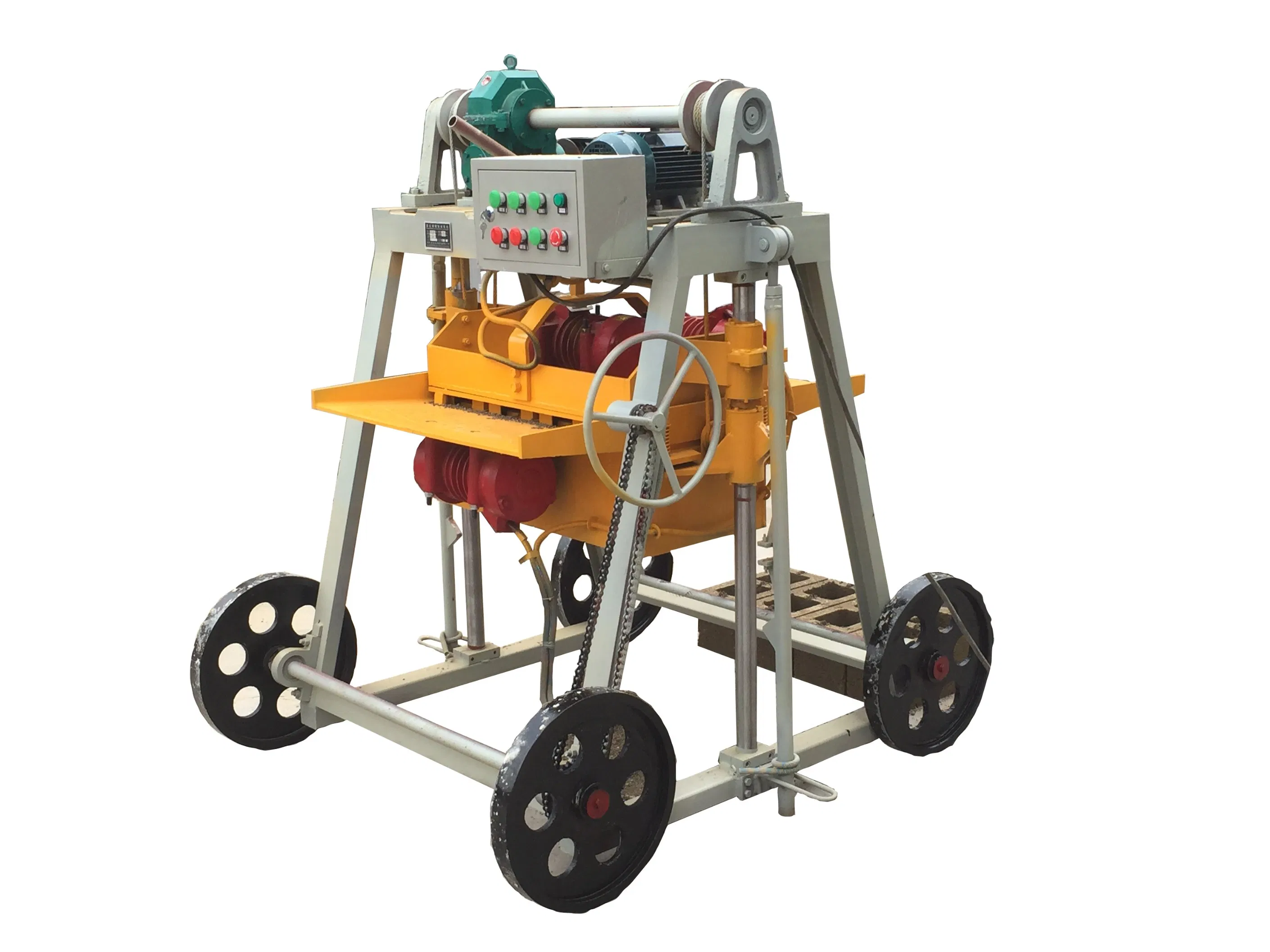

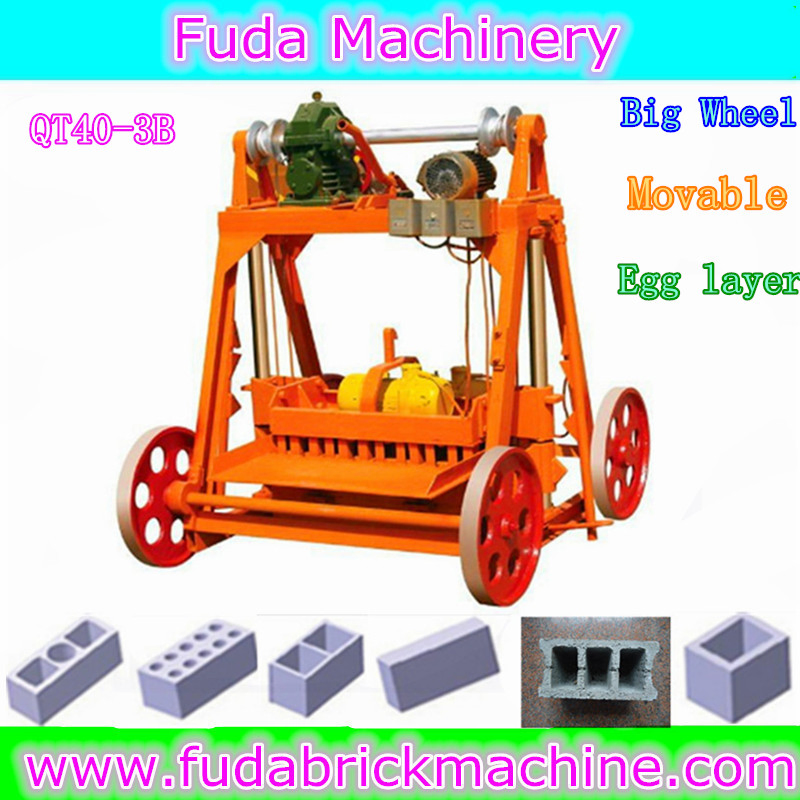

6. Different sides show of small movable block machine

7. small movable block machine Trade Terms:
A. What kind of bricks can be produced by this machine ?
    Different bricks can be made by chanding differernt moulds.
B. What models of the machines can be choosed for customers ?
    We have full-automatic , semi-automatic , manual , egg laying , paver machine for your choose.
C. What kind of payment terms do we accept ?
     T/T , L/C , Paypal , Western Union are common for us . Other ways are ok by negotiation.
D. How about the working life of machine ? And warranty
    Our machine can be used for over 5 years.
    One year warranty
E. How about your Production time ?
    Normally 20-25 days after your deposit.

8. Fuda brick machine factory introduction

1.Linyi Yingcheng International Trade Co.,LTD. was established on Fuda Intelligent Machinery Manufacturing Co.,Ltd. factory

2.We are located in Linyi City,near Qingdao port.

3.We can make Burn-free brick making machine , Small bloak machine , hydraulic brick machine , automatic block machine . Burning-Free Hollow Block Macking Machine .

4.We are also a national large scale designated wallmaterial machinery manufacturer ,a coalition of researching,producing and marketing,and services.

5.We are strive to produce highest quanlity products , built and completed management and quanlity control system , targeting at the top of technology , and supply the first class after-sales service and broad domestic and overseas selling network .

Website: fudabrickmachine.en.made-in-china.com

9. Questions about our Fuda Brick Block Machinery .
A- Can I trust your company and you block machine ?
   Yes , We are very specialized for burning-free blcok machine making in linyi city of China , already 21 years.
B- Can I visit your factory ?
   Yes , many domestic and international customers visit our factory every year .
C- How long isn the warranty of your machine ? Do you supply spare parts ?
   Our warranty period is one year generally .  We can supply spare parts.
D- Do you provide after-sales service ?
   Yes , We have a professional after-sales service team to promptly and thoroughly solve our problems.
E- Do you have good price ?
   Yes , We are big manufacturer, we can give you the competitive price with high quality .
