Xn 840 Ibr Roof Forming Machine Roof Tile Making Machine
XN 840 Ibr Roof Forming Machine Roof Tile Making MachineProduct Description Feeding width: 1000mm -- Effective width: 840mm Feeding width: 1200mm -- Effective width: 1050mm Main parameters of 840roll forming machineSuitable to processColor steel plate, galvanized sheet, aluminum coils and etc.Width ......
Send Inquiry
Product Description

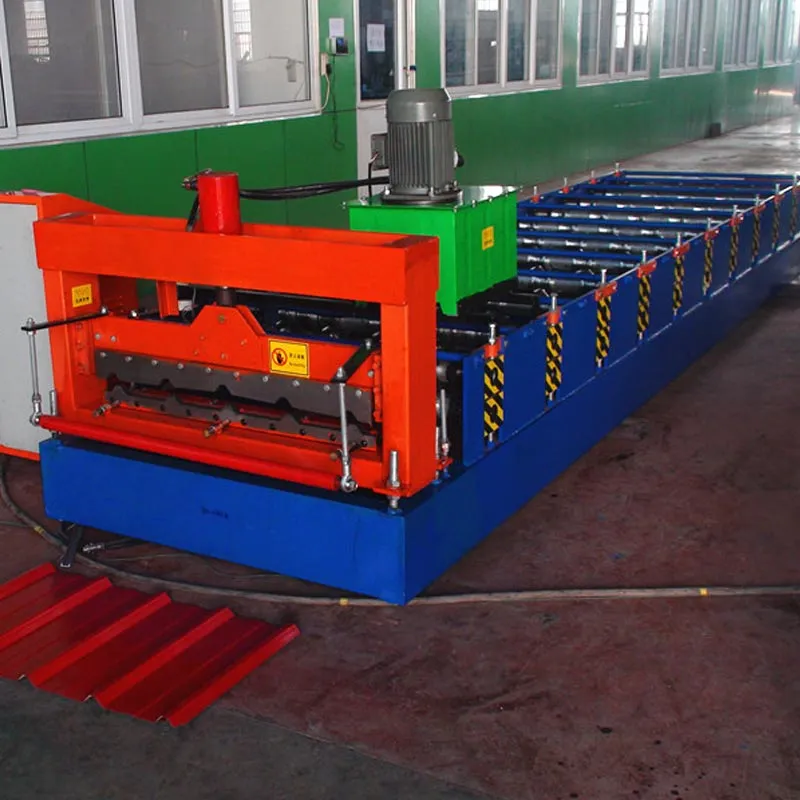

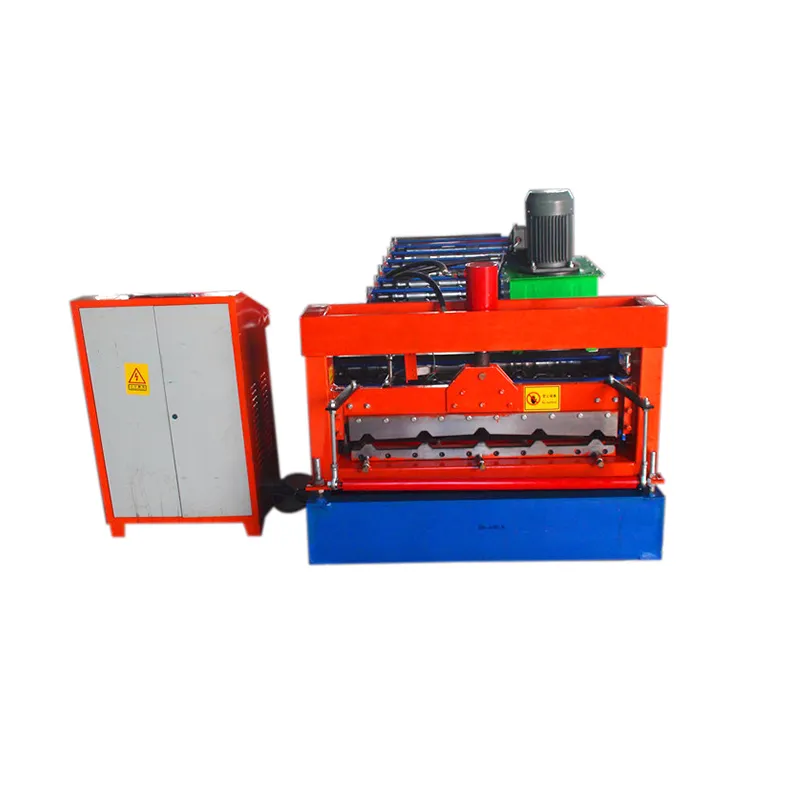

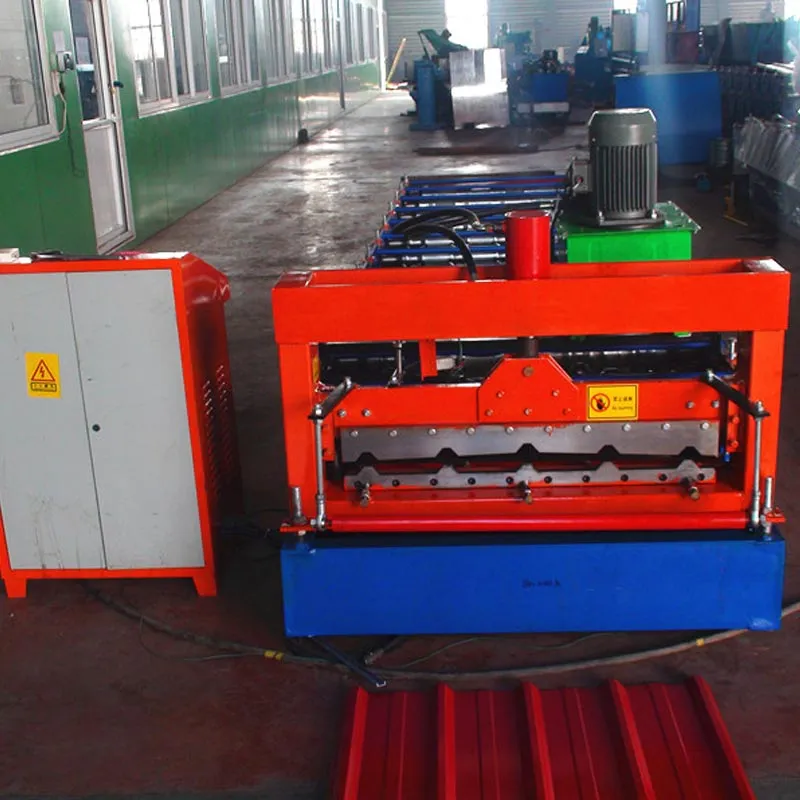

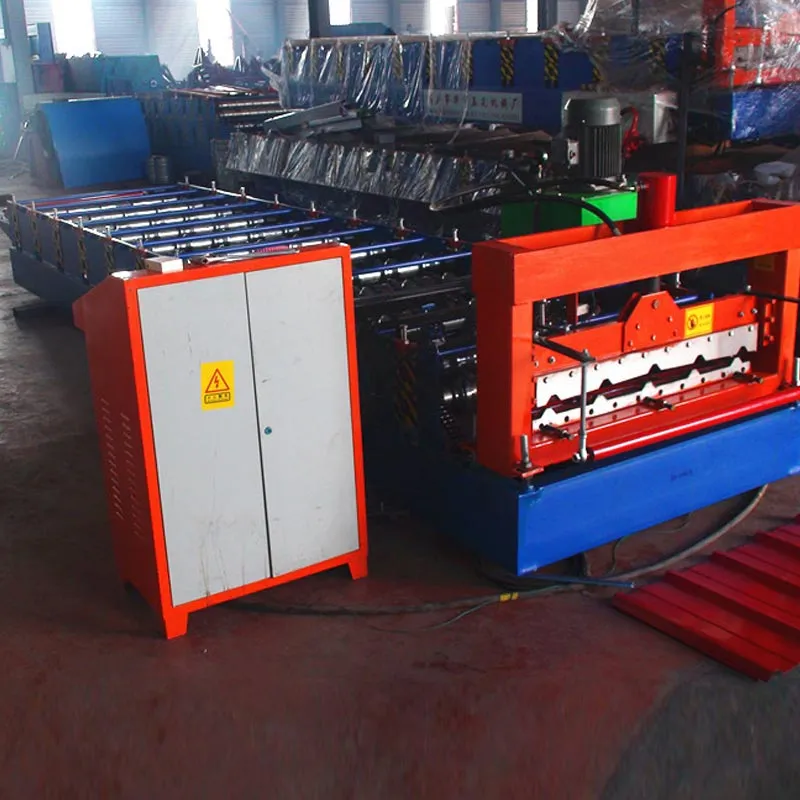

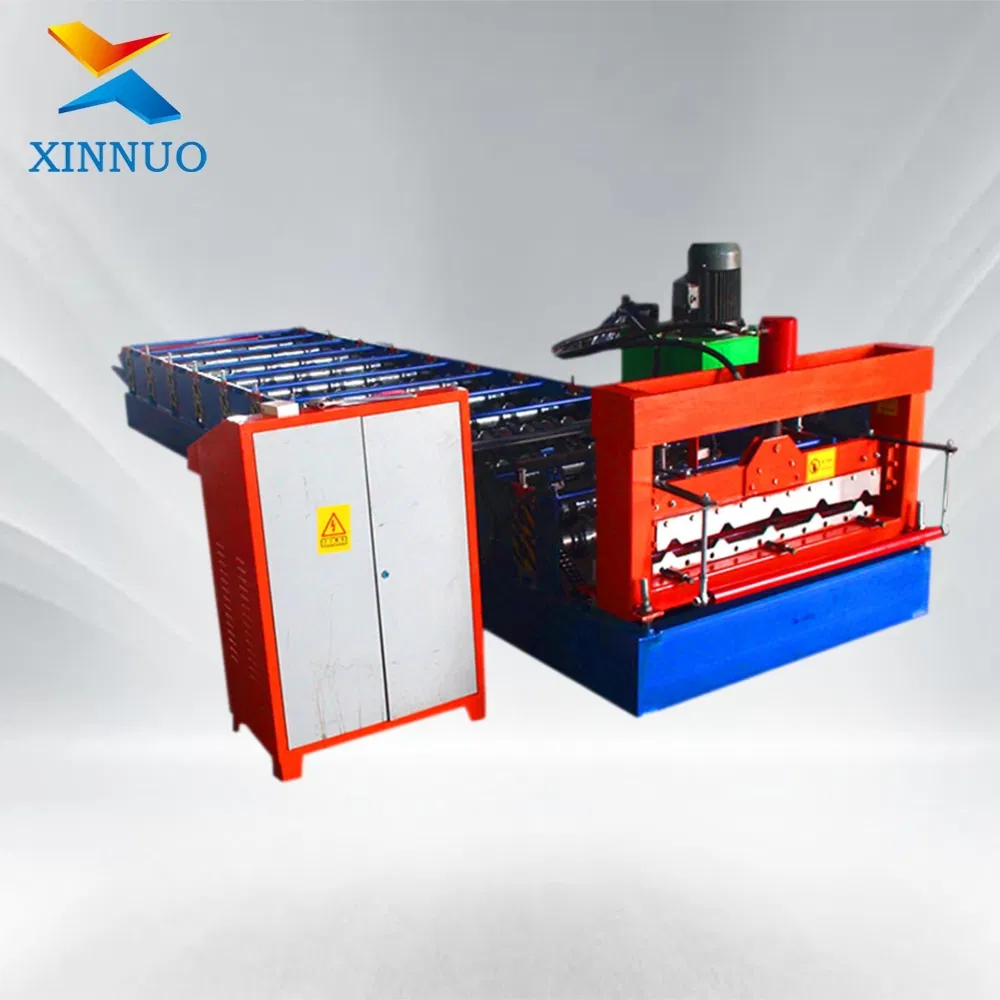

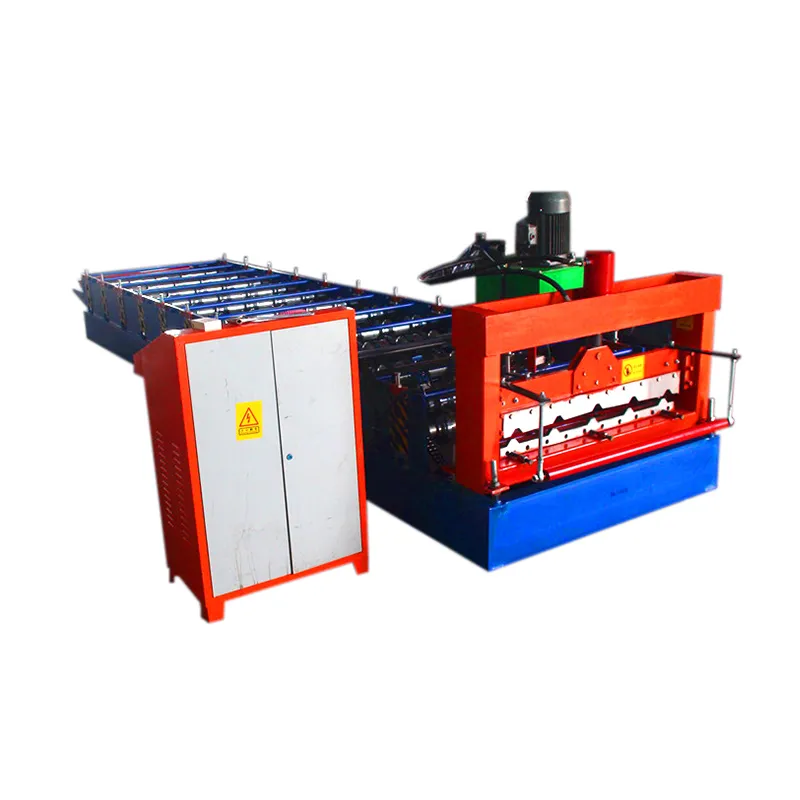

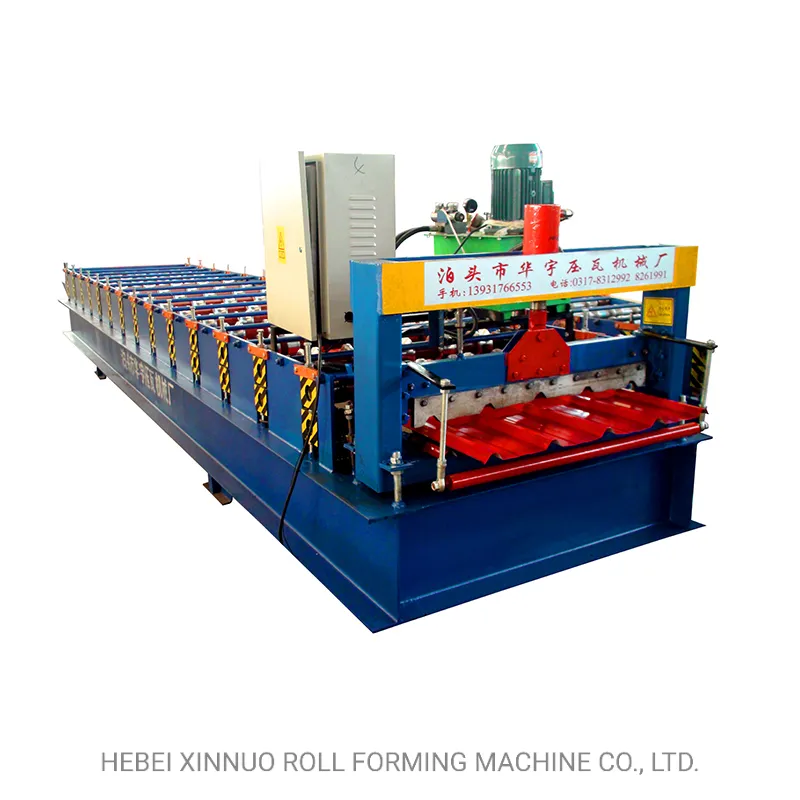

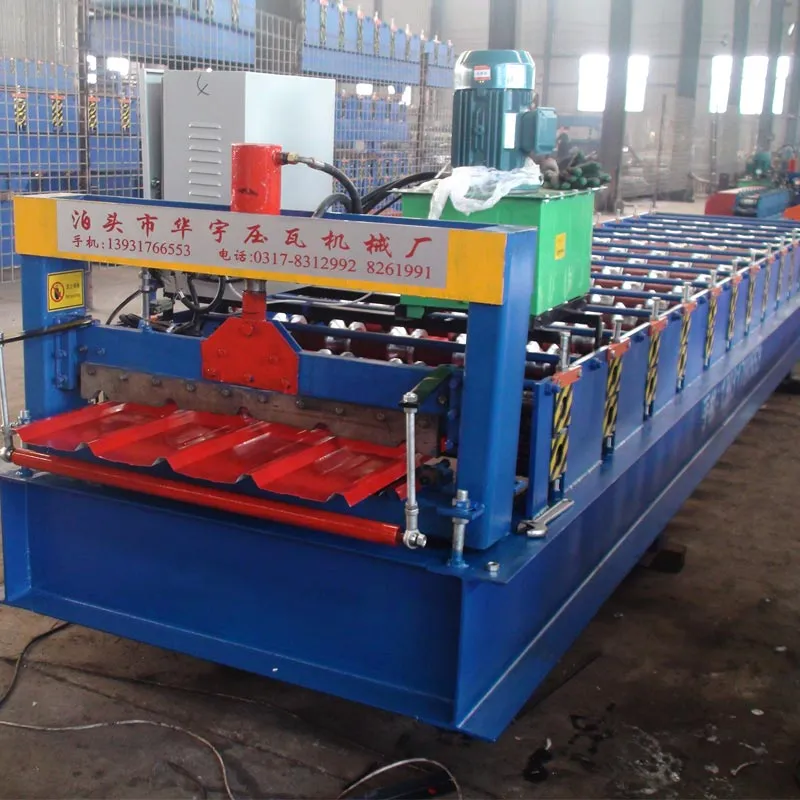

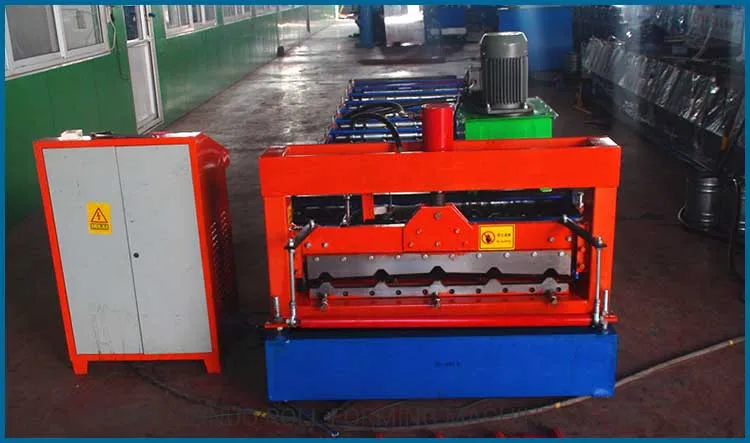

XN 840 Ibr Roof Forming Machine Roof Tile Making Machine

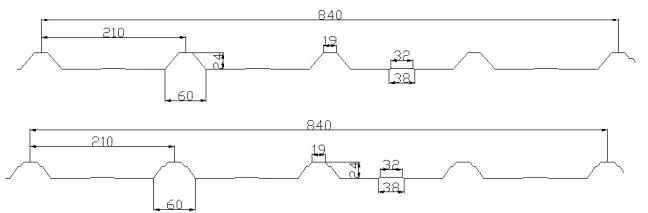

Feeding width: 1000mm -- Effective width: 840mm
Feeding width: 1200mm -- Effective width: 1050mm
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| Width of the feeding material | 1000mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers' material | 45# steel |
| Diameter of shaft | 75mm |
| Weight | About 3.8T |

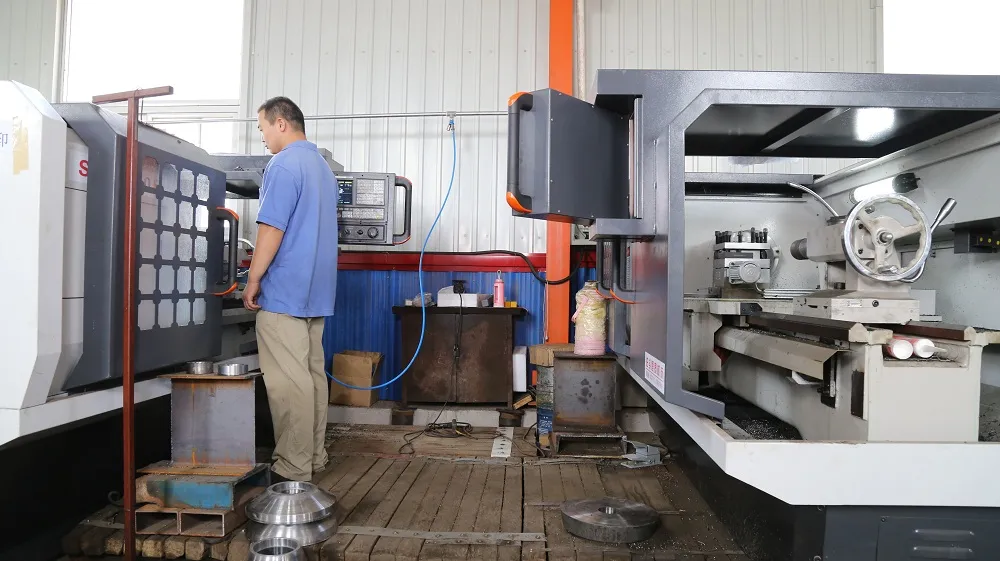

MACHINING
This line, have high precious CNC grinders and milling machines, to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.
From one roller to one machine, we do every step carefully to make sure the qualit
This line, have high precious CNC grinders and milling machines, to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.
From one roller to one machine, we do every step carefully to make sure the qualit

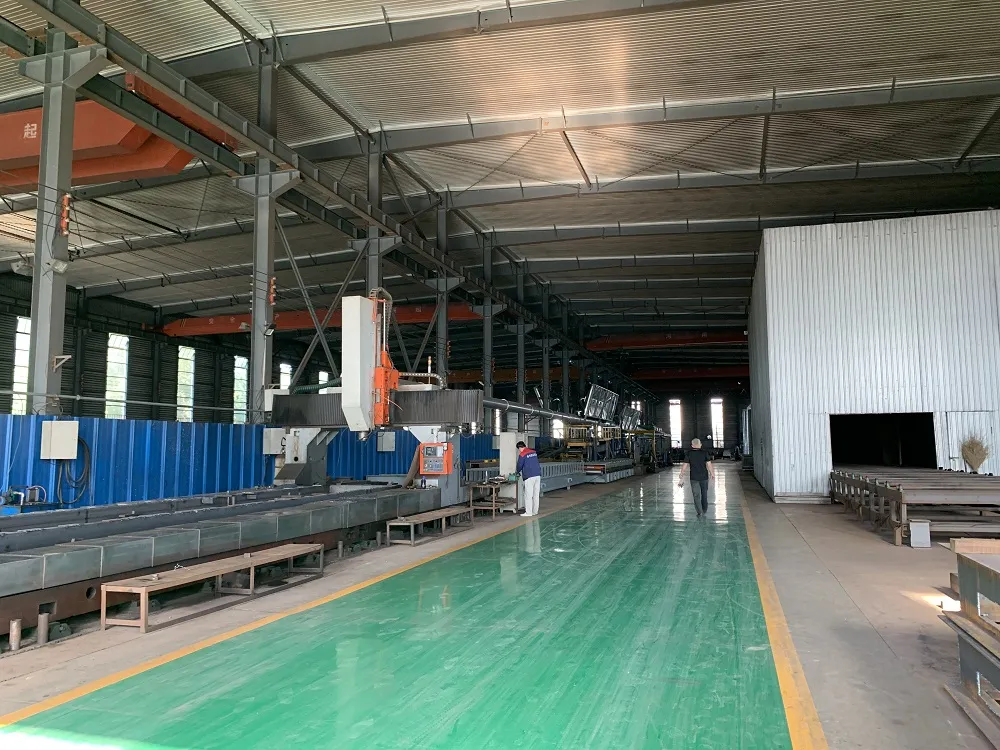

LARGE CNC MILLING MACHINE
it is a unique plant in Hebei Province.It directly mills the entire frame. The milling machine can make the 'machine's large surface smoother and the machine is more perfect.
it is a unique plant in Hebei Province.It directly mills the entire frame. The milling machine can make the 'machine's large surface smoother and the machine is more perfect.

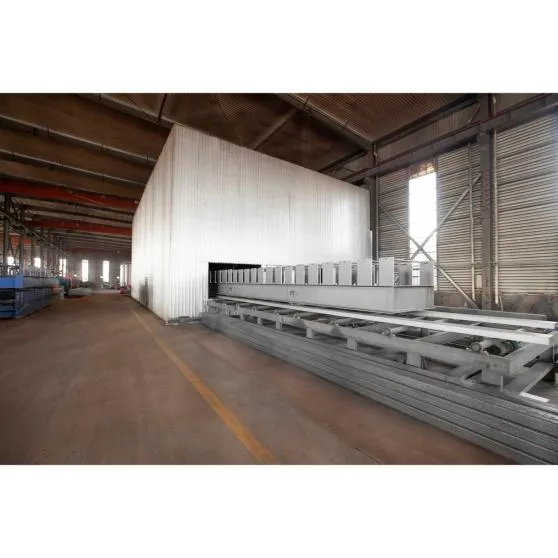

SHOT BLASTING MACHINE
It can handle the entire machine frame or parts,making the rusty surface clean and smooth The surface of the product increases adhesion.
It can handle the entire machine frame or parts,making the rusty surface clean and smooth The surface of the product increases adhesion.
