Product Description
XN Floor Decking Metal Sheet Panel Roll Forming Machine
1.PLC computer control
2.operation is easy
3.running is steady and reliable
4.long lif

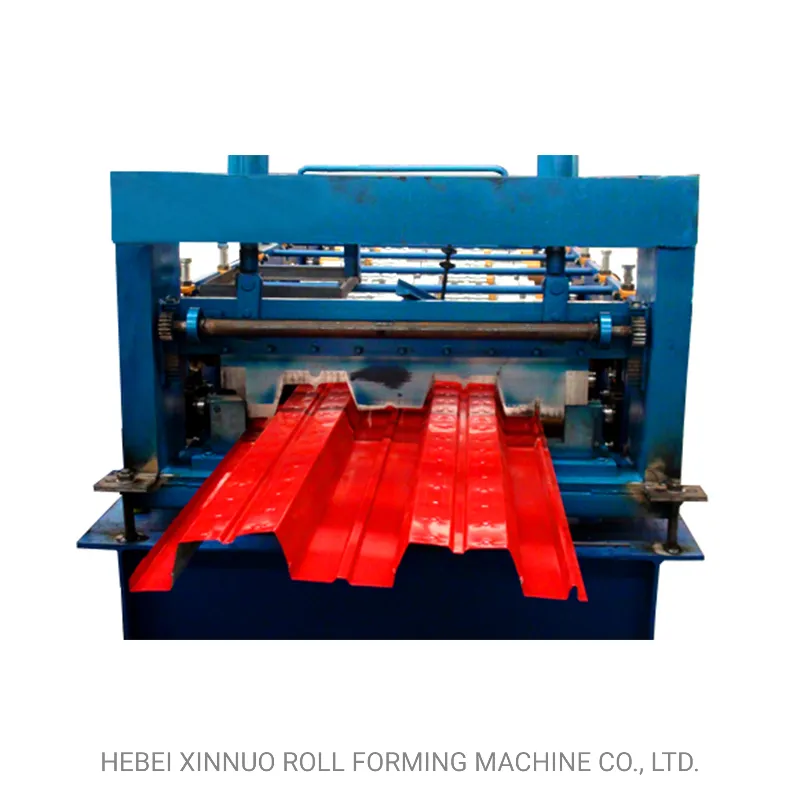

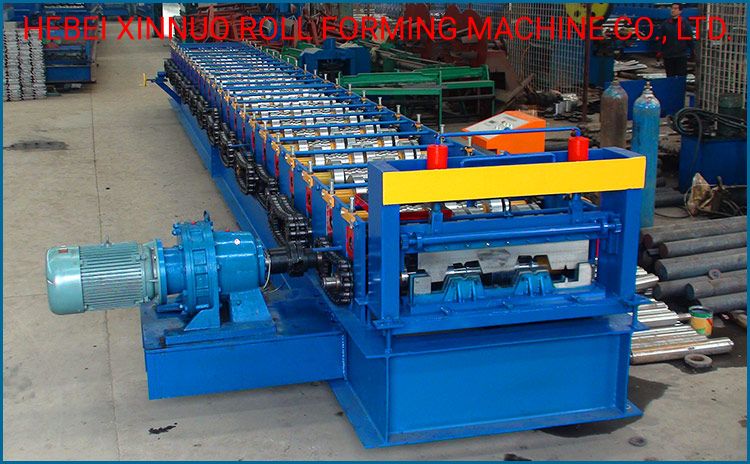

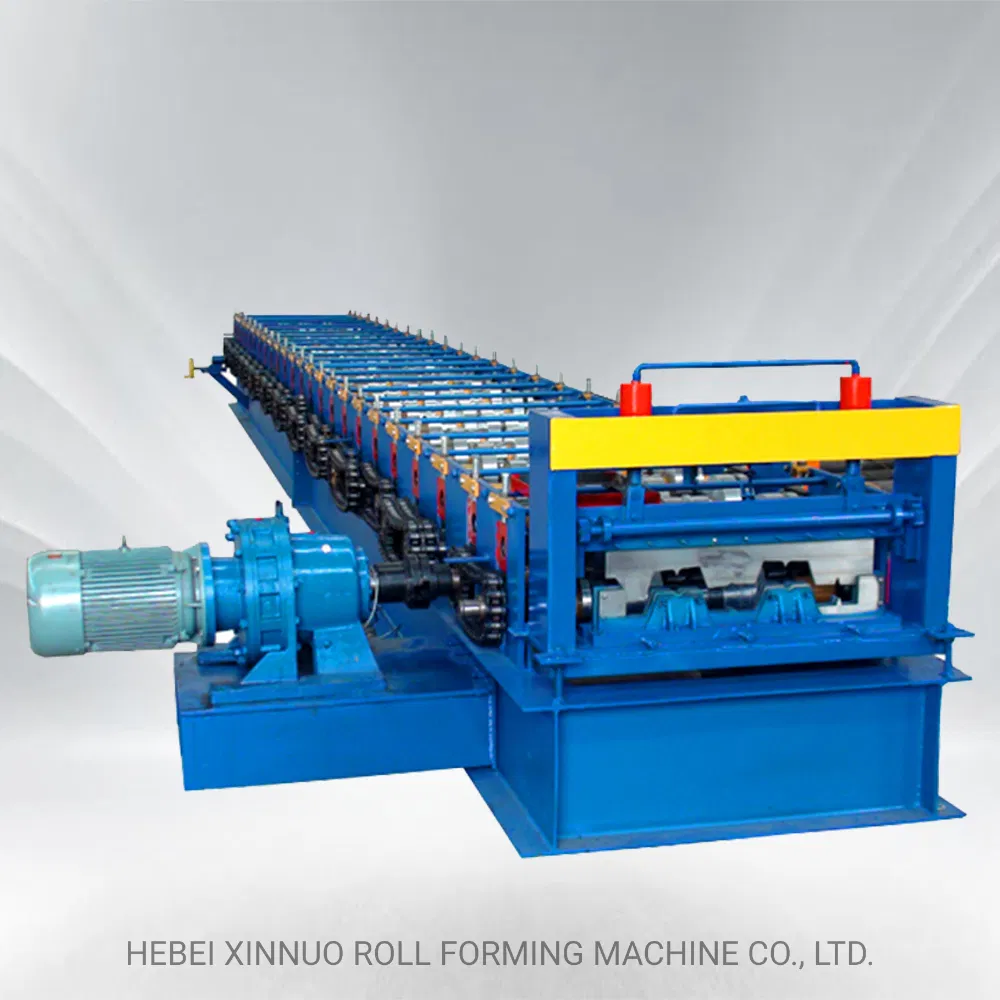

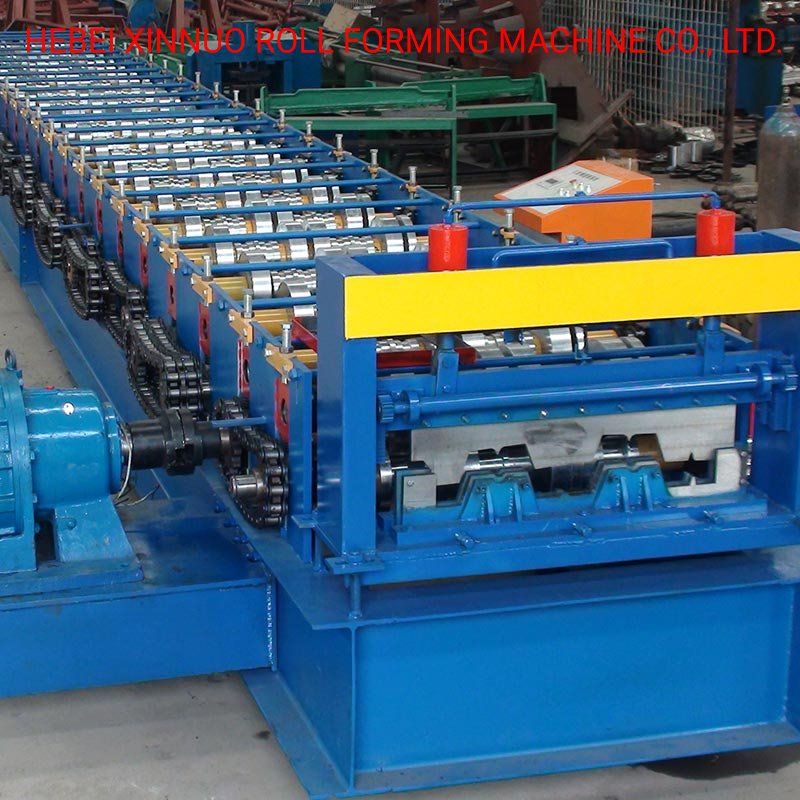

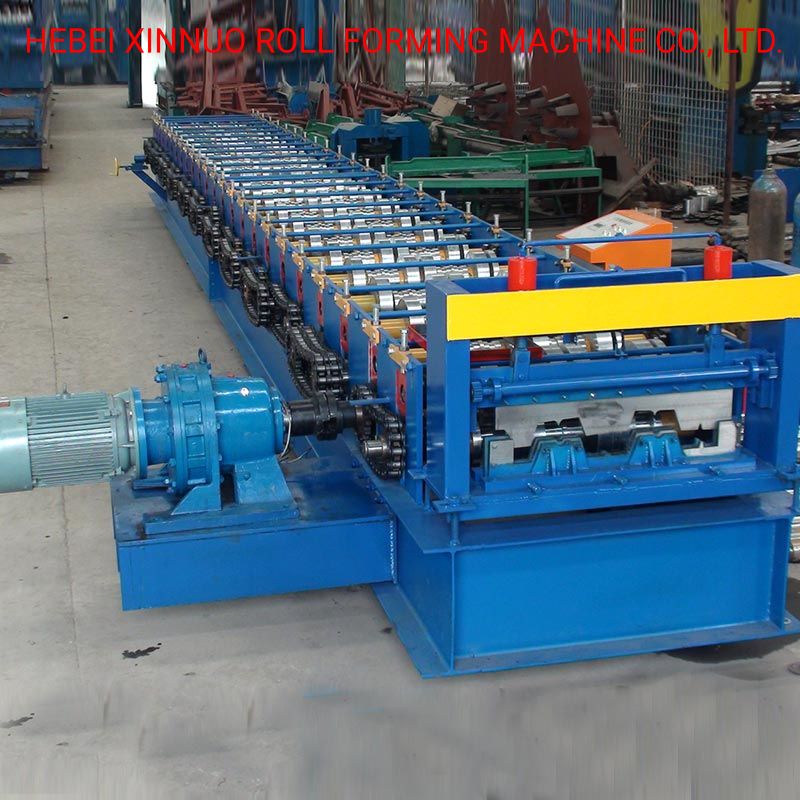

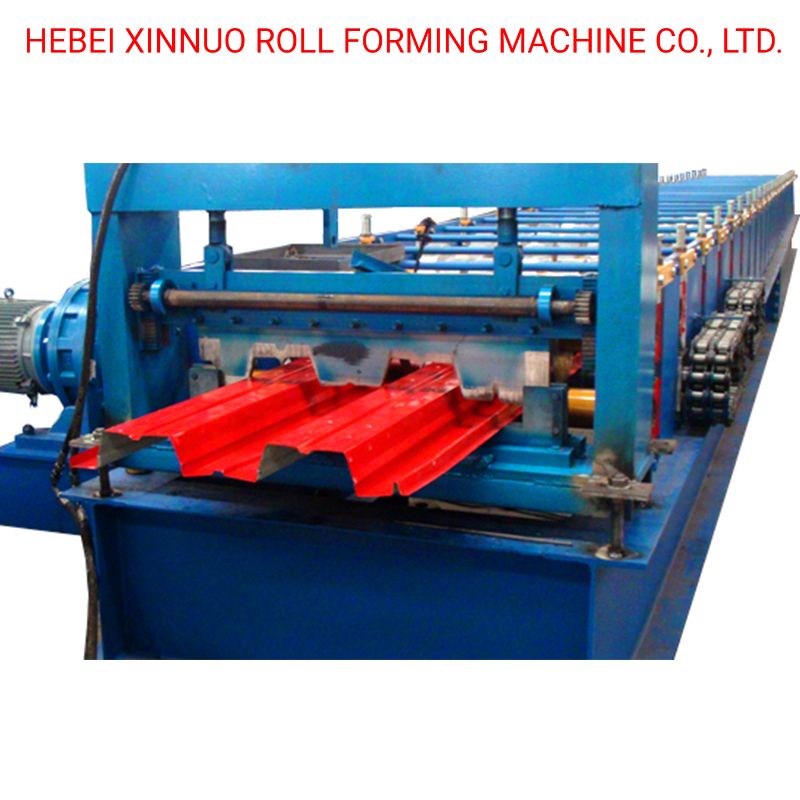

Floor Deck Roll Forming Machine
Model:688 Floor Deck
Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System | PLC Panasonic Inverter |
Main Frame | 400mm H-Beam |
Main Power | 18.5 kw |
Pump Power | 7.5 kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 8-10m/min |

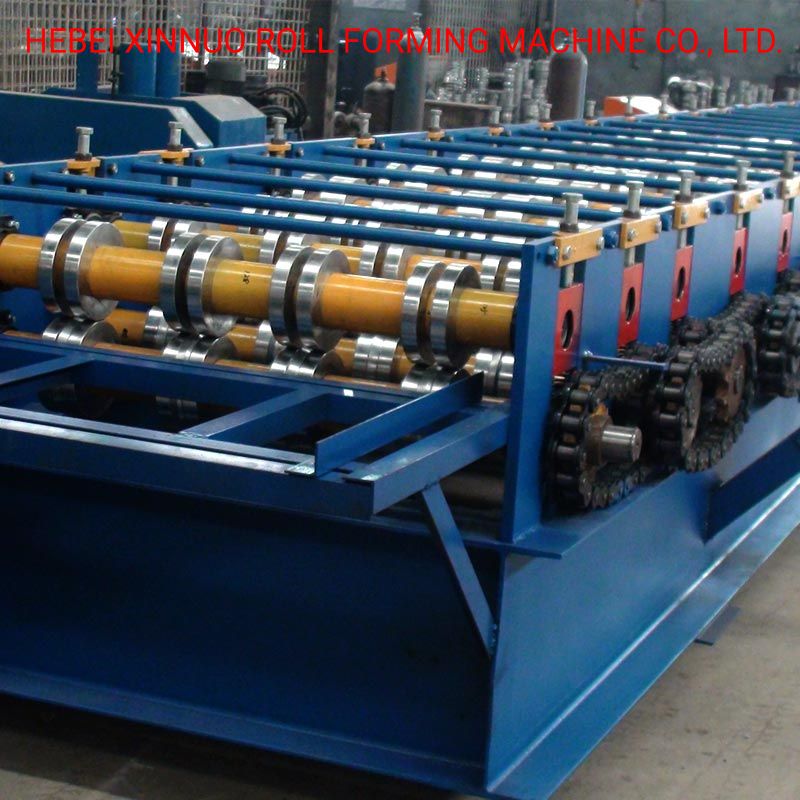

Roll Station | 24 stands |
Roller Diameter | 95mm |
Hydraulic Pressure | 18-20MPa |

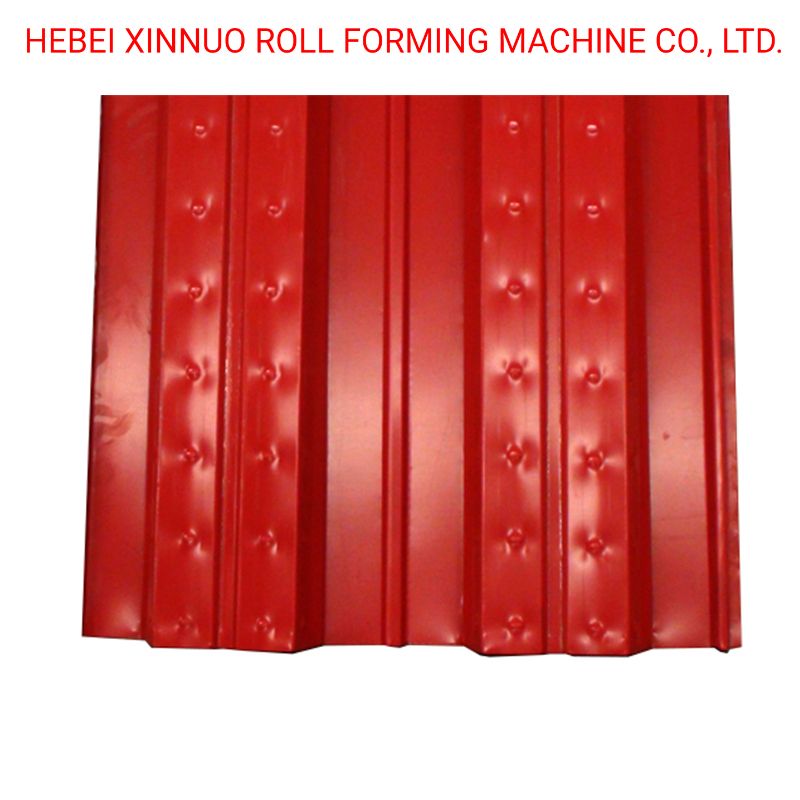

Forming Size | 688mm |
Feeding Thickness | 0.3-0.8mm |
Feeding Width | 1000mm |
Backboard Thickness | 22mm |
Chain Size | 66mm |
Cutter Standard | Cr12 |
Roller Standard | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 15000×1200×1100mm |
Total Weight | 19T |

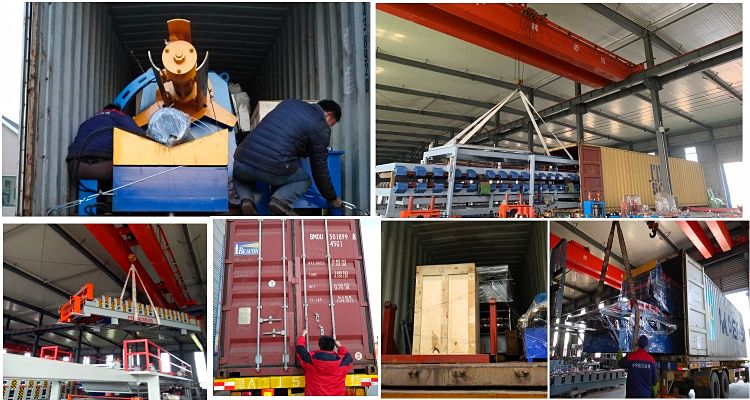

Our roll forming machines are shipped in the whole container: the main machine is packaged with plastic film to prevent the accessories from being damp; the electrical control cabinet is packaged in a fumigation-free wooden box; the vulnerable parts are packaged in a cardboard box and an isolation board.
All equipment in the cabinet is fixed with 12mm high-strength steel wire ropes. Ensure that there will be no bumps on the device's journey.
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
