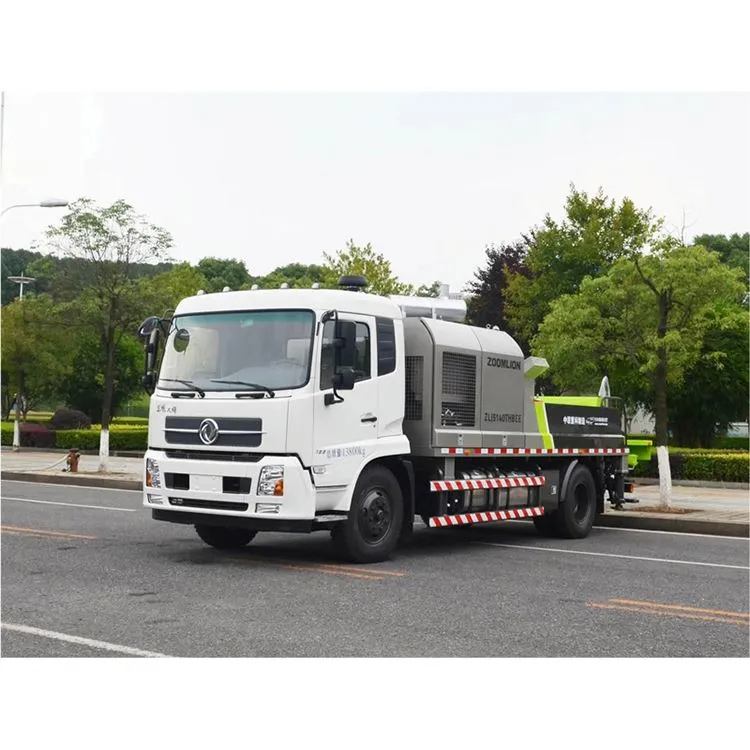

100cbm /H 10018r Zoomlion Hydraulic City Pump Trailer Pumps Truck
100cbm/h 10018R Zoomlion Hydraulic City Pump Trailer Pumps Truck Product Description1. Stability Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more......
Send Inquiry
Product Description
1. Stability
• Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit.
• Intelligent control system: advanced technology, easy operation and high reliability al system.
2. High Efficiency
• Rapid concrete piston substitution: the pistons can be changed easily by a single operator without any special tools in 15 minutes. The hydraulic cylinder has an extra stroke to allow the piston to extend from the concrete cyli nder.
3. Energy Saving
• Super wear-resistant component: special steel alloy made spectacles wear plate and cutting ring plus high wear resistant cast steel material made mixing blade, ensuring a longer lifetime of weary spare parts.
• Hydraulic low/high pressure mode shifting: high/low pressure working mode is easily selected at the press of a button for variable heights of pumping.
Parameter| Items | ZOOMLION 10018R | |
|---|---|---|
| Pumping Uint | Max. theo. concrete output (L./H.) | 100/55 m3/h |
| Max.concrete pumping pressure | 100/180 bar | |
| Pumping frequency | 30/17 min-1 | |
| Distribution valve type | S Valve | |
| Oil cylinder dia.×stroke | Φ180×1650 mm | |
| Concrete cylinder diameter×stroke | Φ200×1650 mm | |
| Hopper capacity | 600mm | |
| Recommended concrete slump | 12~23 cm | |
| Power System | Rated power | 186/2100 kW/(r/min) |
| Engine moment | 1000/1600 N.m/(r/min) |

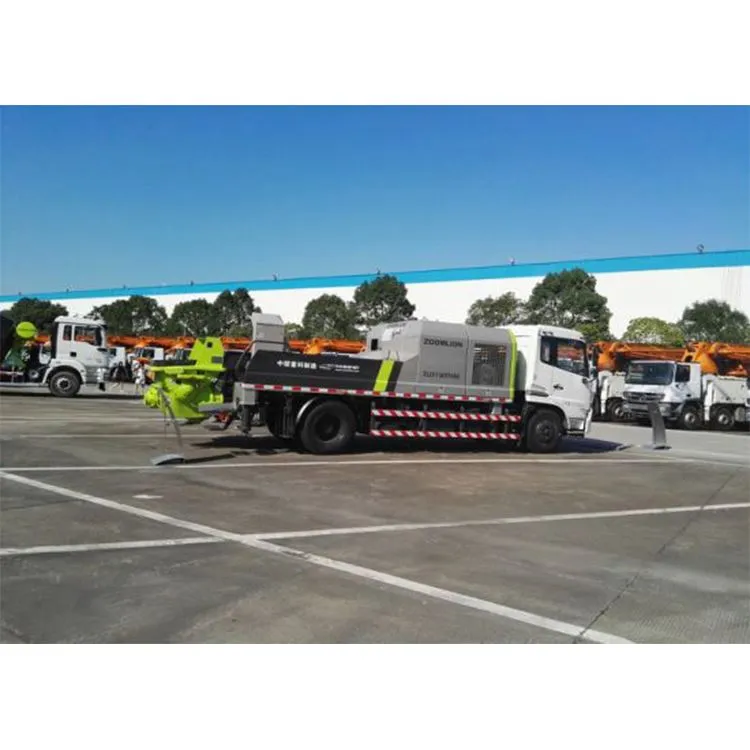

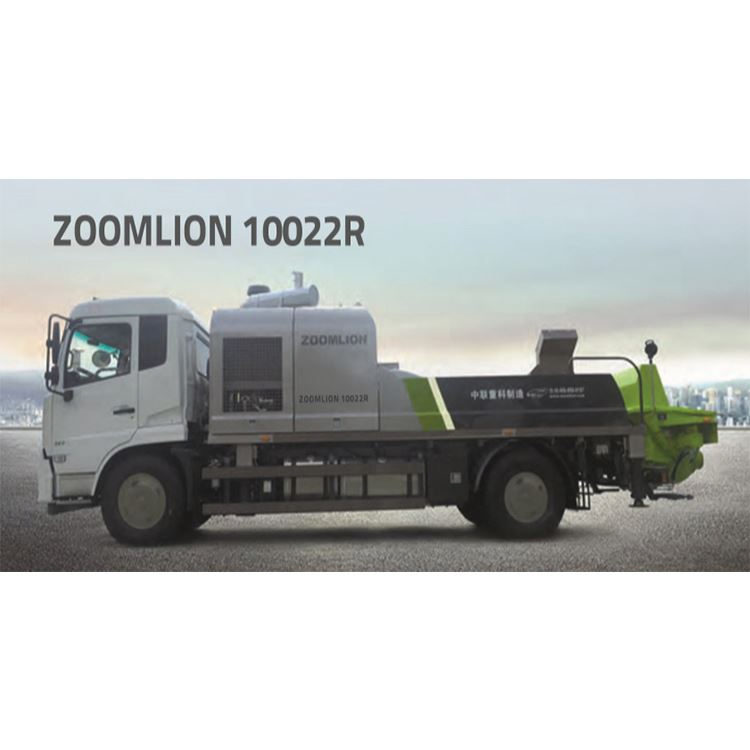

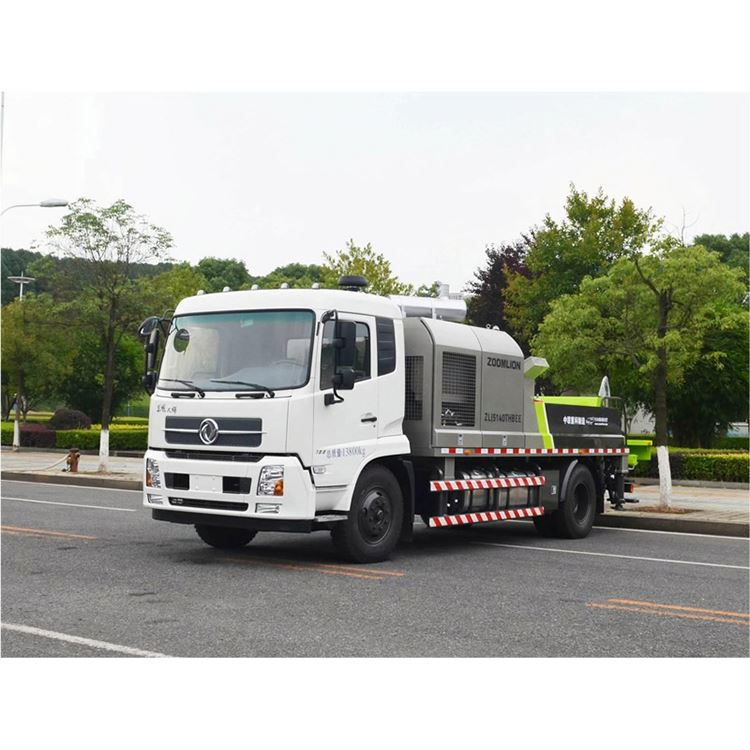

Detailed Images
