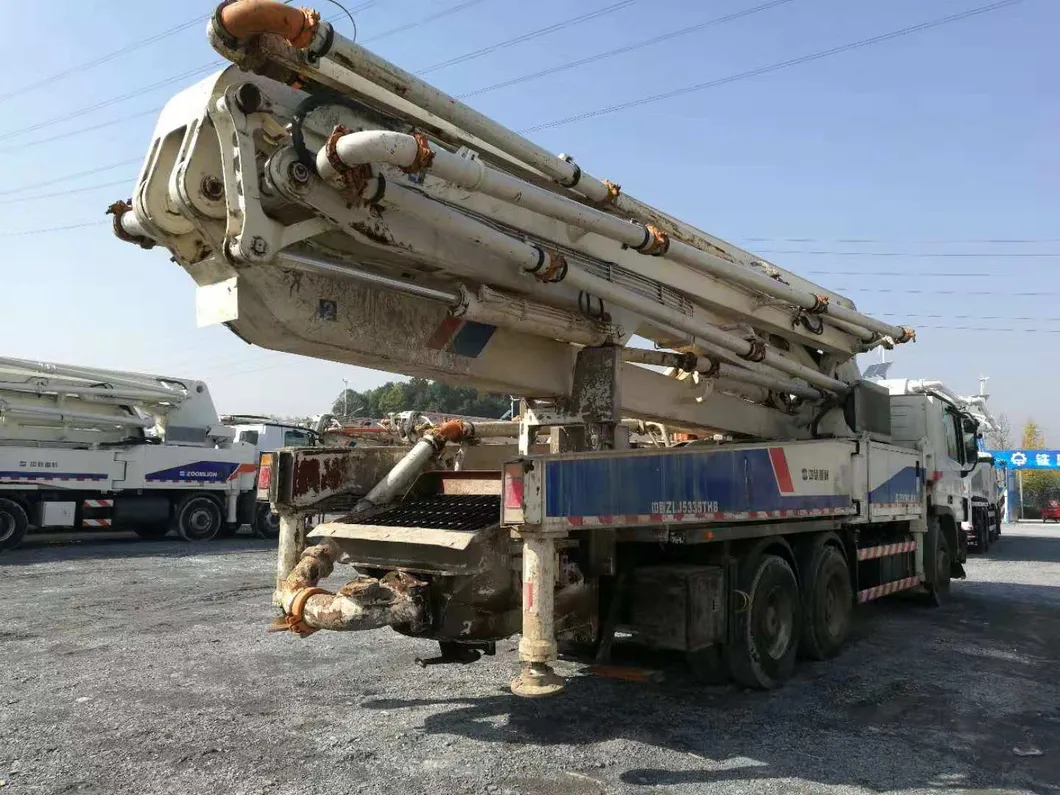

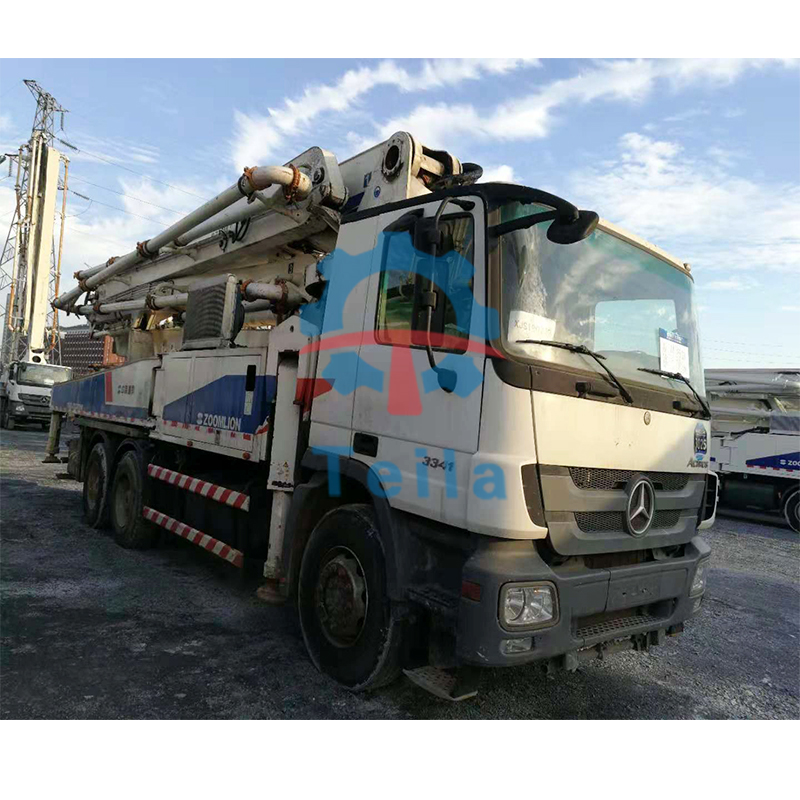

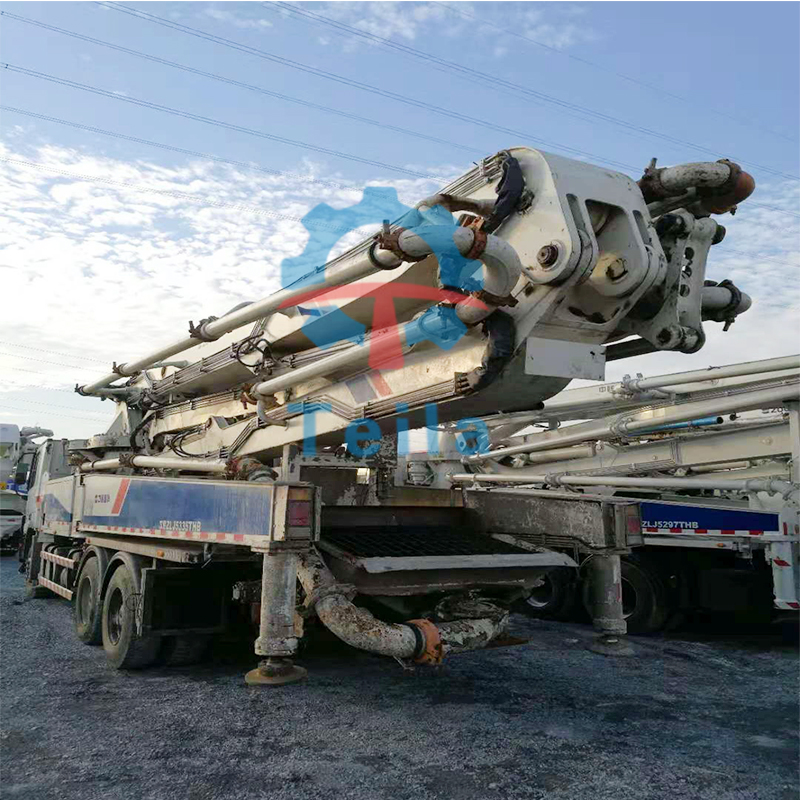

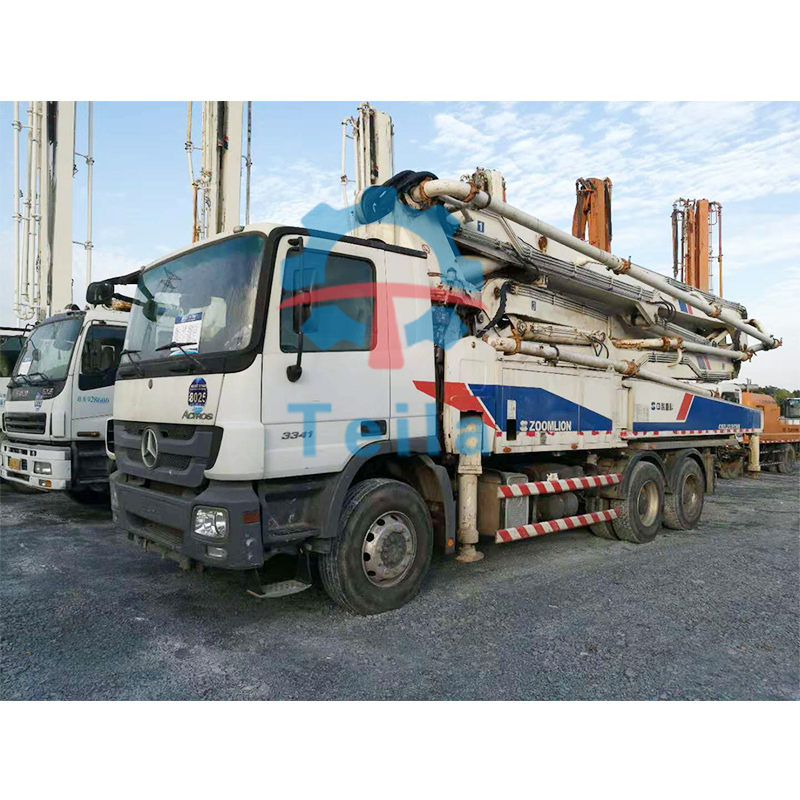

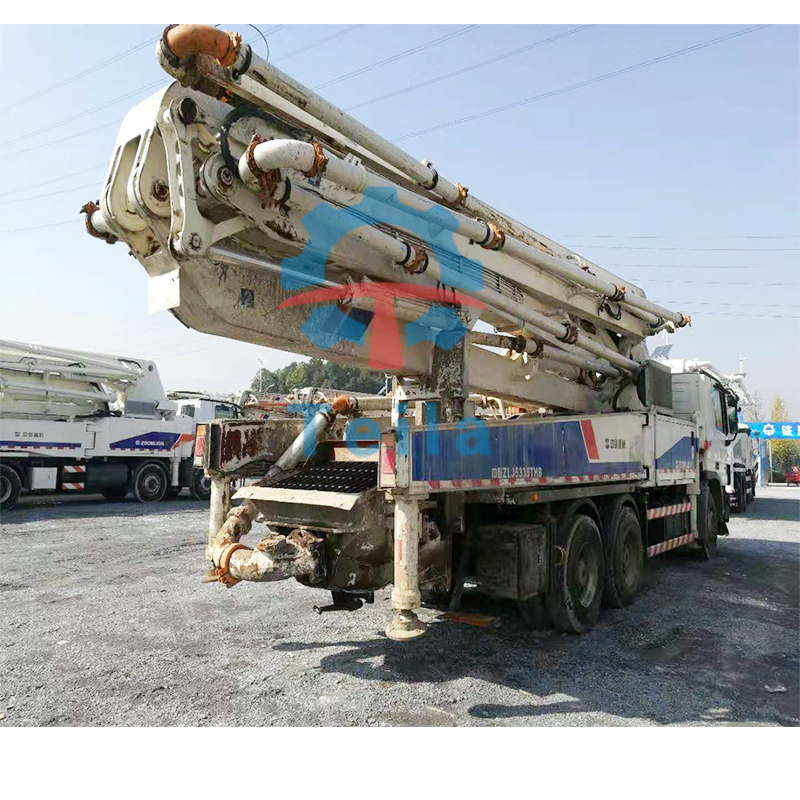

2011 Zoomlion 47m Old Truck Mounted Concrete Pump
ZLJ5335THB47X-5RZ Compact in design, 52m pump mounted on a 4-axle truck. Efficient pump unit, ideal for long time use. Agile placing boom with 6 arms,which gives a wide work range. One side lateral support enables to work in narrow sites. Controller is designed for heavy duty use, with a monitor whi......
Send Inquiry
Product Description
ZLJ5335THB47X-5RZ
Compact in design, 52m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms,which gives a wide work range.
• One side lateral support enables to work in narrow sites.

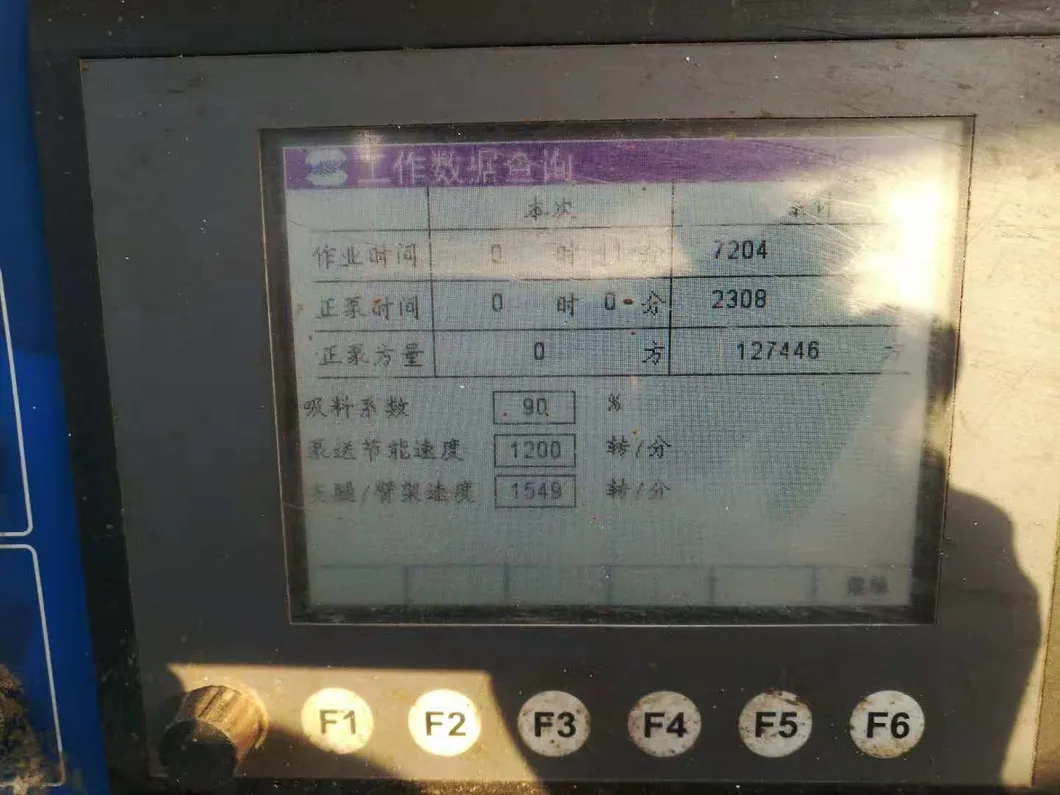

• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
| Brand | Zoomlion | |
| Chassis Brand | Mercedes-Benz Actros 3341 | |
| Model | ZLJ5335THB 47X-5RZ | |
| Released date | 2011 | |
| Fob price | USD106000 | |
| Chassis | Cabin | Mercedes-Benz Actros 3341 |
| Drive mode | 6*4 | |
| Engine model | OM501LA.III/17 | |
| Emission standard | Euro3/11.946L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m) | 2000/1800 | |
| Rear axle: ratio/loading capacity | 25.8 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 4500+1350 | |
| Tire | 295/80R22.5 | |
| GVW (Kg) | 33500 | |
| Overall dimension(mm) | 12000*2500*4000 | |
| Boom&Pump system | Vertical reach | 47m/5 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 120/70m³/h | |
| Pressure (Low/High-pressure) | 7/11Mpa | |
