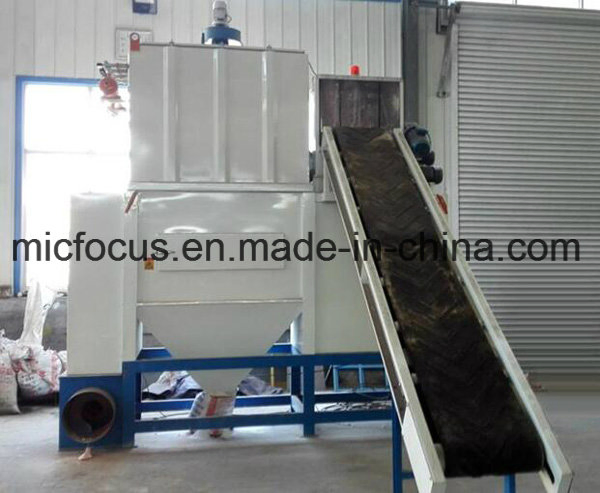

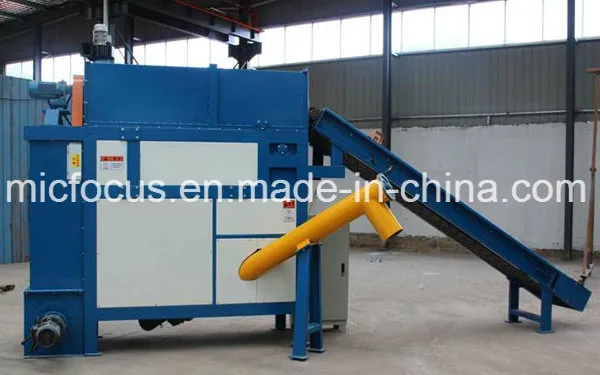

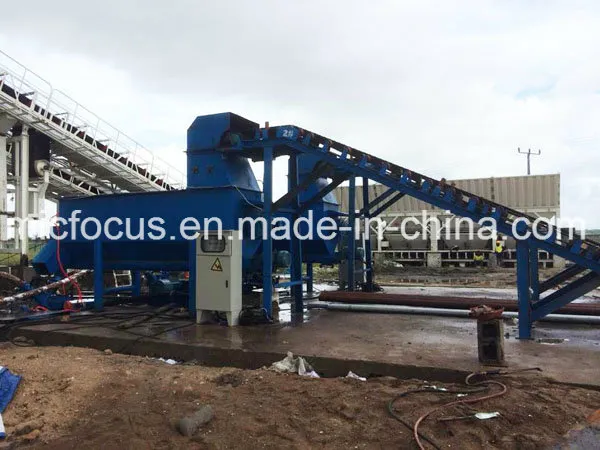

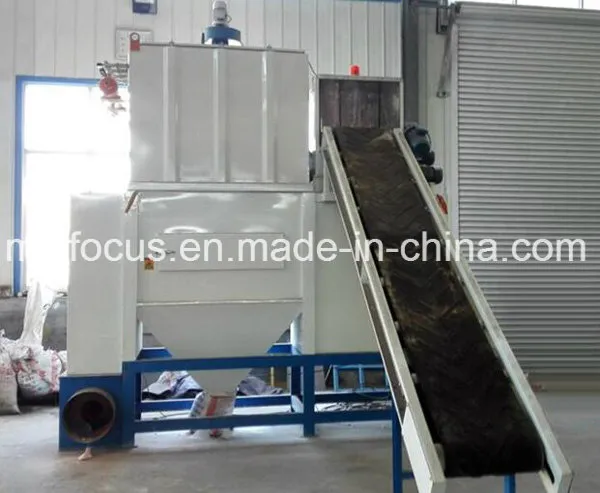

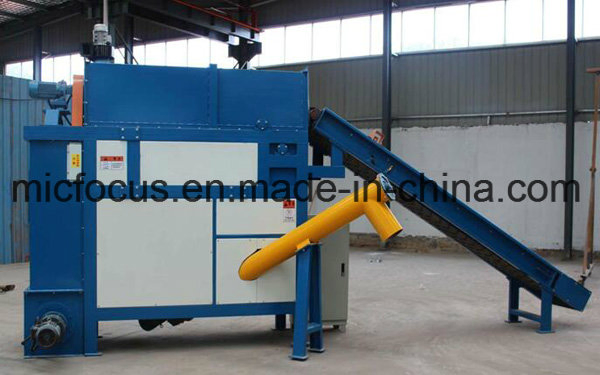

25kg or 50kg Automatic Cement Bag Splitting Machine for Sale
Application usage of automatic bag splitting machine:Cement, limestone, Lime nitrate, Magnesium oxide, Sawdust, Fly ash, dry Sulphur or other dry powders.Bag type:25kg, 50kg, 1 tonCapacity:400 bags/hour, 600 bags/hourWorking process of FOCUS automatic bag splitting machine:1.Bags are put on the belt......
Send Inquiry
Product Description
Application usage of automatic bag splitting machine:
Cement, limestone, Lime nitrate, Magnesium oxide, Sawdust, Fly ash, dry Sulphur or other dry powders.
Bag type:
25kg, 50kg, 1 ton
Capacity:
400 bags/hour, 600 bags/hour
Working process of FOCUS automatic bag splitting machine:
1.Bags are put on the belt conveyor, then be conveyed to the cutting blades.
2.Bags and powder are conveyed to the separating screen, and cement are discharged from the outlet, bags are conveyed out from another conveyor.
3.The dust will be collected by the dust collector, to keep the environment to be clean.
Main features of FOCUS aautomatic bag splitting machine:
1, Muchly saved your manpower, great efficiency in supplying cement for concrete batching plant.

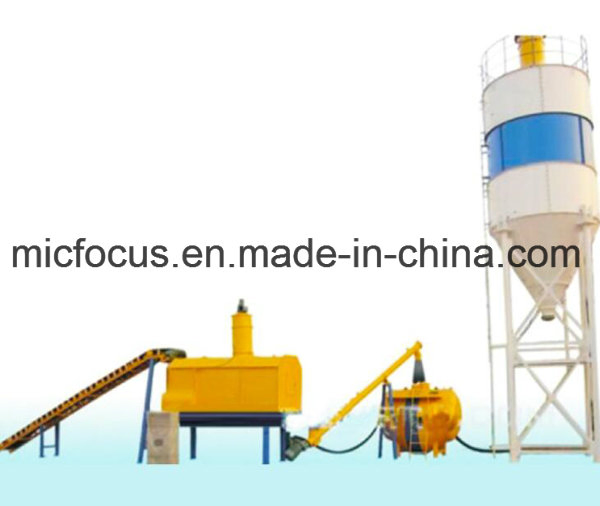

2, Used together with pneumatic cement charger and other cement storage equipment.
3, Environmentally friendly, simple operation, convenient maintenance, your concrete batching plants' ideal helper.
Parameter of FOCUS automatic bag splitting machine:
Cement, limestone, Lime nitrate, Magnesium oxide, Sawdust, Fly ash, dry Sulphur or other dry powders.
Bag type:
25kg, 50kg, 1 ton
Capacity:
400 bags/hour, 600 bags/hour
Working process of FOCUS automatic bag splitting machine:
1.Bags are put on the belt conveyor, then be conveyed to the cutting blades.
2.Bags and powder are conveyed to the separating screen, and cement are discharged from the outlet, bags are conveyed out from another conveyor.
3.The dust will be collected by the dust collector, to keep the environment to be clean.
Main features of FOCUS aautomatic bag splitting machine:
1, Muchly saved your manpower, great efficiency in supplying cement for concrete batching plant.
2, Used together with pneumatic cement charger and other cement storage equipment.
3, Environmentally friendly, simple operation, convenient maintenance, your concrete batching plants' ideal helper.
Parameter of FOCUS automatic bag splitting machine:
| Model | JZP-400 |
| Material | Cement |
| Material of bag | Paper or Woven bag |
| Capacity of bag | 50kg |
| Splitting speed | 400 bags/hour |
| Capacity | 20t/h |
| Power supply | 380v/50hz, 3 phase |
| Belt conveyor | Power:1.5kw Dimension:500*4500mm Main frame:Q235 steel |
| Splitting blades | Power:1.5kw*2 2 groups of blades, 8 pcs, Dia.:350mm Alloy steel |
| Separating screen | Power:1.5kw Center distance of hole:30mm Carbon steel Rotate separating screen to separate material and bag, with brush. |
| Pulse dust collector | Filter area:16m2 Q235 steel Power of fan:0.75kw |
| Split bag compressor | Power:2.2kw Carbon steel To convey split bag out. |
| Screw conveyor | Power:5.5kw Length:2m To convey materials out. |
| Control cabinet | Auto alarm. One button running and stopping. With necessary relay, breaker, etc. |
