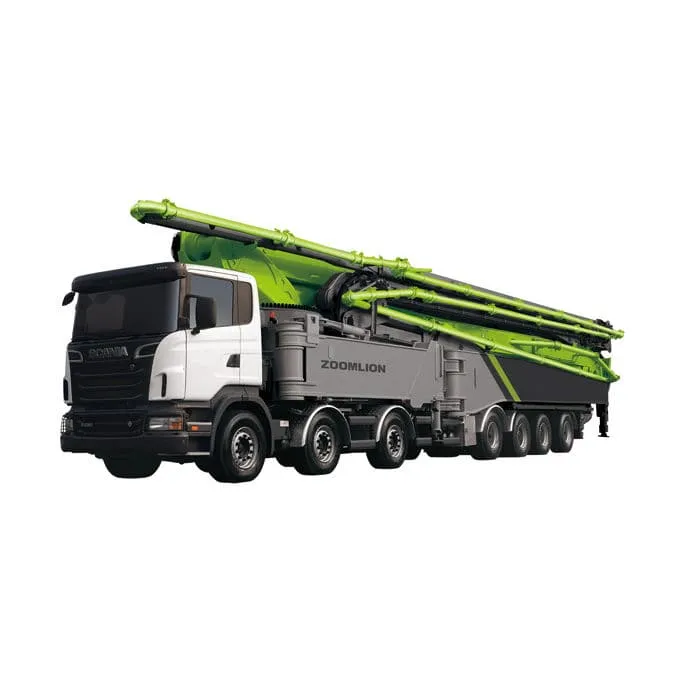

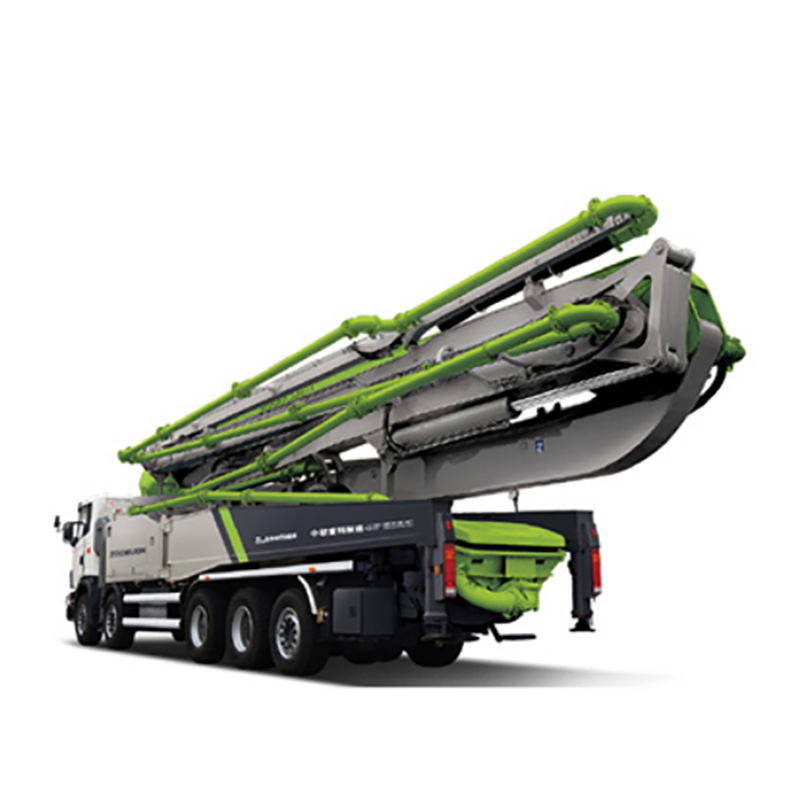

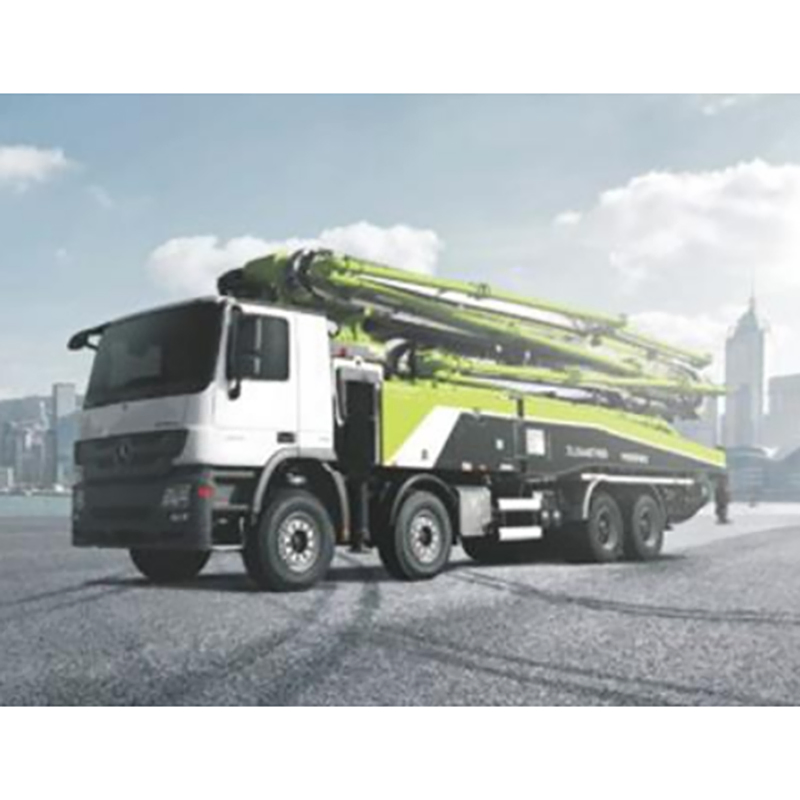

25m 28m 32m 37m 48m Truck Concrete Pump Truck
25m 28m 32m 37m 48m Truck Concrete Pump Truck VehicleDimension XND5161-25MXND5161-28MXND5161-32M Length9600 mm9900 mm10350 mmWidth2400 mm2400 mm2400 mmHeight3400 mm3400 mm3500 mmTotal weight14985 kg15200 kg20600 kgBoom & outriggerNo. of section445Vertical reach25 m28 m32 mHorizontal reach2......
Send Inquiry
Product Description

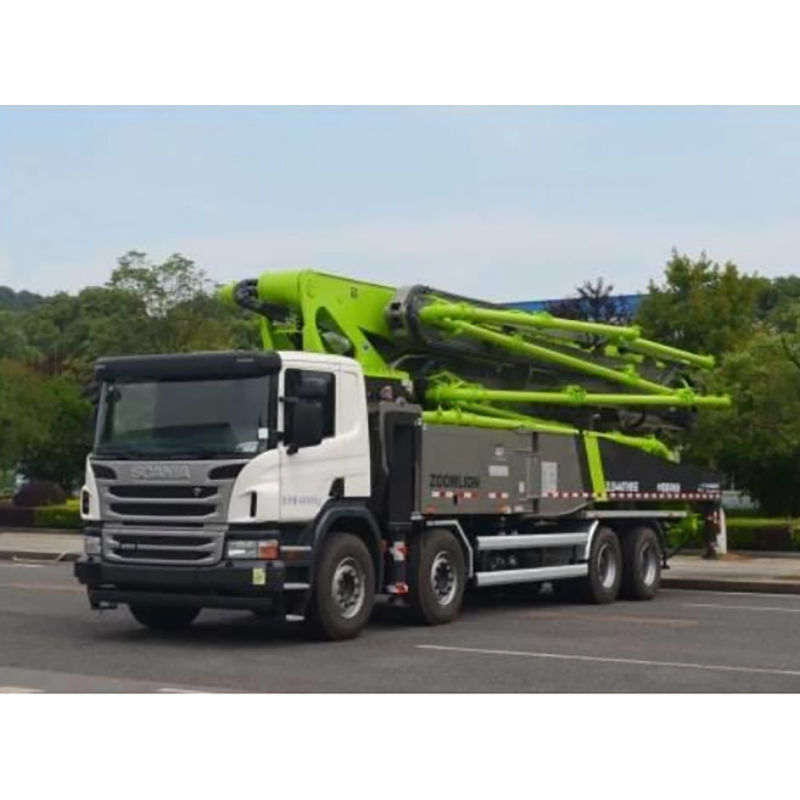

25m 28m 32m 37m 48m Truck Concrete Pump Truck
| Vehicle Dimension | XND5161-25M | XND5161-28M | XND5161-32M | |||||
| Length | 9600 mm | 9900 mm | 10350 mm | |||||
| Width | 2400 mm | 2400 mm | 2400 mm | |||||
| Height | 3400 mm | 3400 mm | 3500 mm | |||||
| Total weight | 14985 kg | 15200 kg | 20600 kg | |||||
| Boom & outrigger | No. of section | 4 | 4 | 5 | ||||
| Vertical reach | 25 m | 28 m | 32 m | |||||
| Horizontal reach | 21.48 m | 24.6 m | 28 m | |||||
| Reach depth | 12m | 14m | 15.5m | |||||
| 1st section | length | 6900 mm | 7650mm | 72250 mm | ||||
| Articulation | 90° | 90° | 0-90° | |||||
| 2nd section | length | 5710 mm | 5710 mm | 5570 mm | ||||
| Articulation | 180° | 180° | 0-180° | |||||
| 3rd section | length | 5010 mm | 5710 mm | 5260 mm | ||||
| Articulation | 270° | 270° | 0-180° | |||||
| 4th section | length | 4565 mm | 5530 mm | 5205 mm | ||||
| Articulation | 220° | 220° | 0-230° | |||||
| 5th section | length | / | / | 5050 mm | ||||
| Articulation | / | / | 0-220° | |||||
| Rotation | ±360° | |||||||
| Distrance of front outriggers out | 5200mm | 5584 mm | ||||||
| Distrance of rear outriggers out | 4900mm | 6818 mm | ||||||
| Distance of F-R outrigger out | 5550mm | 5550 mm | ||||||
| Theoretically output | Low pressure | 75 m3/h | 93 m3/h | |||||
| High pressure | 60 m3/h | 60 m3/h | ||||||
| Max. Strokes per minutes | Low pressure | 16 times/min | 32 / times/min | |||||
| High pressure | 18 / times/min | |||||||
| Delivery cylinder diameter | 200 mm | 200 mm | ||||||
| Stroke length | 1800 mm | 1600 mm | ||||||
| Hydraulic system | Open loop | Open loop | ||||||
| Hydraulic system oil pressure | 32 MPa | 32 MPa | ||||||
| Outlet pressure | 6.8 / 10 Mpa | 6.8 / 10 Mpa | ||||||
| Oil tank capacity | 600 L | 500 L | ||||||
| Water tank capacity | 400 L | 550 L | ||||||
| Pipe line size | 125 mm | 125 mm | ||||||
| End hose length | 3 m | 3 m | ||||||
| End horse diameter | 125 mm | 125 mm | ||||||
| Chassis | Chassis model | FOTON LYBY5PPCTEE023618 | DFM / ISUZU EQ5166XXYZE | |||||
| Engine power | CUMMINS (170 hp) | YUCHAI (261 hp) ISUZU 240hp | ||||||
| Emission standard | National IV | National IV | ||||||
| Displacement | 3760ml | 8500 ml | ||||||
| Max. speed | 110km/h | 85 km/h | ||||||
| Ground clearance | 260 mm | 280 mm | ||||||
| Wheel base | 5200mm | 5700 mm | ||||||
| Front wheel track | 1830mm | 1830mm | ||||||
| Rear wheel track | 1880mm | 1880mm | ||||||
