60cbm/H Capacity Central Readymix Concrete Batching Plant with Belt Conveyor
60cbm/H Capacity Central Readymix Concrete Batching Plant with Belt ConveyorFOCUS central readymix concrete batching/mixing plant:1. twin-shaft concrete mixer, SICOMA technology; 2.automatic concrete batching/mixing plant control with SIMENS PLC; 3. SCHNEIDER electrical, reliable performance; 4. fiv......
Send Inquiry
Product Description
60cbm/H Capacity Central Readymix Concrete Batching Plant with Belt Conveyor
FOCUS central readymix concrete batching/mixing plant:1. twin-shaft concrete mixer, SICOMA technology; 2.automatic concrete batching/mixing plant control with SIMENS PLC; 3. SCHNEIDER electrical, reliable performance; 4. five star after sale servcie, 7/24 technical assistance available
Why would our clients choose FOCUS central readymix concrete batching/mixing plant?
On the basis of combining advantages of various foreign central readymix concrete mixing/batching plant and advanced technology, FOCUS HZS concrete mixing/batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS central readymix concrete mixing/batching plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS central readymix concrete mixing/batching plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;

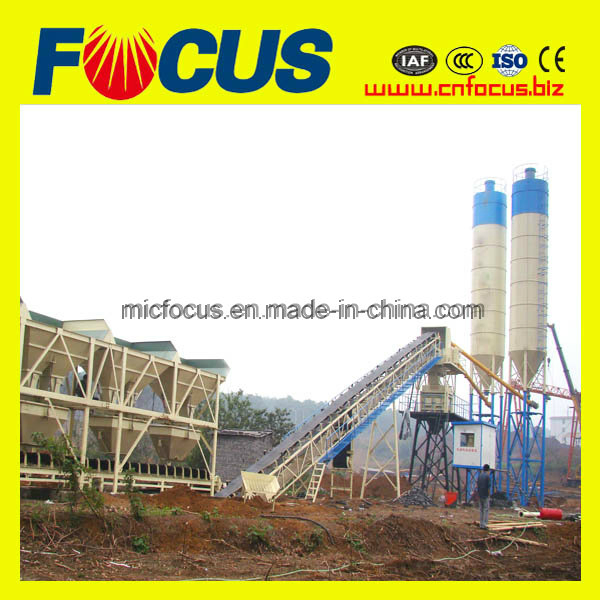

3. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the central ready mix concrete mixing/batching plants;
4. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing/batching plant is all in closed state;
5. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
6. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.

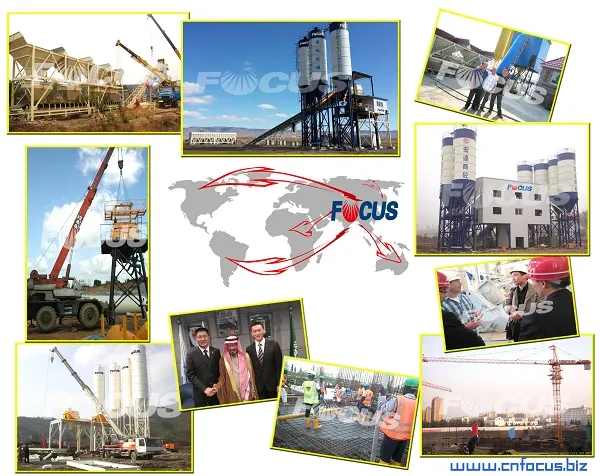

Our central ready mix concrete mixing/batching plants are being purchased, installed and operated all over the world:
Thanks for visiting, by the time you are paying attention to us, our central ready mix concrete mixing plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
FOCUS central readymix concrete batching/mixing plant:1. twin-shaft concrete mixer, SICOMA technology; 2.automatic concrete batching/mixing plant control with SIMENS PLC; 3. SCHNEIDER electrical, reliable performance; 4. five star after sale servcie, 7/24 technical assistance available
Why would our clients choose FOCUS central readymix concrete batching/mixing plant?
On the basis of combining advantages of various foreign central readymix concrete mixing/batching plant and advanced technology, FOCUS HZS concrete mixing/batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS central readymix concrete mixing/batching plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS central readymix concrete mixing/batching plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
3. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the central ready mix concrete mixing/batching plants;
4. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing/batching plant is all in closed state;
5. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
6. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
Our central ready mix concrete mixing/batching plants are being purchased, installed and operated all over the world:
Thanks for visiting, by the time you are paying attention to us, our central ready mix concrete mixing plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
| model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical output(m³/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Output per batch(m³) | 1 | 1.5 | 2 | 3 | 4 |
| Aggregate batcher | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Total power(KW) | 110 | 145 | 160 | 205 | 340 |
| Aggregate weighing accuracy(%) | (0-3000)kg±2% | (0-4000)kg±2% | (0-4500)kg±2% | (0-4500)kg±2% | (0-6000)kg±2% |
| cement weighing accuracy(%) | (0-600)kg±1% | (0-1000)kg±1% | (0-1200)kg±1% | (0-1800)kg±1% | (0-2400)kg±1% |
| water weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-1000)kg±1% |
| fly ash weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-700)kg±1% |
| additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | (0-50)kg±1% | (0-120)kg±1% |
| Discharge height(m) | 3.8-4.2 | ||||
| Max. aggregate dia.(mm) | 80-100 | ||||
| Cement silo and screw conveyor | On request | ||||
| Total weight (ton) | 46 | 60 | 71 | 87 | 112 |
| Overall dimension(LxWxH)(m) | 33.8x14.8x19.4 | 38x16x19.4 | 44x18x19.4 | 58.5x23.5x22 | 60x25x22 |
