63m3/H Liugong Hold Trailer Concrete Pump Hbt60-13- 132s

LiuGong Hold Trailer Concrete Pump HBT60-13-132S

1.Lovol engine 1006-6TW,132kw
2.Max.Concrete Output: 63mh



Advantages and innovation
Design: Machinery, electrical and hydraulic one system.
Part supplier: Some parts from World Top brand to assure high configuration and quality and liablilty.
Main Power: World Top Brand supplier: Shangchai diesel engine; the key part hydraulic pump and hydraulic valve; The pump is imported from Germany Rexroth, USA VICKERS. The pipe joint and hydraulic oil pipe are from USA and Italy.
Control parts: Electrical control way is Siemens technology. The key component parts are from world top suppliers, as improve the stability and liability.
Pumping process: Start the machine then dial pumping button. The rotation of the machine can be tracked automatically according to instruction, to reach the minimum working 1300r/min. If it needs to add the pumping discharge, just dial the electrical button, the machine will runs according to instruction.( Weichai engine)

ENGINE
Emission Stage                                                               Tier I
Manufacturer                                                                 Lovol
Engine Power                                                             132 KW
Max . Torque / Speed   (580-650)/1400-1600(N.m/rpm)
Piston Displacement                                                       5.99
Number of Cylinders                                                            6
Aspiration                                                        Turbocharged

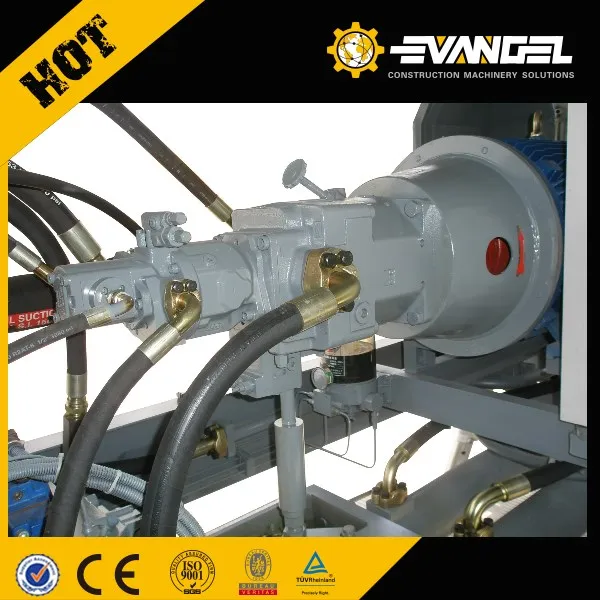

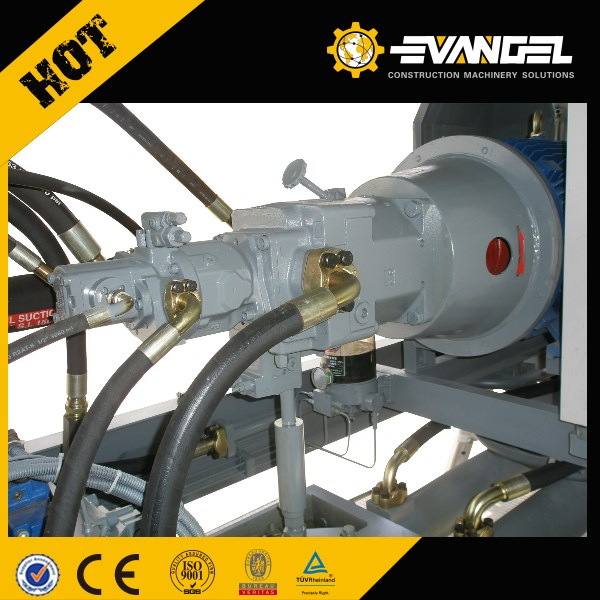

HYDRAULIC SYSTEM
Hydraulic system type                                         Open loop
System working pressure                                         32 MPa
Main Hydraulic Pump                                              Rexroth
Main hydraulic pump Type                              A11VLO190
Main Hydraulic pump displacement                    190 ml/r
Main hydraulic directional valve                Shanghai
