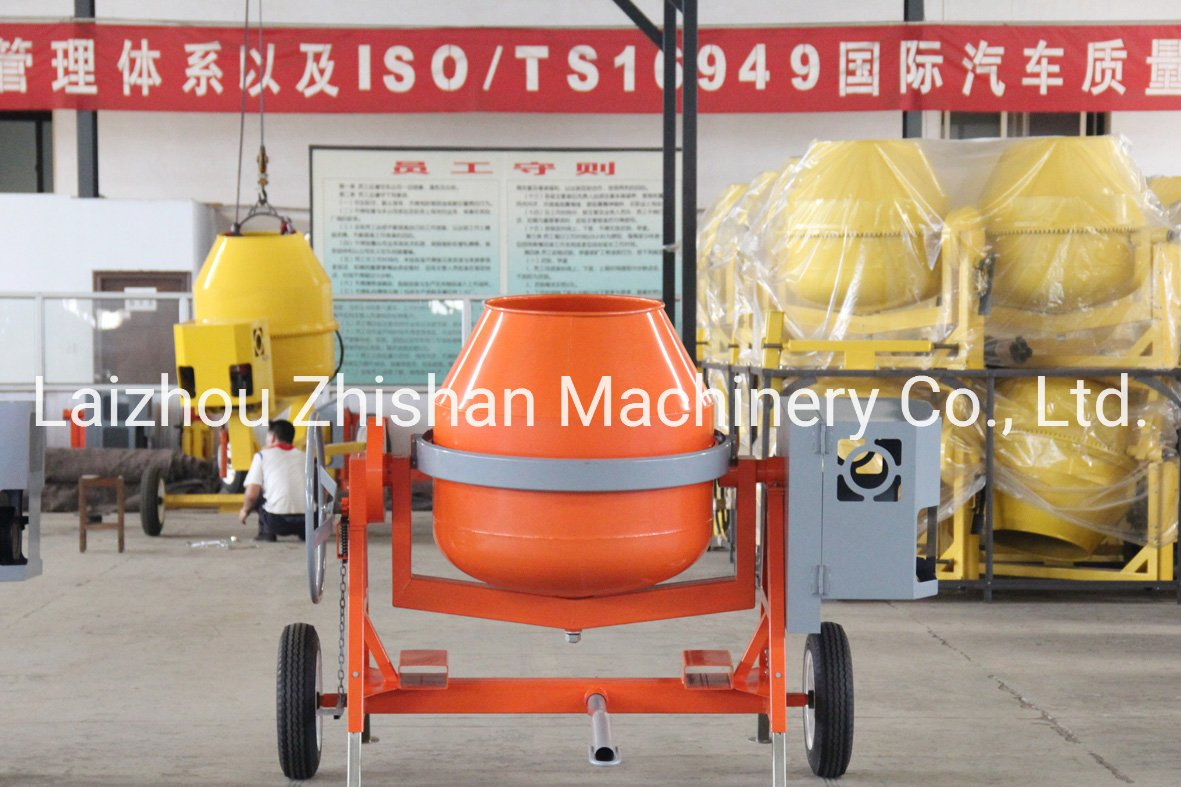

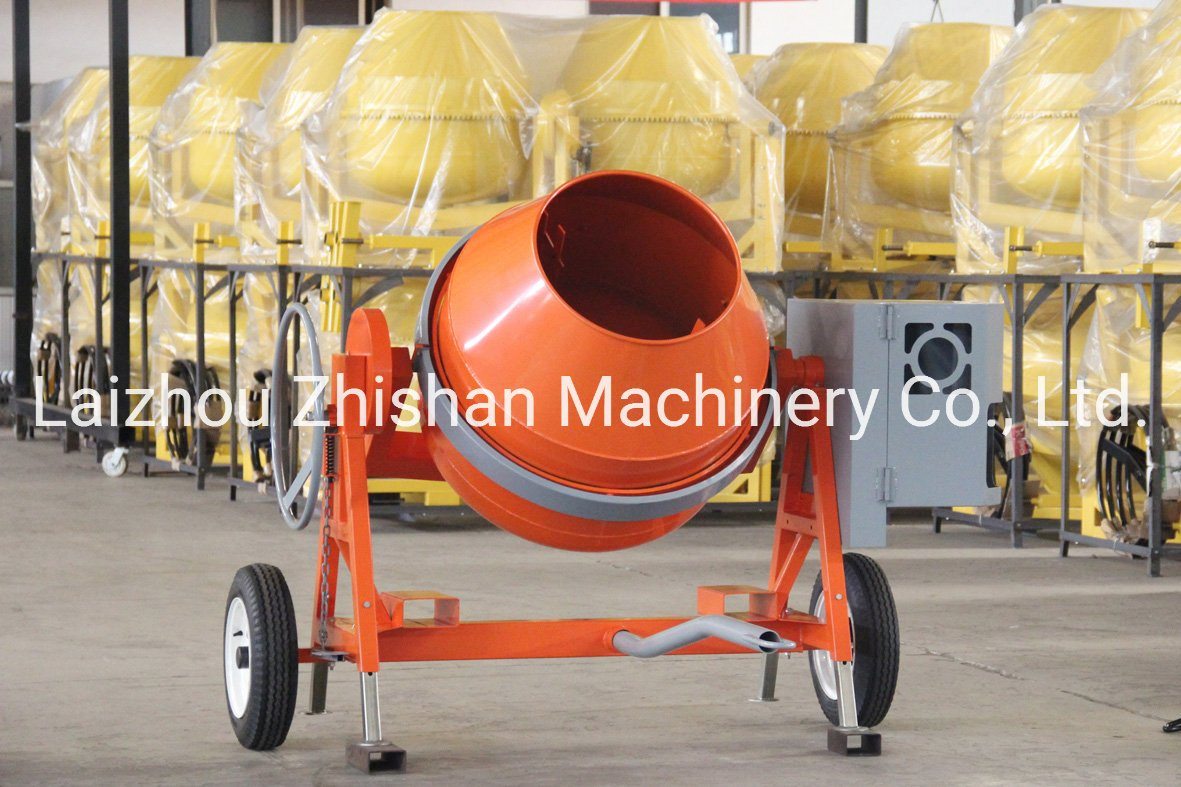

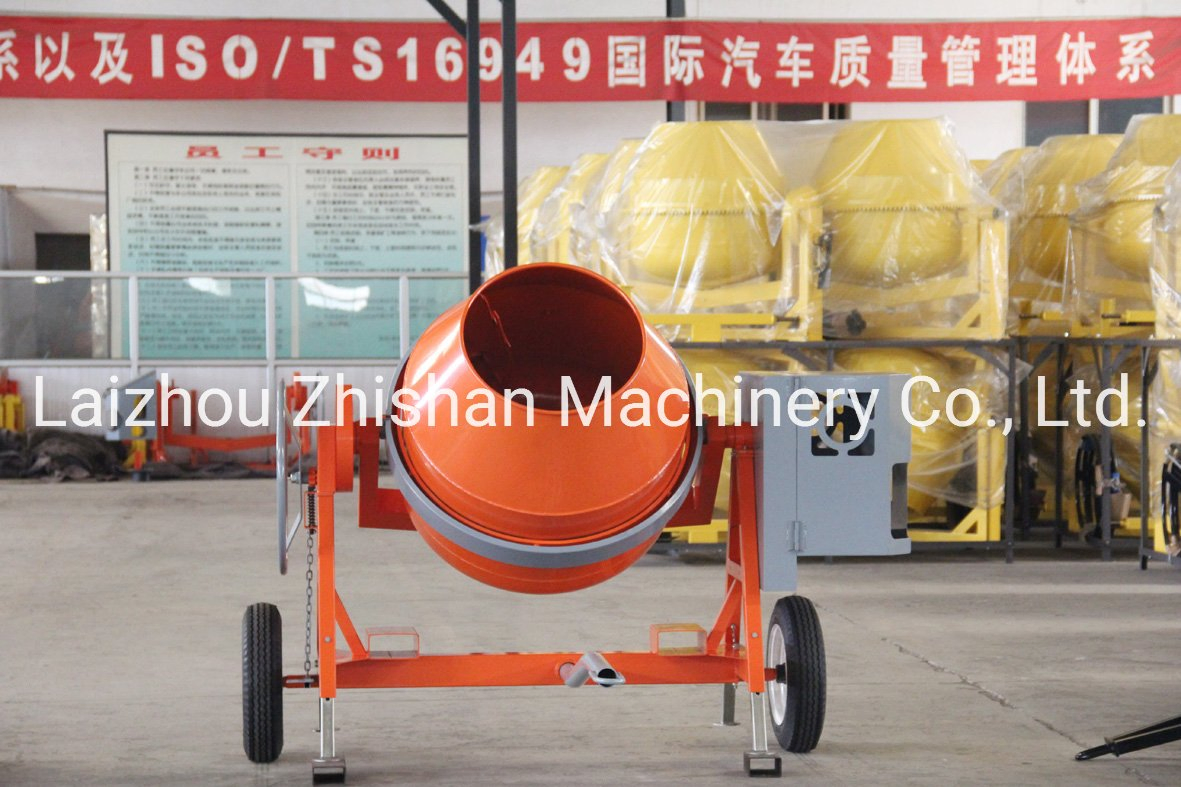

China CMH550 (CMH50-CMH800) 550L Portable Electric Gasoline Diesel Concrete Mixer

Product Description

Model	CMH500	CMH550	CMH600
Drum Capacity (L)	500	550	600
Drum rotation speed	18-22rpm	18-22rpm	18-22rpm
Engine	Electric Motor, Gasoline Engine or Diesel Engine
Packing Size(mm)	2050x880x1250	2050x880x1310	2050x880x1370
GW/NW (Kgs)	390/370	410/390	420/400
40' Container (Pcs)	/	/	/
40'H Container (Pcs)	28	28	28

Model	CMH280	CMH320
Capacity (L)	280	320
Drum rotation speed	20-25rpm	20-25rpm
Engine	Electric Motor, Gasoline Engine or Diesel Engine
Packing Size(mm)	1820x770x1020	1820x770x1100
GW/NW (Kgs)	290/270	300/280
20' Container (Pcs)	18	18
40'Container (Pcs)	40	40

Model	CMH350	CMH400	CMH450
Drum Capacity (L)	350	400	450
Drum rotation speed	20-25rpm	20-25rpm	20-25rpm
Engine	Electric Motor, Gasoline Engine or Diesel Engine
Packing Size(mm)	1900x850x1120	1950x880x1120	1950x880x1200
GW/NW (Kgs)	330/310	350/330	370/350
40' Container (Pcs)	/	/	/
40'H Container (Pcs)	32	30	30

Model	CMH700	CMH750	CMH800
Drum Capacity (L)	700	750	800
Drum rotation speed	16-20rpm	16-20rpm	16-20rpm
Engine	Electric Motor, Gasoline Engine or Diesel Engine
Packing Size(mm)	2150x1000x1350	2150x1000x1410	2150x1000x1470
GW/NW (Kgs)	5	410/490	530/510
40' Container (Pcs)	/	/	/
40'H Container (Pcs)	12	12	12

With Cast Iron Ring Gear, Round Handle

Brief Introduction
1. The concrete mixer can be dragged to move by two wheels.
2. Cast iron ring gear enables steady and silent working.

Features:
Adopting the design idea of high strength, high stiffness and high quality, we have designed streamline mixing drum, fully-enclosed frame and round handle, pedal type positioning and fixing structure of high speed, high efficiency and high reliability. With application of German advanced quality managing mode, advanced equipment and technologies such as digital laser cutting and punching press molding line, fully automatic acid pickling, phosphating, plastic spraying line etc, we have produced mixer of beautiful appearance, high stiffness , high quality and long service life. It is the best mixer at present.

Application:

It is applied in the mixing of concrete(such as construction, home repair), breeding feed(such as chicken farm, pig farm, fish farm, holothurians farm), chemical raw material(such as compost, industrial raw material), seed and solid or liquid with little viscosity.

Operating Instruction
1. Check the machines before each operation

2. Please put the machine level and steady, and check the 4 legs fixed, and the bolt bars have been fixed tightly.
We can make the machine according to your requirements
