Ghana Accra Heavy Duty Concrete Mixer 580L

Product Description

Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders.

You could also call Jack Yao by +86 15861672347 for more details.

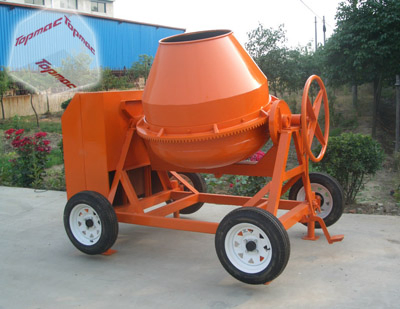

Hand Fed Concrete MixerTDCM600 (10/7 Cft.)

Advantages
1.Hand-fed concrete mixers from 420~ 500 litres mixed batch output
2.All models capable of mixing at a rate of 30 batches per hour giving production output rates ranging from 3 to 6 cubic metres per hour
3.Robustly engineered with fully enclosed drivelines, Topmac mixers provide safe, reliable performance and long service life
4.Positive, heavy duty driveline using Belt driver; bevel wheel and pinion.
5.Highly efficient, two piece heavy gauge, steel drum
6.Multi-position lockable drum
7.Fast Tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
Main Specifications

	TDCM600
Power	6hp
Power source	R180 Diesel Or 4kw Electrol Motor
Drum total Volume	600 liter
Dry Capacity (unmixed)Output	500 liter
Wet Capacity (mixed)Input	420 litre
Mixing time	100 sec.
Capacity Per Hour	4.5m3
Dimension	3720×1160×1860mm
Steel Thickness of Drum	4mm
Operation	Maunally Fed
Wheel	Two wheel or Four Wheel
Weight	650kg

Shipping, Delivery and Maintenance

20' container can be loaded with	5 units
40H' container can be loaded with	26 units/ 2 decks
Delivery time	4 weeks after confirmation of the order

Ghana Accra Heavy Duty Concrete Mixer 580L

(Exported to: maurituria\Western Sahara\Senegal\Gambia\Mali\Bukina Faso\Guinea\Guinea-Bissau\Cape Verde\sierra leone\Liberia\Cote d'Ivoire\Togo\Benin\Niger\Nigeria\Central Africa\Cameroon Cameroun\Equatorial Guinea\Gabon\Congo\The Democratic Republic of the Congo)
