Hbts60 -13-90 Official Manufacturer Truck Mounted Concrete Pump

Product Description

technical parameter

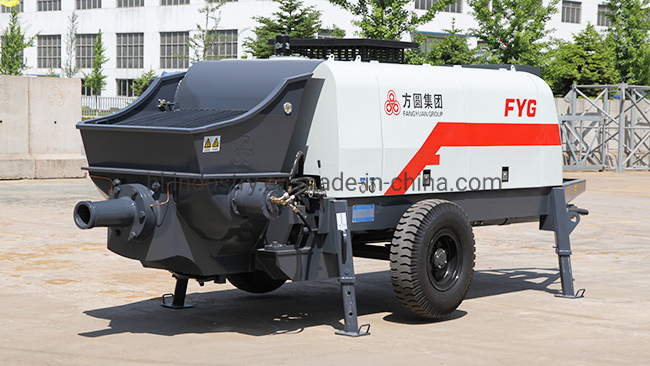

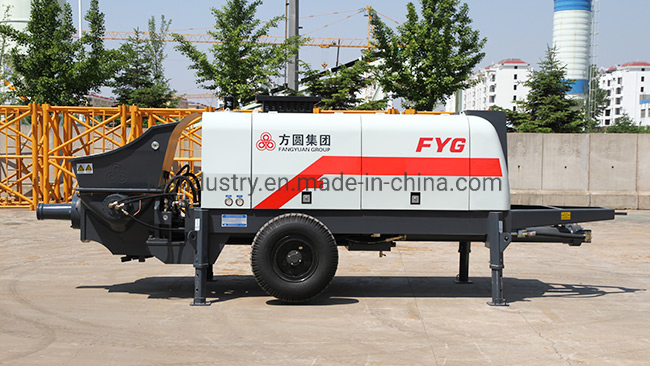

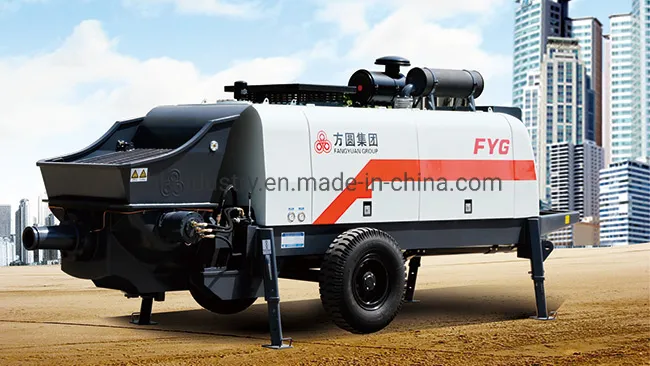

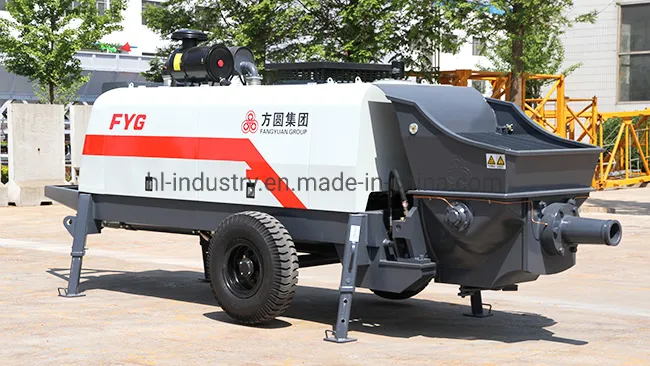

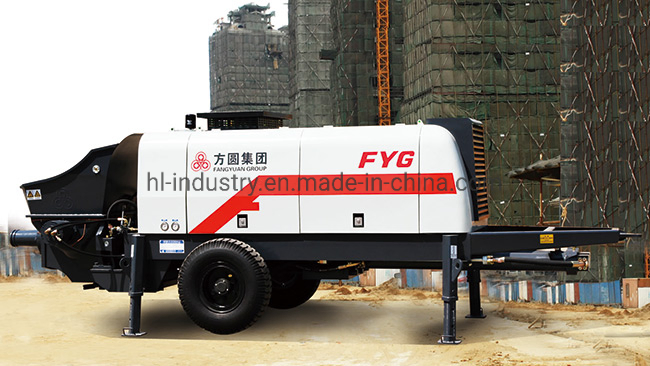

Putzmeister Concrete Pump is a concrete machine to replace the traditional way to lift the concrete by labor force but pumps the concrete through the pipeline, uses as conveniently as the tap water.

1. The main oil pump adopt Japanese Kawasaki oil pump;

2. Two ways to convey concrete: high-pressure with small volume and low-pressure with large volume;

3. Diesel trailer concrete pump adopts the air-cooled and water-cooled motor;

4. Italy MANULI high-pressure hose is used to ensure the security of hydraulic system without leakage;

5. Pumping fuel tank with an unique waterproof structure and with the combination of discharging and blocking, so it has anti-emulsified activity.





project	unit	HBTS60-13-90
Maximum theoretical displacement			m³/h	74
Maximum outlet pressure			MPa	13
Pumpable concrete specifications		Slump	cm	8-23, most suitable for 16-20
		Aggregate size	mm	125mm pipeline pebble≤40, crushed stone≤30
hopper		Volume	L	500
		Height above the ground	mm	1375
Lubrication method
cooling method				Automatic lubrication
Distribution valve form				Air-cooled
Fuel tank capacity			L	"S" pipe valve
Electric motor	model			Y280M-4
	power		kW	90
Conveying pipe diameter			mm	φ125
Conveying pipe cleaning method				Compressed air or high pressure water washing
Dimensions (length×width×height)			mm	6440×2060×2150
Host quality			kg	6300
