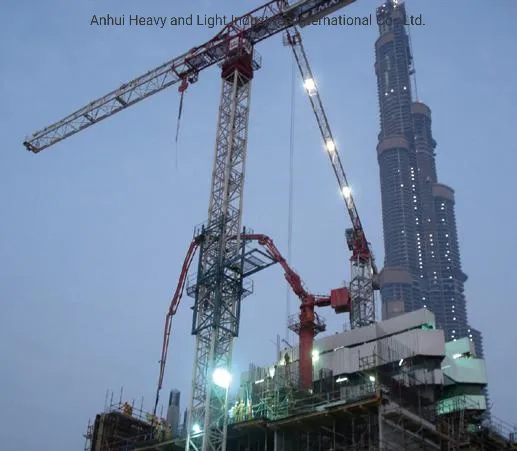

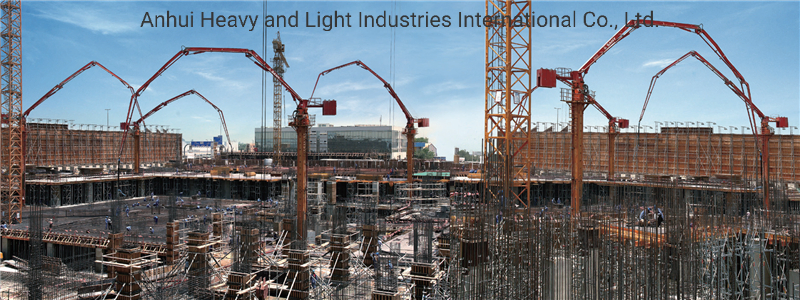

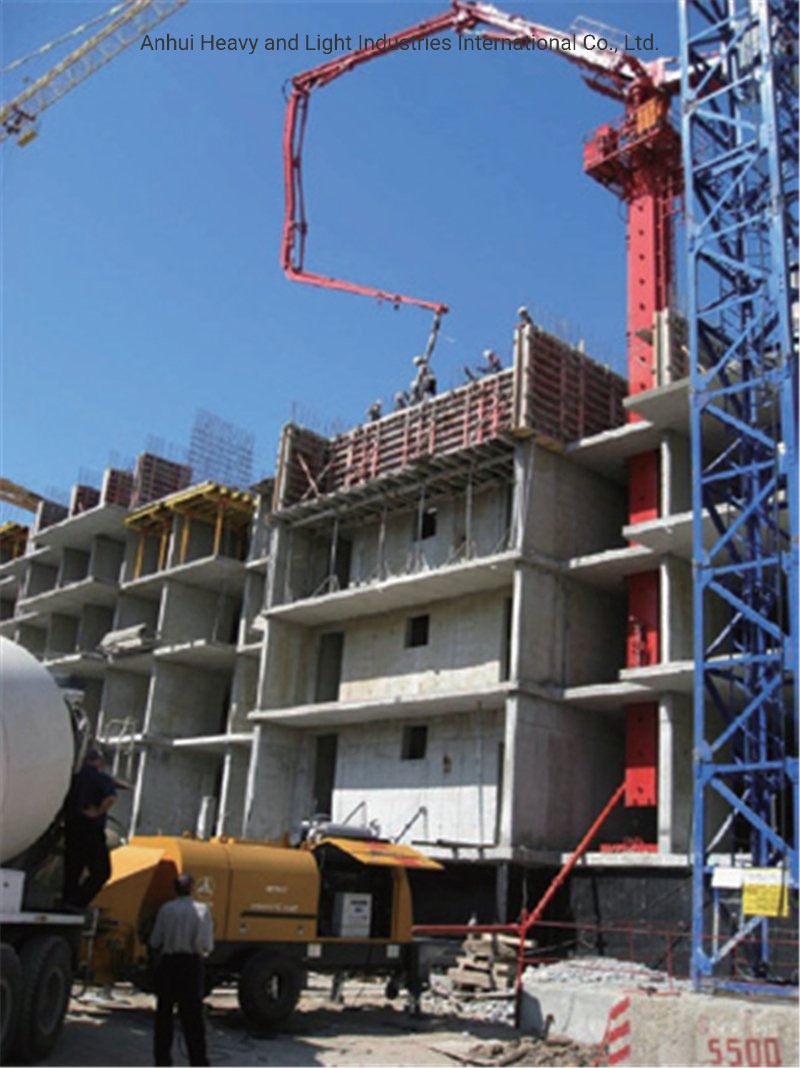

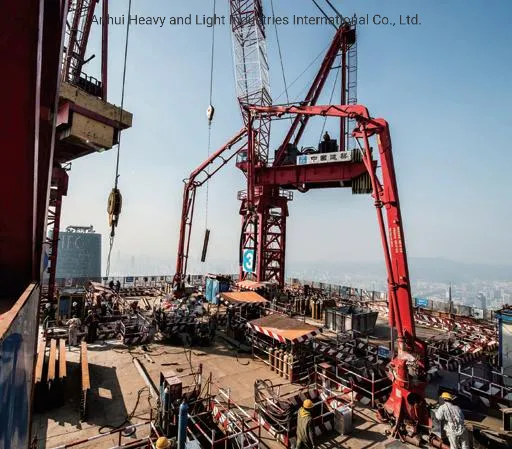

Hgr28 28m Floor Type Trailer Pump Concrete Placing Boom Cylinder Jack-up Type
Product DescriptionModelUnitHGR21HGR28HGR33BHGR36Max. placing radiusm2128.13335.2Rotation°365365365365Working ambient temperatureºC(-20)~(+50)(-20)~(+50)(-20)~(+50)(-20)~(+50)Tower heightm16.6202020Installation model FloorFloorFloorFloorClimbing speedm/min0.5~0.80.5~0.80.5~0.80.5~0.......
Send Inquiry
Product Description
Model | Unit | HGR21 | HGR28 | HGR33B | HGR36 | |
Max. placing radius | m | 21 | 28.1 | 33 | 35.2 | |
Rotation | ° | 365 | 365 | 365 | 365 | |
Working ambient temperature | ºC | (-20)~(+50) | (-20)~(+50) | (-20)~(+50) | (-20)~(+50) | |
Tower height | m | 16.6 | 20 | 20 | 20 | |
Installation model | Floor | Floor | Floor | Floor | ||
Climbing speed | m/min | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | |
Climbing mode | Cylinder jack-up type | Cylinder jack-up type | Cylinder jack-up type | Cylinder jack-up type | ||
Power supply | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz | 380 V, 50 Hz | ||
Motor power | kW | 15 | 15 | 15 | 15 | |
System pressure | Mpa | 32 | 32 | 32 | 32 | |
Control systems | / Manual/Radio | / Manual/Radio | / Manual/Radio | / Manual/Radio | ||
Pipeline cleaning mode | / Water/Dry cleaning | / Water/Dry cleaning | / Water/Dry cleaning | / Water/Dry cleaning | ||
Total approx weight | t | 9.4 | 16.6 | 17 | 17.2 | |
Whether having counter weight | No | No | No | No | ||
Boom design | 3R | 4M | 4M | 4M | ||
Pipeline diameter | mm | 125 | 125 | 125 | 125 | |
End hose length | m | 3 | 3 | 3 | 3 | |
1st section | Length | mm | 8960 | 7900 | 9050 | 9600 |
Articulation | ° | 89 | 93 | 92 | 92 | |
2nd section | Length | mm | 7855 | 6700 | 7900 | 8465 |
Articulation | ° | 180 | 180 | 180 | 180 | |
3rd section | Length | mm | 4195 | 6700 | 7950 | 8480 |
Articulation | ° | 180 | 260 | 241 | 241 | |
4th section | Length | mm | \ | 6800 | 7960 | 8655 |
Articulation | ° | \ | 240 | 235 | 235 | |
OUR SERVICE
1)Professional fast response mechanical engineers and electrical engineers provide suitable solution method for you all around the world.
2)Engineers available to reach machinery overseas job site at any time required.
3) Technical Support of installation/training supplied to help customers to earn most profits with our machinery.
4) All variety of spare parts available to support the customer 24h*7days for the daily maintenance/repair purpose etc.
OUR PRICE
We work as the leading VIP dealers of various famous Chinese construction machinery manufacturers and are constantly treated with best price policy which is only provided to special internal high level permission.From numerous comparison and feedback from clients.Our price is always more competitive and much favorable than the customer buy directly from manufacturers.
| FAQ 1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, 3: What about the delivery time? A: 7-20 days after receiving the deposit. 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. 5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs |
