Lz-3e Electric Motor Drive Concrete Spraying Shotcrete Machine
LZ-3 electric motor drive concrete spraying shotcrete machineDescription:LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, ref......
Send Inquiry
Product Description

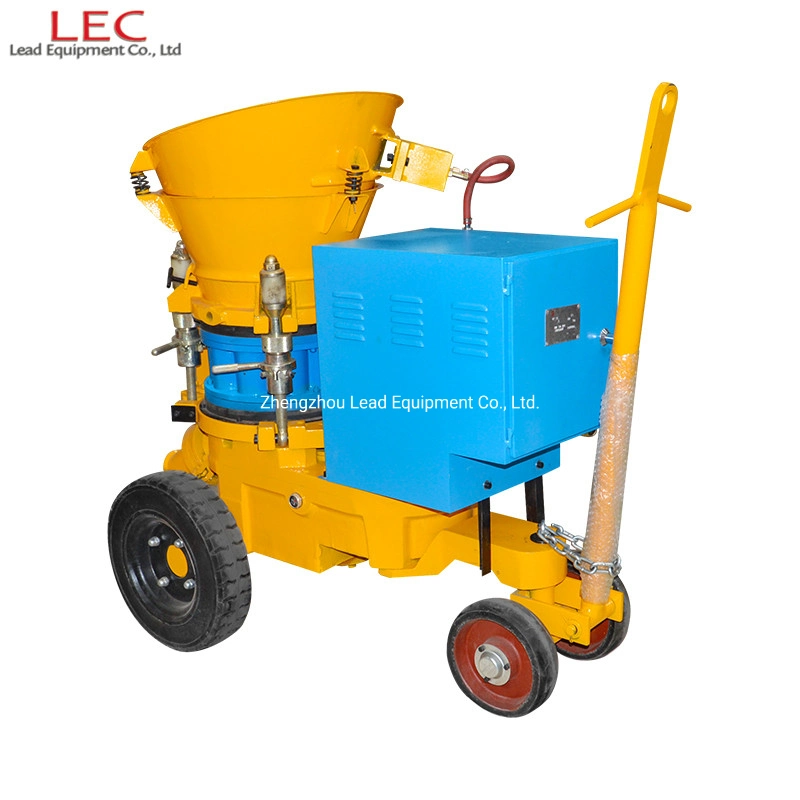

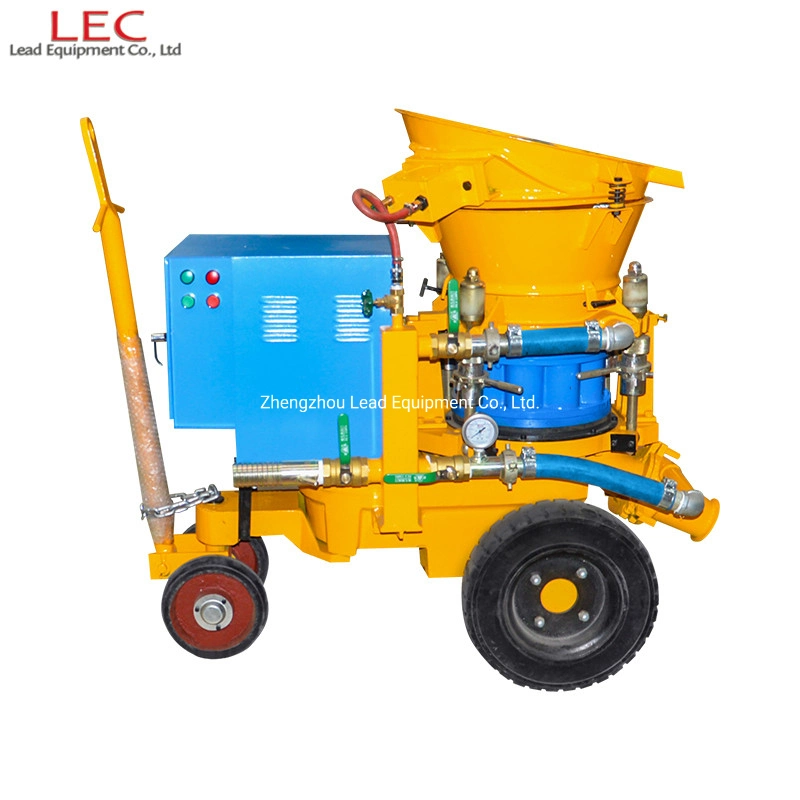

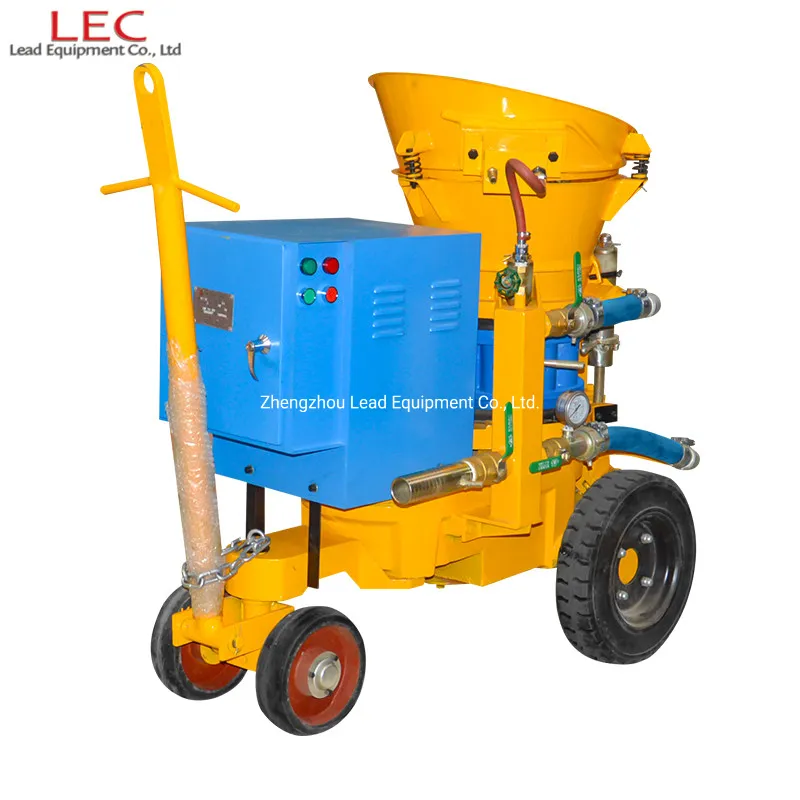

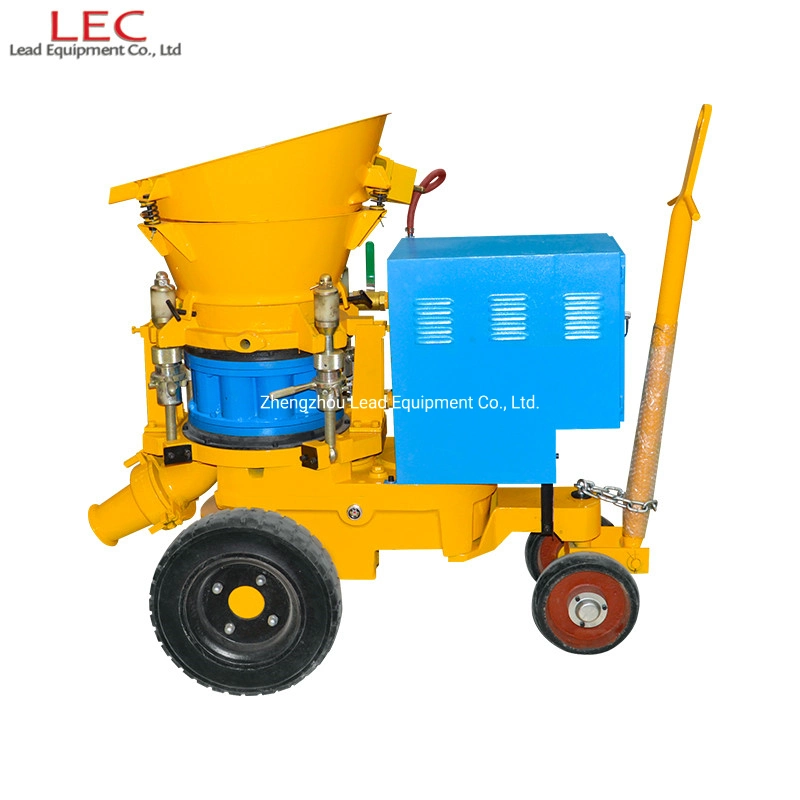

LZ-3 electric motor drive concrete spraying shotcrete machine
Description:
LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.
LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel

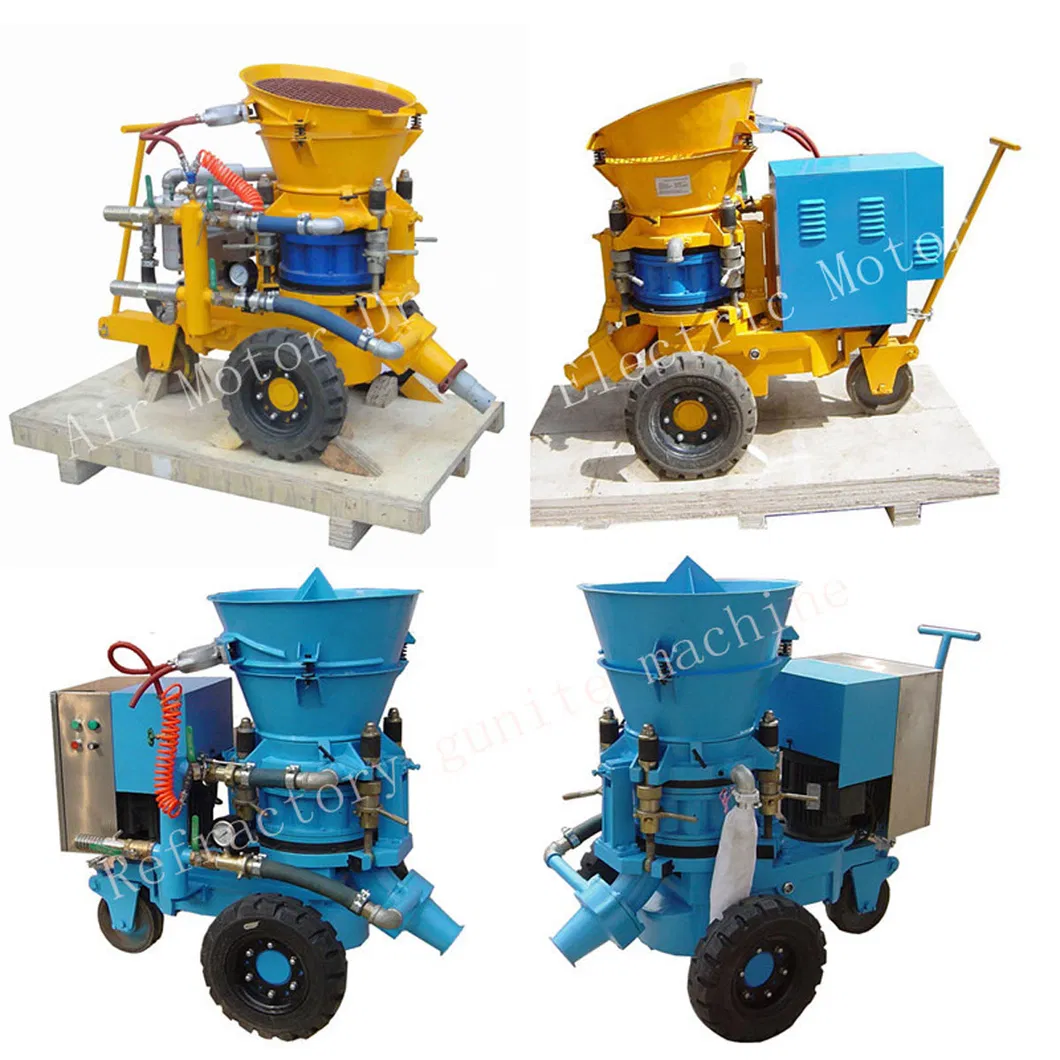

Other type LZ-3 shotcrete machine:

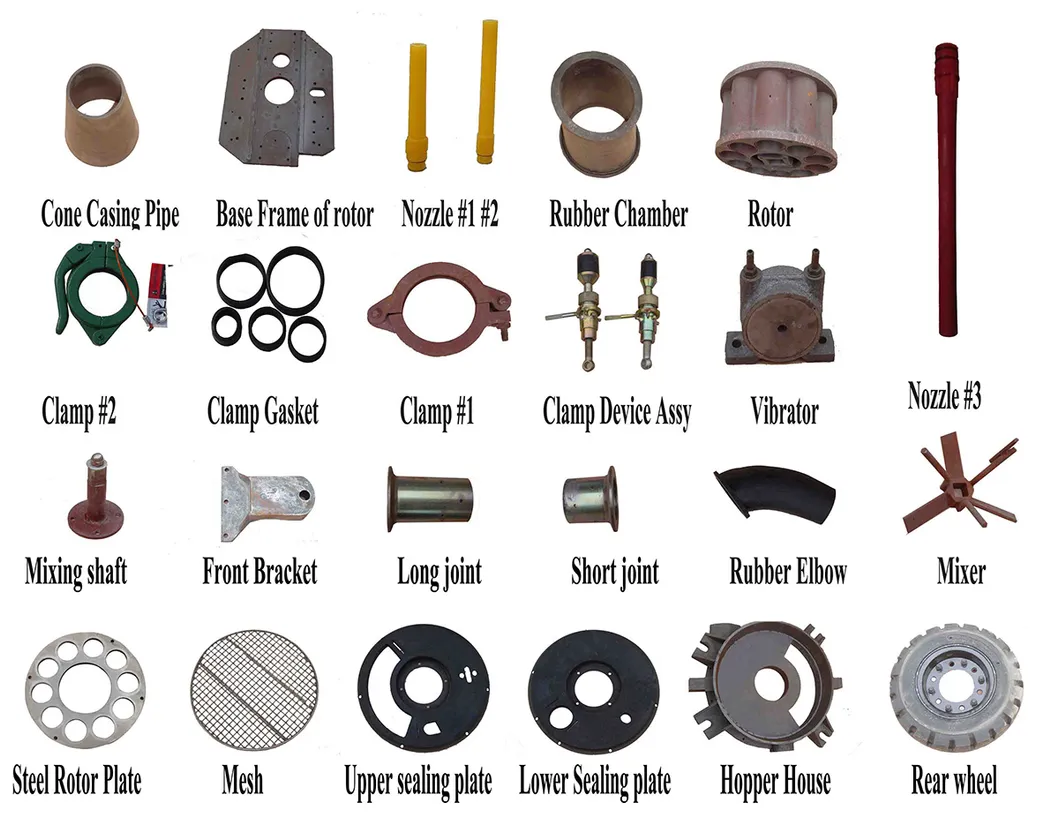

spare parts:

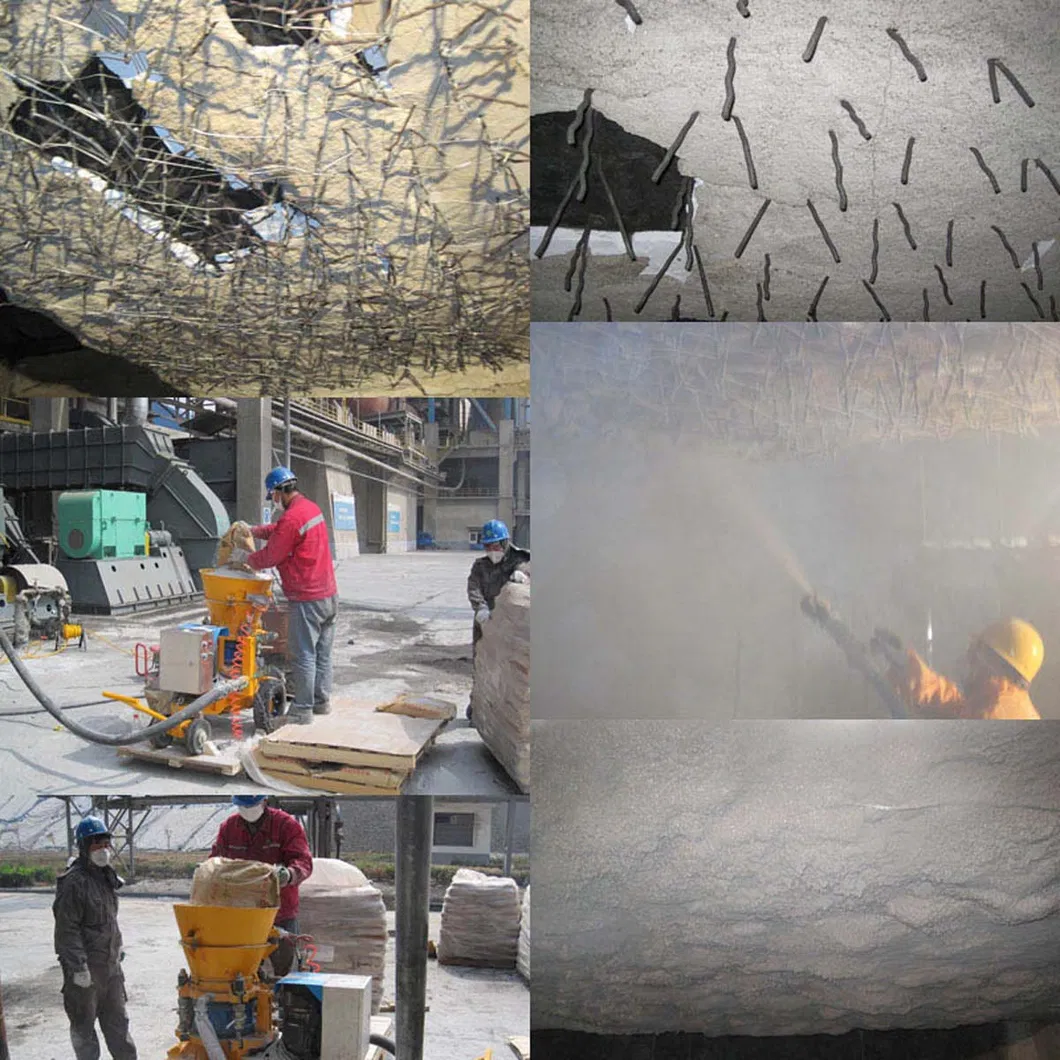

Spray refractory application:(it can also used for concrete spraying)
Description:
LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.
LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
Other type LZ-3 shotcrete machine:
spare parts:
Spray refractory application:(it can also used for concrete spraying)
| Type | electric motor drive |
| Output Capacity | 3m 3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | Φ38/Φ50mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption for conveying material | 5~6m 3 /min(180-215CFM) |
| Material Charging Height | 0.9m |
| Rotor Speed | 14r/min |
| Motor Power | 3kW(4hp),IP55 |
| Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
| Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
| Net Weight | 430kg |
