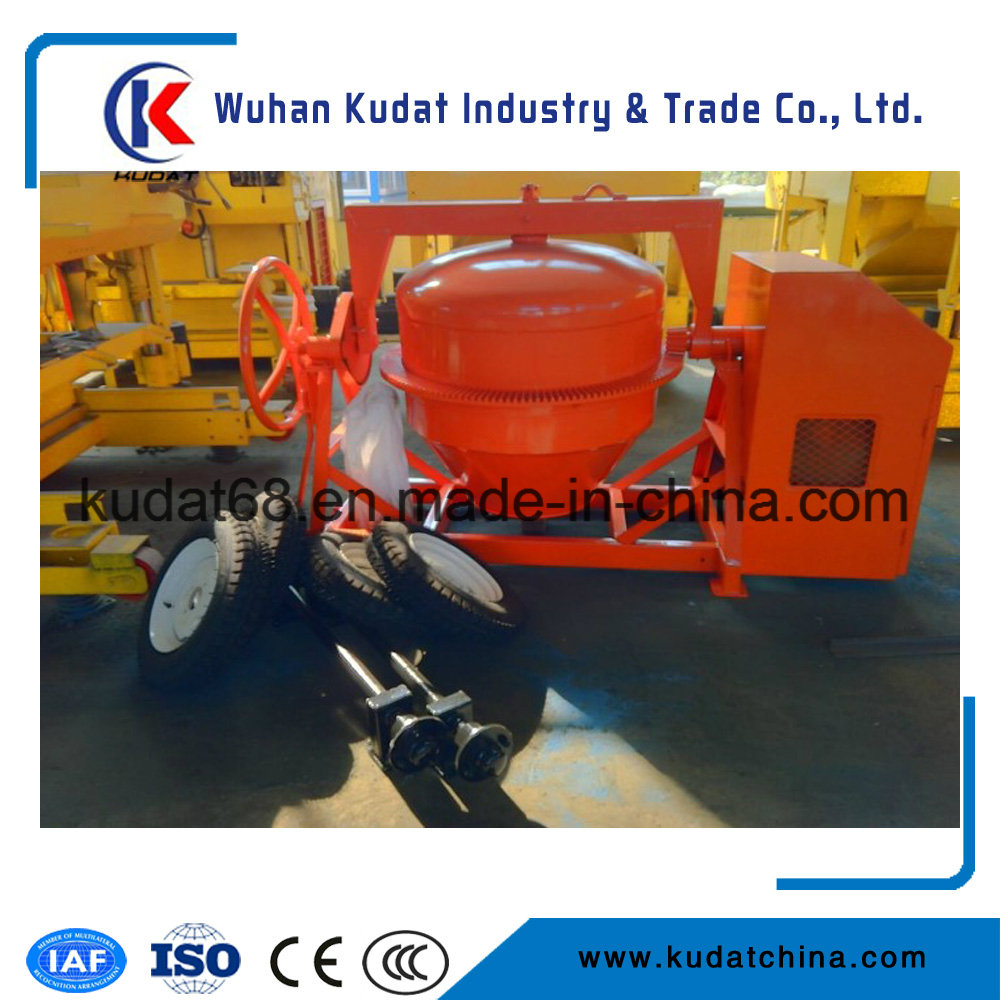

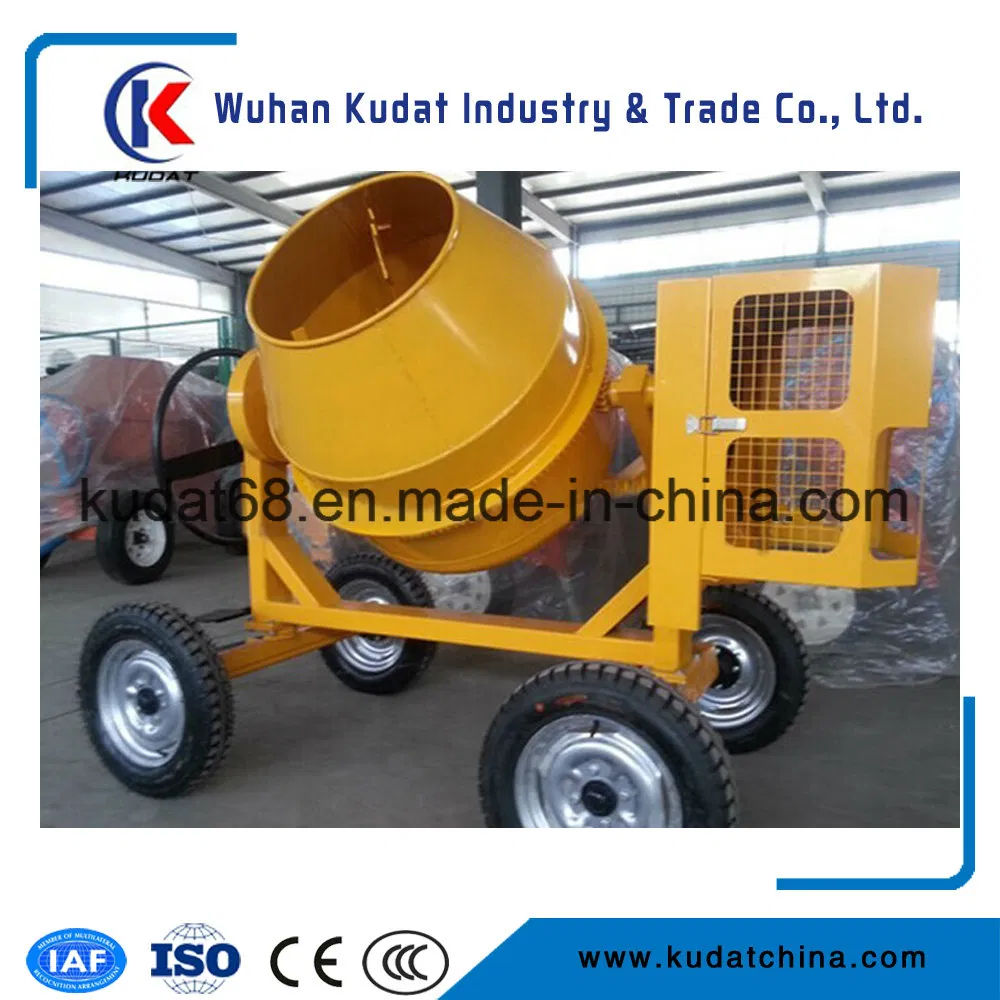

Mini Diesel Concrete Mixer Tdcm175
Easily accessible engine cab and the cove can be removed to get good ventilation for cooling the engine,Four or two towing pneumatic wheel s are optionalSpecifications:Technical SpecificationModelTDCM175-6DBDrum total volume (litres)580Unmixed capacity(litres)280Mixing capacity(litres)175Output per ......
Send Inquiry
Product Description
Easily accessible engine cab and the cove can be removed to get good ventilation for cooling the engine,Four or two towing pneumatic wheel s are optional
Specifications:
Technical Specification
Performance:
A rigged with advanced metallurgy and technology. Designed to perform for continuous
mass concreting toughness required at any site Machine
Chassis: Made from rectangular & square tubular sections of high strength
Drum:
Large drum with 20% overload capacity. Fabricated from rolled steel plates. Its bevel
shaped and revolves noiselessly on a single hot blasted ci gear. A quick homogeneous
mix with enhanced daily output is guaranteed
Hopper:
Top Covered ,Centrally Supported Hopper mounted on rectangular tube loaded arm ,
Specifically designed for rapid discharge
Operation Safety :
1 . Light, smooth and positive linkages allows operator fatigue working
2 . Full covered moving parts and dampeners provided in compliance with safety
regulations
3 . Ample space in the engine compartment facilitates air circulation and convenience in
maintenance.
Specifications:
Technical Specification
| Model | TDCM175-6DB |
| Drum total volume (litres) | 580 |
| Unmixed capacity(litres) | 280 |
| Mixing capacity(litres) | 175 |
| Output per hour(m3) | 4.5 |
| Drum rolation(rpm) | 21-25 |
| Engine | Changfa R180BN diesel 5.67KW,Water cooling diesel manual start |
| Steel thickness of drum(mm) | 4 |
| Weight(kg) | 650kg |
| Overall size(mm) | 3720L*1160W*1860H |
| Container loading | 24unit in 40HQ |
Performance:
A rigged with advanced metallurgy and technology. Designed to perform for continuous
mass concreting toughness required at any site Machine
Chassis: Made from rectangular & square tubular sections of high strength
Drum:
Large drum with 20% overload capacity. Fabricated from rolled steel plates. Its bevel
shaped and revolves noiselessly on a single hot blasted ci gear. A quick homogeneous
mix with enhanced daily output is guaranteed
Hopper:
Top Covered ,Centrally Supported Hopper mounted on rectangular tube loaded arm ,
Specifically designed for rapid discharge
Operation Safety :
1 . Light, smooth and positive linkages allows operator fatigue working
2 . Full covered moving parts and dampeners provided in compliance with safety
regulations
3 . Ample space in the engine compartment facilitates air circulation and convenience in
maintenance.
