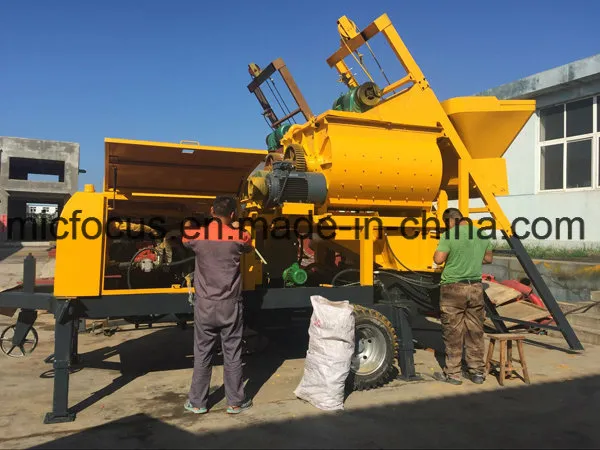

Movable Pumpcrete with Js500 Concrete Mixer
Concrete mixer with pump/ concrete pump with mixer for sale1. Application of concrete mixer with pump / concrete pump mixer: Group building, bridges, and the small construction projects, 4-6 floors building.2. Main Features of concrete mixer with pump / concrete pump mixer:1) New combination of conc......
Send Inquiry
Product Description
Concrete mixer with pump/ concrete pump with mixer for sale
1. Application of concrete mixer with pump / concrete pump mixer:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of concrete mixer with pump / concrete pump mixer:
1) New combination of concrete pump and concrete mixer.
2) Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video:https://micfocus.en.made-in-china.com
Mixing system and Pumping system of concrete mixer with pump / concrete pump mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.
Parameter of concrete pump with mixer:

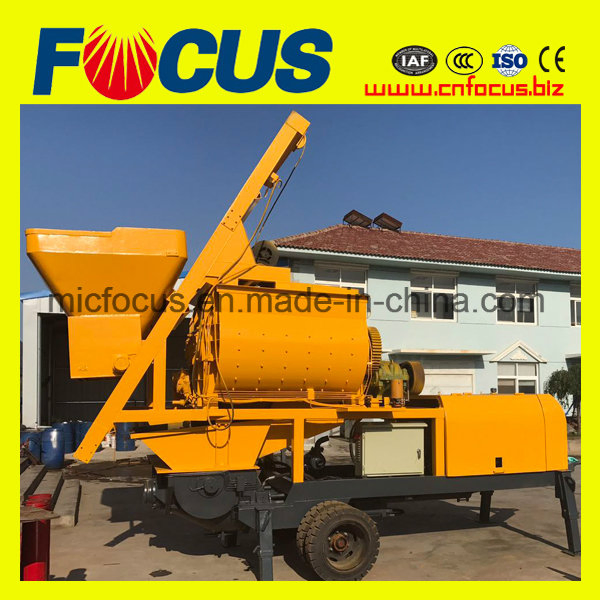

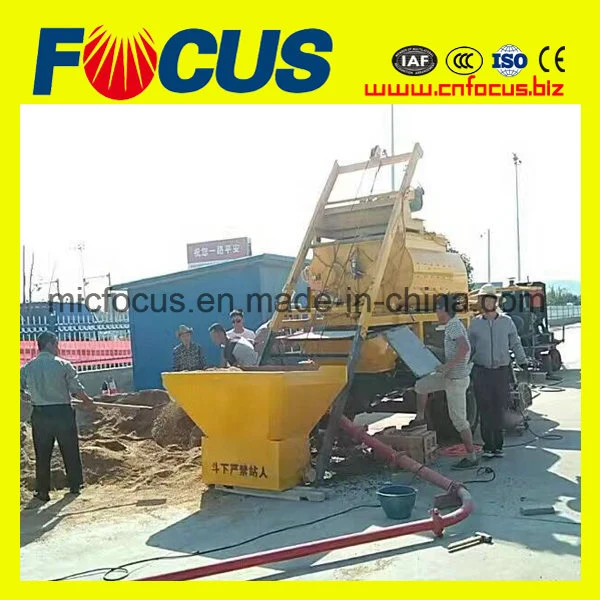

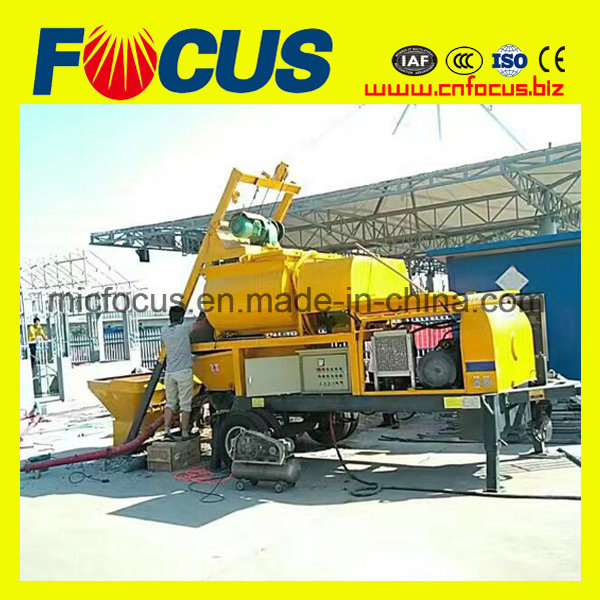

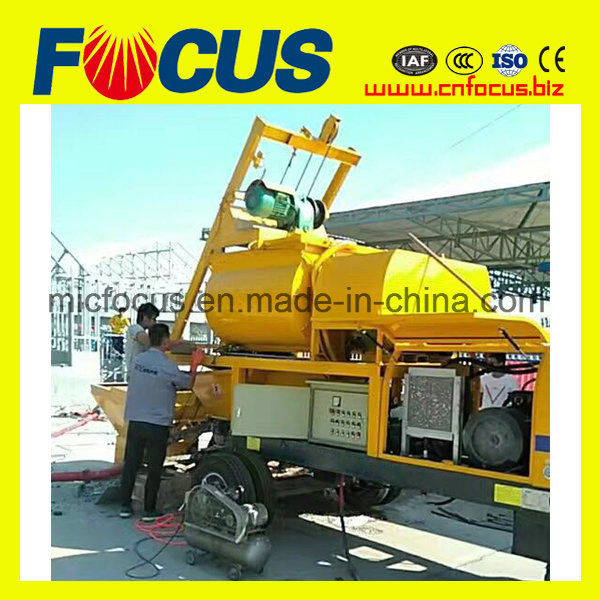

Photos of Concrete pump with JS concrete mixer:
1. Application of concrete mixer with pump / concrete pump mixer:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of concrete mixer with pump / concrete pump mixer:
1) New combination of concrete pump and concrete mixer.
2) Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video:https://micfocus.en.made-in-china.com
Mixing system and Pumping system of concrete mixer with pump / concrete pump mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.
Parameter of concrete pump with mixer:
| Items | Unit | Parameter | |
| JBS40B-JS500 | |||
| Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 40 |
| Concrete mixer | JS500 | ||
| Mixing capacity | m3/h | 25 | |
| Max.concrete pumping pressure (H. /L.) | MPa | 8 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter×stroke | mm | 200×1000 | |
| Hopper capacity | L | 600 | |
| Outlet diameter | mm | 180 | |
| Power system | Mixing Motor | kw | 18.5 |
| Hoisting Motor | kw | 5.5 | |
| Water Pump Motor | kw | 0.75 | |
| Rated pump power | kw | 45 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 28 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 370 | |
| Max. transportation Distance (Vertical/Level) | m | 120/500 | |
| Other parameters | Max. aggregate diameter | mm | pebble: 50 gravel: 40 |
| Inside diameter of delivering pipe | mm | 125 | |
| Dimensions:length×width×height | mm | 5100×2250×3100 | |
| Total weight | kg | 4500 | |

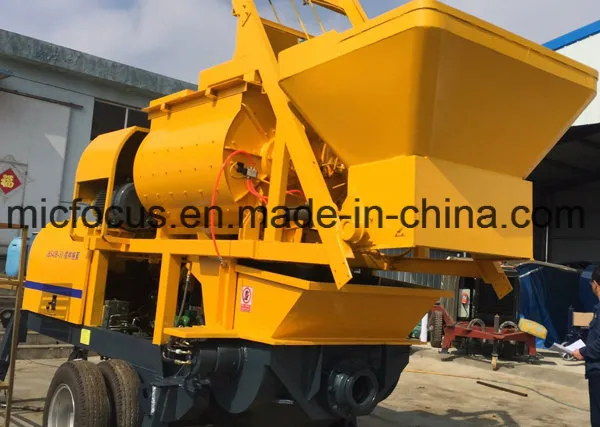

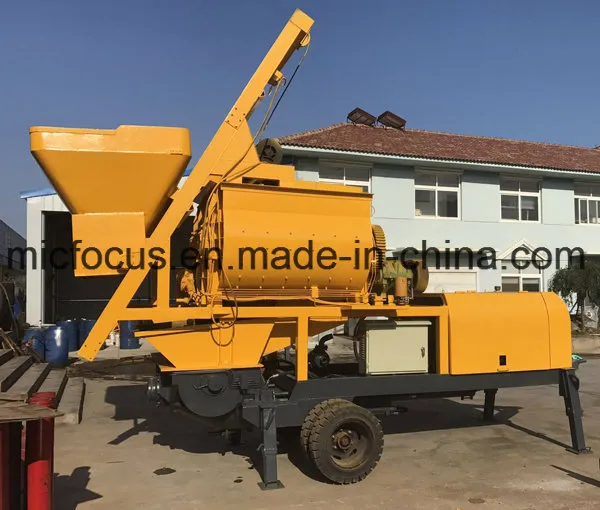

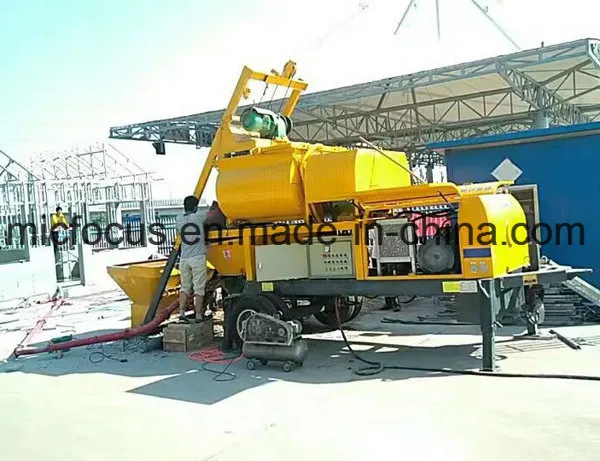

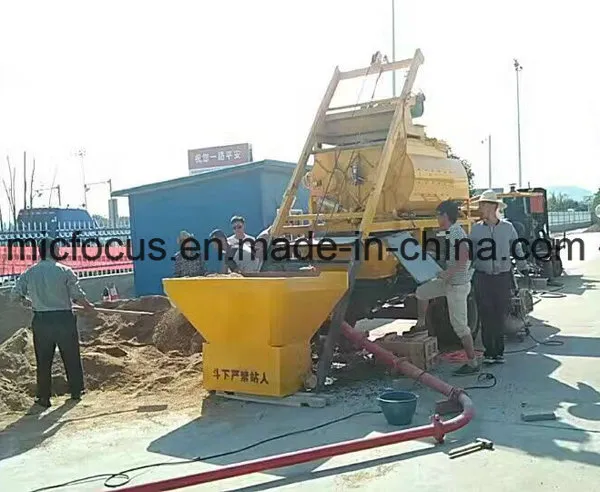

Photos of Concrete pump with JS concrete mixer:
