New Production Concrete Pumps Concrete Mixer with Pump in India Concrete Mixer Machine Cement
Factory price concrete secondary structural column pump feeding machine with high operating efficiency Concrete Pump Machine Technical DataModel No.CPM-15CPM-820CPM-20CPM-25CPM-30CPM-40CPM-50Overall dimension (L*W*H)-mm1550*750*12001900*680*12001980*750*1350 3000*1100*13003680*1450*15503980*1600*158......
Send Inquiry
Product Description
Factory price concrete secondary structural column pump feeding machine with high operating efficiency
1. We will provide the after- service support for all the customers
2. If the customer needs, we will assign the engineers to provide technical support on site.
3. Implement the first responsibility system with warm reception, and must answer all questions.
4. Provide technical consultation on material selection and use, and follow up on site as required.
5. The delivery accuracy of the goods is 100%, and the goods code, invoice and warranty are processed according to the requirements of the customers and timely delivered to the customers.
6. Follow up user's product usage, provide technical support and training in time.

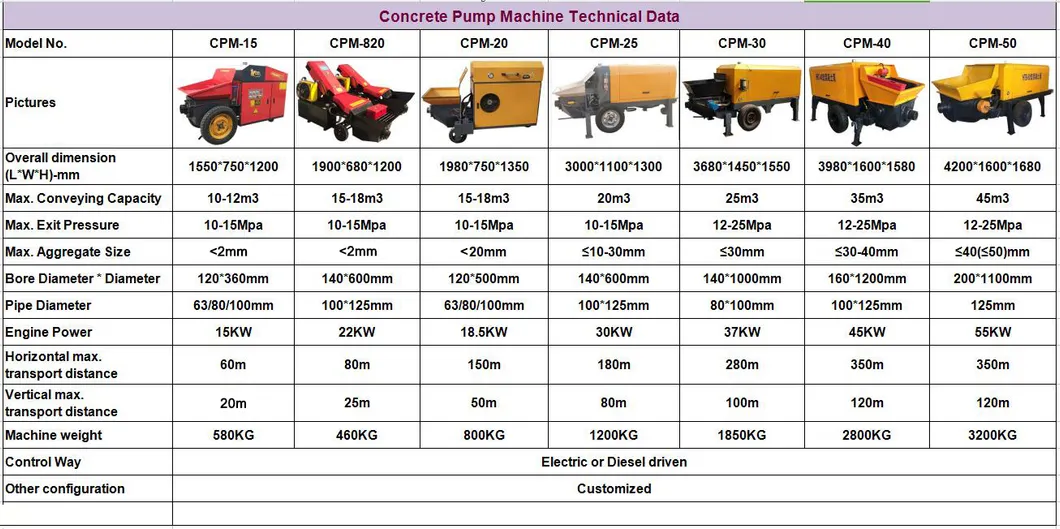

| Concrete Pump Machine Technical Data | |||||||

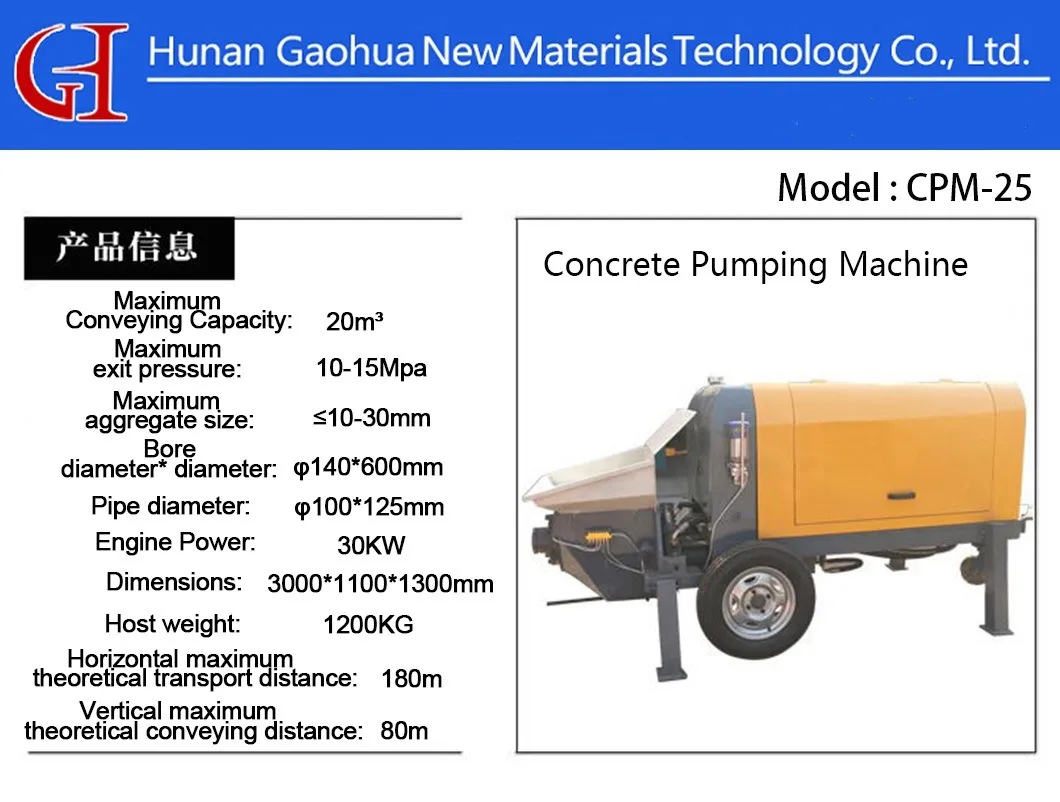

| Model No. | CPM-15 | CPM-820 | CPM-20 | CPM-25 | CPM-30 | CPM-40 | CPM-50 |
| Overall dimension (L*W*H)-mm | 1550*750*1200 | 1900*680*1200 | 1980*750*1350 | 3000*1100*1300 | 3680*1450*1550 | 3980*1600*1580 | 4200*1600*1680 |
| Max. Conveying Capacity | 10-12m3 | 15-18m3 | 15-18m3 | 20m3 | 25m3 | 35m3 | 45m3 |
| Max. Exit Pressure | 10-15Mpa | 10-15Mpa | 10-15Mpa | 10-15Mpa | 12-25Mpa | 12-25Mpa | 12-25Mpa |
| Max. Aggregate Size | <2mm | <2mm | ≤20mm | ≤10-30mm | ≤30mm | ≤30-40mm | ≤40(≤50)mm |
| Bore Diameter * Diameter | 120*360mm | 140*600mm | 120*500mm | 140*600mm | 140*1000mm | 160*1200mm | 200*1100mm |
| Pipe Diameter | 63/80/100mm | 100*125mm | 63/80/100mm | 100*125mm | 80*100mm | 100*125mm | 125mm |
| Engine Power | 15KW | 22KW | 18.5KW | 30KW | 37KW | 45KW | 55KW |
| Horizontal max. transport distance | 60m | 80m | 150m | 180m | 280m | 350m | 350m |
| Vertical max. transport distance | 20m | 25m | 50m | 80m | 100m | 120m | 120m |
| Machine weight | 580KG | 460KG | 800KG | 1200KG | 1850KG | 2800KG | 3200KG |
| Control Way | Electric or Diesel driven | ||||||
| Other configuration | Customized | ||||||
We also have other models of this type electric or diesel driven concrete pump and mixer machine, please tell us your need, so that we can quote you the right model of our machine accordingly.
1. We will provide the after- service support for all the customers
2. If the customer needs, we will assign the engineers to provide technical support on site.
3. Implement the first responsibility system with warm reception, and must answer all questions.
4. Provide technical consultation on material selection and use, and follow up on site as required.
5. The delivery accuracy of the goods is 100%, and the goods code, invoice and warranty are processed according to the requirements of the customers and timely delivered to the customers.
6. Follow up user's product usage, provide technical support and training in time.

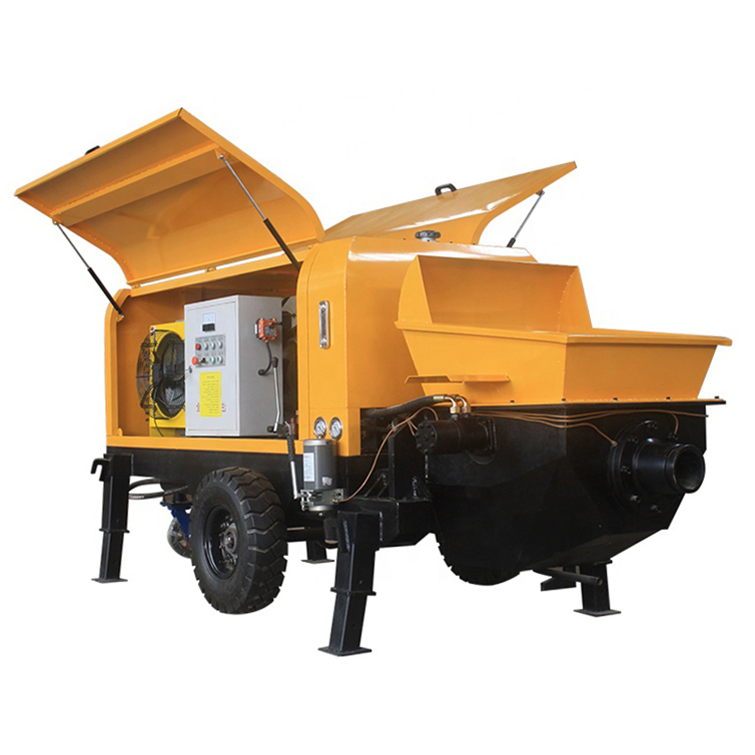

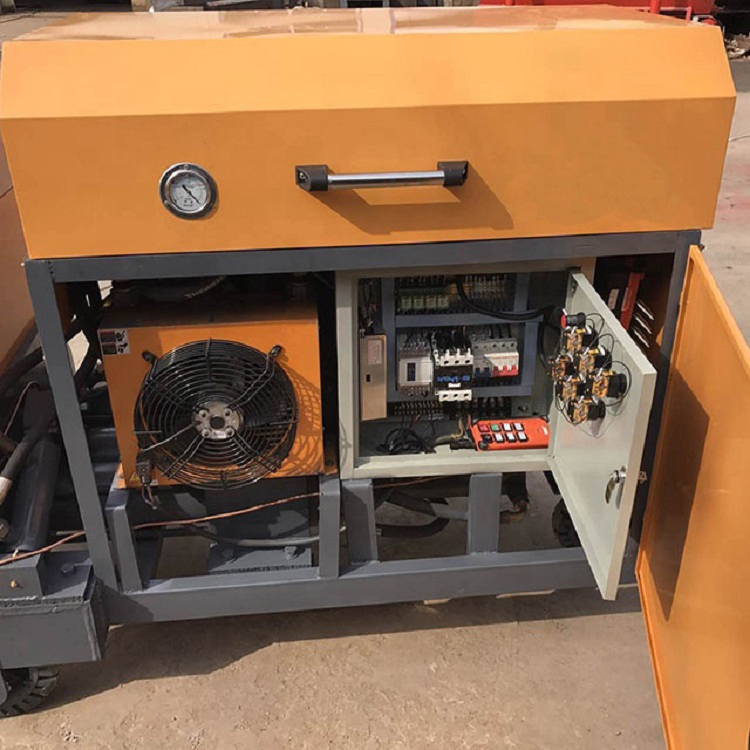

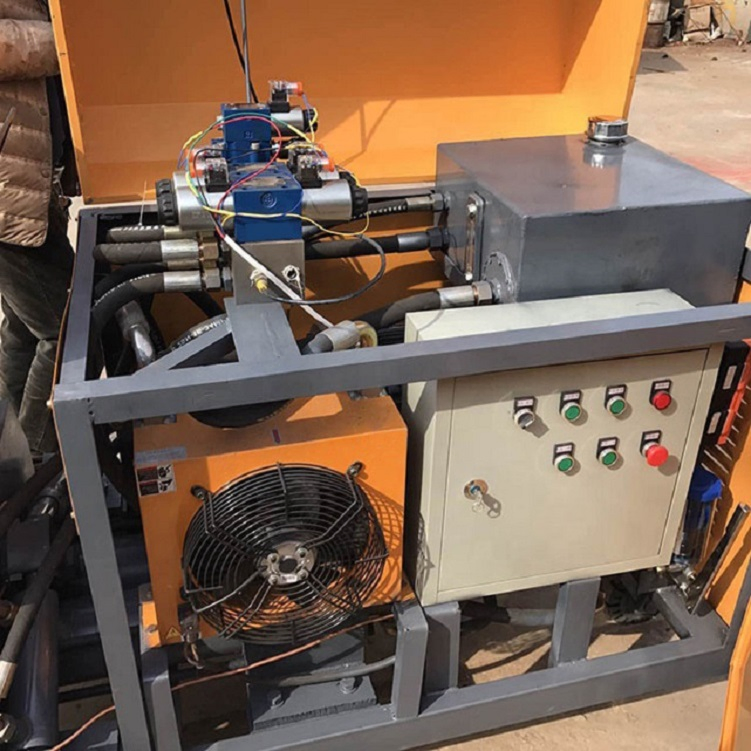

Electrical Type or Diesel Model of Concrete Pump
