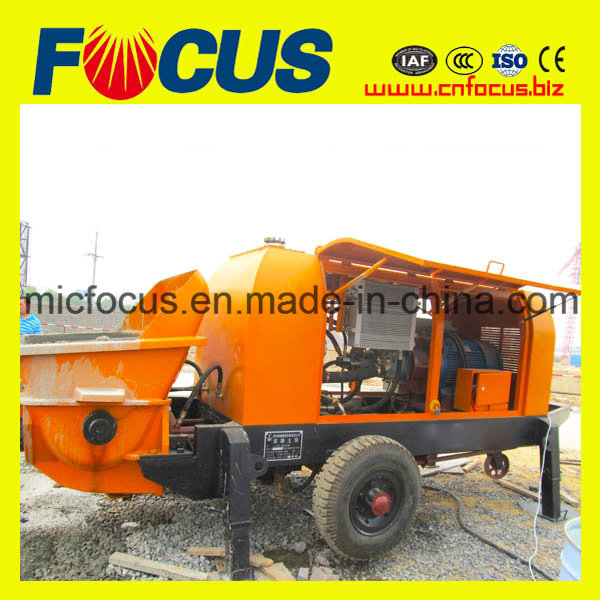

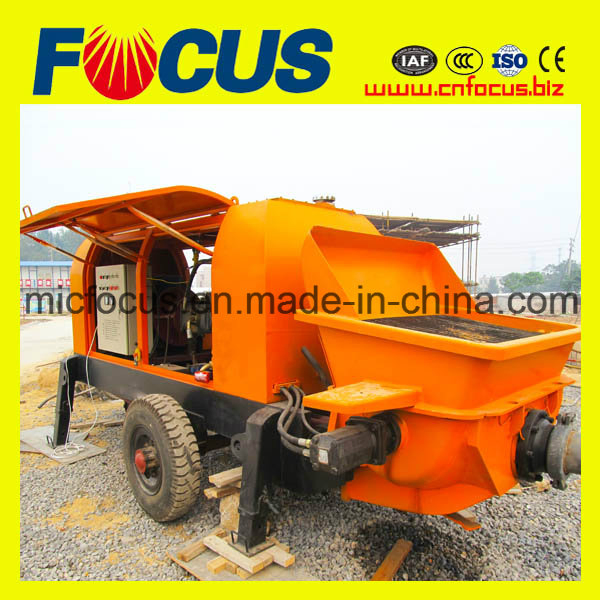

Portable Concrete Trailer Pump, 90kw Electric Trailer Mounted Concrete Pump

Portable Concrete Trailer Pump, 90kw Electric Trailer Mounted Concrete Pump


We provide Trailer Mounted Concrete Pump, S valve HBTS60, HBTS80 electric and diesel concrete pump with high quality and reasonable price.

Advantages of FOCUS trailer concrete pump:
1.REXROTH oil cylinder

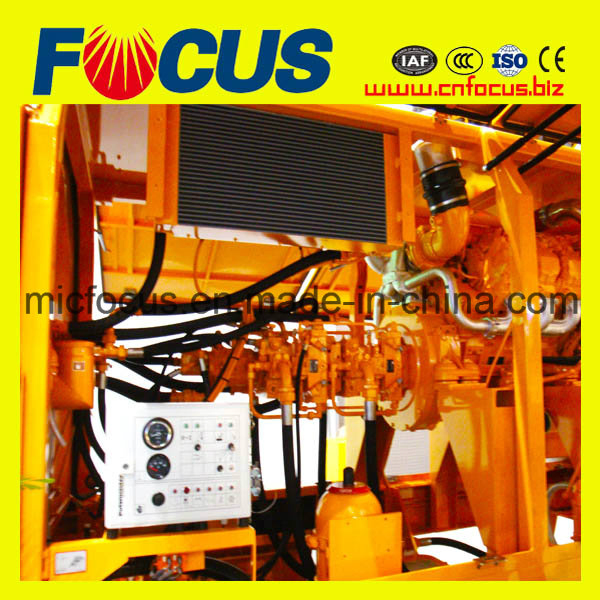

2.High quality hydraulic components
3.Reliable pumping and lubricating system


Parameters of FOCUS trailer concrete pump:

What are the main features of FOCUS trailer concrete pump?
1. Achieving mutual independence between pumping oil circuit of main pump and swing oil circuit of S valve by applying the open type hydraulic system with dual pump and dual circuit that the system is more advanced with stability, maturity, simplicity, and reliability.

2. The application of PLC programmable electric system makes it easy to conduct the collection and launch of various signals, and it can be connected with computer for restoring of initial program in case of abnormity.

3. Pumping system is equipped with safety overflow protection, thus oil pump pressure would be cut off automatically in case of overpressure in main pumping system, and the main pump would be under multi-level protection.

4. In configuration, the main oil pump applies the Rexroth in Germany, in America, and KAWASAKI in Japan. Application of world's top brand to key parts and application of local famous brand to non-key parts is insisted to ensure the stability and reliability of products.

5. Brand new arc design with one-time modeling and no accumulation of materials is applied in hopper to ensure a good casing capability.

6. Imported Italian MANULI rubber hose is applied as the hydraulic hose to ensure the cleanliness of hydraulic system and prolong the service life of pump.

7. The cleaning pool independently developed by Chulong Machinery makes the cleanliness of hydraulic system exceeding those of rivals by far, and the system would be more stable.

8. The service life of adopted alloy glass-like plate and cutting ring, polyurethane piston is twice as long as the common deposited glass-like plate, cutting ring, and piston.

9. The adopted imported five curve diesel engine with the speed automatically controlled by accelerator counter can effectively reduce the labour intensity with the percentage of energy conservation above 20%.

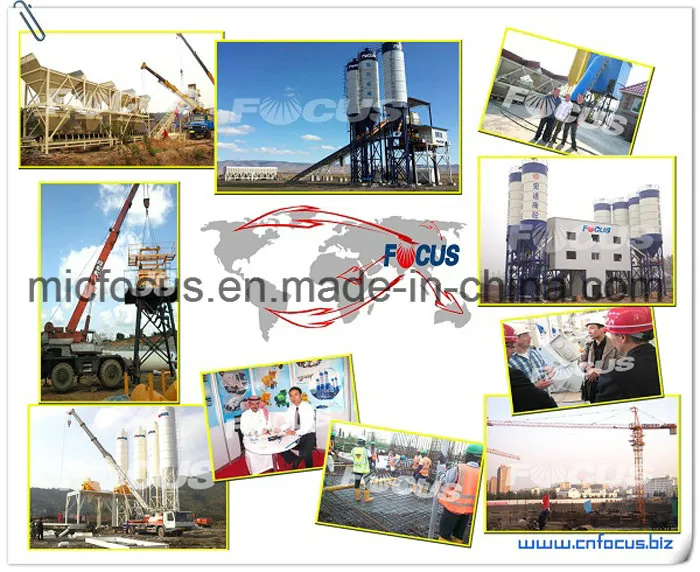

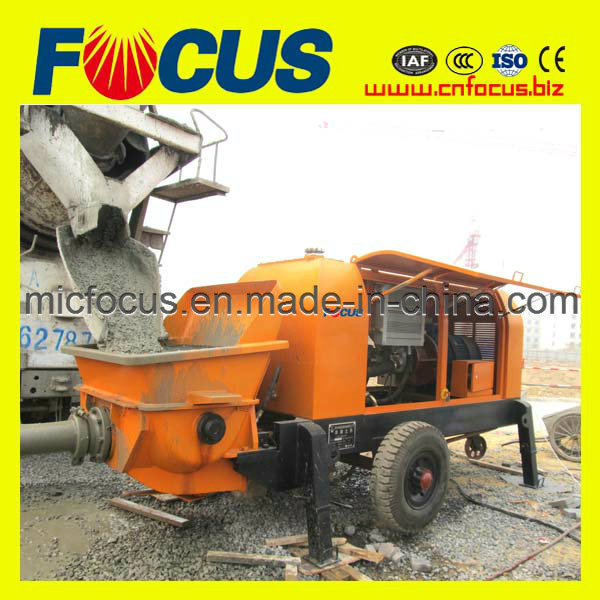

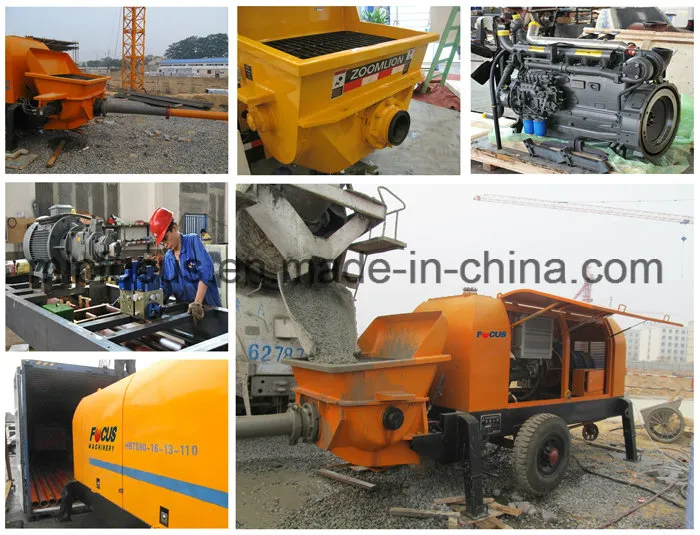

Working site of FOCUS trailer concrete pump:

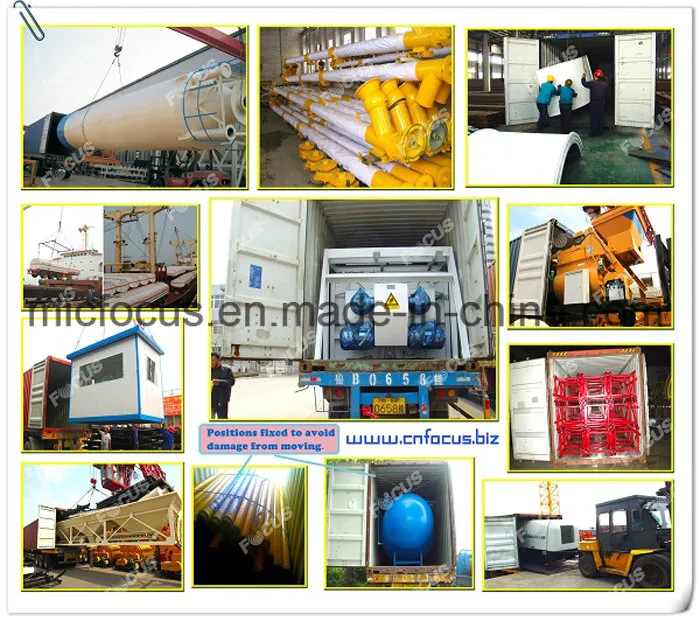

Thanks for visiting, by the time you are paying attention to us, our trailer concrete pumps are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
