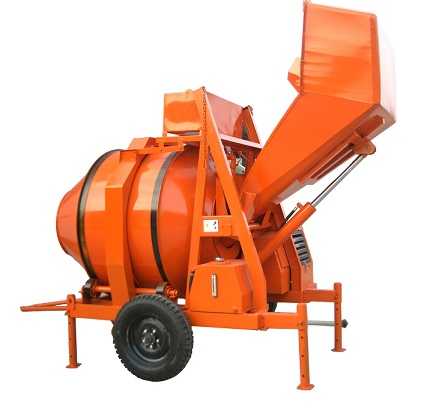

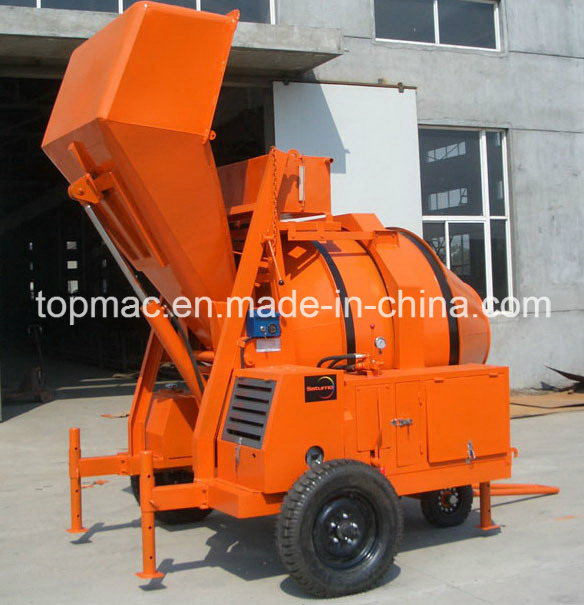

Self Loading Concrete Mixer with Hydraulic Loading Hopper Hot Sale in Africa

Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders.

You could also call Jack Yao by +86 15861672347 for more details.

BETONNIERE A CHARGEUR HYDRAULIQUE  - CUVE HORIZONTALE
Model RDCM350-11DHA(JZF350)(JZR350) (HS code 847431000)
Capacity Of Discharging 350 L (13cft)
Capacity Of Loading 560 L
Capacity of water tank 110 L
Drum Rotating Speed 13 r.p.m
Capacity per hour 10-14 m3 per h
Power of diesel engine 15 HP

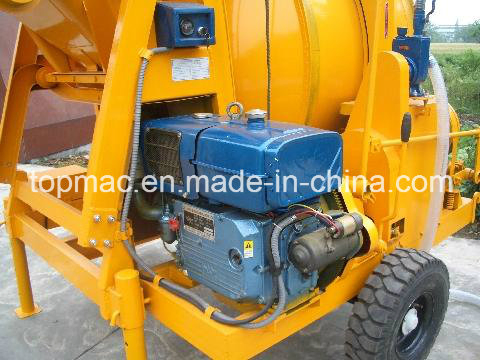

Power source Diesel engine,single cylinder,
water-cooled with radiator
With battery starter
Max. Towing Speed 20 km per h
Overall Size 3250 2240 3200mm
Weight  1790Kg
Hydraulic tipping hopper
Tank with water level indicator
One time mix 2 bags of 50kg cement
(Exported to: maurituria\Western Sahara\Senegal\Gambia\Mali\Bukina Faso\Guinea\Guinea-Bissau\Cape Verde\sierra leone\Liberia\Cote d'Ivoire\Togo\Benin\Niger\Nigeria\Central Africa\Cameroon Cameroun\Equatorial Guinea\Gabon\Congo\The Democratic Republic of the Congo)
Reversing Drum Concrete Mixer working method:
The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; the second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.
