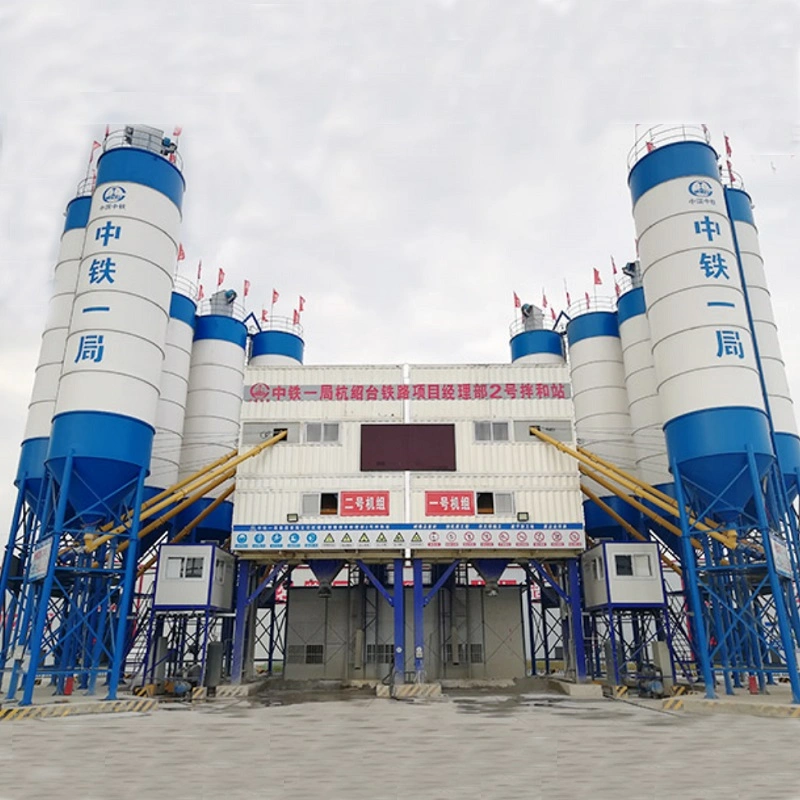

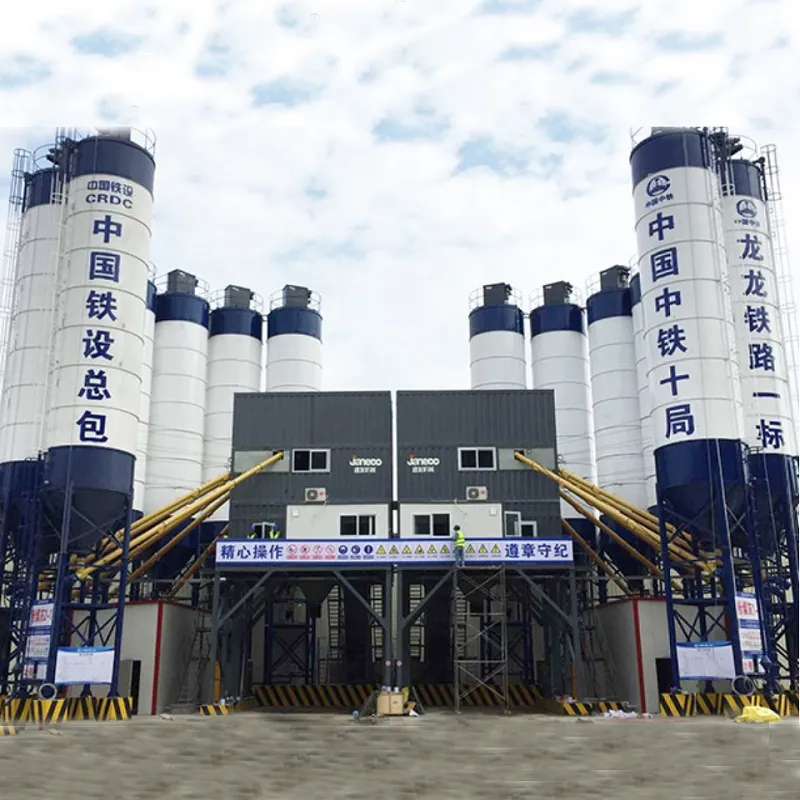

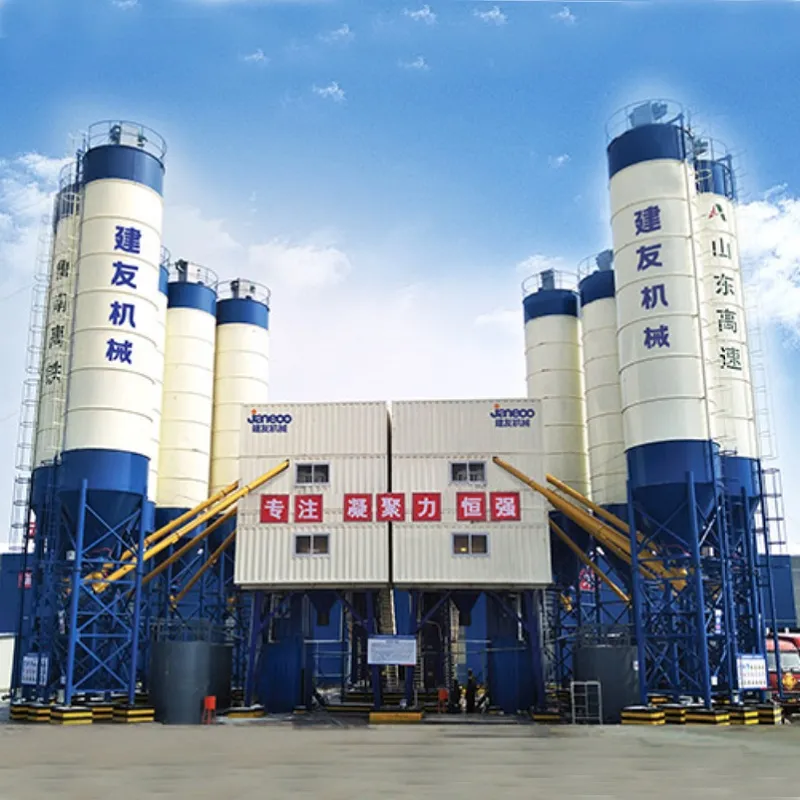

Shantui Sjhzs090-3r 90m3/H Productivity Concrete Mixing Plant Cheap Price
2021 New Brand Standard Commercial Concrete Mixing Plant H Series SjHZS100-3H with 100m3/h Rated OutputProduct DescriptionProduct adaptabilityIt's applicable for the production and supply of commercial concrete in small sites, construction of large engineering projects, and large and medium pref......
Send Inquiry
Product Description
Product adaptability
It's applicable for the production and supply of commercial concrete in small sites, construction of large engineering projects, and large and medium prefabricated concrete product plants.
The high-precision metering technology and the high-efficiency mixing technology promote the concrete quality to the maximum degree.
The hopper is applied with patented anti-falloff device to permanently prevent the falloff of hopper and achieve higher safety performance.
The lifting hopper with single lifting point is used to feed the material, featuring stable performance and small occupation area.
| Comparative item | SjHZS100-3H | SjHZS150-3H | SjHZS090-5H | SjHZS120-5H | SjHZS180-5H |
| Theoretical productivity (m³/h) | 100 | 150 | 90 | 120 | 180 |
| Mixer parameter | |||||
| Model | SjJS2000-3B | SjJS3000-3B | SjJS1500-3B | SjJS2000-3B | SjJS3000-3B |
| Drive power (Kw) | 2X37 | 2X55 | 2X18.5 | 2X30 | 2X37 |
| Discharge capacity (L) | 2000 | 3000 | 1000 | 2000 | 3000 |
| Maximum aggregate size (gravel/pebble) mm | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 |
| Material bin | |||||
| Weighing range and metering accuracy | |||||
| Aggregate (kg) | 4X(2000±2%) | 4X(3000±2%) | 4X(1500±2%) | 4X(2000±2%) | 4X(3000±2%) |
| Cement (kg) | 1000±1% | 1500±1% | 800±1% | 1000±1% | 1500±1% |
| Coal ash (kg) | 400±1% | 600±1% | 200±1% | 400±1% | 600±1% |
| Water (kg) | 400±1% | 600±1% | 200±1% | 400±1% | 600±1% |
| Additive(kg) | 40±1% | 60±1% | 30±1% | 40±1% | 60±1% |
| Dumping height(m) | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Gross power (Kw) | 256 | 350 | 165 | 187 | 256 |
