Small Concrete Mixer Machine Mobile Self Loading Concrete Mixer Truck Price
Small Concrete Mixer Machine Mobile Self Loading Concrete Mixer Truck Price The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, mi......
Send Inquiry
Product Description

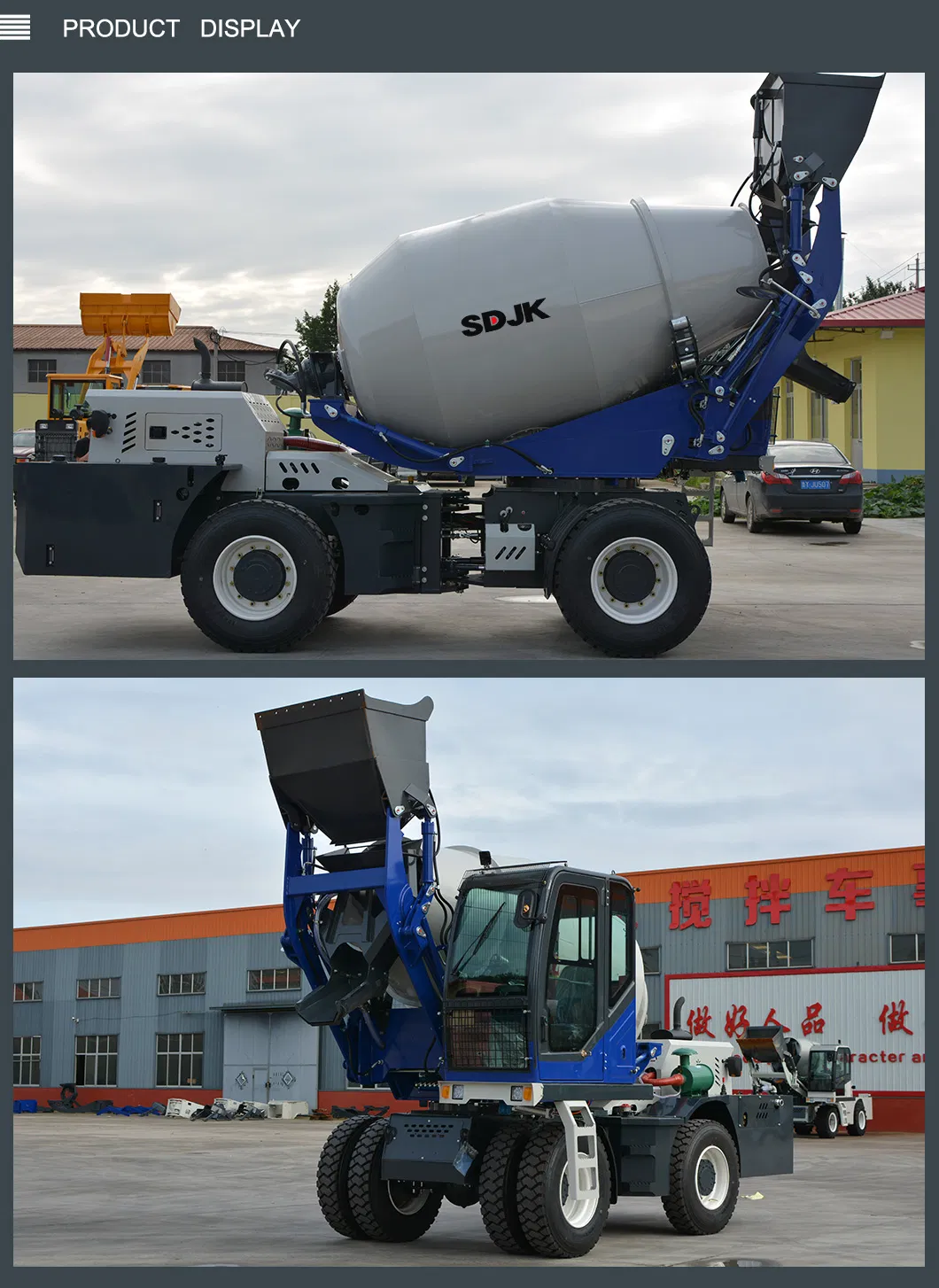

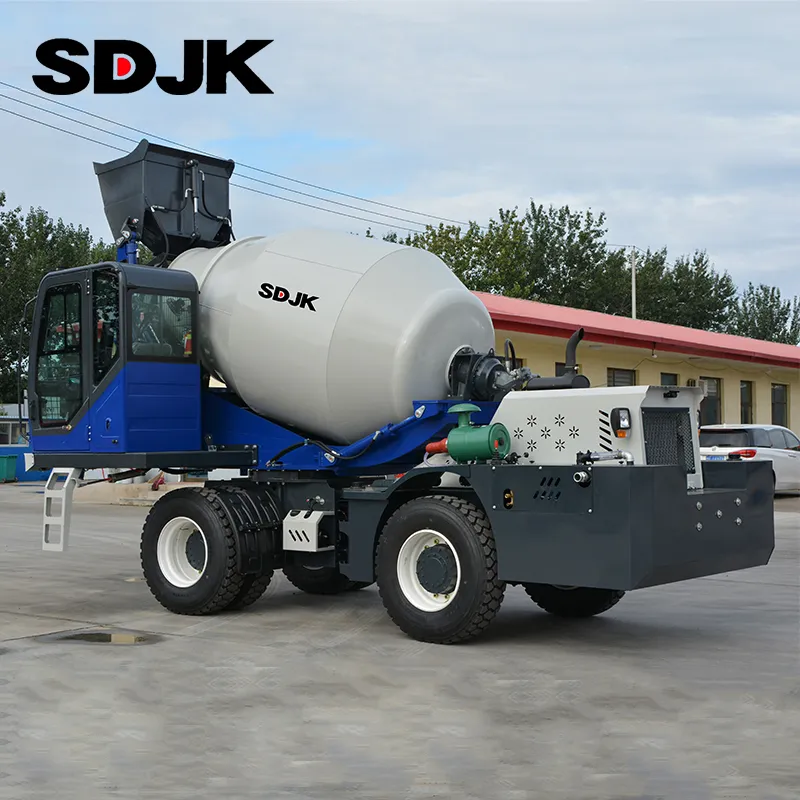

Small Concrete Mixer Machine Mobile Self Loading Concrete Mixer Truck Price

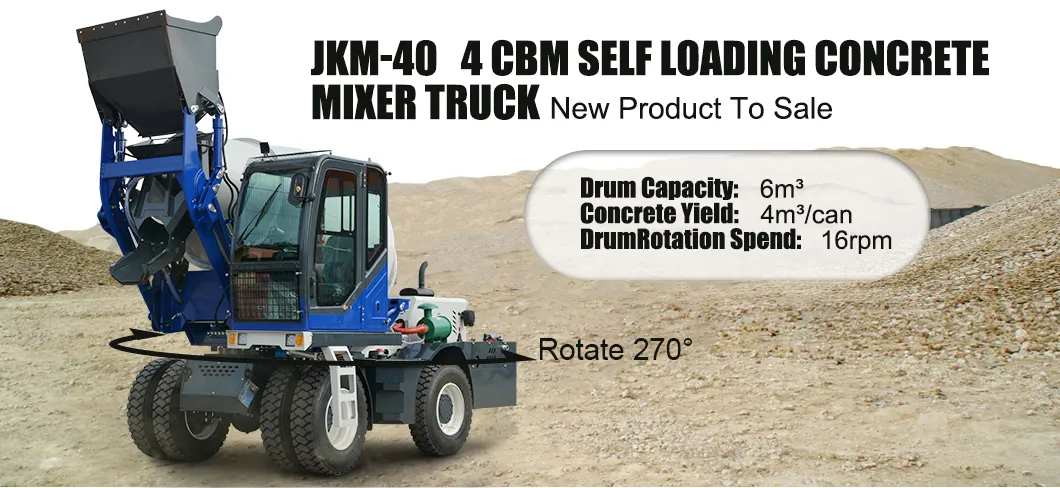

The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.4 CBM yield JKM-40 Self Loading Concrete Mixer Truck
| Model | JKM-40 |
| Mixing Drum | |
| Mixing Capacity | 4m³ |
| Geometrical Capacity | 56m³ |
| Concrete Output | 4 m³/batch, 16m³/h |
| Drum Rotating Speed | 18 rpm |
| Drum Rotating Angle | 270° |
| Engine | |
| Model | YUCHAI 4105 |
| Type | In-line, 4-Cylinder, 4-Stroke, Turbo Charged,Water Cooled |
| Rated Power | 92 KW |
| Emission Standard | Euro II |
| Loading Bucket & Discharge Chute | |

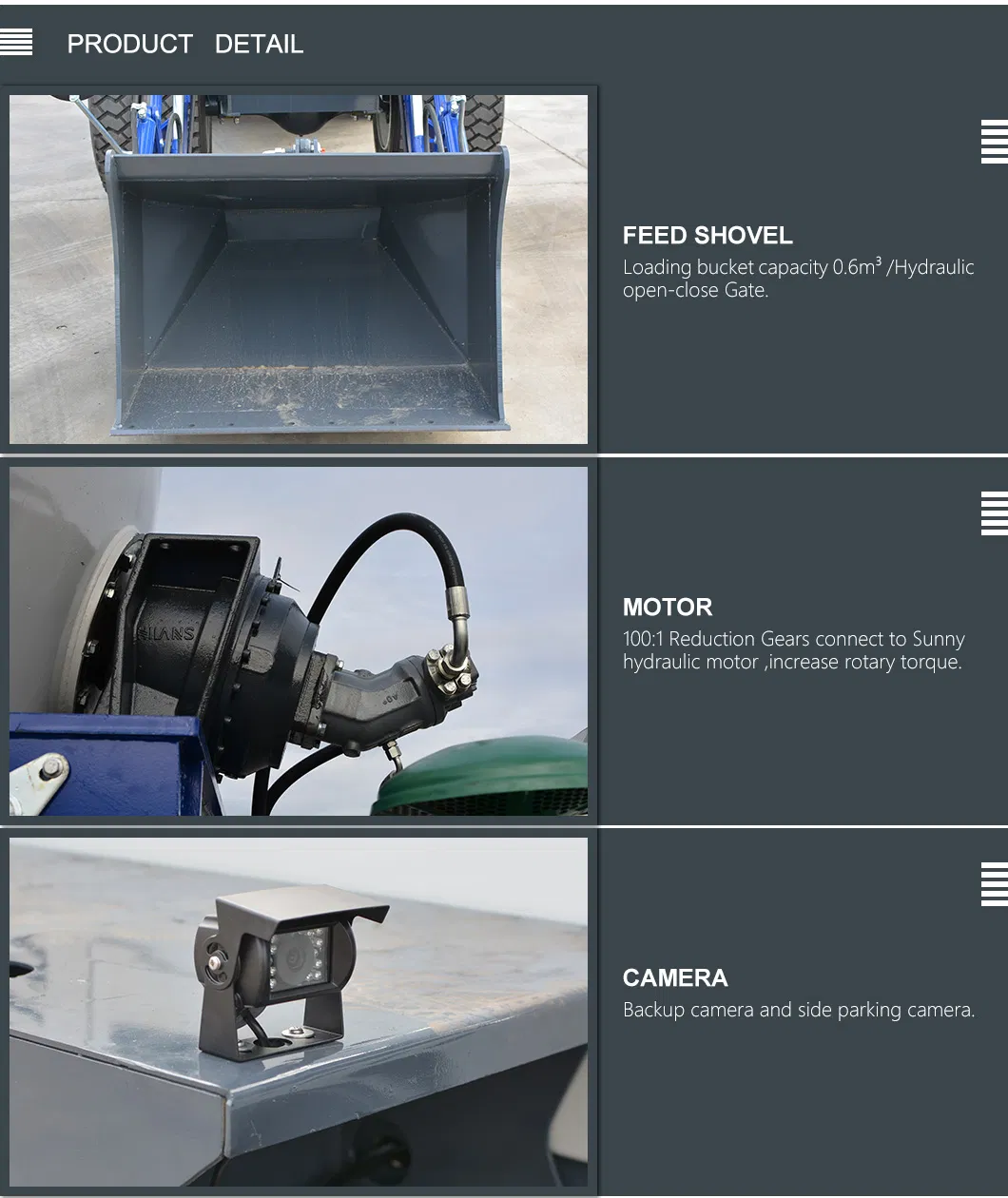

| Loading Bucket Capacity | 0.6 m³ |
| Loading Times to Full Drum | 5 Times |
| Discharge chute | 2 Sets |
| With Extender | |
| Rotation angle range 90°, manual shank | |

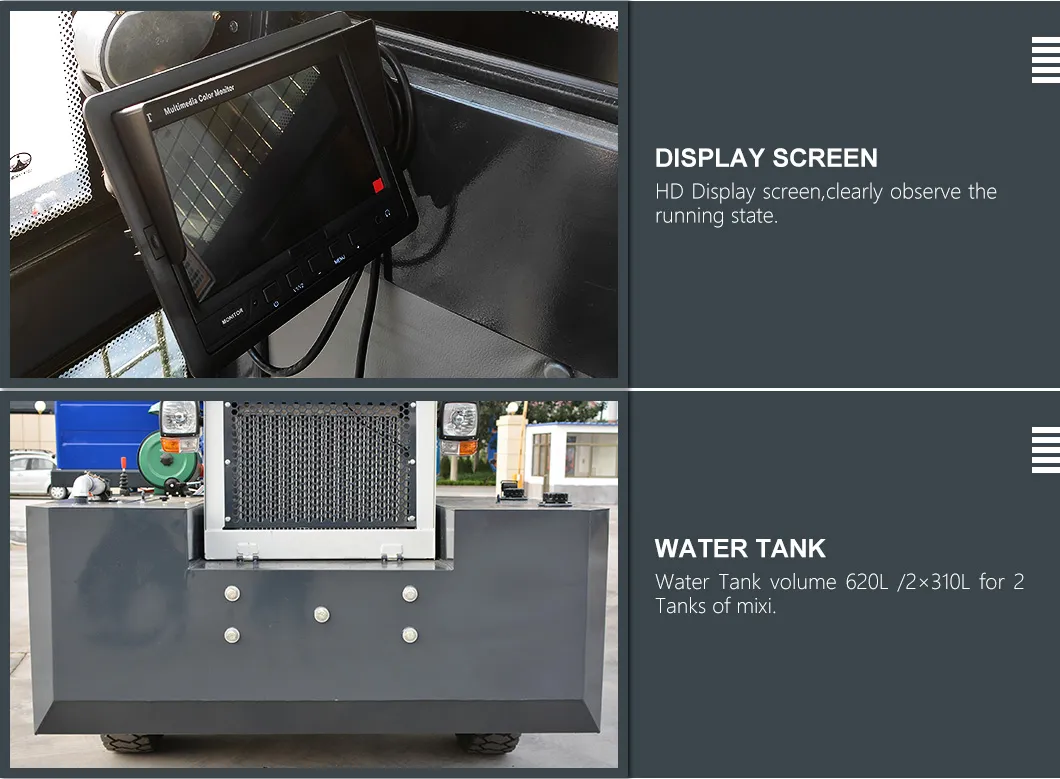

| Water System | |
| Max. Water suction Volume | 450L/min. (Self-priming electronic water pump) |
| Water tank Volume | 2x450 L |
| Mixer | |
| Max. Travel Speed | 35 km/h |
| Gradeability | 30° |
| Min. Turning Radius | 5000 mm |
| Operating Weight | 8800 kg |
| Max. Load | 9400kg |
| Max. Gross Weight | 18200 kg |
| Overall Dimension (L×W×H) | 8450*3000*4500MM |
| Fuel Tank Volume | 100 L |
| Total Hydraulic System Capacity | 100 L |
| Oil Tank Volume | 16 L |

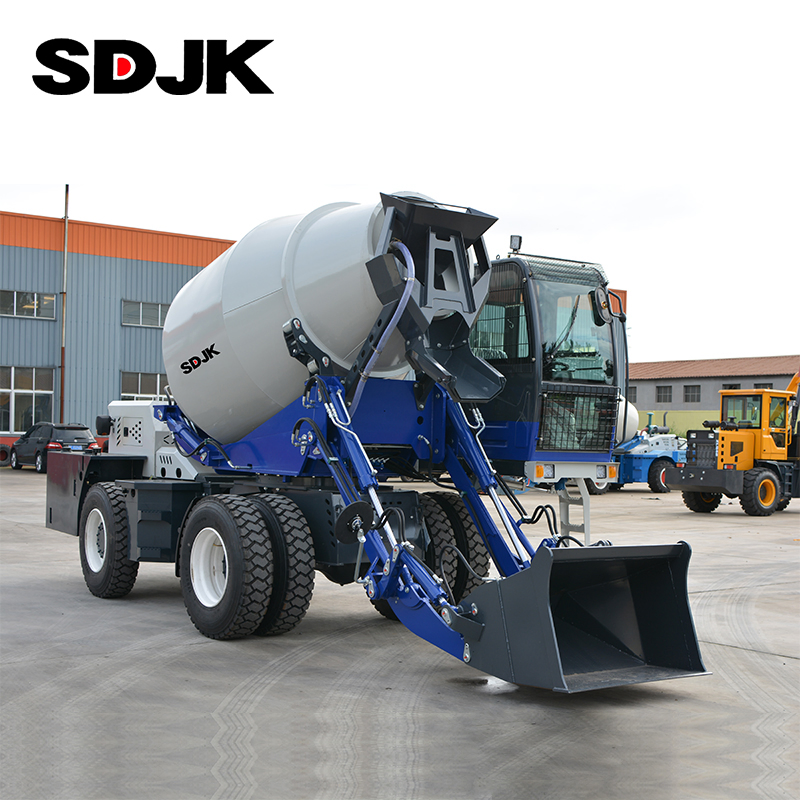

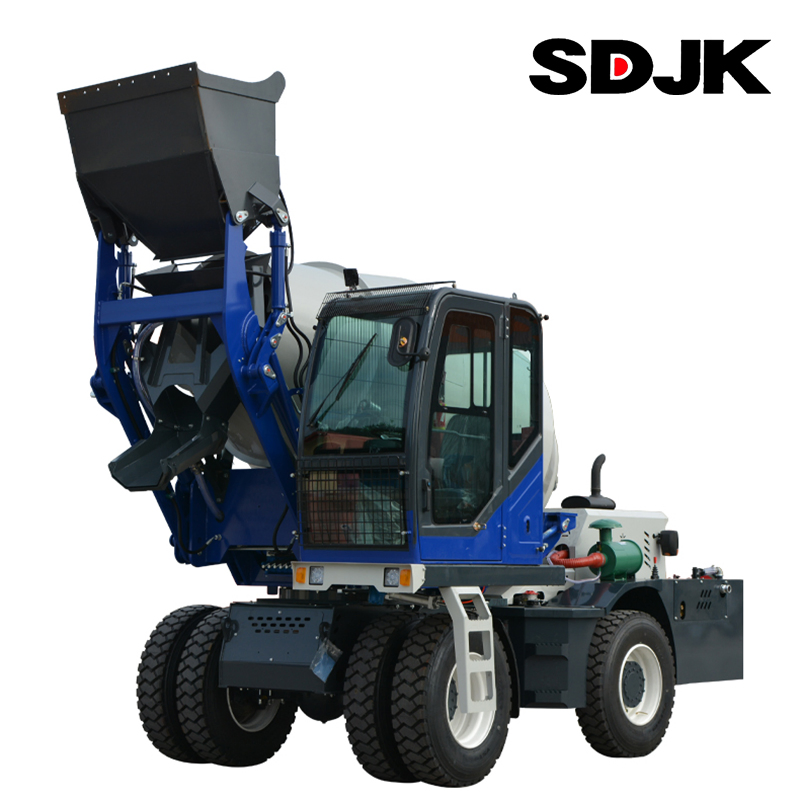

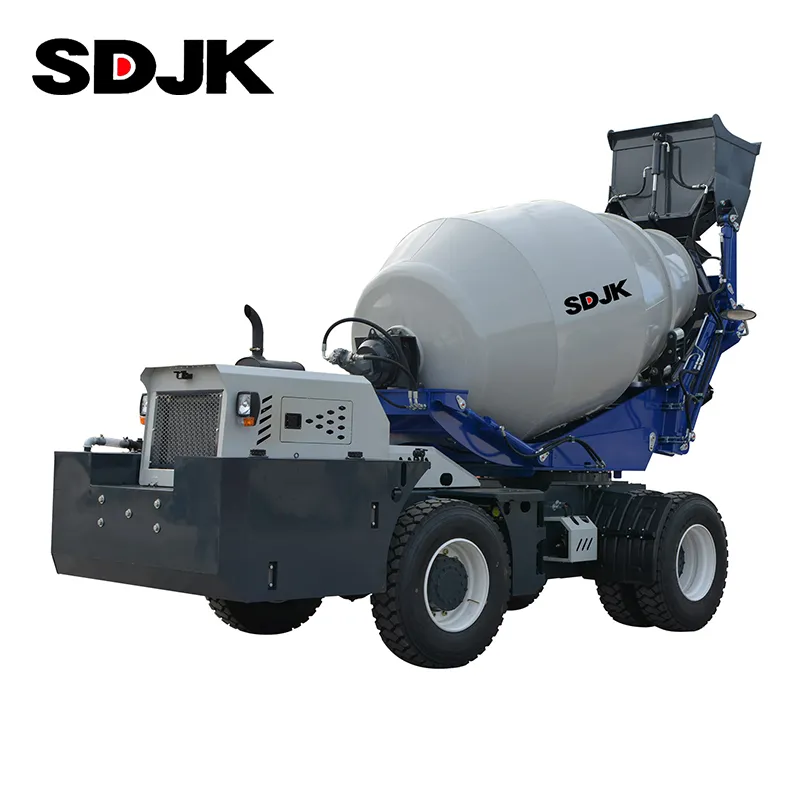

1.JKM-40 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
