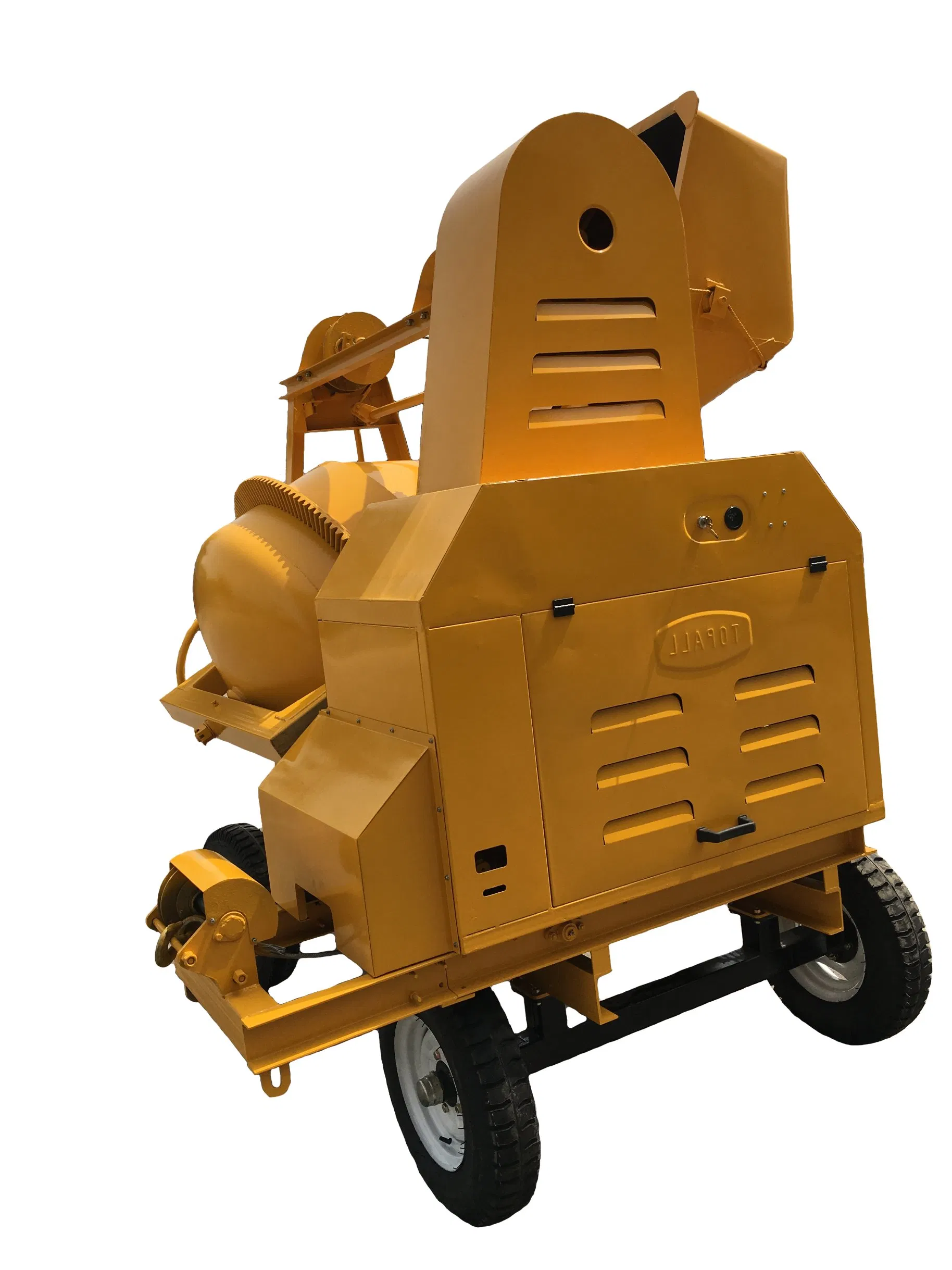

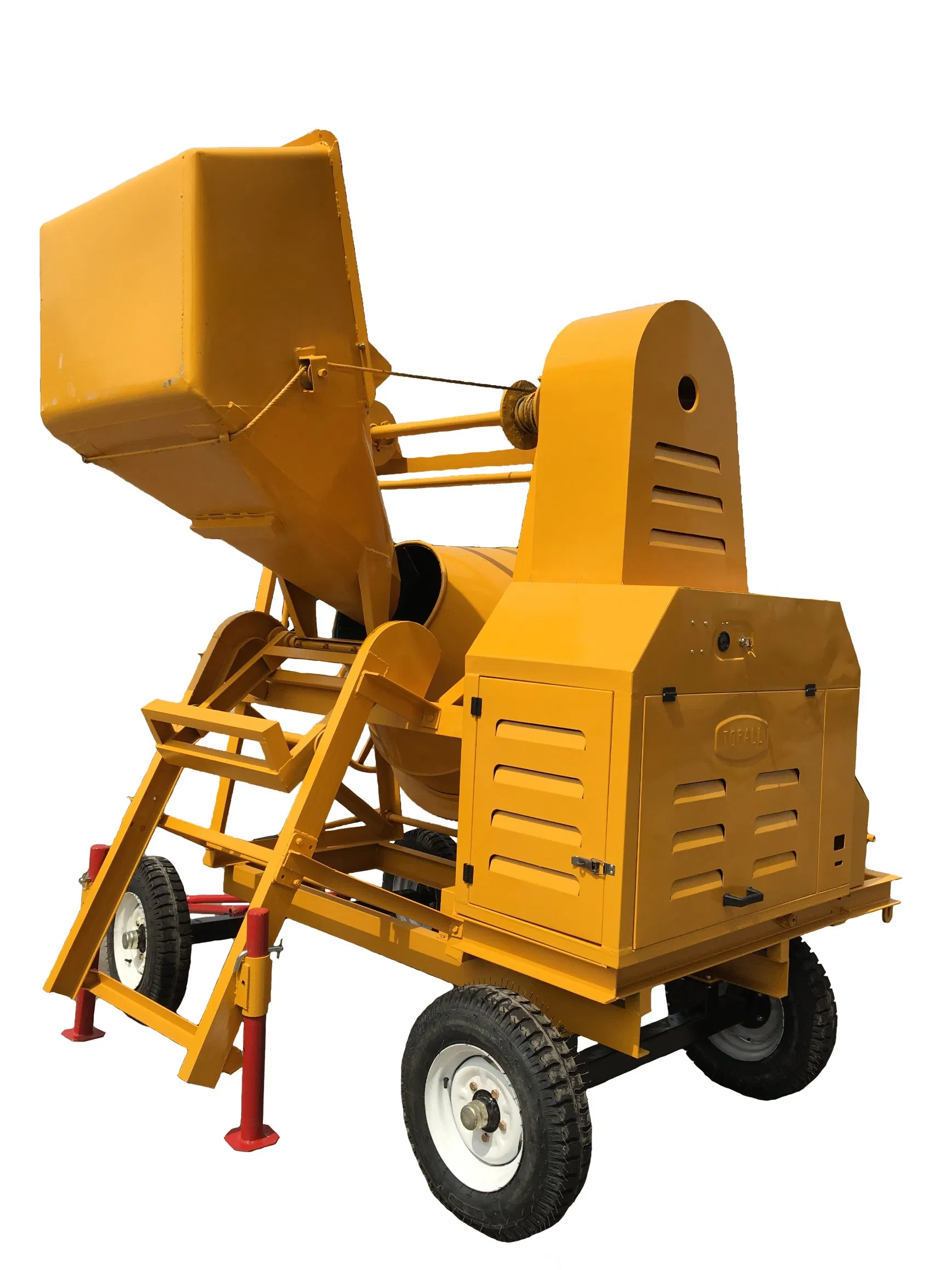

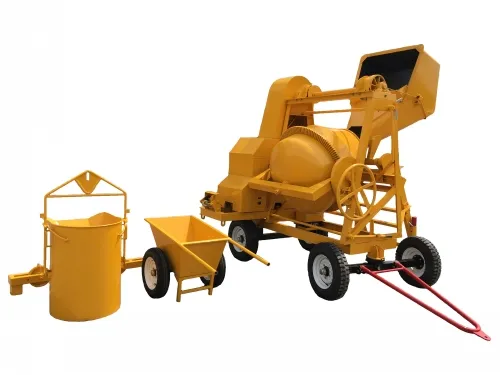

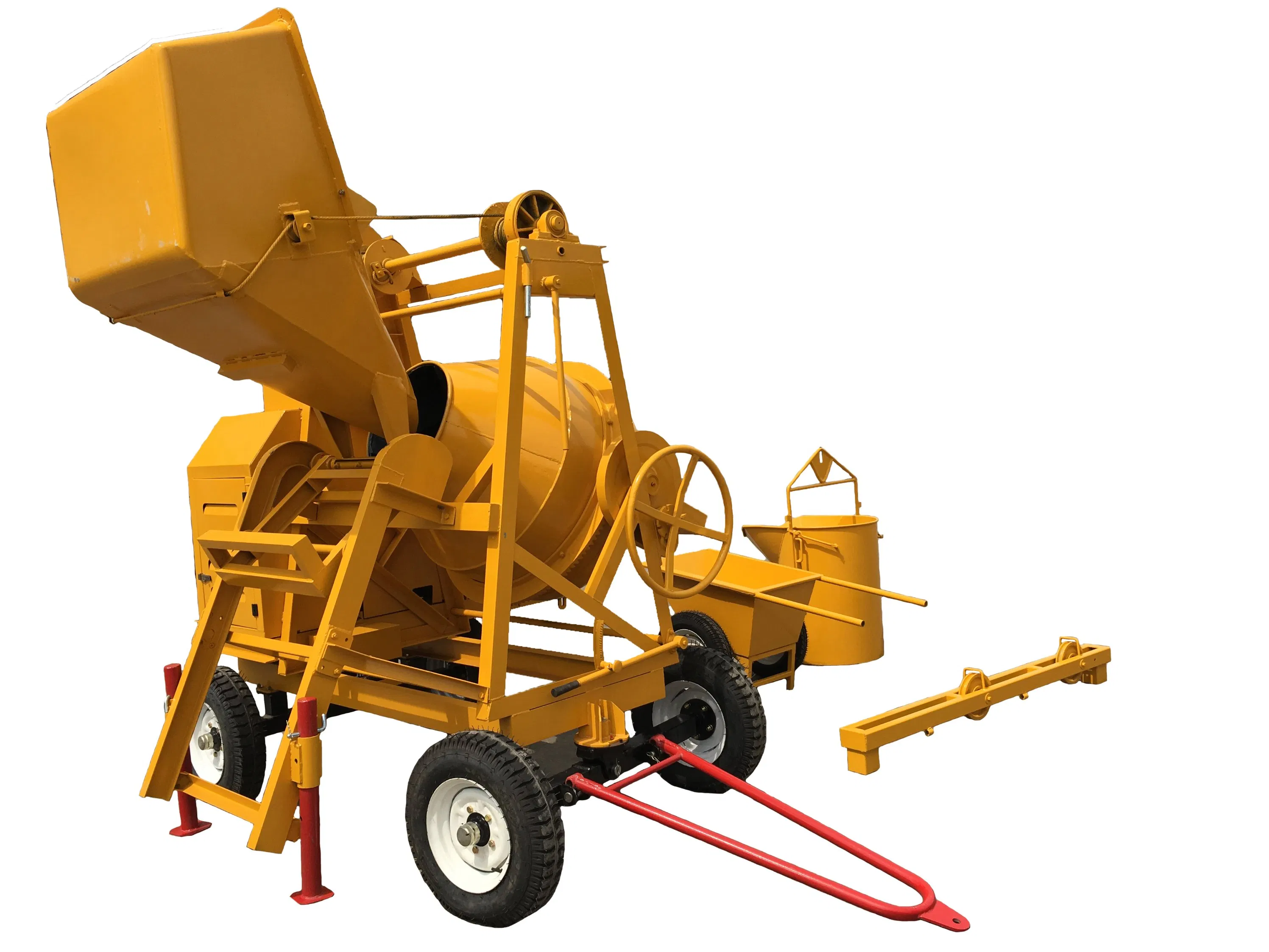

Solid and Stable Ghana Accra Self Loading Concrete Mixer with Lifting Winch
1. Single hinged cradle-type hopper system which reduces load on clutch, transmission and engine.2. Diesel engine of 16 HP.3. Four pneumatic wheels.4. Cabin open from all three sides for ease in maintenance. Cabin provided with reinforced pressed ribs to prevent vibration.Improved model: With pulley......
Send Inquiry
Product Description
1. Single hinged cradle-type hopper system which reduces load on clutch, transmission and engine.
2. Diesel engine of 16 HP.
3. Four pneumatic wheels.
4. Cabin open from all three sides for ease in maintenance. Cabin provided with reinforced pressed ribs to prevent vibration.
Improved model: With pulley and winch, with lifting system.
2. Diesel engine of 16 HP.
3. Four pneumatic wheels.
4. Cabin open from all three sides for ease in maintenance. Cabin provided with reinforced pressed ribs to prevent vibration.
Improved model: With pulley and winch, with lifting system.
| Model | TDCM200-13DL |
| Power source | Diesel engine water cooled and radiator |
| Drum capacity | 680L |
| Unmixed capacity | 320L |
| Mixed capacity | 200L |
| Mixing time | 60s |
| Drum speed | 20-22 r.p.m |
| Engine power transmission | Chain |
| Mechanical | Clutch drive |
| Loading hopper | Heavy duty loading hopper with wire rope,brake,clutch |
| Chassis | Heavy duty robust steel chassis |
| Dimension | 1930×2300×2950mm |
| Weight | 1250kg |
