Product Description

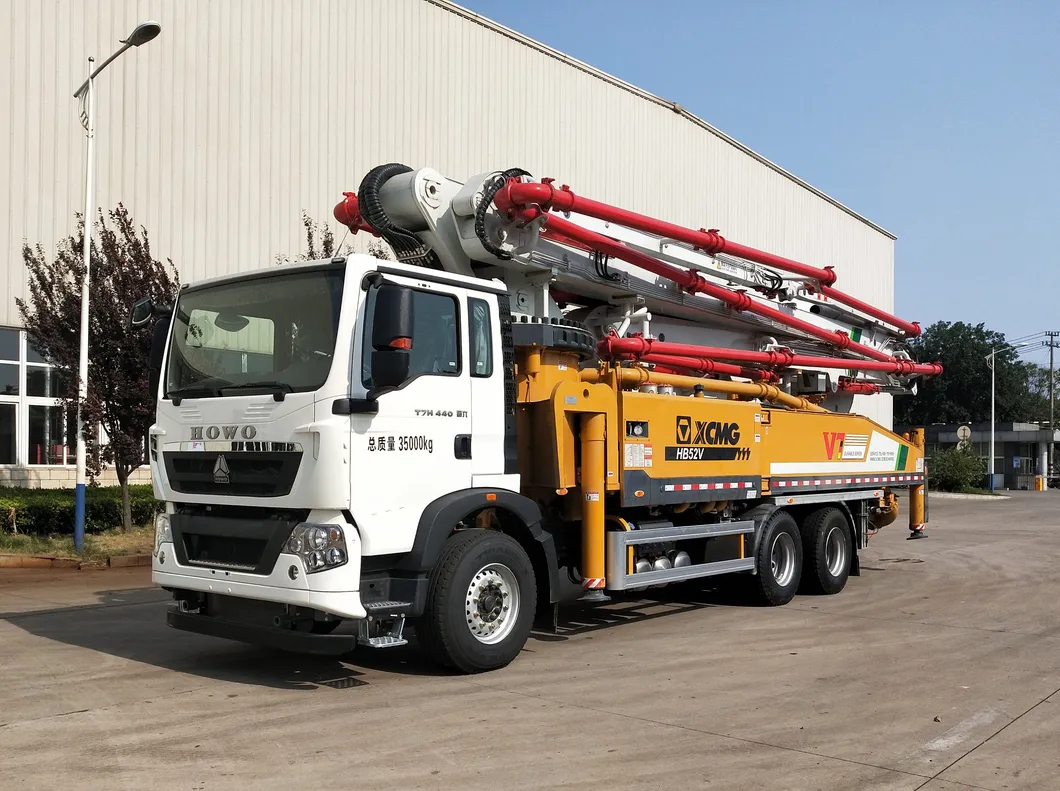

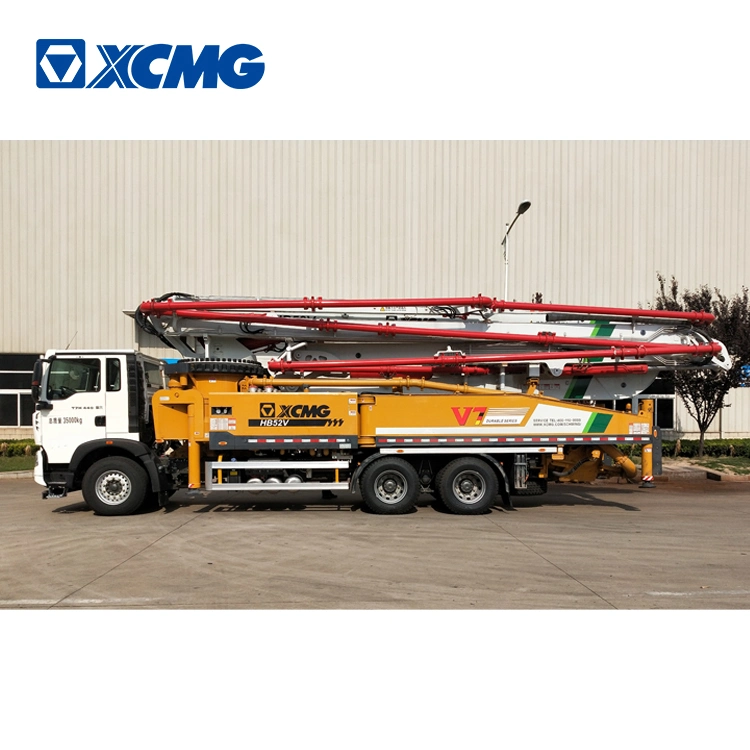

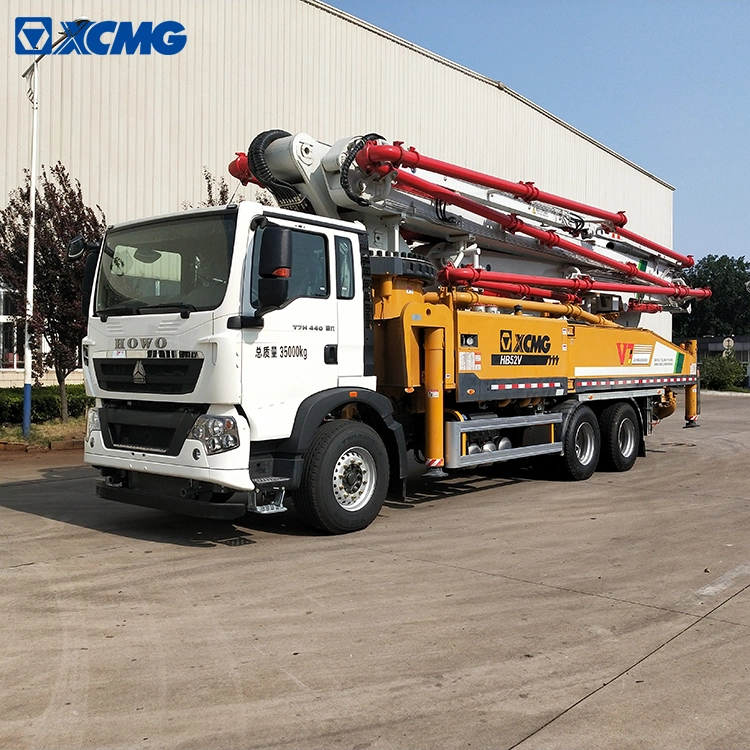

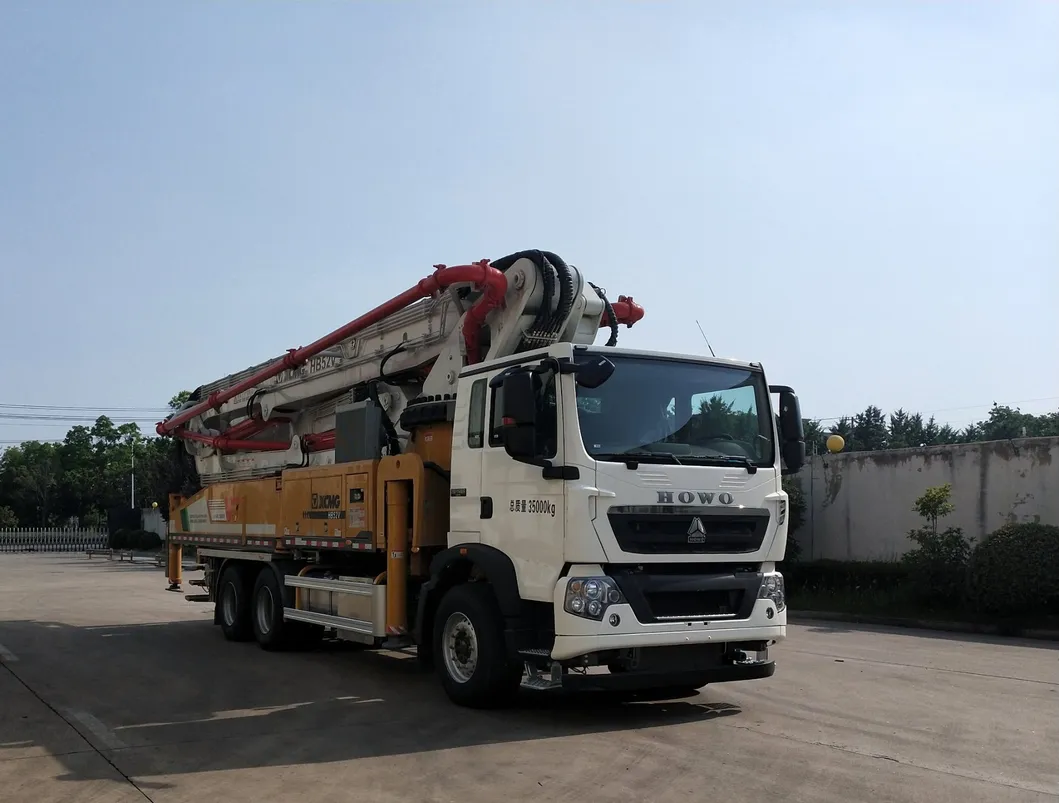

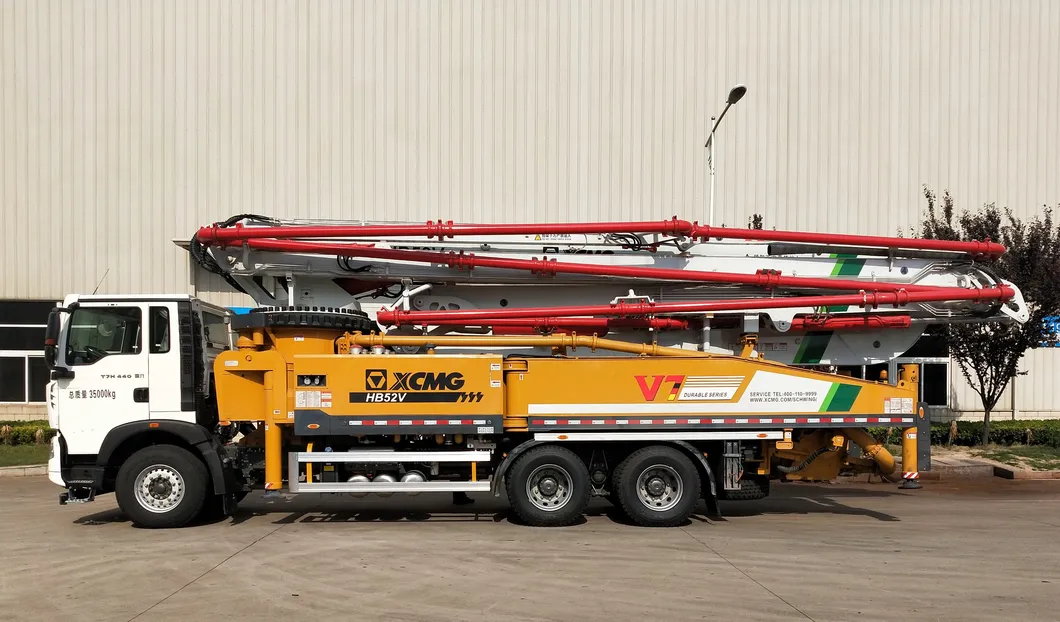

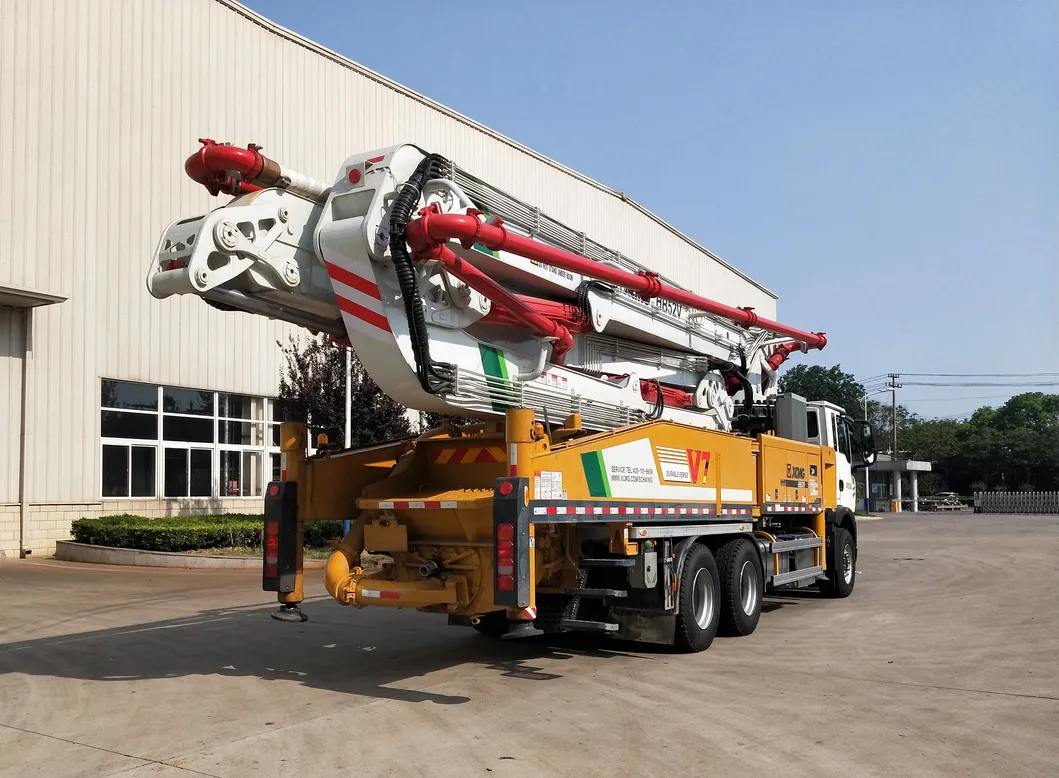

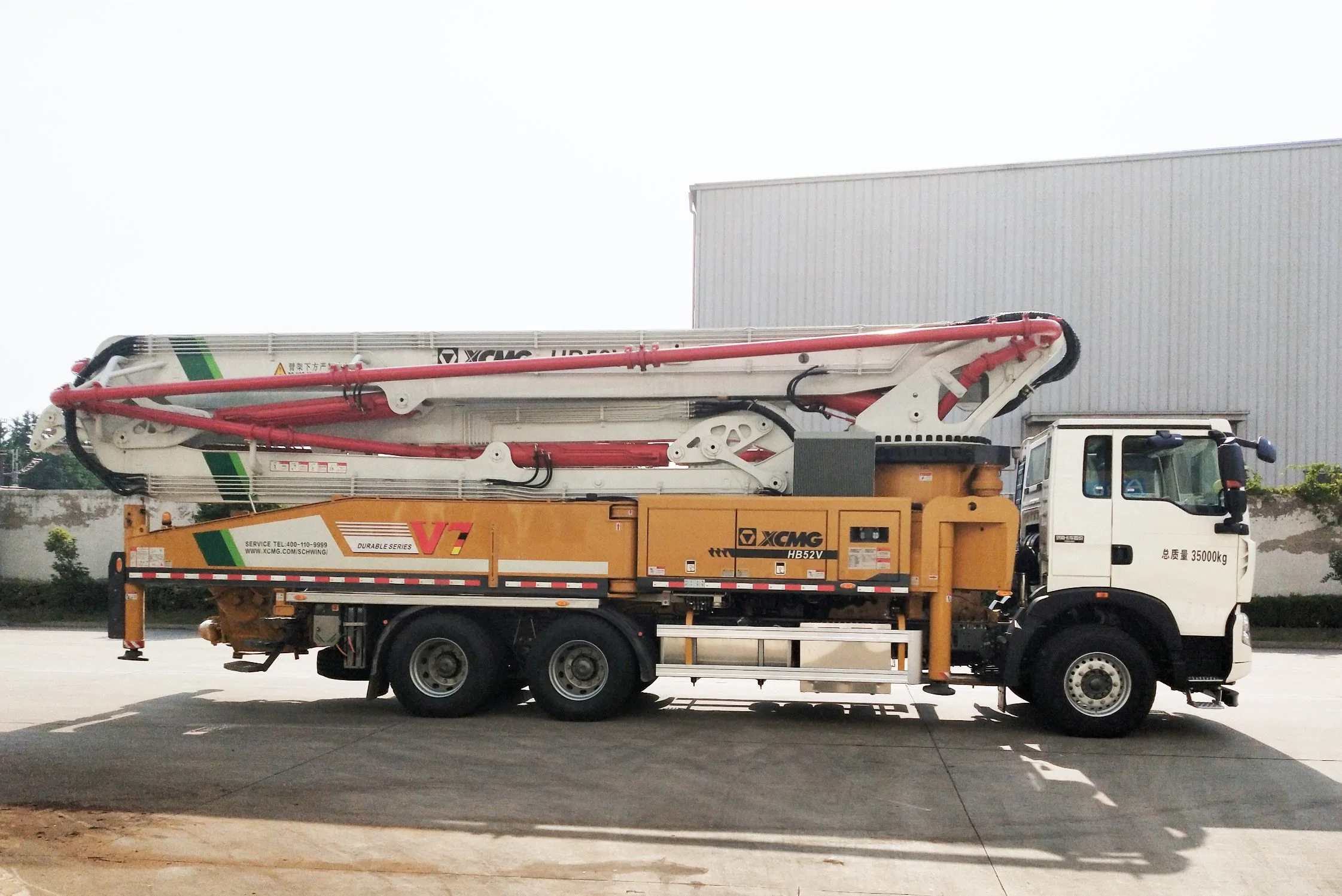

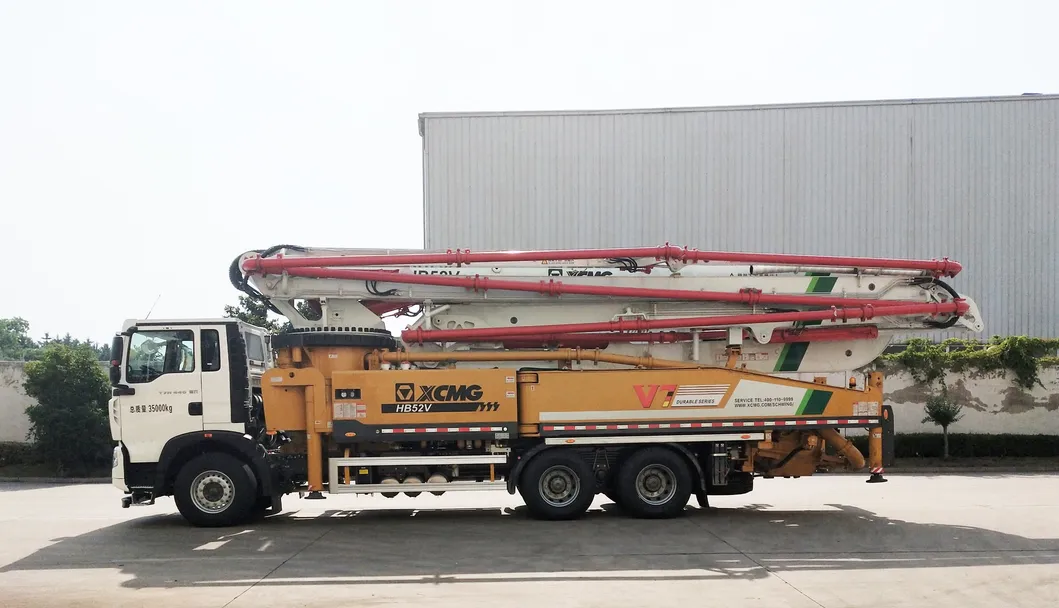

XCMG 52m Concrete Pump Truck Hb52V with HOWO chassis.
The XCMG HB52V concrete pump truck is equipped with more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.

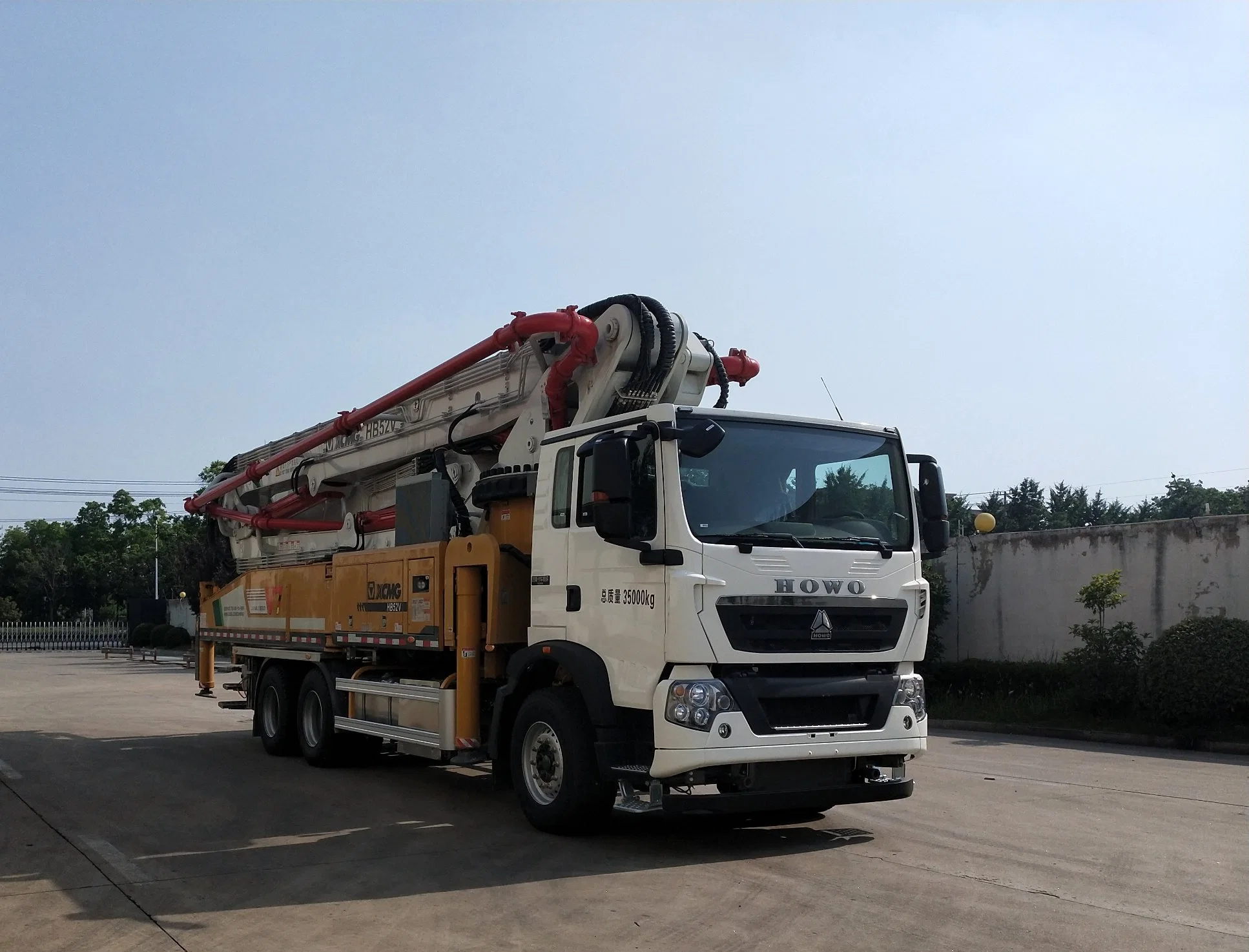

It adopts Sinotruk HOWO chassis, which complies with China VI emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
| Item | Unit | HB52V |
| Outline dimension | mm | 13000*2540*4000 |
| Overall weight | kg | 35000 |
| Brand | / | Sinotruk HOWO |
| Model | / | ZZ5356V524MF1 |
| Wheelbase | mm | 4800+1400 |
| Max.power | kW | 324 |
| Emission standard | / | China VI |
| Theoretical | m³/h | 170 |
| Concrete pumping pressure | MPa | 8 |
| Theoretical pumping times | Times/min | 23~26 |
| Delivery cylinder diameter × stroke | mm | φ260×2000 |
| Reach height | m | 51.2 |
| Reach depth | m | 36.1 |
| Slewing radius | m | 46 |
| Slewing angle | ° | ±270 |
| Transfer | / | Rock valve/S valve |
