XCMG Official 90 M3/H Construction Equipment Fast Speed Planetary Cement Concrete Mixer with Low Concrete Mixer Price Hzs90
Product DescriptionXCMG Official 90 M3/H Construction Equipment Fast Speed Planetary Cement Concrete Mixer with Low Concrete Mixer Price Hzs90HZS90KE concrete mixing plant is a new kind of concrete mixing equipment researched and developed independently by our company on the basis of absorbing the a......
Send Inquiry
Product Description
XCMG Official 90 M3/H Construction Equipment Fast Speed Planetary Cement Concrete Mixer with Low Concrete Mixer Price Hzs90

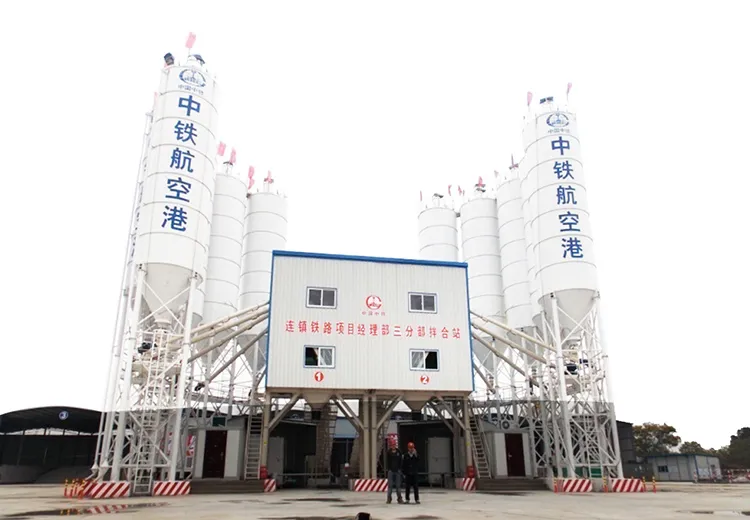

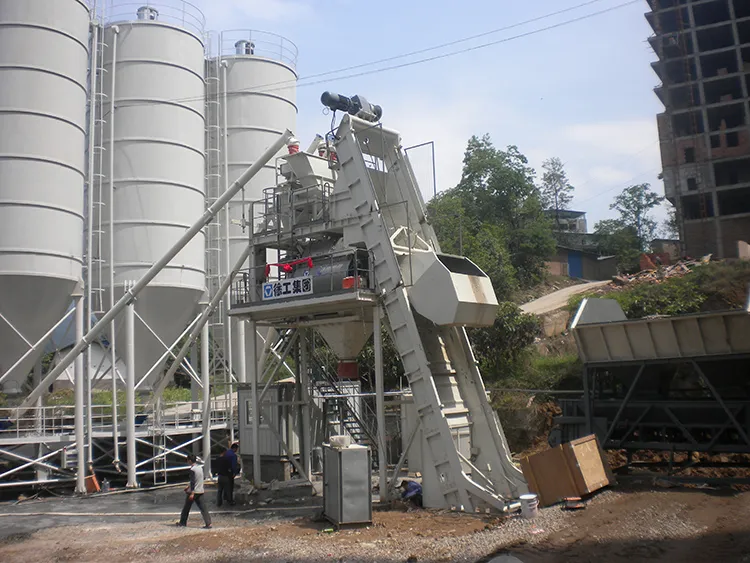

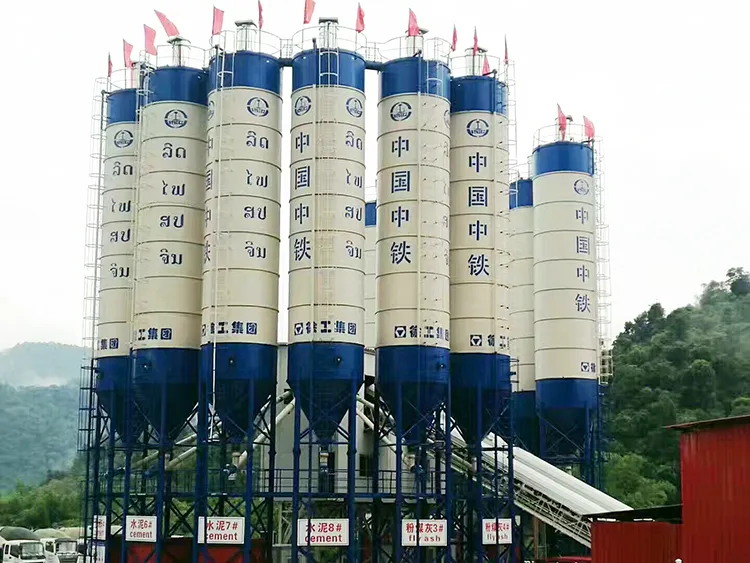

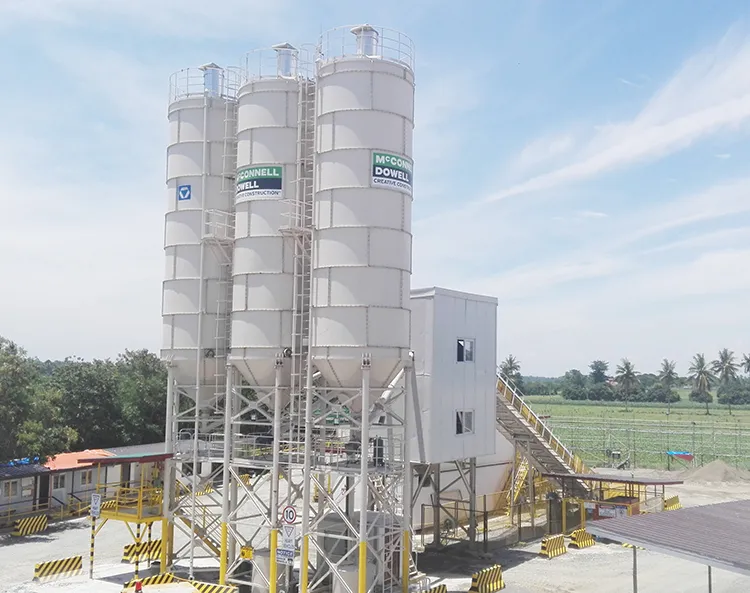

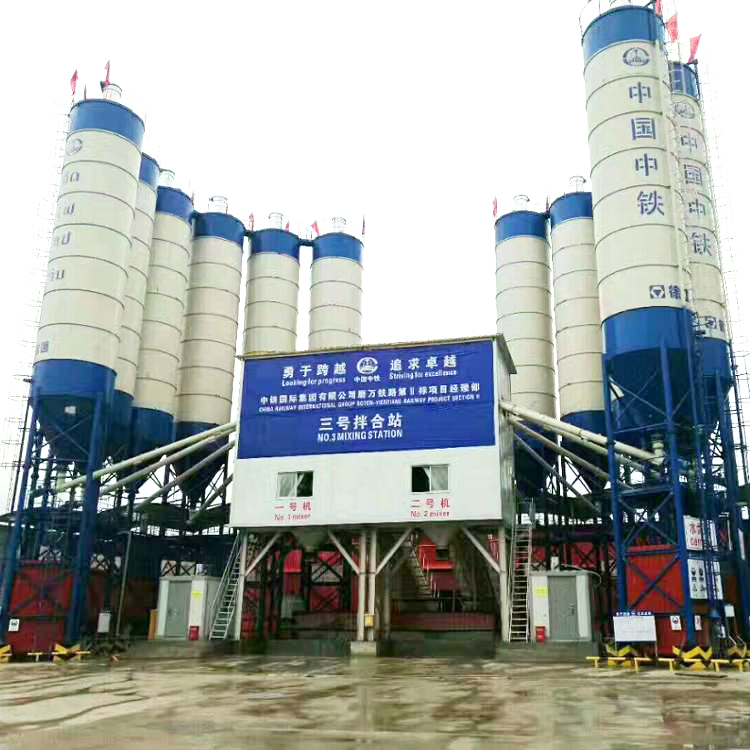

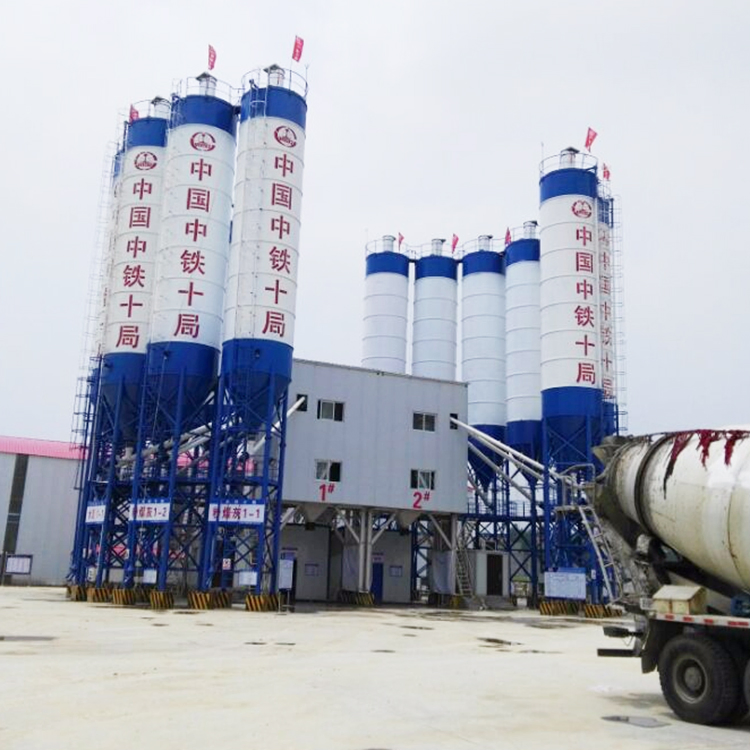

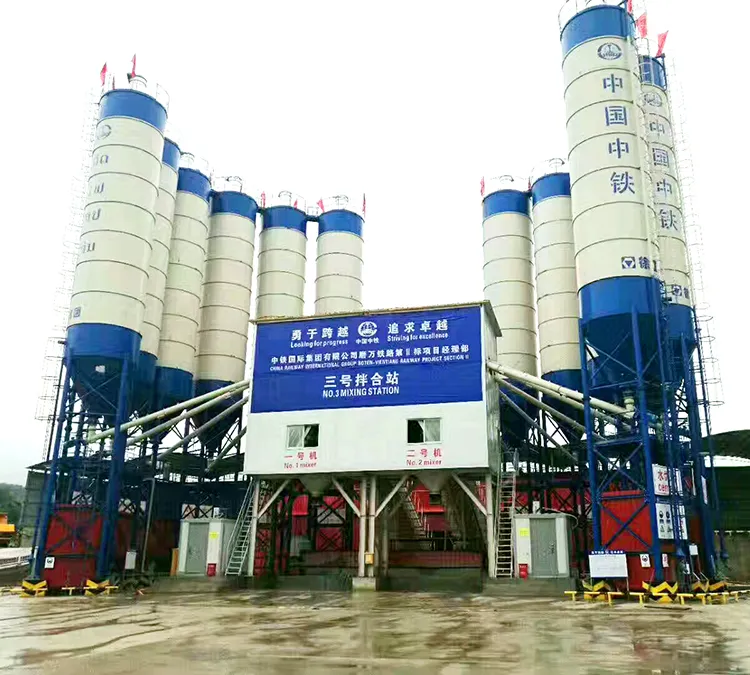

HZS90KE concrete mixing plant is a new kind of concrete mixing equipment researched and developed independently by our company on the basis of absorbing the advantages of foreign and domestic mixing plants of the same type.
HZS90KE cement concrete mixing plant has the features of little area occupied, simple base, deliver fast easy to relocate and low energy consumption.
The components of HZS90KE concrete mixing plant are:
1. Storage, weighing and conveying system of aggregate;
2. Storage, weighing and conveying system of powder;
3. Water supply, weighing and discharging system;
4. Additive storage, supply and weighing system;
5. Mixing and dust-collecting system;
6. The main tower structure;
7. The pneumatic system;
8. The electric control system.
The components of HZS90KE concrete mixing plant are:
1. Storage, weighing and conveying system of aggregate;
2. Storage, weighing and conveying system of powder;
3. Water supply, weighing and discharging system;
4. Additive storage, supply and weighing system;
5. Mixing and dust-collecting system;
6. The main tower structure;
7. The pneumatic system;
8. The electric control system.
Items | Unit | HZS90KE |
Theoretical productivity | m3/h | 90 |
Dump height | m | 4 |
Model of main mixing machine | JS1500 | |
Mixing power | kW | 2×30 |
Nominal volume of main mixing machine | L | 1500 |
Production cycle | s | 60 |
Aggregate diameter | mm | ≤60 |
Aggregate bin volume | m3 | 3×10 |
Powder bin capacity | t | 2×100 |
Batching capacity of batching station | t/Silo | 2400 |
Lifting bucket conveying capacity | t/h | 150 |
Productivity of cement screw conveyor | t/h | 90 |
Standard installed capacity | kW | 138 |
Weighing range & accuracy of sand/stone | kg | (500~4000)±2% |
Weighing range & accuracy of cement | kg | (200~800)±1% |
Measurement range and accuracy of fly ash | kg | / |
Weighing range & accuracy of water | kg | (100~400)±1% |
Weighing range & accuracy of additives | kg | (10~30)±1% |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
