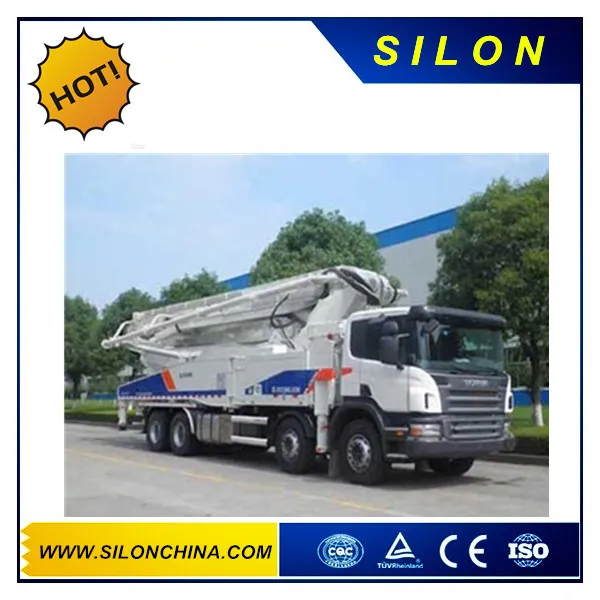

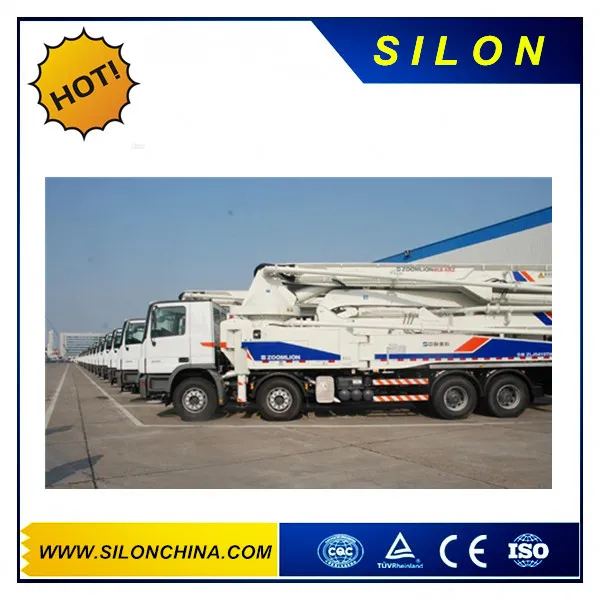

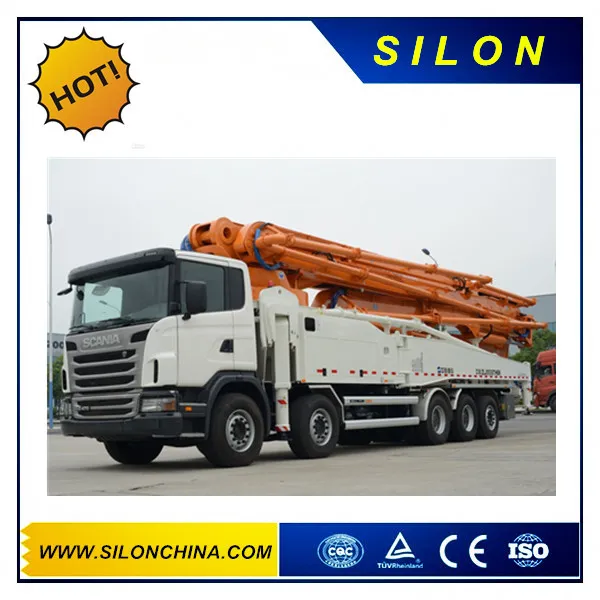

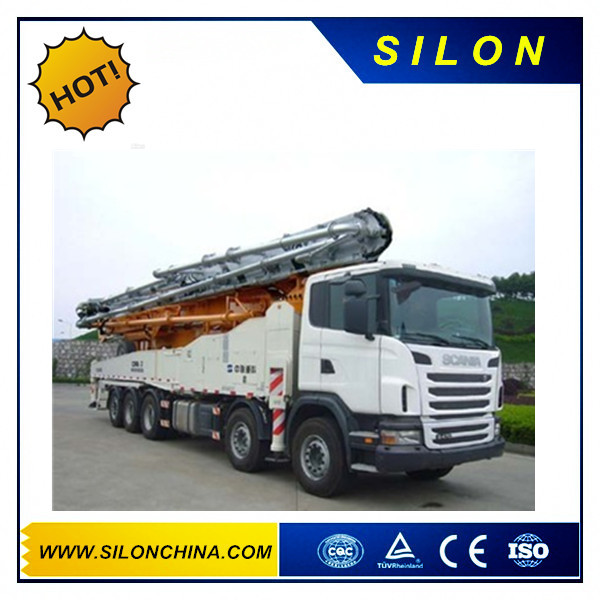

Zoomlin Truck Mounted Concrete Pump (52X-6RZ)
Product DescriptionCompact in design 52m pump mounted on 4-axle truck.Efficient pump unit, ideal for long time use.Agile placing boom with 5 arms with unfolding height 8.5m only, which gives a wide work range.One side lateral support enables to work in narrow sites.Controller is designed for heavy d......
Send Inquiry
Product Description
Product Description
Compact in design 52m pump mounted on 4-axle truck.
Efficient pump unit, ideal for long time use.
Agile placing boom with 5 arms with unfolding height 8.5m only, which gives a wide work range.
One side lateral support enables to work in narrow sites.
Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
Rich in configurations and high quality components
Technical Parameters
| Distribution valve | S-valve | |
| Max. Concrete Output | m3/h | 180/90 |
| Max. Concrete Pressure | bar | 70/110 |
| Delivery Cylinder | mm | 230 |
| Stroke Length | mm | 2100 |
| Strokes | 1/min | 27/17 |
| Hopper Capacity | L | 550 |
| Filling height | mm | 1540 |
| Hydraulic System | Open | |
| Hydraulic oil cooling | Double fans | |
| High/Low Press. Switch | Manual | |
| Lubrication on pump | Automatic | |
| Lubrication on hopper | Automatic | |
| GPS Data Manage | Optional | |
| Boom Control Valve | Proportional | |
| Number of Arms | 5 | |
| Folding System | RZ | |
| Max. Reach Vertical | m | 40.5 |
| Max. Reach Horizontal | m | 36.5 |
| Max. Reach Depth | m | 27 |
| Min. Unfolding Height | m | 8.5 |
| End Hose Length | m | 3 |
| Pipeline | DN125/5.5 | |
| Slewing Range | ±270° | |
| Slewing Motor | 1 Motor | |
| Remote Control System | Radio | |
| Water Pump | 20L/min, 60bar | |
| Tool kits with box | Standard | |
