Product Description

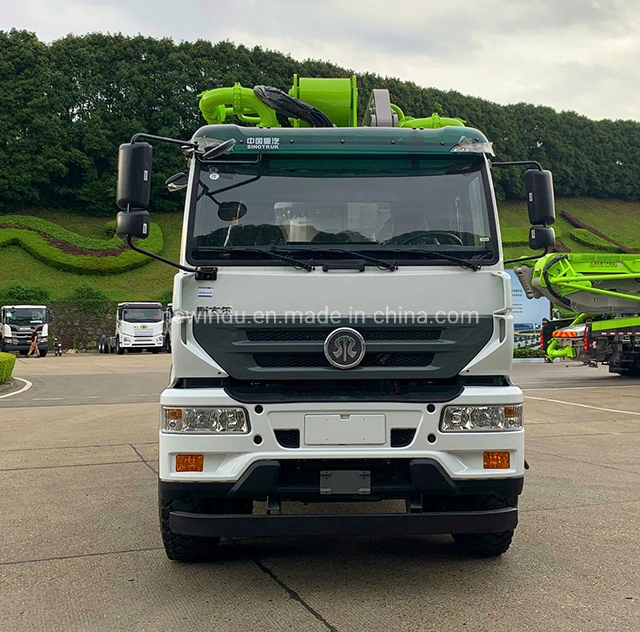

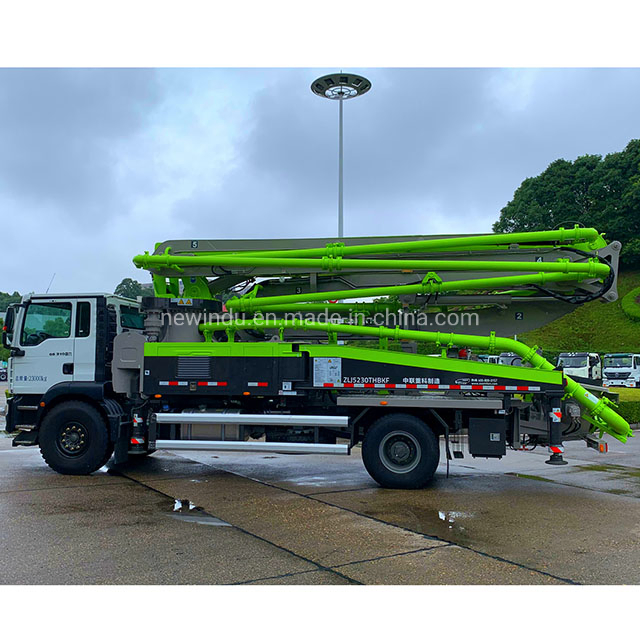

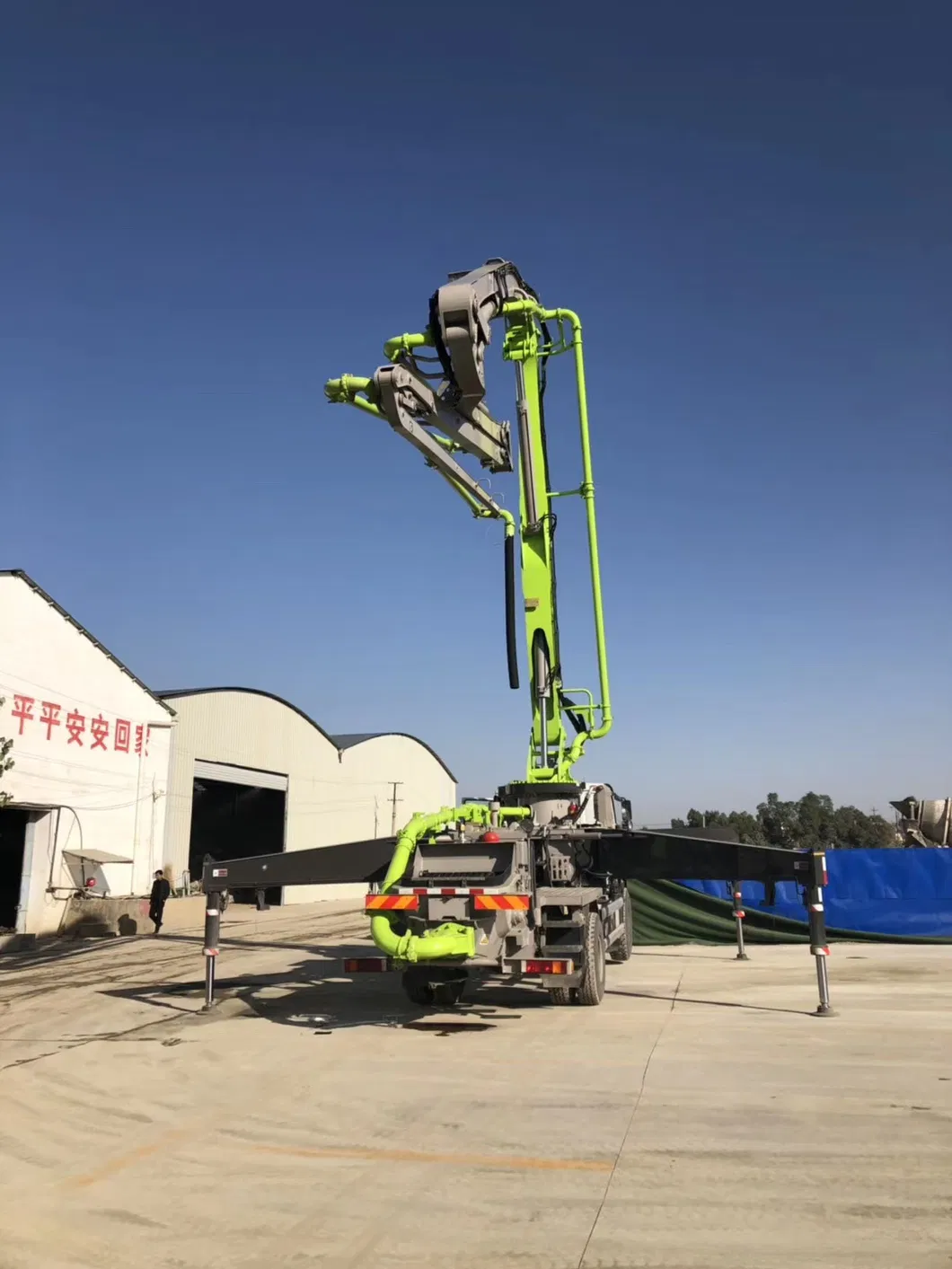

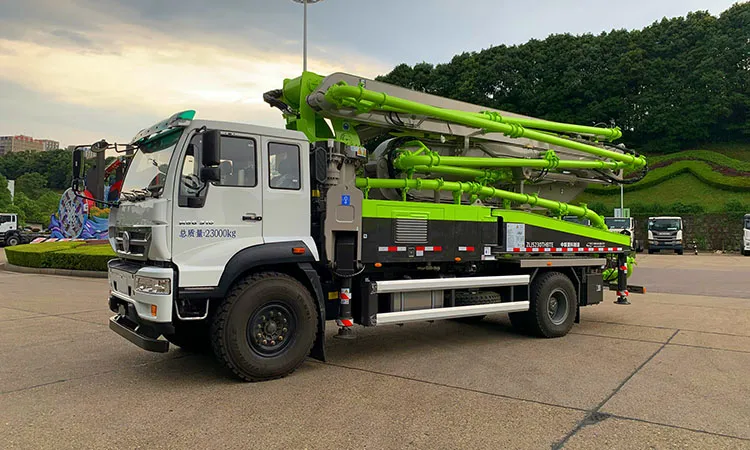

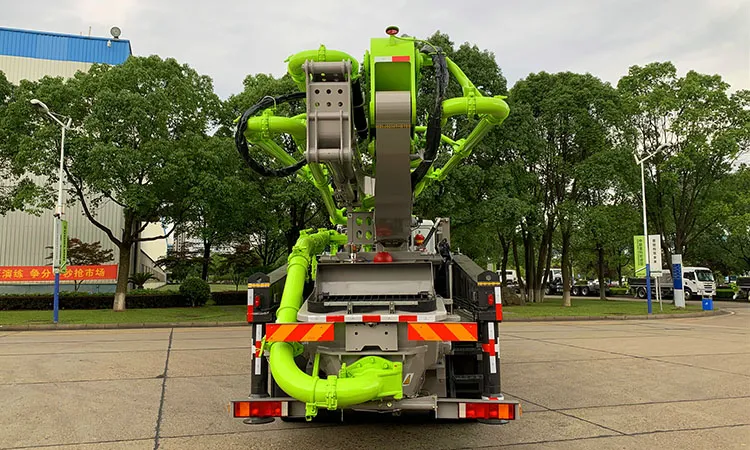

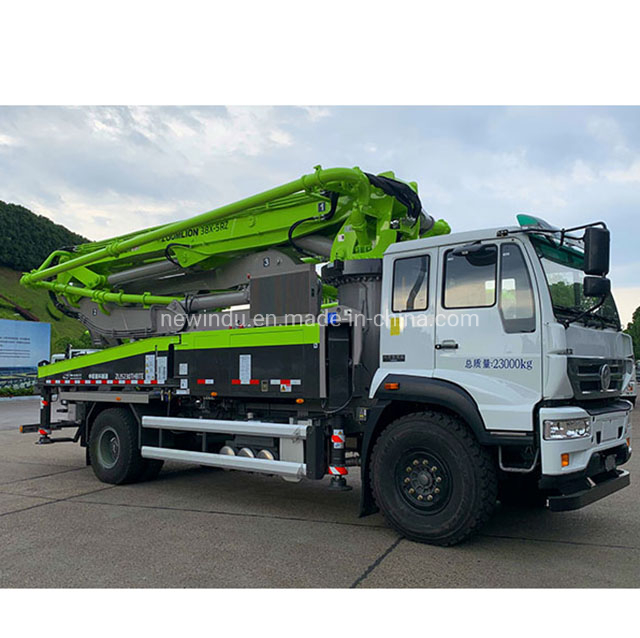

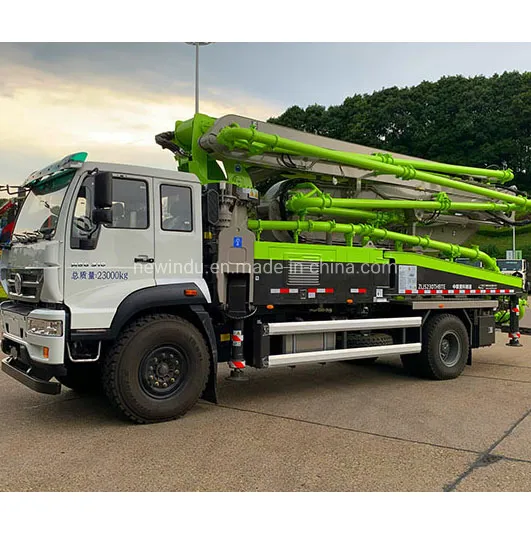

Zoomlion 37X-5RZ 37m Concrete Pump Truck with Howo Chassis
3.1 Overall performance
Chassis: Sinotruk Steyr chassis.
Engine: German MAN technology, high power, high torque, fuel saving.
| ZLJ5230THBTE 37X-5RZ | ||
| Model | ZLJ5230THBTE 37X-5RZ | |
| Pumping System | Maximum theoretical delivery | 100/60 m3/h |
| Maximum outlet pressure of concrete | 8/15 MPa | |
| Fixed work stress | 35 MPa | |
| Pumping frequency | 25/14 min-1 | |
| Hopper volume | 550 L | |
| Loading height | 1540 mm | |
| Hydraulic system type | Open | |
| Distribution valve form | S Valve | |
| Cylinder bore×stroke | Φ150×1650 mm | |
| Concrete cylinder diameter×stroke | Φ230×1650 mm | |
| Hydraulic oil cooling | air cooling | |
| Recommended slump | 12~23 cm | |
| Maximum aggregate size | 40 mm | |
| Boom System | structure type | 37X-5RZ |
| Fabric height | 36.5 m | |
| Maximum cloth radius | 32.15 m | |
| Maximum cloth depth | 24.95 m | |
| Rotation angle | ±270° | |
| Number of arm sections | 5 | |
| Arm length | 7280/5920/5670/6880/6750 mm | |
| Boom angle | 90°/180°/180°/240°/195° | |
| Conveying pipe diameter | 125 mm | |
| End hose length | 3000 mm | |
| Minimum opening height of boom | 7790 mm | |
| Outrigger span (front × rear × longitudinal) | 6190mm×7740mm×6780mm | |
Chassis and vehicle | Chassis model | ZZ5231N521GE1 |
| Wheelbase | 5200 mm | |
| engine model | MC07.31-50 | |
| Engine power | 228/2300 kW/(r/min) | |
| Engine torque | 1230 /(1200~1800) N.m/(r/min) | |
| engine capacity | 6870 cc | |
| Fuel tank volume | 300 L | |
| Exhaust emission standards | EURO V | |
| Vehicle quality | 23000 KG | |
| Overall dimensions of the vehicle (L×W×H) | 9840×2530×3905 mm | |
| Other | Lubrication method | Automatic lubrication |
| Hydraulic oil tank volume | 630 L | |
| Control Mode | Manual + remote control | |
| Maximum pressure of water pump | 6 Mpa | |
| Water tank capacity | 350 L | |
| Concrete pipe cleaning method | Water cleaning/dry cleaning | |
