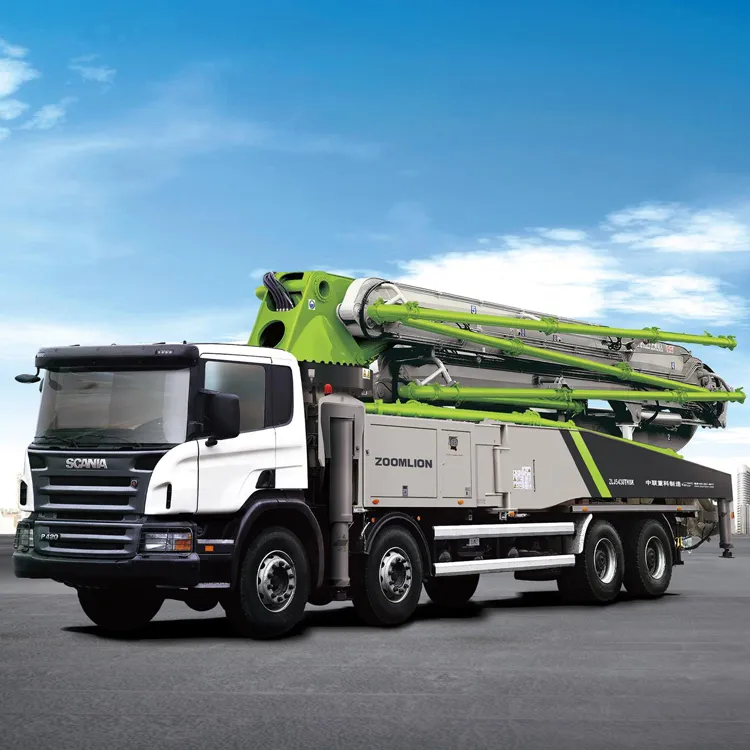

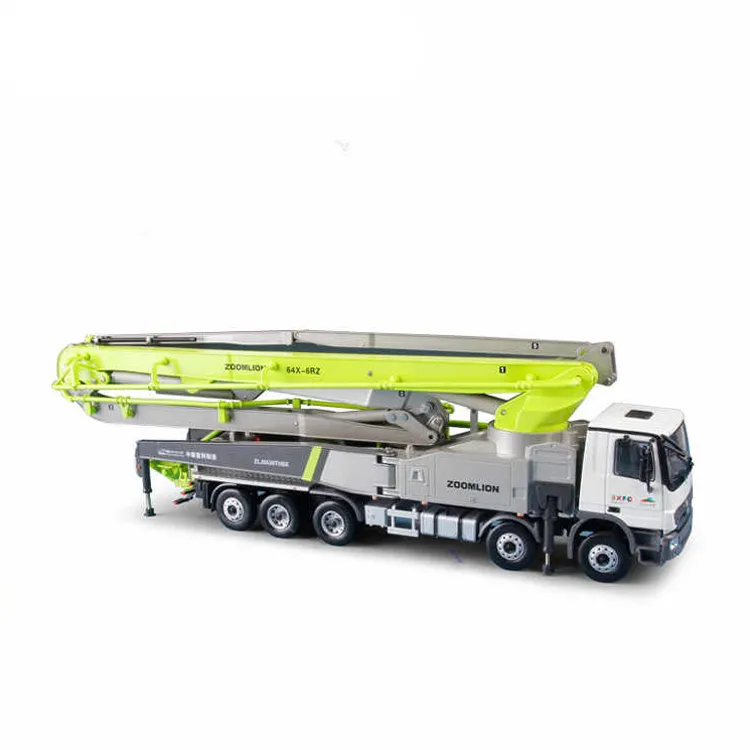

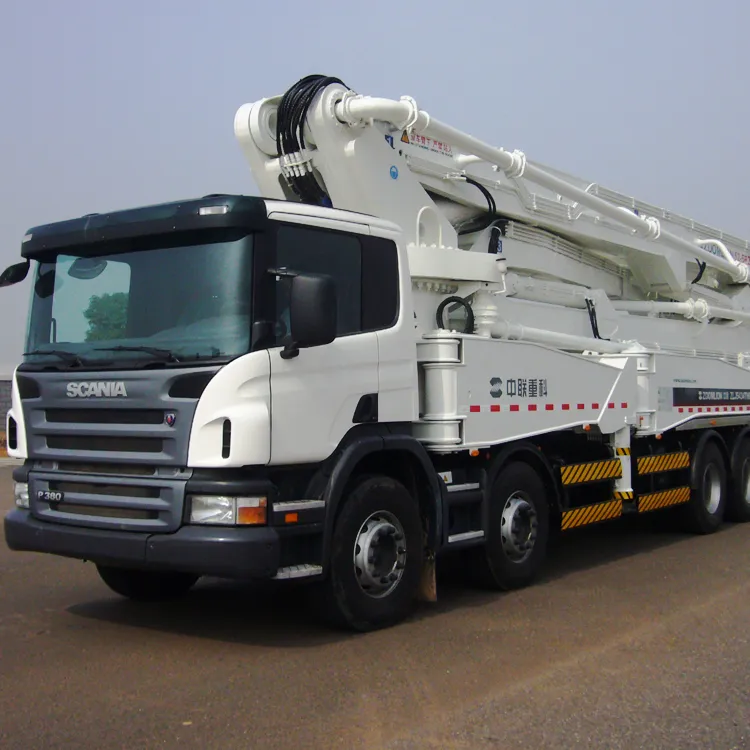

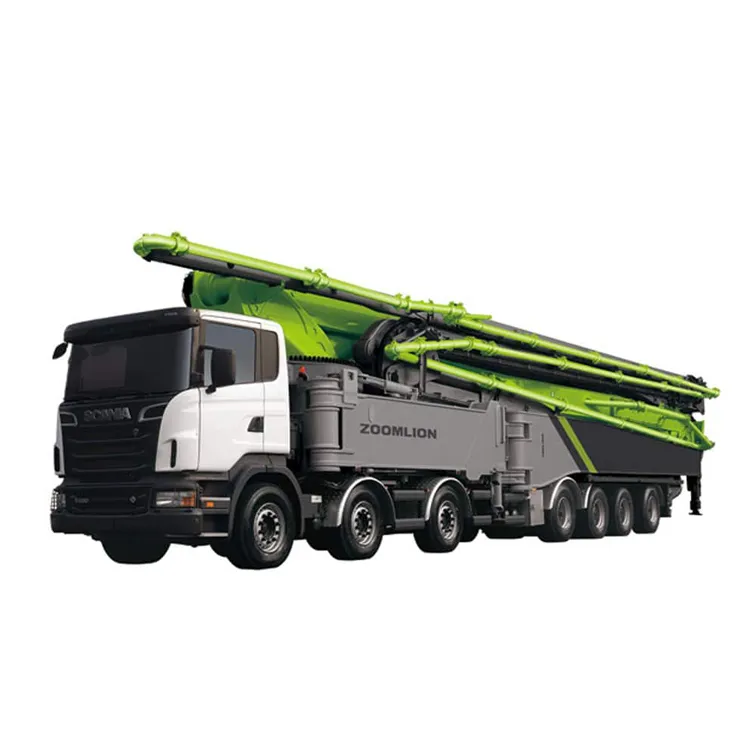

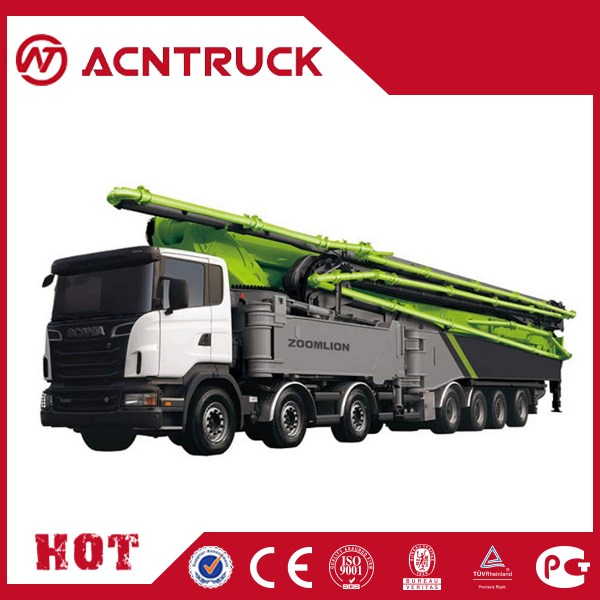

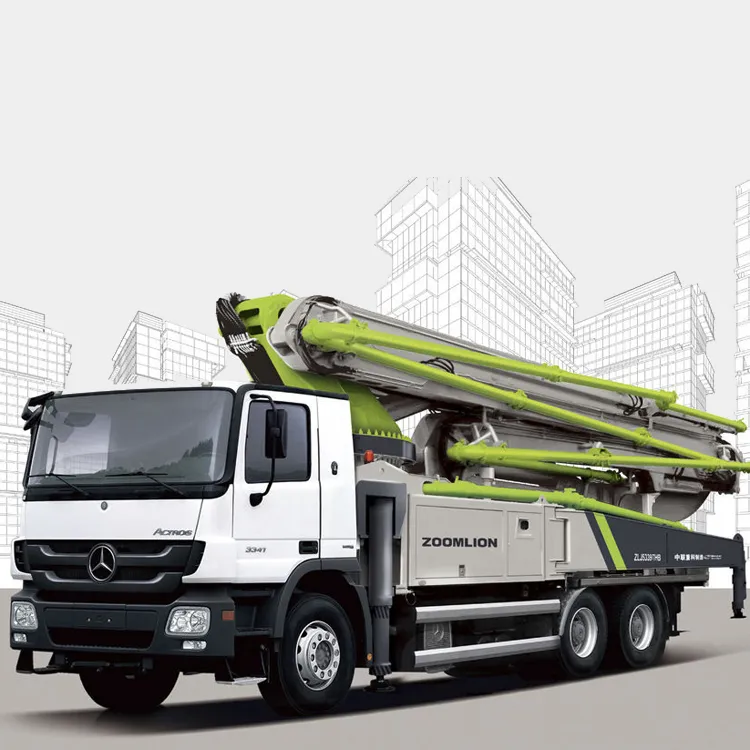

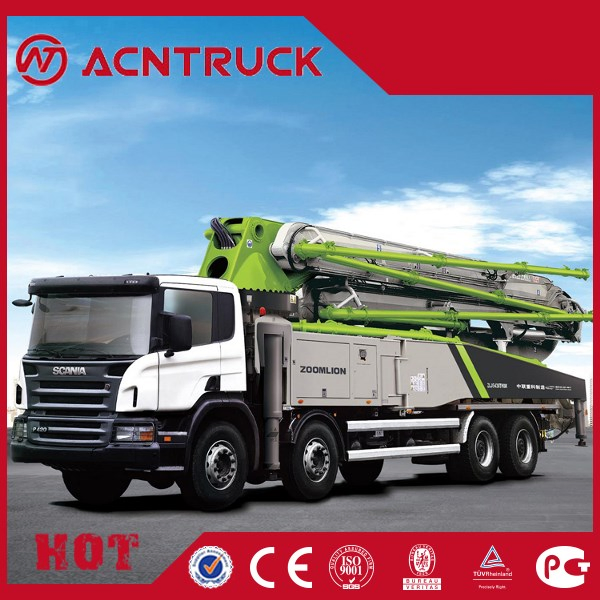

Zoomlion 65m Second Hand Cement Mixer Concrete Pump Truck

Product Description

ZOOMLION concrete pump truck 38m 47m 56m 62m

Selling Point:

1. More advanced boom structure technology

2. More efficient skirt valve pumping technology

3. More stable strut structure technology

4. More stable reversing buffer technology

5. More reliable full hydraulic reversing technology

6. Hydraulic system technology of ultra-low pressure loss

7. More secure and intelligent electrical control technology

Pump Unit	Max. Theor. output	m³/h	120/80
	Max. Theor. concrete output Pressure	MPa	7/11
	Rated working pressure	MPa	35
	Pumping frequency	min-1	24/15
	Hopper capacity	L	550
	Filling height	mm	1540
	Hydraulic system type		opened loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		36X-5Z
	Placing depth	m	35.5
	Max. horizontal distance	m	35.15
	Max. placing depth	m	23.13
	Slewing angle		±350°
	Boom number		5
	The length of boom section	mm	7700/5950/5950/5950/5950
	Sections folding angle		90°/180°/230°/180°/250°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	8520
	Outriggers span (front×rear×side)	mm	6030×5950×7300
Upper Structure	Upper Structure Mass	kg	25000
Upper Structure	Dimensions(L×W×H)	mm	10740×2500×3886
