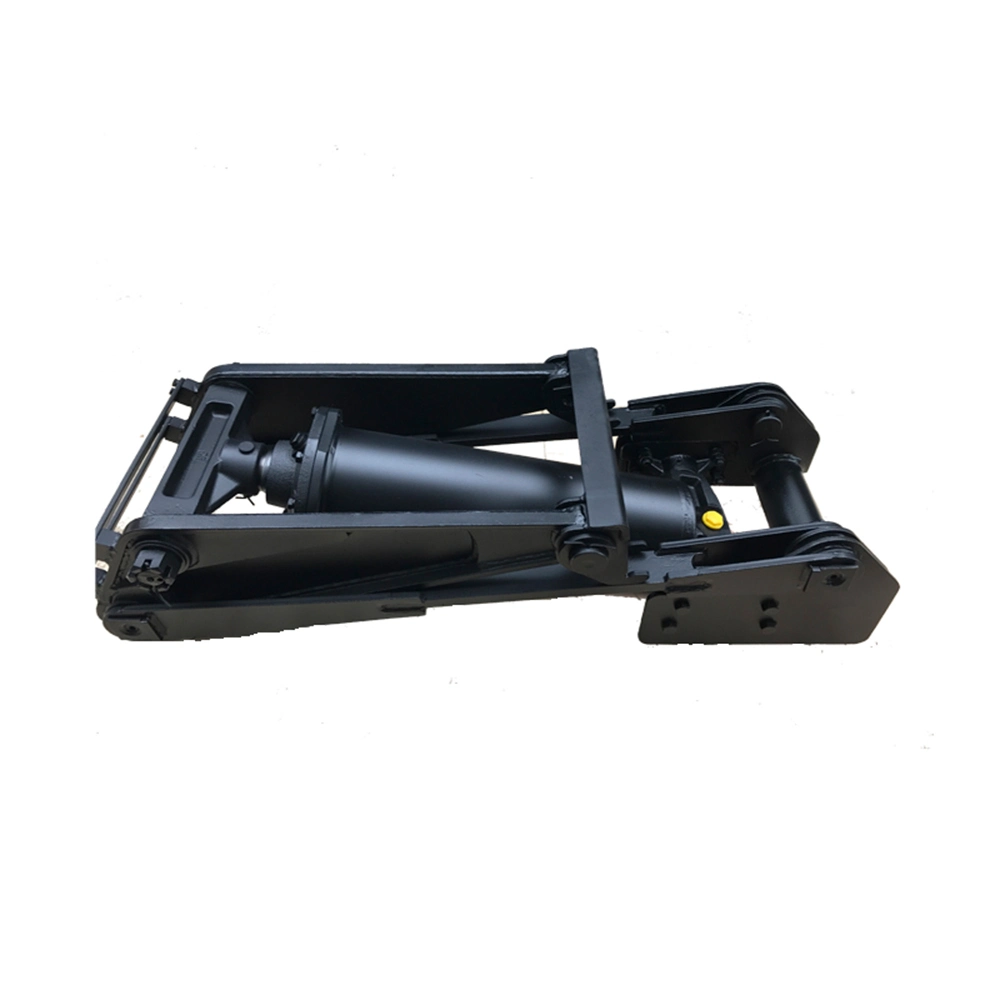

Hydraulic Hoist Cylinder Krm143b for Dump Truck
Hoist Cylinder Technical Specificaion:Hoist Cylinder KRM143BWorking PressureInner DiameterStrokeMin.Close DistancePiston Rod DiameterMax. Pressure6.4MPa140mm620mm895mm70mm14.7MPa Hoist Machanism Dimensions and WeightLengthWidthHeightMin.Closed LengthWeight1360mm447mm302mm431mm168kg Hoist Mounting an......
Send Inquiry
Product Description
Hoist Cylinder Technical Specificaion:
| Hoist Cylinder KRM143B | |||||
| Working Pressure | Inner Diameter | Stroke | Min.Close Distance | Piston Rod Diameter | Max. Pressure |
6.4MPa | 140mm | 620mm | 895mm | 70mm | 14.7MPa |
Hoist Machanism Dimensions and Weight
| Length | Width | Height | Min.Closed Length | Weight |
| 1360mm | 447mm | 302mm | 431mm | 168kg |
Hoist Mounting and Maximum Lifting Capacity
| Recommen ded Truck G.W. | Body Length | Rear Overhang Length | Distance between Load Center and Hinge | Distance between trunnion and Hinge | Rated Lifting Capacity | Designed Max.Lifting Capacity |
| 6000-9000kg | 3400mm | 400mm | 1300mm | 1100mm | 5000-10000kg | 18000kg |
