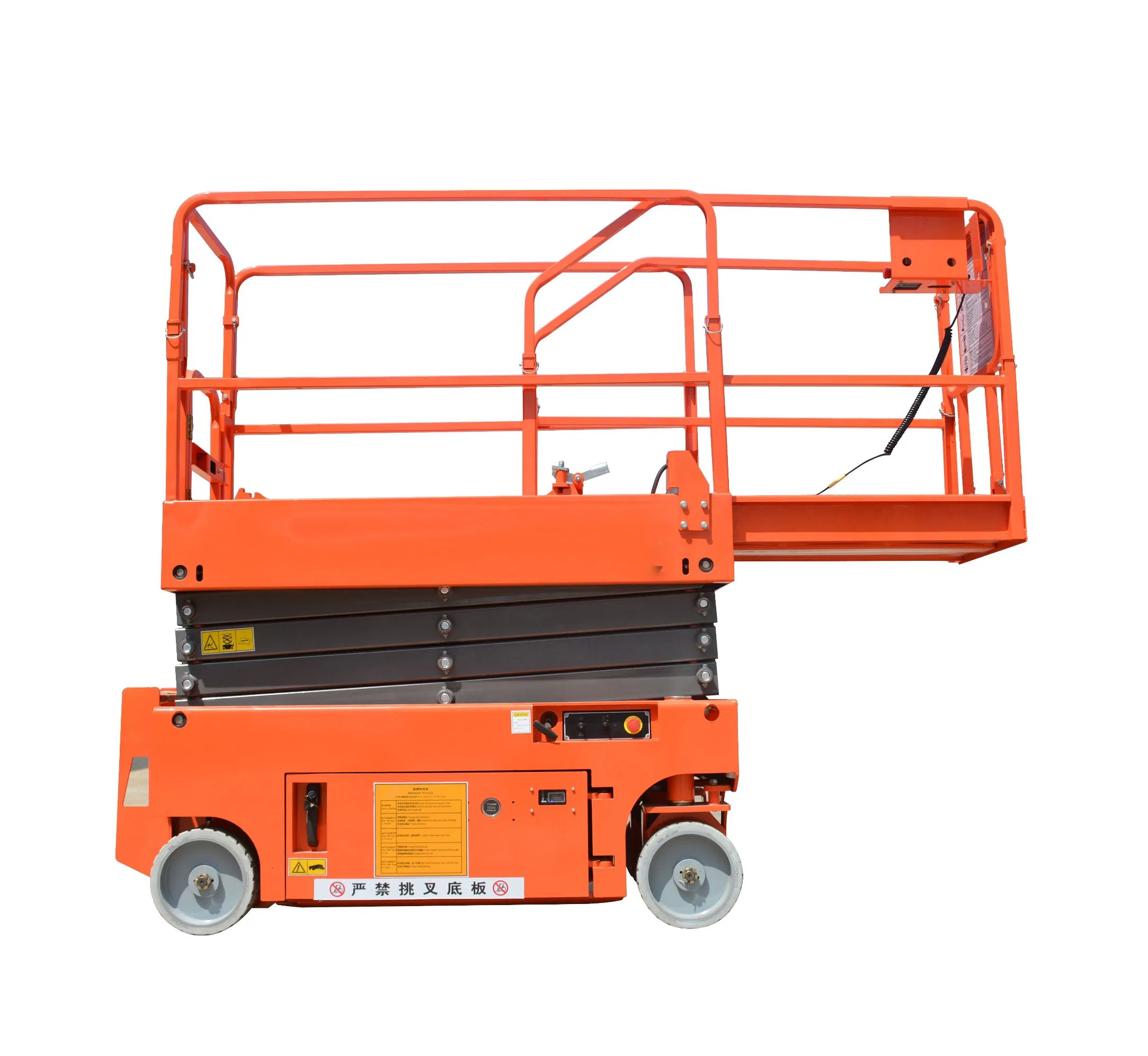

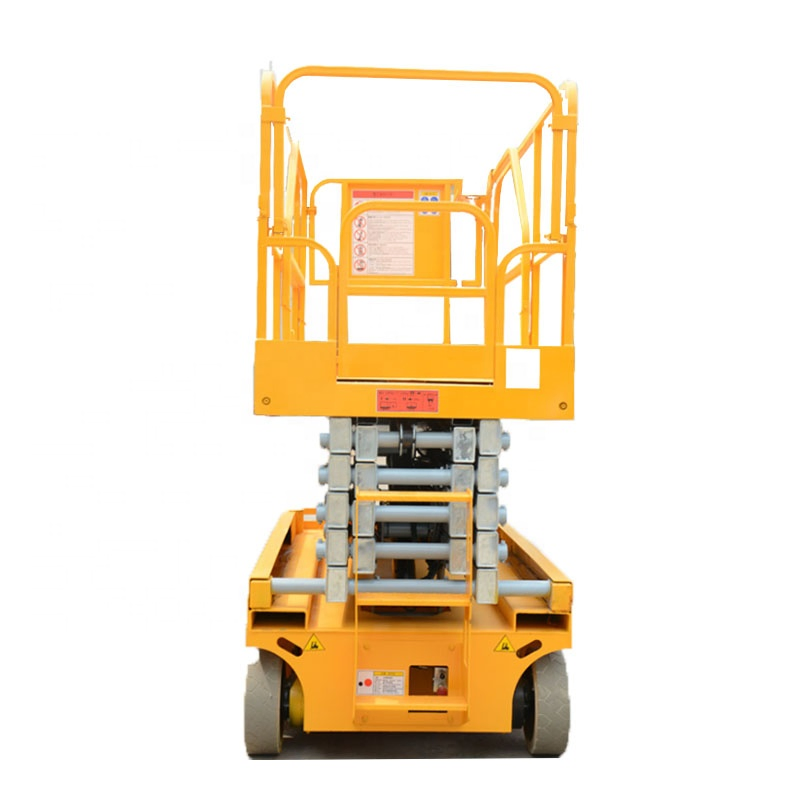

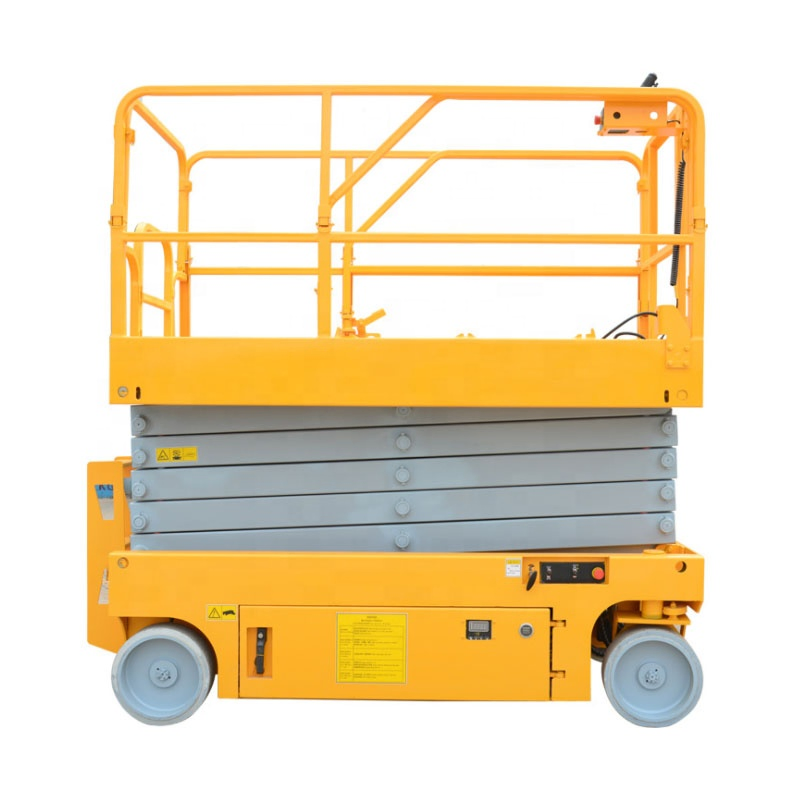

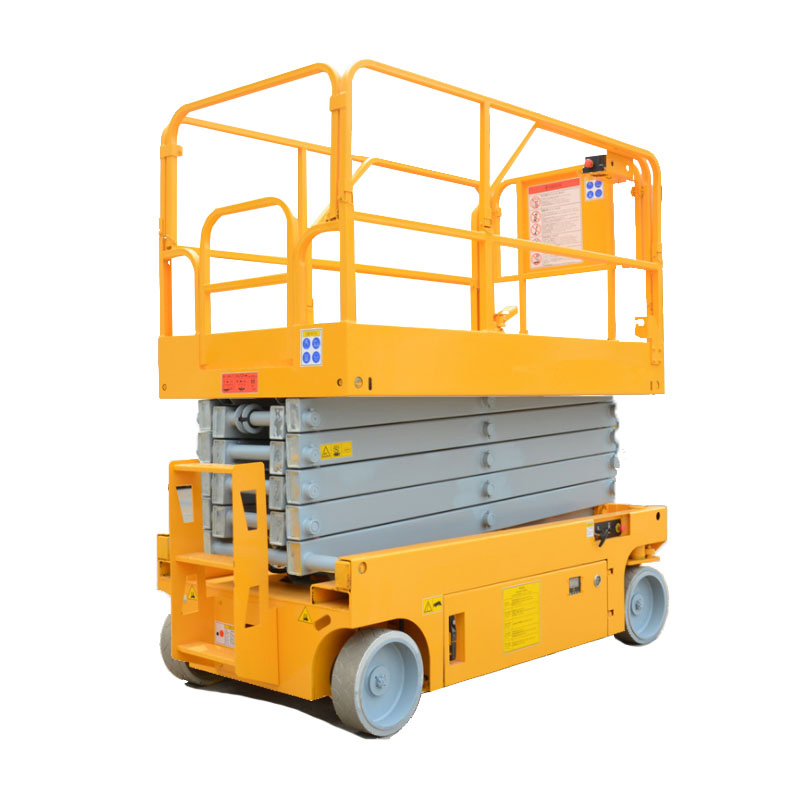

10m Height Load 380kg Electric Hydraulic Scissor Lift Platform
PRODUCT PRESENTATIONTECHNICAL PARAMETER MODELTHJZ-6ATHJZ-6THJZ-8ATHJZ-8ATHJZ-10THJZ-12WORKING HEIGHT MAXDMUM6m5m8m8m1om11.8mSAFE WORKING LOAD380KG550KG230KG450KG320KG320KGWORKING PLATFORM SIZE2.26*0.81*1.1M2.26*1.13*1.1M2.26*0.81*1.1M2.26*1.13*1.1M2.26*1.13*1.1M2.26*1.13*1.1MOVERALL SIZE2.475*0.81*2......
Send Inquiry
Product Description

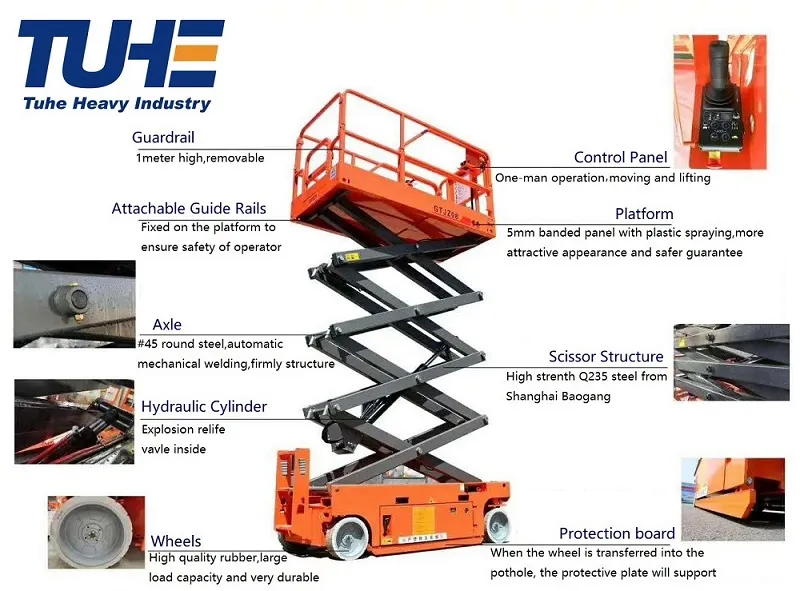

PRODUCT PRESENTATION
TECHNICAL PARAMETER
OUR COMPANY
Jinan Tuhe Heavy Industry Co., Ltd. is a large-scale professional and standardized machinery manufacturing enterprise integrating R&D, manufacturing and sales. The company has automated cutting equipment, automated welding equipment, shot blasting line, spraying line, welding robot and other modernizations. Production equipment.
TECHNICAL PARAMETER
| MODEL | THJZ-6A | THJZ-6 | THJZ-8A | THJZ-8A | THJZ-10 | THJZ-12 |
| WORKING HEIGHT MAXDMUM | 6m | 5m | 8m | 8m | 1om | 11.8m |
| SAFE WORKING LOAD | 380KG | 550KG | 230KG | 450KG | 320KG | 320KG |
| WORKING PLATFORM SIZE | 2.26*0.81*1.1M | 2.26*1.13*1.1M | 2.26*0.81*1.1M | 2.26*1.13*1.1M | 2.26*1.13*1.1M | 2.26*1.13*1.1M |
| OVERALL SIZE | 2.475*0.81*2.158M | 2.475*1.15*2.158M | 2.475*0.81*2.286M | 2.475*1.15*2.286M | 2.475*1.15*2.414M | 2.475*1.15*2.542M |
| LEMGH EXTENSION DECK | 0.9M | 0.9M | 0.9M | 0.9M | 0.9M | 0.9M |
| GROUNG CLEARANCE-CENTER | 0.1/0.02M | 0.1/0.02M | 0.1/0.02M | 0.1/0.02M | 0.1/0.02M | 0.1/0.02M |
| WHEELBASE | 1.89M | 1.89M | 1.89M | 1.89M | 1.89M | 1.89M |
| YURNING RADIUS | 0/2.1M | 0/2.2M | 0/2.1M | 0/2.2M | 0/2.2M | 0/2.2M |
| LIFTING MOTOR | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
| LIFTING SPEED | 3-5M/min | 3-5M/min | 3-5M/min | 3-5M/min | 3-5M/min | 3-5M/min |
| THE MACHINE SPEED(FOLDED) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| THE MACHINE SPEED(LIFTING) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| BATTERY | 4x6V/225ah | 4x6V/225ah | 4x6V/225ah | 4x6V/225ah | 4x6V/225ah | 4x6V/225ah |
| CHARGER | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A |
| MAX CLIMR CAPABILITY | 25% | 25% | 25% | 25% | 25% | 25% |
| MAXIMUM ALLOWABLE WORKING ANGIE | 1.5°/3° | 2°/3° | 1.5°/3° | 2°/3° | 2°/3° | 1.5°/3° |
| TYRE | Ф381x127mm | Ф381x127mm | Ф381x127mm | Ф381x127mm | Ф381x127mm | Ф381x127mm |
| WEIGHT | 1850kg | 2060kg | 1980kg | 2190lg | 2430kg | 2960kg |
OUR COMPANY
Jinan Tuhe Heavy Industry Co., Ltd. is a large-scale professional and standardized machinery manufacturing enterprise integrating R&D, manufacturing and sales. The company has automated cutting equipment, automated welding equipment, shot blasting line, spraying line, welding robot and other modernizations. Production equipment.
