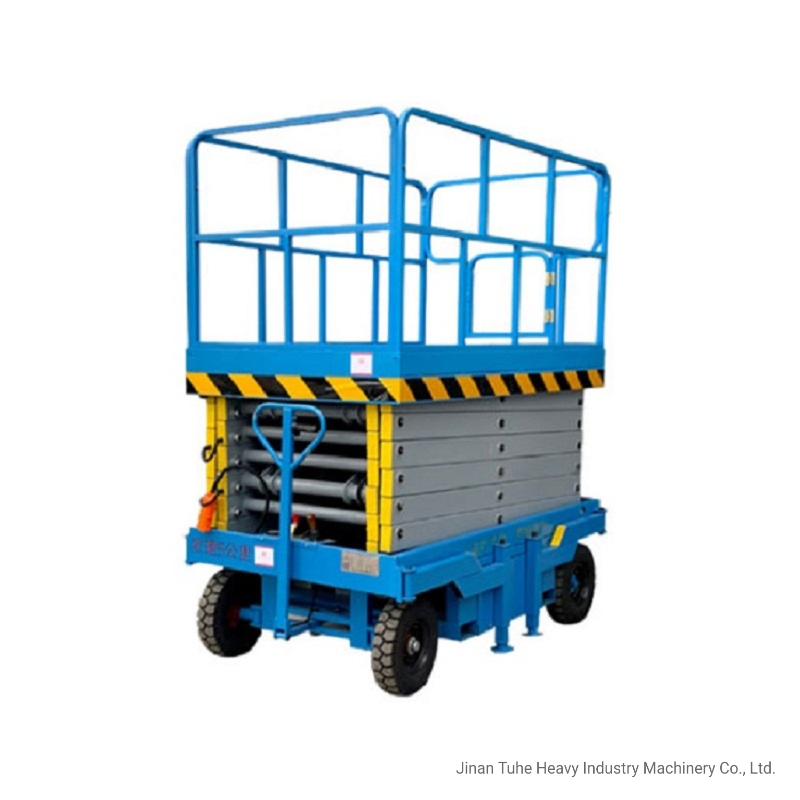

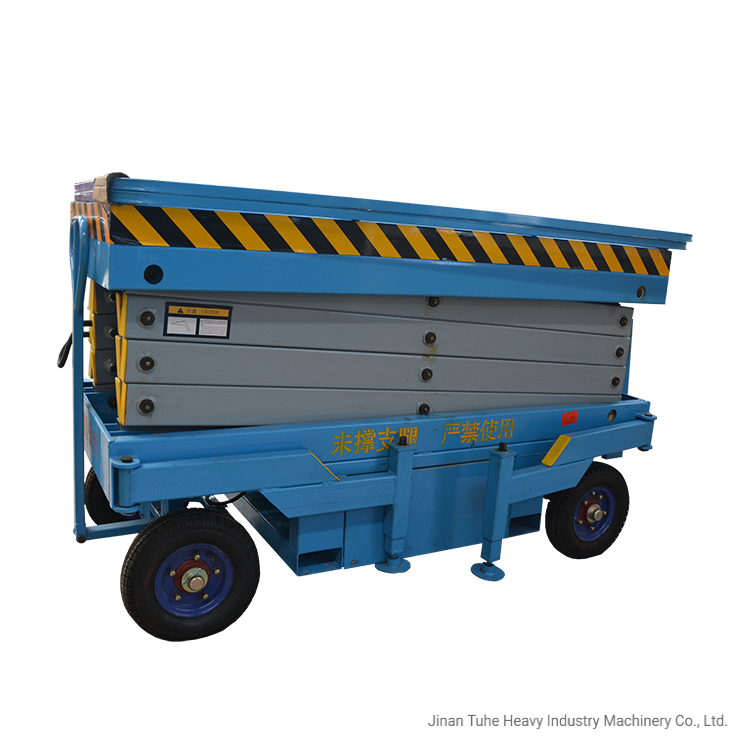

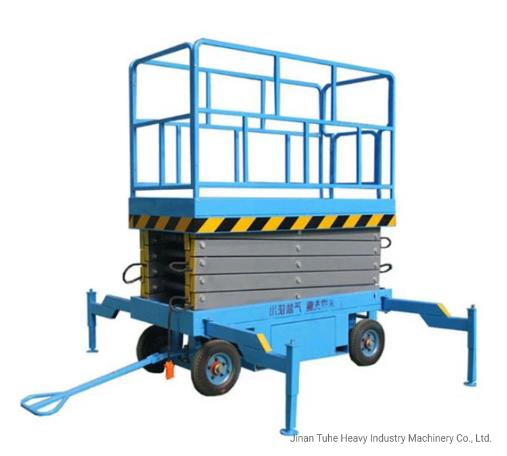

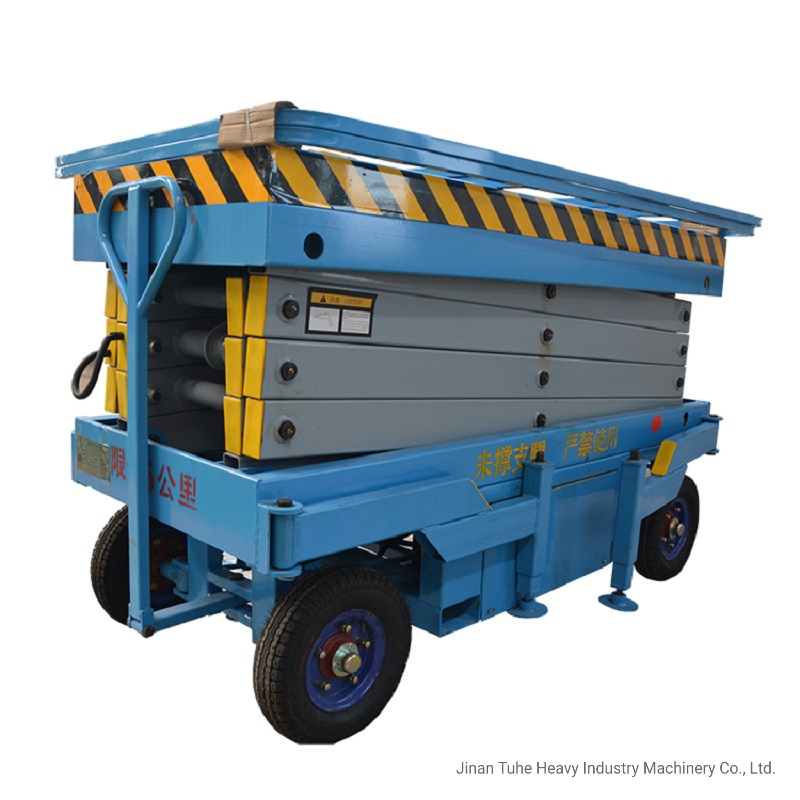

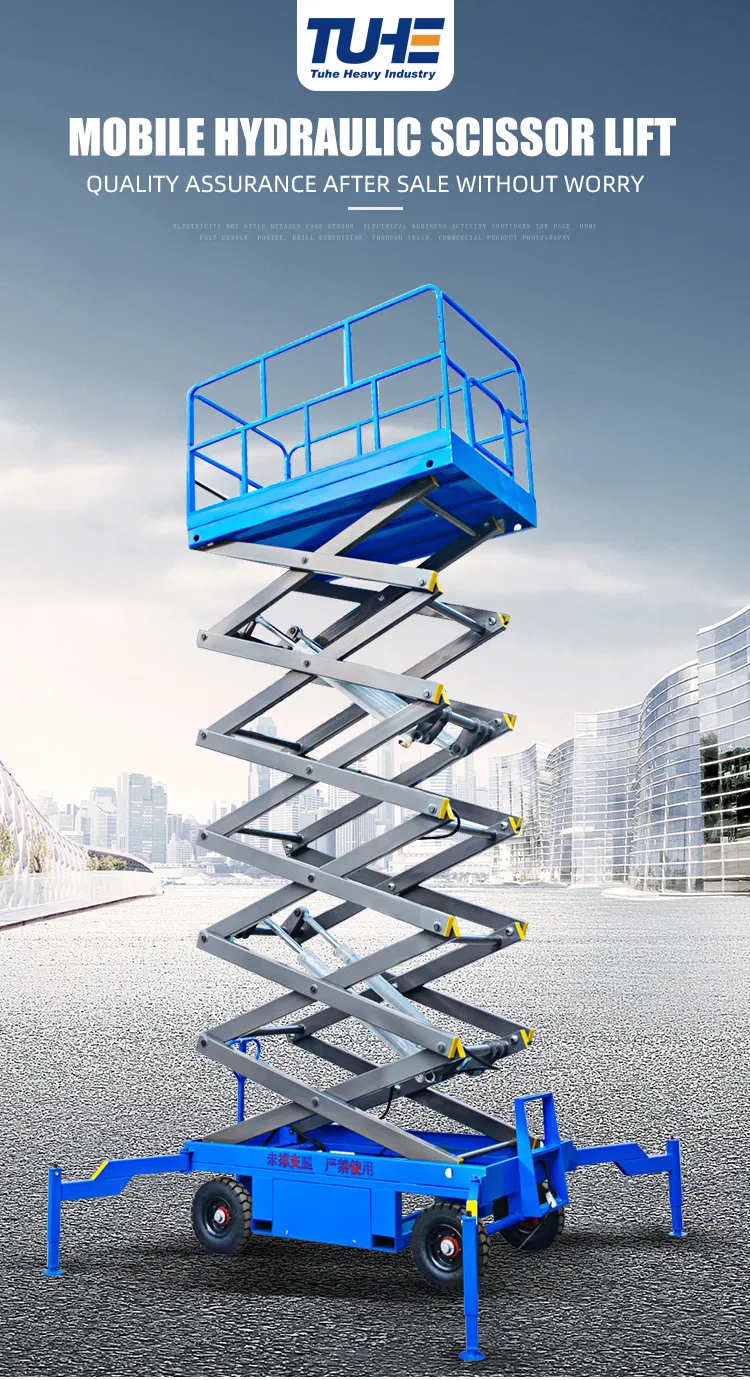

380kg Height Electric Hydraulic Mobile Scissor Lift Platform
PRODUCT PRESENTATIONTECHNICAL PARAMETER YTPEPLATFORM SIZE(mm)LOADLIFEDR HEIGHT(mm)DIMENSIONWEIGHETHCY0.5-42100*83050042250*950*1200880THCY0.5-62100*83050062250*950*1200880THCY0.5-72100*8305006.82250*950*1280970THCY0.5-82100*93050082250*1060*13801050THCY0.5-92100*93050092250*1060*15001165THCY0.5-1021......
Send Inquiry
Product Description

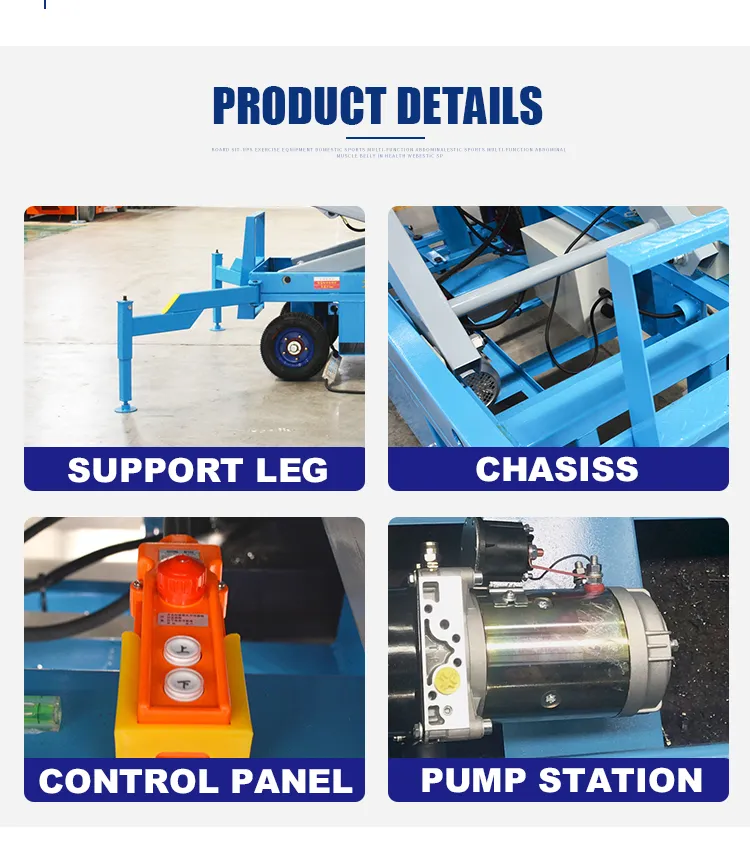

PRODUCT PRESENTATION
TECHNICAL PARAMETER
OUR COMPANY
Jinan Tuhe Heavy Industry Machinery Co., Ltd. is a domestic professional manufacturer of hydraulic lifting platforms, located in the
"Hometown of China's Lifting Platform Manufacturing---Jiyang". The company has a strong technical team, has developed a variety
of hydraulic lifting platform products, has made a number of technical improvements, has a greater advantage in intelligence and
reliability,and has applied for a number of technical patents, becoming a rising star in the industry. The company independently
developed and produced scissor lift series, aluminum alloy lift series, rail-type lifting platform, cylinder lift series and boarding bridges.

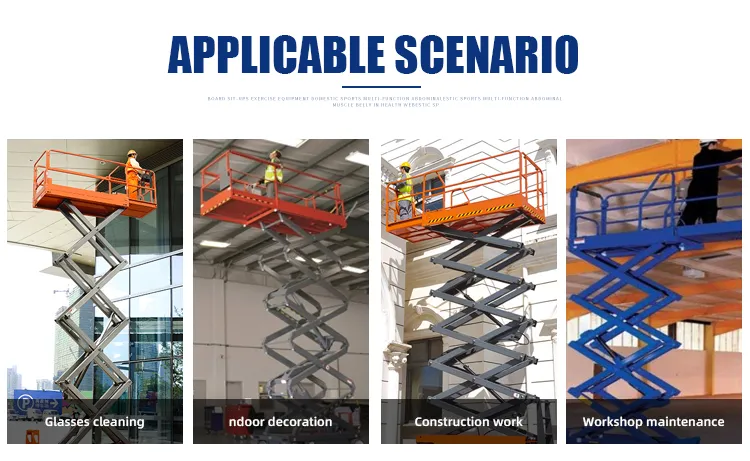

Products are widely used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations, stadiums,
overhead pipelines and other high-altitude equipment installation, maintenance, cleaning and other scenarios, and also used in lifting
equipment maintenance, field power equipment maintenance, etc. The company has advanced equipment, strong technical force,
advanced and reasonable technological process, and complete testing methods. The company has advanced domestic assembly lines,
various production and testing equipment, and modern CNC machining. The company is strong in research and development,
which can meet the needs of product research and development such as hydraulic lifting platforms.
The company has formed a one-stop service of market research, product planning, modeling design, specialized production,
and after-sales service. The company has won the unanimous love of users with its high-quality products,
good reputation and patient and meticulous after-sales service. In order to meet the increasingly diversified user needs in the market,
the company will be based on a win-win goal, with the most advantageous products and the most favorable prices,
welcome everyone to come to inquire!
TECHNICAL PARAMETER
| YTPE | PLATFORM SIZE(mm) | LOAD | LIFEDR HEIGHT(mm) | DIMENSION | WEIGHE |
| THCY0.5-4 | 2100*830 | 500 | 4 | 2250*950*1200 | 880 |
| THCY0.5-6 | 2100*830 | 500 | 6 | 2250*950*1200 | 880 |
| THCY0.5-7 | 2100*830 | 500 | 6.8 | 2250*950*1280 | 970 |
| THCY0.5-8 | 2100*930 | 500 | 8 | 2250*1060*1380 | 1050 |
| THCY0.5-9 | 2100*930 | 500 | 9 | 2250*1060*1500 | 1165 |
| THCY0.5-10 | 2100*1230 | 500 | 10 | 2250*1350*1530 | 1360 |
| THCY0.3-11 | 2100*1230 | 300 | 11 | 2250*1350*1650 | 1400 |
| THCY0.5-12 | 2550*1530 | 500 | 12 | 2796*1670*1750 | 2260 |
| THCY0.5-14 | 2812*1530 | 500 | 14 | 3067*1730*1810 | 2486 |
| THCY0.3-16 | 2812*1600 | 300 | 16 | 3067*1810*2080 | 3063 |
| THCY0.3-18 | 3070*1600 | 300 | 18 | 3321*1810*2080 | 3900 |
| THCY1.0-4 | 2100*1200 | 1000 | 4 | 2250*1350*1180 | 1250 |
| THCY1.0-6 | 2100*1200 | 1000 | 6 | 2250*1350*1300 | 1400 |
| THCY1.0-8 | 2100*1200 | 1000 | 8 | 2250*1350*1420 | 1585 |
| THCY1.0-10 | 2100*1200 | 1000 | 10 | 2250*1350*1530 | 1700 |
| THCY1.0-12 | 2550*1530 | 1000 | 12 | 2796*1670*1750 | 2560 |
| THCY1.0-14 | 2812*1600 | 1000 | 14 | 3067*1810*1900 | 3230 |
| THCY1.5-6 | 2100*1530 | 1500 | 6 | 2250*1750*1530 | 1780 |
| THCY1.5-8 | 2100*1530 | 1500 | 8 | 2250*1750*1690 | 2070 |
| THCY1.5-10 | 2100*1500 | 1500 | 10 | 2250*1750*1850 | 2250 |
| THCY1.5-12 | 2600*1500 | 1500 | 12 | 3000*1900*2300 | 3500 |
| THCY1.5-14 | 3200*1600 | 1500 | 14 | 3500*2000*2200 | 5000 |
| THCY2.0-6 | 2100*1530 | 2000 | 6 | 2250*1750*1530 | 1780 |
| THCY2.0-8 | 2100*1530 | 2000 | 8 | 2250*1750*1690 | 2070 |
| THCY2.0-10 | 2100*1530 | 2000 | 10 | 2250*1750*1850 | 2250 |
| THCY2.0-12 | 2600*1500 | 2000 | 12 | 3000*1900*2300 | 4500 |
| THCY2.0-14 | 3200*1600 | 2000 | 14 | 3500*2000*2500 | 5500 |
OUR COMPANY
Jinan Tuhe Heavy Industry Machinery Co., Ltd. is a domestic professional manufacturer of hydraulic lifting platforms, located in the
"Hometown of China's Lifting Platform Manufacturing---Jiyang". The company has a strong technical team, has developed a variety
of hydraulic lifting platform products, has made a number of technical improvements, has a greater advantage in intelligence and
reliability,and has applied for a number of technical patents, becoming a rising star in the industry. The company independently
developed and produced scissor lift series, aluminum alloy lift series, rail-type lifting platform, cylinder lift series and boarding bridges.
Products are widely used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations, stadiums,
overhead pipelines and other high-altitude equipment installation, maintenance, cleaning and other scenarios, and also used in lifting
equipment maintenance, field power equipment maintenance, etc. The company has advanced equipment, strong technical force,
advanced and reasonable technological process, and complete testing methods. The company has advanced domestic assembly lines,
various production and testing equipment, and modern CNC machining. The company is strong in research and development,
which can meet the needs of product research and development such as hydraulic lifting platforms.
The company has formed a one-stop service of market research, product planning, modeling design, specialized production,
and after-sales service. The company has won the unanimous love of users with its high-quality products,
good reputation and patient and meticulous after-sales service. In order to meet the increasingly diversified user needs in the market,
the company will be based on a win-win goal, with the most advantageous products and the most favorable prices,
welcome everyone to come to inquire!
