6m to 12m 14m Mobile Scissor Lift Electric Hydraulic Man Lift
6m to 18m Hydraulic Full Electric Battery Operated Scissor Lift for Sales Full Electric Mobile Scissor Lift is one high performance electric hydraulic scissor lift. It adopts hydraulic principle and is moved by battery power, its driving motor is installed at the rear wheels of the scissor lift, ve......
Send Inquiry
Product Description
6m to 18m Hydraulic Full Electric Battery Operated Scissor Lift for Sales

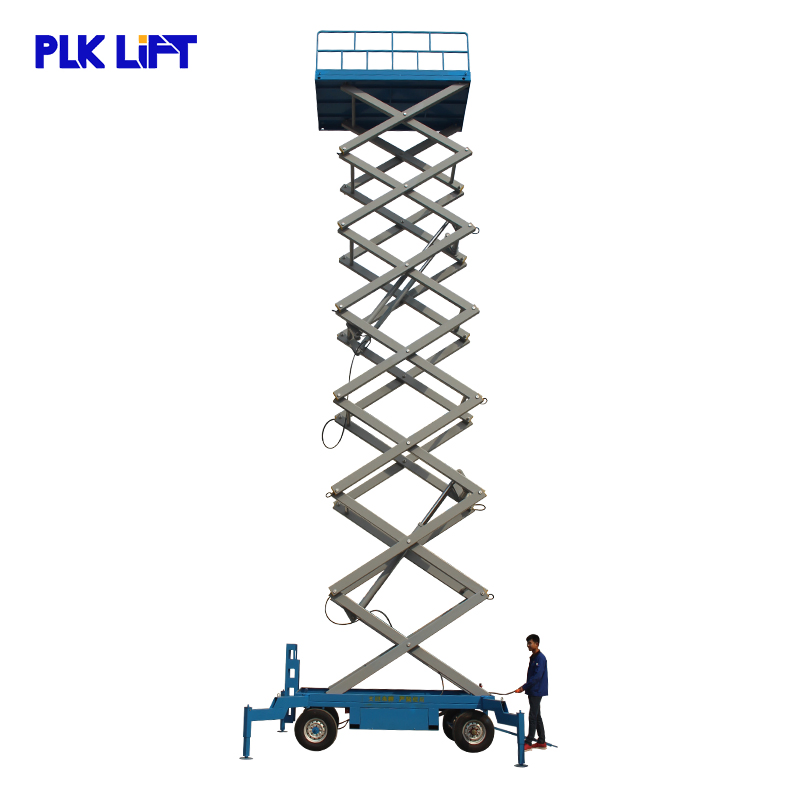

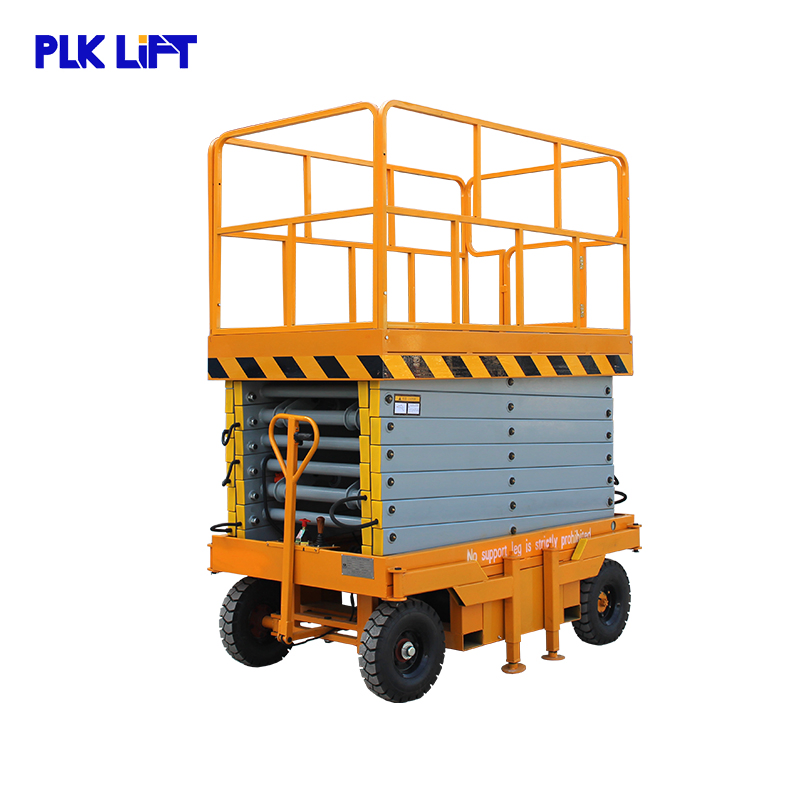

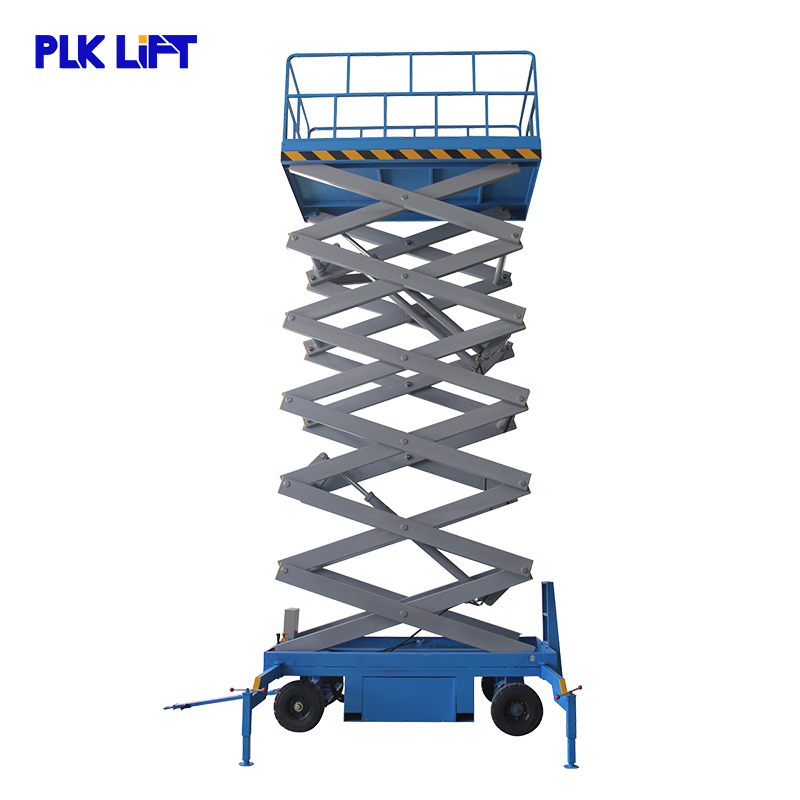

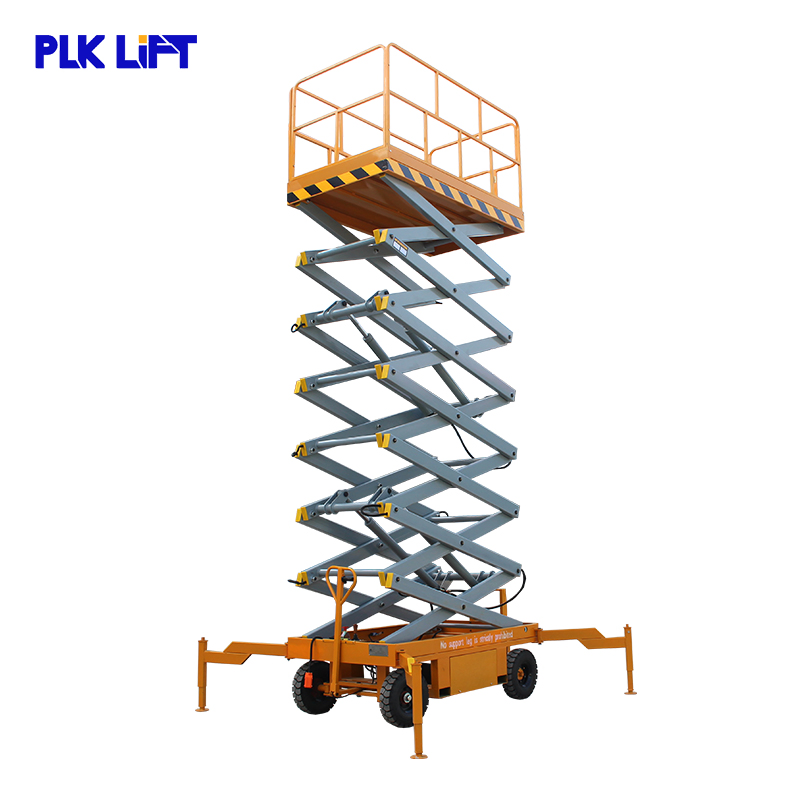

Full Electric Mobile Scissor Lift is one high performance electric hydraulic scissor lift. It adopts hydraulic principle and is moved by battery power, its driving motor is installed at the rear wheels of the scissor lift, very convenient. It is widely used lifting equipment in factory, warehouse, construction site for overhead aerail working. With capacity 500kg to 2000kg, it can reach the working height from 6m to 20m, very widely vertical working range, both suitable for man working on the platform and heavy material handling.
Its operation is very simple and easy. You can control its lifting with the control panels both upside & downside and move it with the driving handle in the front.
We have been producing the automotive scissor lift for many years. We will supply you the best product also provide you the best after sales service. All our hydraulic platform lift are CE certificated, with super good quality. We have sent our scissor lift to many countries, receiving good feedback.
Data Sheet:
| Model No. | Table Size (mm) | Platform Height (m) | Working Height (m) | Retract Height (m) | Voltage (V) | Overall size (mm) | N.W.(kg) |
| 500KG Loading Capacity | |||||||
| SJYZ0506 | 2100*830 | 6 | 8 | 1.2 | 1 or 3phase | 2250*950*1200 | 880 |
| SJYZ0507 | 2100*830 | 7 | 9 | 1.28 | 1 or 3phase | 2250*950*1280 | 970 |
| SJYZ0508 | 2100*930 | 8 | 10 | 1.38 | 1 or 3phase | 2250*1060*1380 | 1050 |
| SJYZ0509 | 2100*930 | 9 | 11 | 1.5 | 1 or 3phase | 2250*1060*1500 | 1165 |
| SJYZ0510 | 2100*1230 | 10 | 12 | 1.53 | 1 or 3phase | 2250*1350*1530 | 1360 |
| SJYZ0511 | 2100*1230 | 11 | 13 | 1.65 | 1 or 3phase | 2250*1350*1650 | 1400 |
| SJYZ0512 | 2550*1530 | 12 | 14 | 1.75 | 1 or 3phase | 2796*1670*1750 | 2260 |
| SJYZ0514 | 2812*1530 | 14 | 16 | 1.81 | 1 or 3phase | 3067*1730*1810 | 2400 |
| SJYZ0516 | 2812*1600 | 16 | 18 | 2.08 | 1 or 3phase | 3067*1800*2080 | 3500 |
| SJYZ0518 | 3070*1600 | 18 | 20 | 2.08 | 1 or 3phase | 3321*1810*2080 | 3900 |
| 1000KG Loading Capacity | |||||||
| SJYZ1004 | 2100*1200 | 4 | 6 | 1.18 | 3phase | 2250*1350*1180 | 1250 |
| SJYZ1006 | 2100*1200 | 6 | 8 | 1.3 | 3phase | 2200*1350*1300 | 1400 |
| SJYZ1008 | 2100*1200 | 8 | 10 | 1.42 | 3phase | 2200*1350*1420 | 1585 |
| SJYZ1010 | 2100*1200 | 10 | 12 | 1.53 | 3phase | 2200*1350*1530 | 1700 |
| SJYZ1012 | 2550*1530 | 12 | 14 | 1.75 | 3phase | 2796*1670*1750 | 2560 |
| SJYZ1014 | 2812*1530 | 14 | 16 | 1.81 | 3phase | 3067*1750*1810 | 2765 |
| 1500KG Loading Capacity | |||||||
| SJYZ1506 | 2100*1530 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
| SJYZ1508 | 2100*1530 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
| SJYZ1510 | 2100*1530 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
| SJYZ1512 | 2550*1530 | 12 | 14 | 1.85 | 3phase | 2250*1762*1850 | 2900 |
| SJYZ1514 | 2816*1600 | 14 | 16 | 1.96 | 3phase | 3045*1852*1960 | 3400 |
| 2000KG Loading Capacity | |||||||
| SJYZ2006 | 2100*1530 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
| SJYZ2008 | 2100*1530 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
| SJYZ2010 | 2100*1530 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
| SJYZ2012 | 2550*1600 | 12 | 14 | 1.954 | 3phase | 2796*1852*1954 | 3200 |
| SJYZ2014 | 2816*1600 | 14 | 16 | 2.23 | 3phase | 3067*1852*2230 | 3900 |
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
