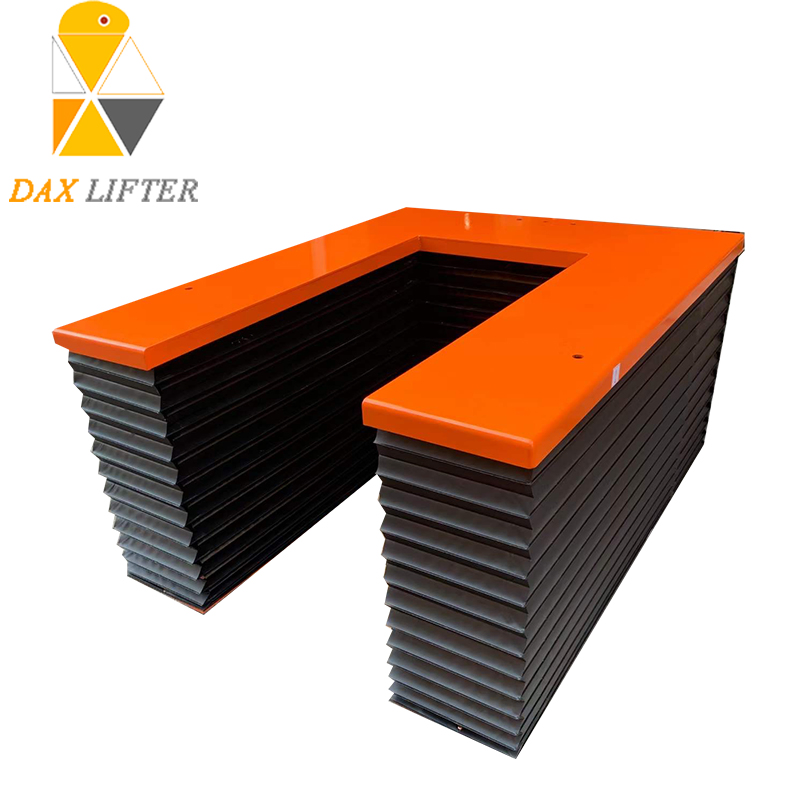

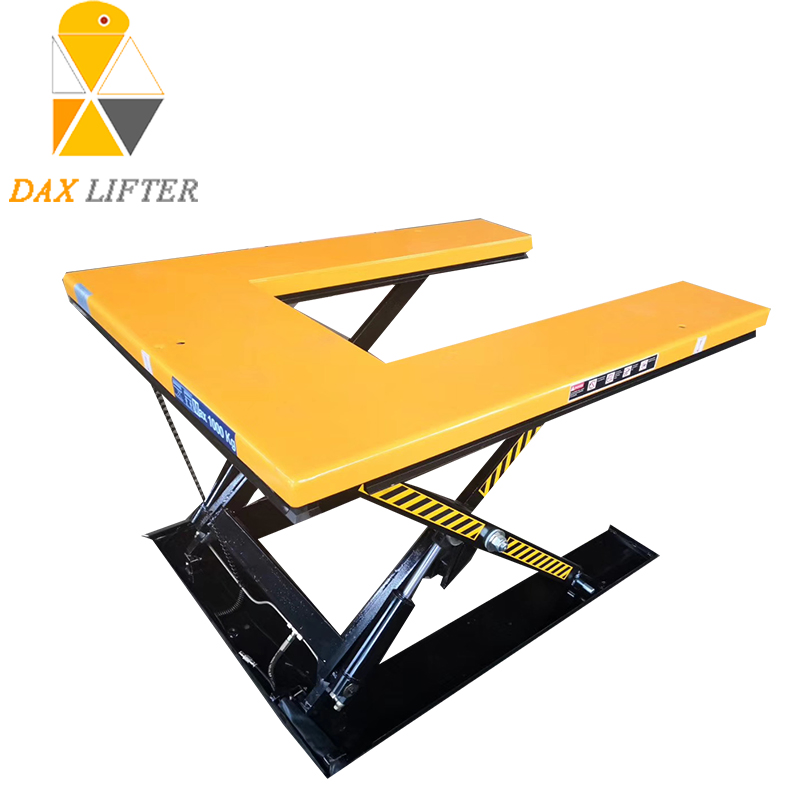

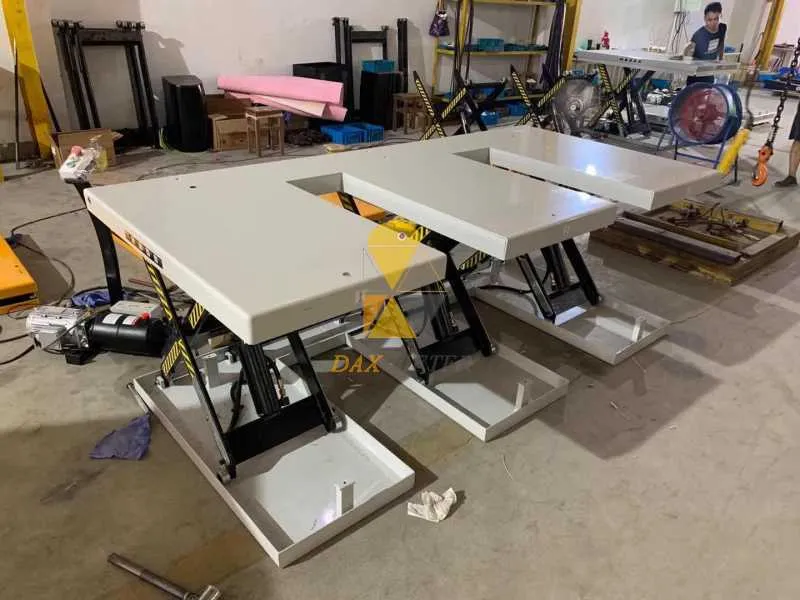

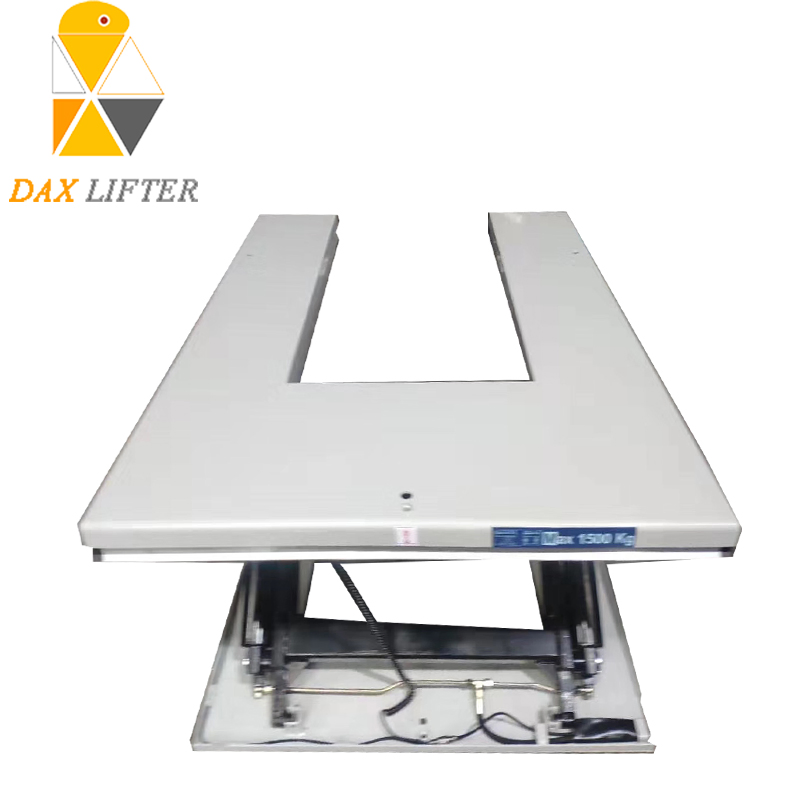

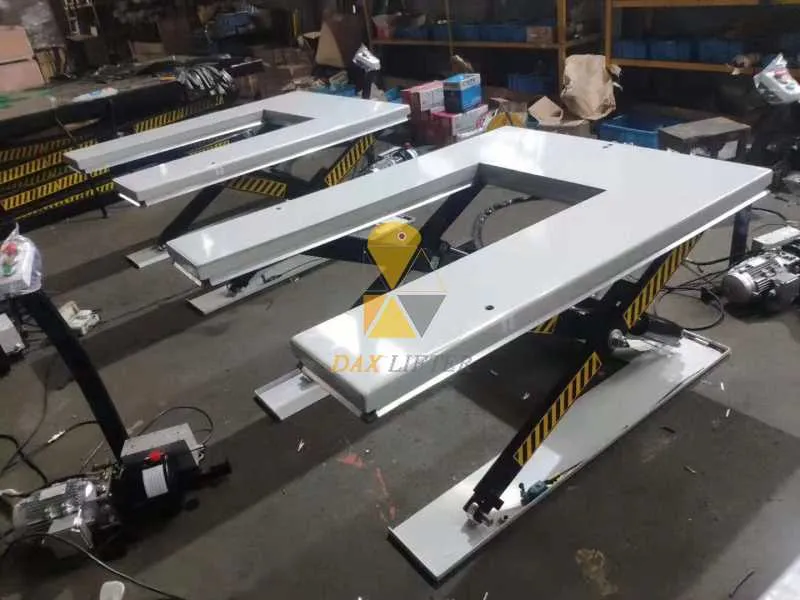

Daxlifter Hydraulic System Customized U Type Scissor Lift Table
China Daxlifter U Shape Custom Made Sscissor Lift TableOEM&ODM SERVICEDESCRIPTION:U Shape Scissor Lift Table Special Design for warehouse pallet materils handling work which make the work fo forklift more easier.Ultralow platform with heavy duty which make the U lift table suit for multiple work......
Send Inquiry
Product Description
China Daxlifter U Shape Custom Made Sscissor Lift Table
OEM&ODM SERVICE
OEM&ODM SERVICE
DESCRIPTION:
Ultralow platform with heavy duty which make the U lift table suit for multiple work.
TECHNICAL DATA
| Model | DXU600 | DXU1000 | DXU1500 | |
| Load Capacity | kg | 600 | 1000 | 1500 |
| Platform size LxW | mm | 1450x985 | 1450x1140 | 1600x1180 |
| Size A | mm | 200 | 280 | 300 |
| Size B | mm | 1080 | 1080 | 1194 |
| Size C | mm | 585 | 580 | 580 |
| Min.Platform Height | mm | 85 | 85 | 105 |
| Max.Platform Height | mm | 860 | 860 | 860 |
| Base size LxW | mm | 1335x947 | 1335x947 | 1335x947 |
| Lifting time | s | 25-35 | 25-35 | 30-40 |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Net weight | kg | 207 | 280 | 380 |
| Packing Size | Platform | 1470*1160*195mm | 1470*1160*195mm | 1650*1250*210 mm |
| Pump | 800*450*350mm | 800*450*350mm | 1000*400*330mm |
