Height 6m Capacity 380kg Mini Self Propelled Mobile Lifting Equipment
Height 6m Capacity 380kg Mini Self Propelled Mobile Lifting EquipmentMORN self propelled scissor lifts are used for lifting workers to the high level which are made electric powered with Trojan battery provides the power to move and steer around.Fully self walk and up&down system makes it more c......
Send Inquiry
Product Description

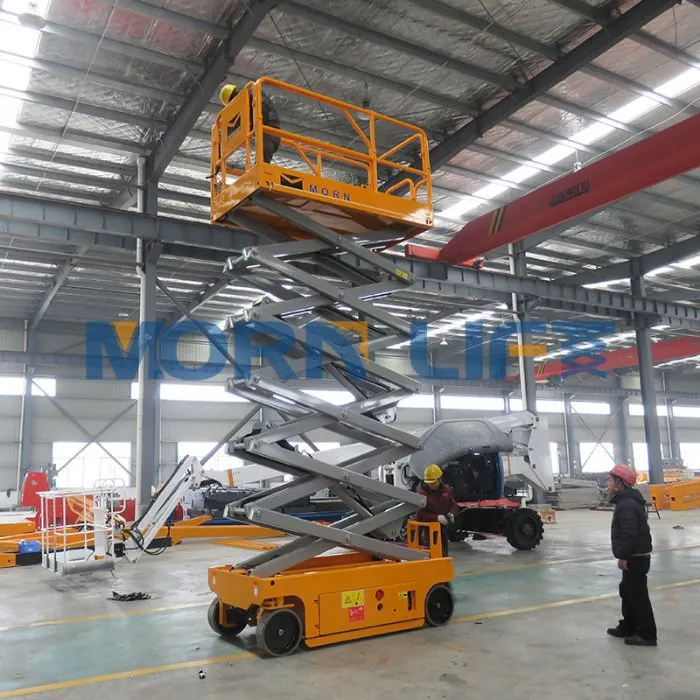

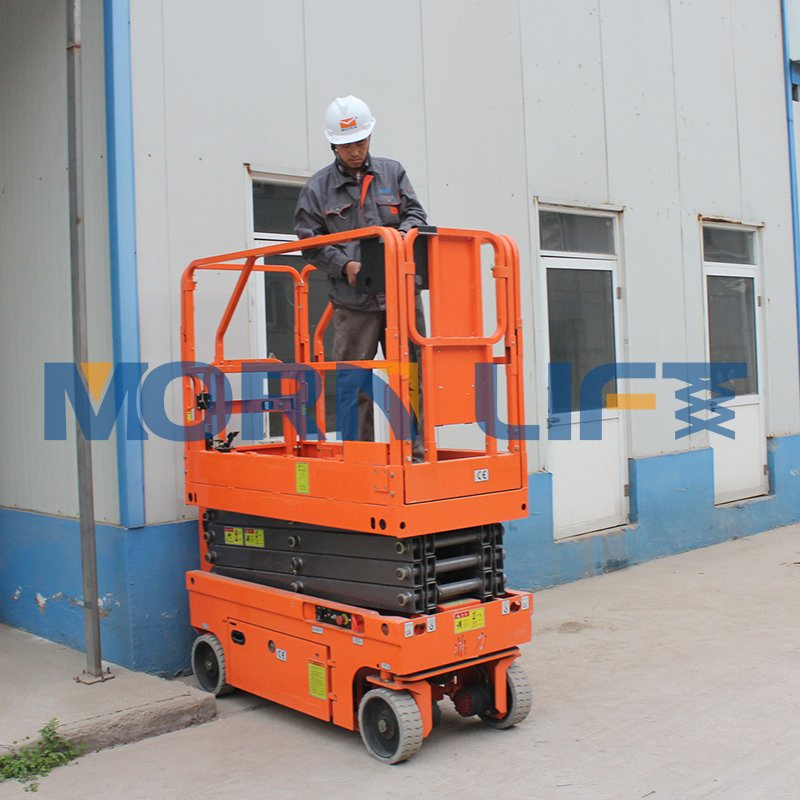

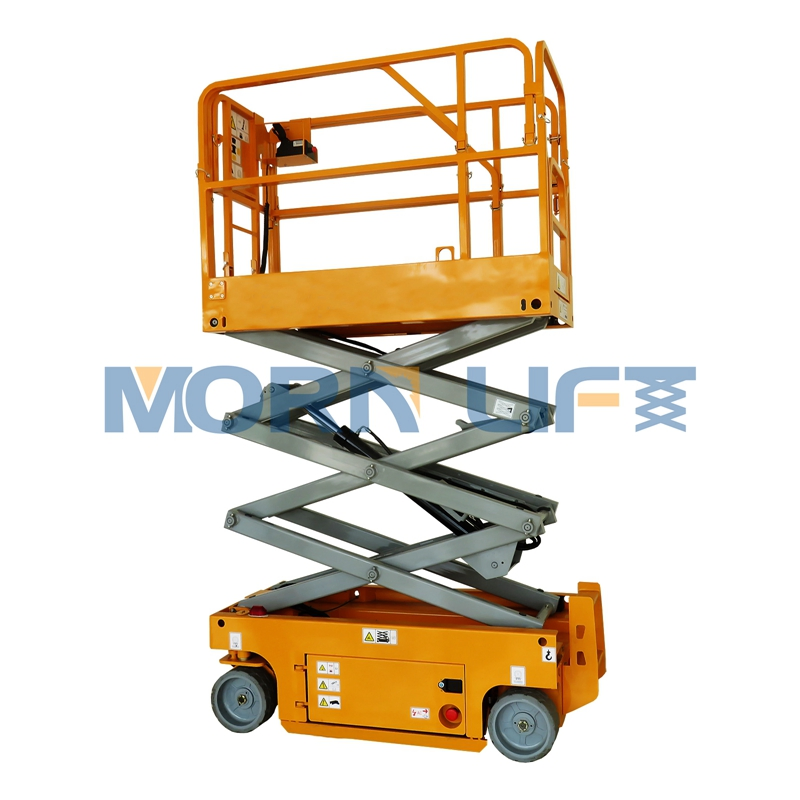

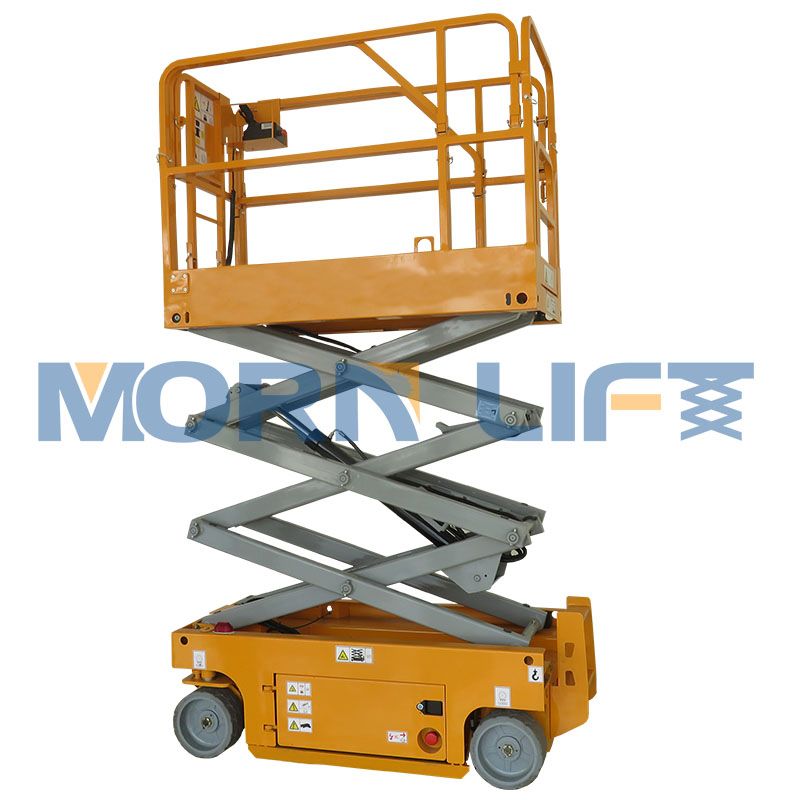

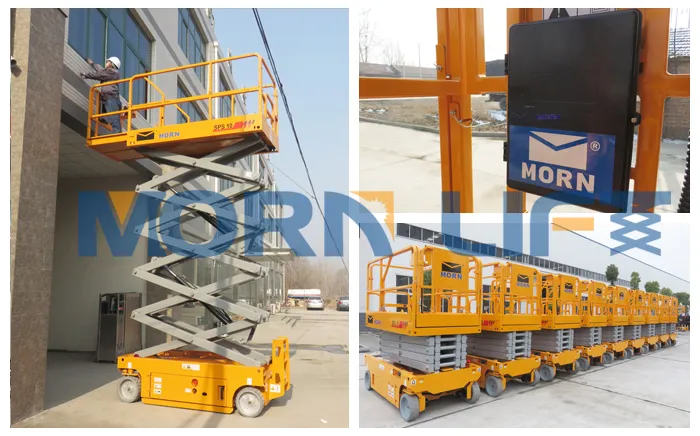

MORN self propelled scissor lifts are used for lifting workers to the high level which are made electric powered with Trojan battery provides the power to move and steer around.
Fully self walk and up&down system makes it more convenient for one person operate on the platform.
Technical Parameters:
| Model | SPS-6 |
| Platform height(m) | 6.2 |
| Working height(m) | 8.2 |
| Platform capacity(kg) | 380 |
| Platform size(mm) | 2.26×0.82 |
| Platform extension length(mm) | 900 |
| Length-stowed(mm) | 2485 (D) |
| Overall width(mm) | 820 (E) |
| Height stowed(mm) | 2200 (C) |
| Ground clearance(mm) | 100 |
| Travel speed (stowed/raised) (kw/h) | 3.2/0.8 |
| Lift motor (V/kw) | 24/3 |
| Battery(V/Ah) | 4*6/216 |
| Charger(V/A) | 24/20-30 |
| Turning radius Minimum (mm) | 2100 |
| Grade-ability (%) | 25 |
| Weight(kg) | 1860 |

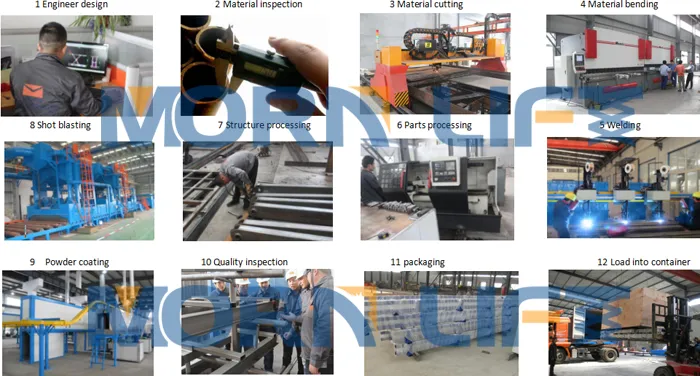

Manufacturing technology & process
1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.
MORN service:
1) User-friendly English manual for machine using and maintenance.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) Several sets wearing parts will be free for you.
